Lecture 5: Morphology Kai-Wei Chang CS @ University of Virginia - - PowerPoint PPT Presentation

▶

Sep 23, 2022 17 likes •335 views

Lecture 5: Morphology Kai-Wei Chang CS @ University of Virginia kw@kwchang.net Couse webpage: http://kwchang.net/teaching/NLP16 6501 Natural Language Processing 1 This lecture v What is the structure of words? v Can we build an analyzer to

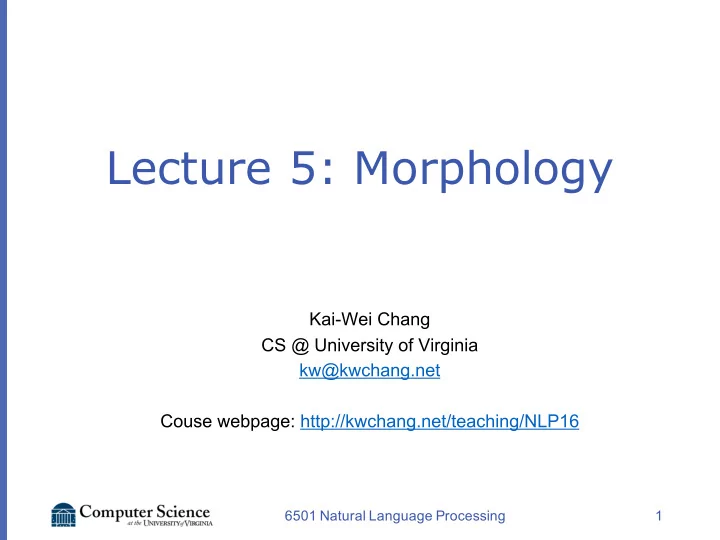

SLIDE 1

Lecture 5: Morphology

Kai-Wei Chang CS @ University of Virginia kw@kwchang.net Couse webpage: http://kwchang.net/teaching/NLP16

1 6501 Natural Language Processing

SLIDE 2

This lecture

v What is the structure of words? v Can we build an analyzer to model the structure of words?

vFinite-state automata and regular expression

2 6501 Natural Language Processing

SLIDE 3

Words

vFinite-state methods are particularly useful in dealing with a lexicon

vCompact representations of words

vAgenda

vsome facts about words vcomputational methods

6501 Natural Language Processing 3

SLIDE 4

A Turkish word

v How about English?

6501 Natural Language Processing 4

Example from Julia Hockenmaier, Intro to NLP

SLIDE 5

Longest word in English

v Longest word in Shakespeare’s

Honorificabilitudinitatibus (27 letters)

v Longest non-technical word:

Antidisestablishmentarianism (28 letters)

v Longest word in a major dictionary

Pneumonoultramicroscopicsilicovolcanoconiosis (45 letters)

v Longest word in literature

Lopadotemachoselachogaleokranioleipsano...pterygon (182 letters) – Ancient greek transliteration v Methionylthreonylthreonylglutaminylarginyl...isoleucine (189,819 letters) – chemical name of a protein

6501 Natural Language Processing 5

SLIDE 6

What is Morphology?

v The ways that words are built up from smaller meaningful units (morphemes) v Two classes of morphemes

vStems: The core meaning-bearing units vAffixes: adhere to stems to change their meanings and grammatical functions ve.g,. dis-grace-ful-ly

6501 Natural Language Processing 6

SLIDE 7

Inflection Morphology

Create different forms of the same word: v Examples:

vVerbs: walk, walked, walks vNouns: Book, books, book’s vPersonal pronouns: he, she, her, them, us

v Serves a grammatical/semantic purpose that is different from the original but is transparently related to the original

6501 Natural Language Processing 7

SLIDE 8

Derivational Morphology

Create different words from the same lemma: v Nominalization:

v V+ -ation: e.g., computerization v V+er: killer

v Negation:

v Un-: Unod, unseen, … v Mis-: mistake, misunderstand ...

v Adjectivization:

v V+-able: doable v N+-al: national

6501 Natural Language Processing 8

SLIDE 9

What else?

v Combines words into a new word:

vCream, ice cream, ice cream cone, ice cream cone bakery

v Word formation is productive

vGoogle, Googler, to google, to misgoogle, to googlefy, googlification vGoogle Map, Google Book, …

6501 Natural Language Processing 9

SLIDE 10

Morphological parsing and generation v Morphological parsing: v Morphological generation

vWhat words can be generated from grace? grace, graceful, gracefully, disgrace, ungrace, undisgraceful, undisgracefully

6501 Natural Language Processing 10

SLIDE 11

Finite State Automata

vFSA and regular expression has the same expressive power vThe above FSA accepts string r/baa+!/

6501 Natural Language Processing 11

SLIDE 12

Finite State Automata

v Terminology:

v It has 5 states v Alphabet: {b, a, !} v Start state: 𝑟" v Accept state: 𝑟# v 5 transitions

v Are there other machines that correspond to the same language r/baa+!/ ?

v Yes

6501 Natural Language Processing 12

Alphabet just means a finite set of symbols in the input Can have many accept states

SLIDE 13

Formal definition

v You can specify an FSA by enumerating the following things.

vThe set of states: Q vA finite alphabet: Σ vA start state vA set of accept/final states vA transition function that maps QxΣ to Q

6501 Natural Language Processing 13

SLIDE 14

Example -- dollars and Cents

6501 Natural Language Processing 14

SLIDE 15

Yet another view – table representation

6501 Natural Language Processing 15

b a ! e 1 1 2 2 2,3 3 4 4

If you’re in state 1 and you’re looking at an a, go to state 2

SLIDE 16

Non-Deterministic FSA

v 𝜗- transition v More than one possible next states v Equivalent to deterministic FSA

6501 Natural Language Processing 16

SLIDE 17

Regular expression

v Equivalent to FSA v Matching strings with regular expressions (e.g., perl, python, grep)

v translating the regular expression into a machine (a table) and v passing the table and the string to an interpreter

6501 Natural Language Processing 17

SLIDE 18

Model morphology with FSA

v Regular singular nouns are ok v Regular plural nouns have an -s on the end v Irregulars are ok as is

6501 Natural Language Processing 18

SLIDE 19

Now plug in the words

6501 Natural Language Processing 19

SLIDE 20

Derivational Rules

6501 Natural Language Processing 20

SLIDE 21

From recognition to parsing

v Now we can use these machines to recognize strings v Can we use the machines to assign a structure to a string? (parsing) v Example:

vFrom “cats” to “cat +N +p”

6501 Natural Language Processing 21

SLIDE 22

Transitions

v c:c reads a c and write a c

v ε:+N reads nothing and write +N

6501 Natural Language Processing 22

c:c a:a t:t ε: +N

s: +p

SLIDE 23

Challenge: Ambiguity

v books: book +N +p or book +V +z (3rd person) v Non-deterministic FSA: allows multiple paths through a machine lead to the same accept state v Bias the search (or learn) so that a few likely paths are explored

6501 Natural Language Processing 23

SLIDE 24

Challenge: Spelling rules

v The underlying morphemes (e.g., plural-s) can have different surface realization (-s, -es)

v cat+s = cats v fox+s = foxes v Make+ing = making

v How can we model it?

6501 Natural Language Processing 24

SLIDE 25

Intermediate representation

6501 Natural Language Processing 25

SLIDE 26

Overall Scheme

v One FST that has explicit information about the lexicon

vLexical level to intermediate forms

v Large set of machines that capture spelling rules

vIntermediate forms to surface

6501 Natural Language Processing 26

SLIDE 27

Lexical to intermediate level

6501 Natural Language Processing 27

SLIDE 28

Intermediate level to surface

v The add and “e” rule for –s

vExample: fox^s# ↔ foxes#

6501 Natural Language Processing 28

SLIDE 29

Other application of FST

v ELIZA: https://en.wikipedia.org/wiki/ELIZA v Implemented using pattern matching -- FST

6501 Natural Language Processing 29

SLIDE 30

ELIZA as a FST cascade

Human: You don't argue with me. Computer: WHY DO YOU THINK I DON'T ARGUE WITH YOU A simple rule:

v1. Replace you with I and me with you:

I don't argue with you.

v2. Replace <...> with Why do you think <...>:

Why do you think I don't argue with you.

6501 Natural Language Processing 30

SLIDE 31

What about compounds?

v Compounds have heretical structure:

v(((ice cream) cone) bakery) not (ice ((cream cone) bakery)) v((computer science) (graduate student)) not (computer ((science graduate) student))

v We need context-free grammars to capture this underlying structure

6501 Natural Language Processing 31
