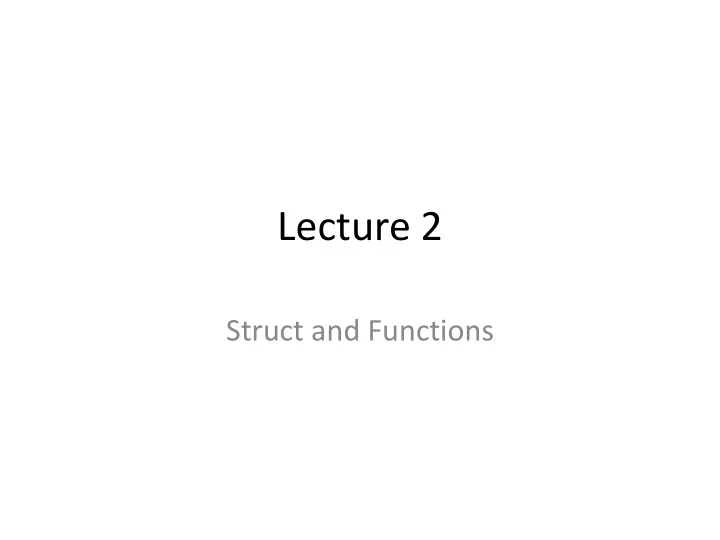

Lecture 2

Struct and Functions

Variable (1 of 2)

Consists of:

• Name

– so we can refer to it’s storage location – at lower level converted to an adress in memory – can be aliased by way of reference

• Value

– what we store in the location – will never be empty, not even before we fill it

• Type

– size of storage location – interpretation of stored value

Variable (2 of 2)

Three kinds of variables:

• Fundamental (basic)

– stores a value of fundamental type, nothing more

• Object

– stores values tied to an derived type (struct, class, union, enum) – operations associated to the type are provided – more later in the course

• Pointer

– stores just the adress of some other variable – requires caution: what if the adress does not contain said variable? – more later in the course

Struct

With struct it is possible to combine variables into one derived type struct Person { string first_name; string last_name; int age; };

Constants

• A variable can be declared const
• Modification of a const variable will give compilation

error.

• The compiler can treat constant variables more

efficiently.

• The programmer have less worries with constant

variables than other. Big benefit!

• A const variable is much better than a literal because

you refer to it by name, and change it at one place.

• Constants use upper case letters by convention.

const int SIZE{1000};

References

• A varaible can be declared to be an alias for an

already existing variable

• The existing variable gets a second name, but

is in all other aspects identical to the new

• The binding occur only once, at initialization

string professor{”C. Kessler”}; string & clever_fellow{professor};

Sequence and block

• A sequential list of statements
• Each statement is terminated with a semicolon
• All statements are inside some block
• Entire block form a compound statement
• Statements are executed one by one in order:

{ // beginning of block

statement1; statement2; statement3;

} // end of block

Function (1 of 3)

• A block that has been given a name
• Can be executed (called) by writing it’s name in other parts
• f the program, provide reusable code
• Can accept input (parameters) from calling code
• Can give (return) a result back to calling code

return-type function-name(parameter-list) {

statement1; statement2; return expression;

}

Function (2 of 3)

• A function must have a single well defined task. No side effects!
• Function name should be well choosen.
• The purpose, inputs, and result must be documented in a comment before

the function. Also document any assumptions, presumptions or special considerations.

// purpose: calculate sum of love // inputs: integers a, b // output: the sum of love (integer) int love(int a, int b) { return a + b; } // purpose: print v on stdout void marriage(int v) { cout << v << endl; } marriage(love(a,b)); // GOOD, individually reusable functions // what’s wrong above?

Function (3 of 3)

• Multipurposed functions are hard to reuse.
• Functions with sid effects are hard to reuse.
• Often seen in student code. BAD, BAD, Threefold BAD.

// BAD BAD BAD (oh well.. ;-) // You can’t have one without the other!!!

void love_and_marriage(int a, int b) { cout << a + b << endl; } love_and_marriage(a, b); // can’t do just love!!!!

Function types

• A function with no return value is often called

a subroutine or a procedure

• A function part of an object variable is often

called a member function or a method

• A function created inline, or ”on the fly” is

called a lambda function

• An object possible to call as a function is

called a function object, and have operator() defined

Function declaration and definition

• The return-type, function-name and

parameter-list followed by a semicolon is a declaration.

• If you specify the entire function body (block)

instead of semicolon it is a definition.

• Declaration

– Tells the compiler the function exists somewhere.

• Definition

– Places function code in program memory.

Function input

• Zero or more specified in parameter list
• Parameters are variables that require a value in order

to call the function

• Also called formal parameters
• The value we assign to a parameter when calling a

function is called argument, or actual parameter

• Datatype and order of arguments must match the

specified formal parameters

• Automatic conversion can occur if compiler know a

way to convert from argument to formal parameter

Input only parameters

• Declared as normal variable when of fundamental

type.

– Arguments are copied to parameters – Efficient for fundamental (small) types void example(int normal_input);

• Declared as const reference when of object type.

– Clear to programmers that object is not modified in the function, despite reference – Arguments are referred to from the function – Efficient for object (large) types void example(string const& object_input);

Input/Output parameter

• Declared as reference variable.

– Clutter-free and safe, compiler create binding (alias) between argument and parameter – Clear to programmers that values passed in may be modified by the function. – Arguments are referred to from the function void example(string& input_output);

• Declared as pointer variable.

– Programmer must make correct binding – Code cluttered by adress-of (&) and content-of (*) operators – Allow three modes: input/output/unused – Set pointer to nullptr to indicate invalid or unused parameter, the function must explicitly include code to check for nullptr void example(string* p_out){ *p_out = ”goes out”; } example(&some_str); // take address of some_str at call

Why not just return?

• In some cases you need to ”return” several

values.

– Solve a 2:nd degree polynom (ax2+bx+c=0).

• In some cases it does not make much sense

for a function to return something.

– Does not compute something from input.

• In some cases it’s not very efficient

– Returning a value cause an extra copy operation.

Default parameters

• Parameters can be given default values
• Specified in declaration only, since definition may be

unknown to compiler if program is in several files.

• Default values can only be specified for last non-default

parameter

• Can be omitted when calling the function

void ignore(int n = 1, char stop = EOF); ignore(); // call ignore(1, EOF) ignore(1024) // call ignore(1024, EOF); ignore(numeric_limits<int>::max(), ’\n’);

Function result

• Functions evaluate to exactly one result, specified by a

return statement

• The result can be specified as nothing, void
• The result can be specified as auto in C++11, meaning

it is specified later, NOT automatic

• A function can terminate it’s block early by executing a

return statement early

• The call to the function immediately evaluates to the

returned expression and continue execution at the point of call

• A function automatically return void at end of it’s block

Function scope

• Formal parameters are variables local to it’s

function

• Variables declared inside the function are local

variables to the function

• Local variables can only be accessd inside it’s

function

• All local variables cease to exist at point of

return

Naming of parameters

• The name should inform humans of the

purpose of the parameter, so we can specify it at point of call.

• Good names are typically 5-20 characters.
• Name must begin with a letter (or underscore)

and contain only letters and underscore

• Names are case sensitive

Overloading

• Different functions can have same name
• Functions with same name should be identical in

their purpose to avoid confusion

• Functions with same name must have different

parameters

• Arguments given determine which function is

actually called (closest match)

• Compiler will select the ”best match” among

functions with same name

• Return value is not considered even if different

Overloading example

int triangle_area(int base, int height); int triangle_area(int side1, int side2, int side3); int triangle_area(int side1, int side2, float angle); int triangle_area(int side, float angle1, float angle2); triangle_area(1, 1); triangle_area(1, 1, 1); triangle_area(1, 1, 1.0); // which is called? triangle_area(1, 1.0, 1.0); triangle_area(1, 1, 1.0f); triangle_area(1, 1.0f, 1.0f); // can you add a default parameter to second version?

Alternate function syntax

• Sometimes you want to deduce the return

type from input parameters.

• Parameters must then occur to the compiler

before the return type

• Solved with auto and decltype in C++11

(both is also useful in other contexts)

auto sum(float a, int b)

Lambda function

• C++11 allows lambda functions, or ”inline” function

definition

• Covered in detail later in course (when useful)

Pos origin{3,4}; vector<Pos> data; sort(data.begin(), data.end(), [&origin](Pos a, Pos b)->bool {

return dist(a,origin) < dist(b,origin);

});

Facilitates divide-and-conquer (1)

• It is easy to check if a chess queen may move if we know how

a rook and bishop may move.

• Then just continue and implement the missing functions.
• Note that functions make your code more readable!

bool is_legal_queen_move(Pos from, Pos to) { return is_legal_rook_move(from, to) || is_legal_bishop_move(from, to); }

Facilitates divide-and-conquer (2)

bool is_legal_rook_move(Pos from, Pos to) { return is_horizontal_move(from, to) || is_vertical_move(from, to); } bool is_legal_bishop_move(Pos from, Pos to) { return is_diagonal_move(from, to); }

Facilitates divide-and-conquer (3)

bool is_horizontal_move(Pos from, Pos to) { return from.y == to.y; } bool is_vertical_move(Pos from, Pos to) { return from.x == to.x; } bool is_diagonal_move(Pos from, Pos to) { return abs(from.x-to.x) == abs(from.y-to.y); }

Recursion

• In math you use induction as a way of thinking in order

to prove a theorem.

– prove the theorem for one case – prove that if true for some case, it’s also true for the next – by way of induction it’s true for all cases

• In programming we can use a similar way of thinking to

get a result

– calculate the result in one specific input – write a function that calculates the result ov any input given the previous input – by way of calling itself, the calculation get to the specific input and calculate the result from there on

Recursive definition

• A recursive definition have two parts

– A starting (or ending) point – How you get from one to the next (or previous)

• Consider N-factorial

– It’s possible to express by way of itself! – 0! = 1 – N! = N*(N-1)!

• All computations can be written recursive!

– Sometimes it’s much shorter, simpler and clearer.

N-factorial two ways

int factorial(int N) { if ( N == 0 ) return 1; return factorial(N-1); } int factorial(int N) { return prod_from_one(1, N); } int prod_from_one(int X, int N) { if ( X == N ) return N; return X*prod_from_one(X+1, N); }

Exponentiation

// xy=Pow(x, y): // x * Pow(x, y-1) if y>0 // 1.0/Pow(x, -y) if y<0 // 1.0 if y=0 double pow(double x, int y) { if (y > 0) return x*pow(x,y-1) else if (y < 0) return 1.0/pow(x,-y) else // y == 0 return 1.0; // Gets here eventually! }

File separation

• Related (cohesive) functions can be gathered in one file to form a

package.

• A package can be compiled separately, and do not need

recompilation unless you change a package source file.

• Public declarations are place in a header file *.h
• Definitions are placed in a implementaton file *.cc
• Header and implementation files should have the same name,

except for the extension

• Header file must have a preprocessor guard to protect from

multiple inclusion #ifndef _FILE_NAME_H_ #define _FILE_NAME_H_ // public declarations #endif

To be continued.

This page is not left blank. Intentionally.
