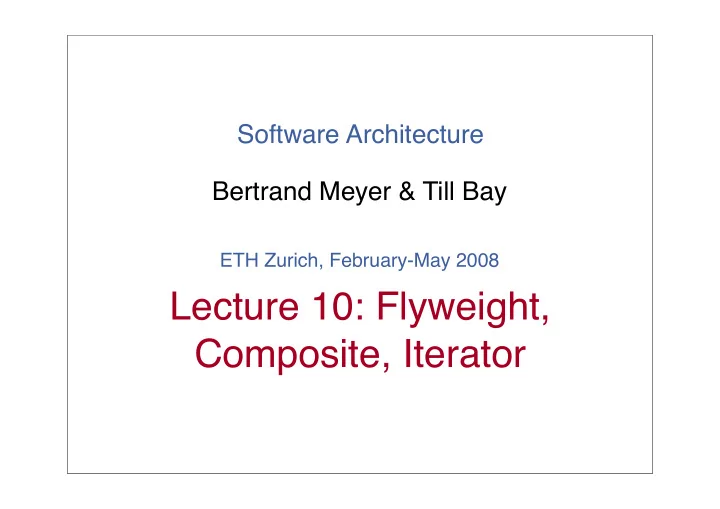

Software Architecture Bertrand Meyer & Till Bay

ETH Zurich, February-May 2008

Lecture 10: Flyweight, Composite, Iterator

Program overview

Date Topic Who? last week Introduction; A Basic Architecture Example

Till

• 26. Feb.

Modularity and reusability; Abstract Data Types

Till

• 4. Mar.

Project description and Delta Debugging

Jason, Andy

• 11. Mar.

Patterns 1: observer + event library, componentization

Till

• 18. Mar.

Design by Contract

• Prof. Meyer
• 25. Mar.

No course :-)

• 1. Apr.

Patterns 2: visitor, strategy, state, chain of responsibility

Till

• 8. Apr.

Patterns 3: factory, builder, singleton

Till

• 15. Apr.

Patterns 4: bridge, composite, decorator, facade

Michela

Today

Patterns 5: Wrap up

Till

• 29. Apr.

Language constructs for mod. and info. hiding

Bertrand

Program overview

Date Topic Who?

• 6. May

Exception handling

Martin

• 13. May

Concurrent programming

Jason

• 20. May

Project presentation

Everybody

• 27. May

Exam

Everybody

Date Topic

• 28. Feb.

Abstract Data Types

• 3. Apr.

Design by Contract

• 8. May

Exception Handling Rest Project

Exercises overview

comerge AG

flyweight

• Reuse existing objects by aliasing the objects

during object creation.

• Requires an object factory and a shared

repository of objects.

• Works if the object identity follows from the
• bject value.

Value semantics

comerge inc.

class FLYWEIGHT_FACTORY feature -- Factory make_new_flyweight (a: SOME_ARG): FLYWEIGHT is

• - Create a new flyweight, initialized with `aʼ.

do if flyweight_pool.has_index (a) then Result := flyweight_pool.item (a) else create Result.make (a) flyweight_pool.extend (Result, a) end end flyweight_pool: HASH_TABLE [FLYWEIGHT,SOME_ARG] is once ... end end

coding flyweight

5

comerge AG

expanded types

• “Expanded types”: Define classes with value

semantics

• Much improved through ECMA
• No explicit instance creation necessary
• No recursive data structures
• No subtyping
• No aliasing: copy semantics
• Reference equality (=) becomes value

equality (is_equal, ~)

comerge AG

flyweight vs. expanded

• Expanded classes cover nearly all cases

where you would have used flyweight for Java or .NET

• Use flyweight only if you need one of the

following:

• Complex type hierarchy
• Unbounded data
• Recursive data structure with value semantics

comerge AG

flyweight examples

Expanded Type Flyweight

• characters
• pairs
• currency values
• enumeration

types

• string labels
• tokens
• sets
• (some) units

comerge AG

flyweight summary

• Flyweight implements value semantics
• Straight forward implementation
• Use a once container as flyweight pool
• Choose:
• Flyweight: Needs hierarchy, unbounded data or

recursive data structure

• Otherwise use expanded type

comerge inc.

composite

10

• Tree structure for “whole/part” hierarchies
• Abstract tree node type defined
• Leaf nodes:
• implement abstract tree node type
• Non-leaf nodes: implement
• implement abstract tree node type
• have a number of attributes of tree node type
• Nothing special for Eiffel

comerge inc.

composite

11

LEAF * NODE NON_LEAF sub_node: NODE

comerge inc.

deferred class EXPRESSION end

composite example

12

comerge inc.

class INTEGER_EXPRESSION inherit EXPRESSION feature -- Access value: INTEGER

• - Representation of expression

end

composite example

13

comerge inc.

class ADDITION_EXPRESSION inherit EXPRESSION feature -- Access left: EXPRESSION

• - Left subexpression

right: EXPRESSION

• - Right subexpression

invariant left_not_void: left /= Void right_not_void: right /= Void end

composite example

14

comerge inc.

class MULTIPLICATION_EXPRESSION inherit EXPRESSION feature -- Access left: EXPRESSION

• - Left subexpression

right: EXPRESSION

• - Right subexpression

invariant left_not_void: left /= Void right_not_void: right /= Void end

composite example

15

comerge inc.

composite summary

16

• Use composite pattern for structures that are

(recursively) built from parts.

• Donʼt over-engineer.
• Donʼt put any recursive computation into the

nodes.

• Compute on “composite object structures” by

using visitors (next pattern).

comerge inc.

iterator

• “Provide a way to access the elements of an

aggregate object sequentially without exposing its underlying representation.”

• Four types of iterators:
• Internal iterators
• External iterators without bookkeeping-reference
• External iterators with bookkeeping-reference
• Higher-order procedures and functions

17

comerge inc.

deferred class LINEAR [G] feature -- Access item: G is

• - Current item

require not_off: not off deferred end feature -- Cursor movement forth is

• - Move to next element.

require not_off: not off deferred end feature -- Status

• ff: BOOLEAN

end

simple iterators

18

NOT like Java: hasNext() next()

comerge inc.

• ther features
• Rollback to the start of the data structure:
• start, ...
• Bilinear movement:
• back, finish, before, after, ...
• Index and direct access:
• count, index, i_th, goto, ...
• Manipulate the underlying structure:
• remove, put, replace, ...

19

comerge AG

internal iterators

LINKED_LIST [G] LINKABLE [G] LINKABLE [G] LINKABLE [G] right cursor_position first right class LINKED_LIST [G] inherit LINEAR [G]

comerge AG

external iterators

LINKED_LIST [G] LINKABLE [G] LINKABLE [G] LINKABLE [G] right cursor_position first right LINKED_LIST_ CURSOR [G]

comerge AG

external iterators

LINKED_LIST [G] LINKABLE [G] LINKABLE [G] LINKABLE [G] right cursor_position first right LINKED_LIST_ CURSOR [G] iterators

comerge inc.

feature -- Iterators do_all (c: PROCEDURE [ANY, TUPLE [G]])

• - Call `cʼ with on all elements

for_all (q: FUNCTION [ANY, TUPLE [G], BOOLEAN]): BOOLEAN

• - Does `qʼ yield true on all elements?

there_exists (q: FUNCTION [ANY, TUPLE [G], BOOLEAN]): BOOLEAN

• - Does `qʼ yield true on all elements?

higher-order

23

comerge AG

iterator summary

• Integrated iterator:

+ easy to track and contract

• dangerous side-effects, multiple iterators
• External iterators without bookkeeping:

+ independent operations, less side-effects

• Access to “dead nodes”
• External iterators with bookkeeping:

+ No dead nodes, well-defined behavior

• potential memory leak
• Integrated iterator:

+ powerful, very expressive, safe

• limited, no change of underlying container
