FUNCTIONAL INGREDIENTS HELIOGEL LECIGEL THE VERSATILE GELLING AGENTS Heliogel Key points Gelling ingredient with emulsifying properties With sunflower phospholipids For innovative gel-cream textures Polyvalent and

slide-1
SLIDE 1

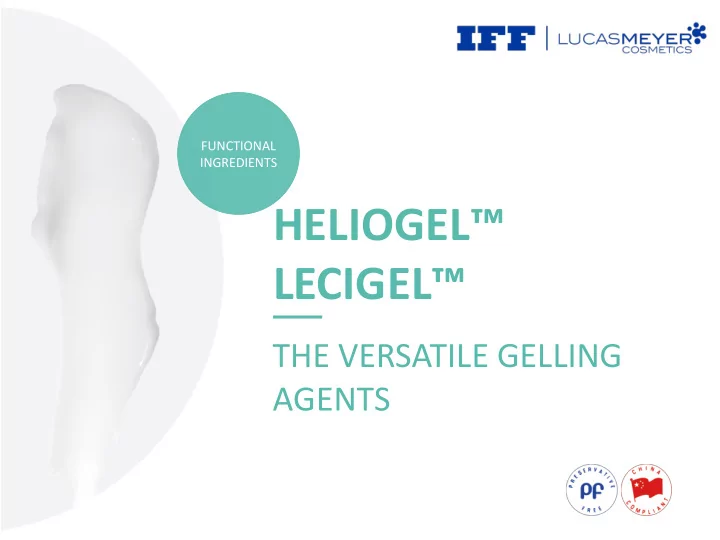

HELIOGEL™ LECIGEL™

THE VERSATILE GELLING AGENTS

FUNCTIONAL INGREDIENTS

slide-2
SLIDE 2

Heliogel™

slide-3
SLIDE 3

Key points

  • Gelling ingredient with emulsifying properties
  • With sunflower phospholipids
  • For innovative gel-cream textures
  • Polyvalent and universal
slide-4
SLIDE 4

Properties of the components

  • Sodium acrylates copolymer
  • Thickener
  • Stable on wide pH range
  • Resistance to electrolytes
  • Non-tacky
  • Sunflower phospholipids & oil
  • Emulsifier
  • Hydrating agent
  • Polyglyceryl-10 stearate
  • Food grade emulsifier
  • Transfer of polymer in water phase
slide-5
SLIDE 5

Compatibilities

Heliogel™ gelifies from pH 2 to 12 with an optimal viscosity between pH 4 and 8

slide-6
SLIDE 6

Compatibilities

20000 40000 60000 80000 100000 120000

  • 1.8E-16

0.05 0.1 Viscosity (mPa.s) % NaCl Effect of Electrolytes Emulsion with 3% HELIOGEL™ (pH : 5.5-6.0)

Heliogel™ is compatible with electrolytes

slide-7
SLIDE 7

Compatibilities

10000 20000 30000 40000 50000 60000 5 10 15 20 25 Viscosity (mPa.s) % Ethanol Effect of Ethanol Emulsion with 3% HELIOGEL™ (pH : 5.5-6.0)

Heliogel™ is compatible up to 20% ethanol

slide-8
SLIDE 8

Sensorial profile

  • Unique after-feel
  • Coolness: +9.4 % compared to market reference
  • Tackiness: -17.5 % compared to market reference
slide-9
SLIDE 9

Process

  • Step 1. Introduce Heliogel™ into the oil phase
slide-10
SLIDE 10

Process

  • Step 2. Emulsification step. Add the oil phase into the water phase under

strong stirring. Mix until the product is smooth and homogeneous.

slide-11
SLIDE 11

Process

  • Aspect at T0
slide-12
SLIDE 12

Tolerance studies

  • Acute Oral Toxicity (2000 mg/Kg dose) (concentration tested: 10%)
  • Skin Irritation (single patch test) (concentration tested: 10%)
  • Eye Irritation (agarose gel) (pure product)
  • Sensibilization (Marzulli-Maibach method) (concentration tested: 10%)
  • Mutagenicity (AMES test)
  • Very low UV-light absorbance (290 - 400 nm) - No risk of phototoxicity

Excellent Safety Profile

slide-13
SLIDE 13

Product information

INCI name Sodium Acrylates Copolymer (and) Hydrogenated Polyisobutene (and) Phospholipids (and) Polyglyceryl-10 Stearate (and) Helianthus Annuus (Sunflower) Seed Oil Appearance Amber gel Recommended dosage 0.2 - 4 %

slide-14
SLIDE 14

Product information

Formulation Cold or hot process No pre-dispersion or neutralization Optimum pH 4 - 8 but usable from 2 to 12 Applications

  • 1 - 3%: Main gelling and

emulsifying agent for gel-creams

  • 0.5 - 3% : Viscosity adjuster for all

kind of emulsions

  • 0.2 - 3%: Stabilizer
slide-15
SLIDE 15

Summer Shine Gel-Cream 11.291.01

slide-16
SLIDE 16

Lecigel™

slide-17
SLIDE 17

Key points

  • 2ne generation of gelling ingredient with emulsifying properties
  • For innovative gel cream textures
  • Polyvalent and universal
  • No polyisobutene
slide-18
SLIDE 18

Properties of the components

  • Sodium acrylates copolymer
  • Thickener
  • Stable on wide pH range
  • Compatible with ethanol
  • Non-tacky
  • Lecithin
  • Emulsifier
  • Hydrating agent
slide-19
SLIDE 19

Compatibilities

20000 40000 60000 80000 100000 120000 3 4 5 6 7 8 9 10 11

Viscosity (mPa.s)

Lecigel™ gelifies from pH 4 to 8

slide-20
SLIDE 20

Compatibilities

Lecigel™ is perfectly adapted to high level of ethanol up to 20%

slide-21
SLIDE 21

Sensorial profile

Protocol

  • Sensorial profile by an external expert panel
  • Lecigel™ at 1.75% vs. Heliogel™ at 2.5%
  • Statistical analysis of the results
slide-22
SLIDE 22

Sensorial profile

  • Similar results on most items
  • Tendencies: Lecigel™ is
  • Less tacky
  • Less greasy
slide-23
SLIDE 23

Advantages of Lecigel™ compared to other gelling agents

  • 100% active matter
  • Easy-to-use, usable at any step of the process
  • White finished products
  • With the Phospholipid Touch!
slide-24
SLIDE 24

Tolerance studies

The toxicological assessment of Lecigel™ is based on the CIR reports we have about the two ingredients contained in this product

  • Final Report on the Safety Assessment about Acrylates Copolymer and 33

related cosmetic ingredients Reference: International Journal of Toxicology, 21 (Suppl.3): 1-50, 2002

  • Final Report on the Safety Assessment of Lecithin and Hydrogenated

lecithin Reference: International Journal of Toxicology, 20 (Suppl.1): 21-45, 2001

Excellent Safety Profile

slide-25
SLIDE 25

Process

  • Method 1. Introduce Lecigel™ into the oil phase
slide-26
SLIDE 26

Process

  • Method 1. Emulsify

Stirring speed must be above 1200 rpm

slide-27
SLIDE 27

Process

  • Method 2. Add Lecigel™ into water phase

Stirring speed must be above 1200 rpm

slide-28
SLIDE 28

Process

  • Method 3. Add Lecigel™ after emulsion

If stirring speed is below 1200 rpm, gelification can take a bit longer

slide-29
SLIDE 29

Process

  • Aspect
slide-30
SLIDE 30

Process

  • Aspect. Final viscosity is reached immediately after manufacturing
slide-31
SLIDE 31

Product information

INCI name Sodium acrylates copolymer (and) Lecithin Appearance Beige powder Recommended dosage 0.2 - 4 %

slide-32
SLIDE 32

Product information

Formulation Cold or hot process No pre-dispersion or neutralization Optimum pH 4 - 8 Applications

  • 0.5-2%: Main gelling and

emulsifying agent for gel-creams

  • 0.5-2% : Viscosity adjuster for all

kind of emulsions

  • 0.1-3%: Stabilizer
slide-33
SLIDE 33

Cooling Gel-Cream 9.202.05 C88

2015-12-09

slide-34
SLIDE 34

Features and Benefits

slide-35
SLIDE 35

SUMMARY

* Distributed in France by Lucas Meyer Cosmetics
