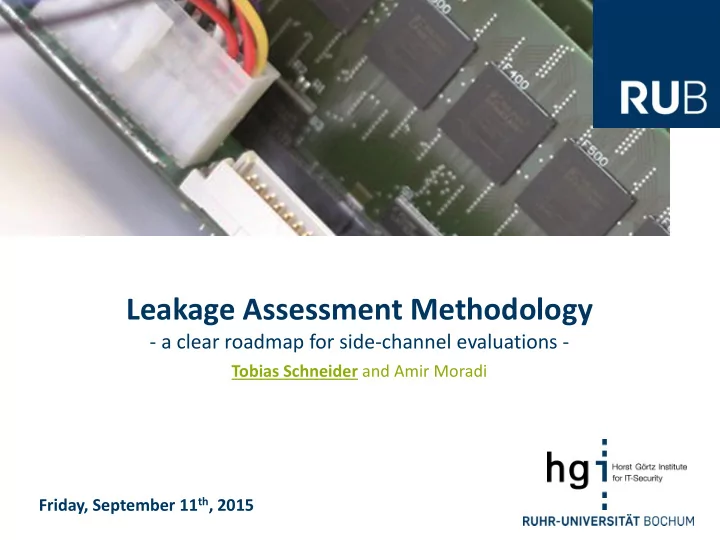

Leakage Assessment Methodology

• a clear roadmap for side-channel evaluations -

Tobias Schneider and Amir Moradi Friday, September 11th, 2015

2

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Motivation Physical Attacks & Countermeasures

input

• utput

input

• utput

… Timing, Power, EM, etc. Countermeasures:

• Masking
• Hiding

Higher-order Attacks Multivariate Univariate

3

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Problem: Evaluation is not trivial. Non-Invasive Attack Testing Workshop, 2011 Establish testing methodology capable of robustly assessing the physical vulnerability of cryptographic devices. Goal: Does the chip leak information?

Motivation Security Evaluation

4

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Perform state-of-the-art attacks on the device under test (DUT)

Attacks Types:

• DPA
• CPA
• MIA
• …

Intermediate Values:

• Sbox In
• Sbox Out
• Sbox In/Out
• …

Leakage Models:

• HW
• HD
• Bit
• …

× ×

Problems:

• High computational complexity
• Requires lot of expertise
• Does not cover all possible attack vectors

Motivation Attack-based Testing

5

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Computation of Mutual/Perceived Information

Motivation Information-theoretic Testing

Problems:

• High computational complexity
• Cannot focus on one statistical moment
• Dependent on density estimation
• Does not cover all possible attack vectors

6

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Tries to detect any type of leakage at a certain order

• Proposed by CRI at NIST workshop

Advantages:

• Independent of architecture
• Independent of attack model
• Fast & simple
• Versatile

Problems:

• No information about hardness of

attack

• Possible false positives if no care

about evaluation setup

Motivation Testing based on t-Test

7

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Outline

• 1. Statistical Background
• 2. Testing Methodology
• 3. Correct Measurement
• 4. Efficient Computation
• 5. Conclusion

8

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Statistical Background

• t-Test

9

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Sample 𝑅0 Sample 𝑅1

Null Hypothesis: Two population means are equal.

Statistical Background t-Test

10

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Sample 𝑅0 Sample 𝑅1

Sample mean: Sample variance: Sample size: 𝜈0 𝑡0

2

𝑜0 𝜈1 𝑡1

2

𝑜1

t = 𝜈0 − 𝜈1 𝑡0

2

𝑜0 + 𝑡1

2

𝑜1 v = 𝑡0

2

𝑜0 + 𝑡1

2

𝑜1

2

𝑡0

2

𝑜0

2

𝑜0 − 1 + 𝑡1

2

𝑜1

2

𝑜1 − 1

Degree of freedom 𝑢-test statistic

Statistical Background t-Test

11

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Estimate the probability to accept null hypothesis with Student’s 𝑢 distribution:

𝑔 𝑢, 𝑤 = Γ 𝑤 + 1 2 𝜌𝑤 Γ 𝑤 2 1 + 𝑢2 𝑤

−𝑤+1 2

𝑞 = 2

|𝑢| ∞

𝑔 t, v 𝑒𝑢

Statistical Background t-Test

Compute: Small 𝑞 values give evidence to reject the null hypothesis

𝑤 𝑢

12

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

• For testing usually only the 𝑢-value is estimated
• Compared to a threshold of t > 4.5
• 𝑞 = 2𝐺 −4.5, 𝑤 > 1000 < 0.00001
• Confidence of > 0.99999 to reject the null hypothesis

Statistical Background t-Test

13

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Testing Methodology

• Specific 𝒖-Test
• Non-Specific t-Test
• Higher Orders

14

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Measurements 𝑈𝑗 With Associated Data 𝐸𝑗

𝑅0 𝑅1

𝑢𝑏𝑠𝑕𝑓𝑢 𝑐𝑗𝑢 𝐸𝑗 = 0 𝑢𝑏𝑠𝑕𝑓𝑢 𝑐𝑗𝑢 𝐸𝑗 = 1

Specific t-Test:

• Key is known to enable correct partitioning
• Test is conducted at each sample point separately (univariate)
• If corresponding 𝑢-test exceeds threshold ⇒ DPA probable

Testing Methodology Specific t-Test

15

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Measurements 𝑈𝑗 With Associated Data 𝐸𝑗

𝑅0 𝑅1

𝒖𝒃𝒔𝒉𝒇𝒖 𝒄𝒛𝒖𝒇 𝑬𝒋 = 𝒚 𝒖𝒃𝒔𝒉𝒇𝒖 𝒄𝒛𝒖𝒇 𝑬𝒋 ≠ 𝒚

Testing Methodology Specific t-Test

Specific t-Test:

• Key is known to enable correct partitioning
• Test is conducted at each sample point separately (univariate)
• If corresponding 𝑢-test exceeds threshold ⇒ DPA probable

Other classifications possible

16

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Example: PRESENT (last round)

• addRoundKey, sBoxLayer, pLayer
• Bitwise: 3 × 64 tests
• Nibblewise: 3 × 16 × 16 tests
• Other tests possible

Sbox out bits (64 models) Sbox 0 nibble (16 models)

Problems:

• Same as attack-based approach
• Many different intermediate values
• Many different models

Testing Methodology Specific t-Test

17

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Non-Specific t-Test:

• fixed vs. random t-test
• Avoids being dependent on any intermediate value/model
• Detected leakage of single test is not always exploitable

Measurements 𝑈𝑗 With Random Associated Data D𝑗 Measurements 𝑈

𝑘

With Fixed Associated Data D

𝑅0 𝑅1

Testing Methodology Non-Specific t-Test

18

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Testing Methodology Non-Specific t-Test

𝑅0 𝑅1

4000 4500 5000 5500 6000 6500 7000

• 100
• 50

50 100

t-Test

𝜈: 𝑡2:

19

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

• Non-specific t-test reports a detectable leakage

⇒ Specific t-test reports leakage with higher confidence

• Other direction (⇐) cannot be concluded from a single

non-specific t-test

• Recommended to perform a number of non-specific tests

with different fixed data

Testing Methodology Non-Specific t-Test

Semi-fixed vs. random test:

• Use a set of particular associated data instead of only one
• All lead to certain intermediate value
• Eliminates some of the drawbacks of fixed vs. random

20

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Testing Methodology Higher Orders

Multivariate:

• Sensitive variable is shared: 𝑇 = 𝑇1 ∘ 𝑇2
• Shares are processed at different time instances (SW)
• Leakages at different time instances need to be combined first

𝑇1 𝑇2

Centered Product: 𝑦′ = 𝑦1 − 𝜈1 ⋅ 𝑦2 − 𝜈2

21

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Testing Methodology Higher Orders

Variance: 𝑦′ = 𝑦 − 𝜈 2 In general: 𝑦′ = 𝑦 − 𝜈 𝑒 In some cases: 𝑦′ =

𝑦−𝜈 𝑡 𝑒

Univariate:

• Shares are processed in parallel (HW)
• Leakages at the same time instance need to be combined first

𝑇1 𝑇2

22

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Correct Measurement

• Setup
• Case Study: Microcontroller
• Case Study: FPGA
• Recommendations

23

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Correct Measurement Setup

PC Oscilloscope Control Target

…

Plaintext Ciphertext Measure Trigger

Pitfalls:

• Order of fixed and random inputs should

be random as well

• Communication between Control and

Target should be masked (if possible)

24

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Correct Measurement CS: Microcontroller

• AES with masking & shuffling (DPA contest v4.2)
• No shared communication
• First-order test
• Leakage associated to unmasked plaintext

25

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Correct Measurement CS: Microcontroller

Detectable first order leakage

26

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Correct Measurement CS: FPGA

• NLFSR [1]
• 2nd –order threshold implementation
• Test at different orders

A note on the security of Higher-Order Threshold Implementations Oscar Reparaz, ePrint Report 2015/001 [1]

27

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Correct Measurement CS: FPGA

First Order

No plaintext leakage

No detectable leakage in first two orders (univariate)

Second Order

28

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Correct Measurement CS: FPGA

Fifth Order Second Order (bivariate)

Might be vulnerable to bivariate second order attack

29

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Correct Measurement Recommendations

Fixed vs. random:

• DUT with masking countermeasure
• With masked communication

Semi-fixed vs. random:

• DUT with hiding countermeasure
• Without masked communication

Specific t-test:

• DUT with no countermeasures
• Failed in former non-specific tests
• Identify suitable intermediate values for key recovery

30

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation

• Classical Approach
• Incremental
• Multivariate
• Parallelization

31

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Classical Approach

Measurement Phase Analysis Phase 𝑈

𝑜−1

… 𝑈

2

𝑈

1

𝑈 Time t-Test Result

32

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Classical Approach

t = 𝜈0 − 𝜈1 𝑡0

2

𝑜0 + 𝑡1

2

𝑜1 𝜈1, 𝑡1

2

𝜈0, 𝑡0

2

Requires estimation of: Reminder:

• 𝜈 = 𝐹 𝑈
• 𝑡2 = 𝐹

𝑈 − 𝜈 2

𝑈

𝑜−1

… 𝑈

1

𝑈 t-Test Pass 1

𝜈 = 𝐹 𝑈

Pass 2

𝑡2 = 𝐹 𝑈 − 𝜈 2

Pass 3

Required for certain higher-order tests

33

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Classical Approach

Problems:

1) Measurement phase need to be completed 2) All measurements need to be stored 3) Traces need to be loaded multiple times

Solution: Incremental Computation

34

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Incremental

Idea: Update intermediate values for each new trace

𝑈 𝜈, 𝑡2 𝑈

1

𝜈, 𝑡2 … 𝜈, 𝑡2 𝑈

𝑜−1

𝜈, 𝑡2

Advantages:

1) Can be run in parallel to measurement phase 2) Does not require that all measurements are stored 3) Loads each trace only once

Higher-order tests require the computation of additional values

35

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Incremental

Problem: Computation of intermediate values Approach 1: Use raw moments dth-order raw moment: 𝑁𝑒 = 𝐹 𝑈𝑒 Given: 𝑁1 𝑁2 𝜈 = 𝑁1 𝑡2 = 𝑁2 − 𝑁1 2 Compute: Higher-order test require additional moments Example: Univariate 1st-5th order tests require 𝑁1 − 𝑁10

36

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Incremental

𝑈 𝑁1 − 𝑁10 𝑈

1

… 𝑈

𝑜−1

𝑁1 − 𝑁10 𝑁1 − 𝑁10 𝑁1 − 𝑁10 t-Test Result t-Test Result

37

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Incremental

𝑈 𝑁1 − 𝑁10 𝑈

1

… 𝑈

𝑜−1

𝑁1 − 𝑁10 𝑁1 − 𝑁10 𝑁1 − 𝑁10 t-Test Result

Easy to find update formulas for: 𝑁𝑒 =

𝑗=0 𝑜−1 𝑈𝑗 𝑒

𝑜 Problem: Numerical unstable for large number of traces

Method Order 1 Order 2 Order 3 Order 4 Order 5 3-Pass 25.08399 1258.18874 15.00039 96.08342 947.25523 Raw 25.08399 1258.14132 14.49282

• 1160.83799
• 1939218.83401

Example: Computation of variance based on simulations (100M traces ) with 𝒪 100,25

38

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Incremental

Approach 2: Use central moments (and 𝑁1) dth-order central moment: 𝐷𝑁𝑒 = 𝐹 (𝑈 − 𝜈)𝑒 Given: 𝑁1 C𝑁2 𝜈 = 𝑁1 𝑡2 = 𝐷𝑁2 Compute: Higher-order test require additional central moments 𝜈𝑒 =

𝐷𝑁𝑒 𝐷𝑁2

𝑒

𝑡𝑒 2 = 𝐷𝑁2𝑒 − 𝐷𝑁𝑒

2

𝐷𝑁2

𝑒

39

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Efficient Computation Incremental

Not that easy to find update formulas for: 𝐷𝑁𝑒 =

𝑗=0 𝑜−1 𝑈𝑗 − 𝜈 𝑒

𝑜 Idea: Use incremental formulas for central sums from [2]

Formulas for Robust, One-Pass Parallel Computation of Covariances and Arbitrary-Order Statistical Moments Philippe Pébay, Sandia Report SAND2008-6212 [2]

𝐷𝑇𝑒 =

𝑗

𝑈𝑗 − 𝜈 𝑒 with 𝐷𝑁𝑒 =

𝐷𝑇𝑒 𝑜

Central sum: For set 𝑅′ = 𝑅 ∪ {𝑢} with Δ = 𝑢 − 𝑁1,𝑅: 𝐷𝑇𝑒,𝑅′ = 𝐷𝑇𝑒,𝑅 +

𝑙=1 𝑒−2

𝑒 𝑙 𝐷𝑇𝑒−𝑙,𝑅 −Δ 𝑜

𝑙

+ 𝑜 − 1 𝑜 Δ

𝑒

1 − −1 𝑜 − 1

𝑒−1

40

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

A t-test of order d requires to estimate the central moments up to order 2d.

Comparison to the raw moments approach:

• Slightly higher computational effort
• Less numerical problems, higher accuracy

Efficient Computation Incremental

Method Order 1 Order 2 Order 3 Order 4 Order 5 3-Pass 25.08399 1258.18874 15.00039 96.08342 947.25523 Raw 25.08399 1258.14132 14.49282

• 1160.83799
• 1939218.83401

Our 25.08399 1258.18874 15.00039 96.08342 947.25523

41

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

• If combination function does not use the mean, computation of

the parameters is trivial (e.g., sum or product)

• Problematic for optimum combination function (centered product)

𝑈

𝑗 = 𝐵𝑗 ⋅ 𝐶𝑗

Efficient Computation Multivariate

𝑈𝑗 = 𝐵𝑗 + 𝐶𝑗 𝑈

𝑗 = 𝐵𝑗 − 𝜈𝐵 ⋅ 𝐶𝑗 − 𝜈𝐶

• Incremental formulas need to be adjusted

42

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

𝑢𝑜,0 𝑢𝑜,1 𝑢𝑜,2 𝑢𝑜,3 𝑢𝑜,4

Trace n

Thread Thread 1 Thread 2 Thread 3 Thread 4

• Computations on separate points completely independent (univariate)

Time Comparison (8 Threads):

• 10M traces
• 22500 sample points
• 1st-5th order

Efficient Computation Parallelization

𝑢𝑜+1,0 𝑢𝑜+1,1 𝑢𝑜+1,2 𝑢𝑜+1,3 𝑢𝑜+1,4

Trace n+1

Method Time Memory 3-Pass 10.7 h 108.280 KB Raw 5.6 h 108.452 KB Our 5.9 h 108.592 KB

43

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

• Useful if measurement phase already completed
• Need adjusted formulas for the central sums

Efficient Computation Parallelization

𝑢𝑜,0 𝑢𝑜,1 𝑢𝑜,2 𝑢𝑜,3 𝑢𝑜,4

Trace n

Thread

𝑢𝑜+1,0 𝑢𝑜+1,1 𝑢𝑜+1,2 𝑢𝑜+1,3 𝑢𝑜+1,4

Trace n+1

Thread 1

44

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

• Possible to combine both approaches for maximum performance

Efficient Computation Parallelization

𝑢𝑜,0 𝑢𝑜,1 𝑢𝑜,2 𝑢𝑜,3 𝑢𝑜,4

Trace n

Thread

𝑢𝑜+1,0 𝑢𝑜+1,1 𝑢𝑜+1,2 𝑢𝑜+1,3 𝑢𝑜+1,4

Trace n+1

Thread 1 Thread 2 Thread 3

Example:

• 1st-5th order t-test
• 100,000,000 traces (each with 3,000 sample points)
• 9h on 2 x Intel Xeon X5670 CPUs @ 2.93 GHz (24 hyper-threading cores)

45

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Conclusion

46

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

• t-test is simple and fast
• Some aspects need to be considered for correct testing
• Measurement Phase
• Analysis Phase
• t-test for security evaluation has become popular

Conclusion

47

Leakage Assessment Methodology | WISE 2015 | Tobias Schneider

Thanks for Listening!

Any Questions?
