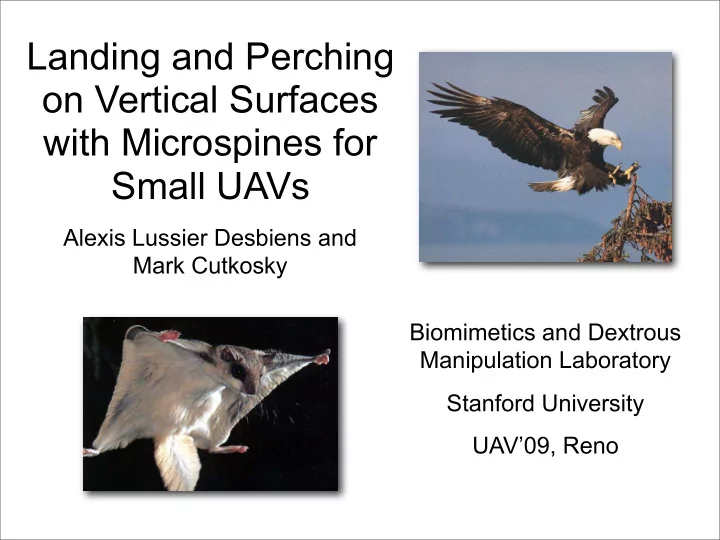

Landing and Perching

• n Vertical Surfaces

with Microspines for Small UAVs

Alexis Lussier Desbiens and Mark Cutkosky Biomimetics and Dextrous Manipulation Laboratory Stanford University UAV’09, Reno

10 10

1

10

2

10

3

10

4

10

5

10

2

10

1

10 10

1

10

2

Mass (g) Endurance (hour)

Dragon Eye Raven B Draganflyer WASPIII UofF Gator Black Widow Delfly II Delfly Micro Skybotic CoaX Aerosonde Rotomotion SR200 Fixedwing Rotarywing Flappingwing

Why should we perch?

• Small airplanes have limited

endurance

• Other techniques can only

provide limited benefit: – Energy extraction from gusts [Patel & Kroo 2006] – Optimization [Grasmeyer 2001]

• Perching would increase

mission duration to extended period of time (i.e. days or weeks)

3

Other Advantages of Perching

• Stable vantage point while

perched vs fast dynamics of small UAVs during flight

• Possibility of landing and

physically interacting with the landing surface.

• Perching combines the best of

climbing and flying:

– Agile and fast while flying – Can cover long distances – Limited energy consumption while perched – Wait for better weather conditions – Quiet (no motor noise)

4

Why Vertical Surfaces?

• Walls are common in urban

environment

• Walls are easy to detect (at least

easier than a passive wire or pole)

• Walls provide a large surface to

perch on

• Walls remain relatively free of

debris.

5

Related Work

• On agile flight:

– J. How et al. (MIT) on indoor flying and hovering – P. Oh et al. (Drexel) on autonomous hovering

• On perching aerodynamics & control:

– Wickenheiser et al. (Cornell) on vehicle morphing for perching – Tedrake et al. (MIT) on controllability of fixed- wing plane for perching on a wire

• No explicit consideration of the

landing system

• Slow maneuvers sensitive to

disturbances

• Use of highly accurate motion capture

system/sensors to enable control

[Cory & Tedrake, 2008] [Wickenheiser, 2007] [Green & Oh, 2006]

6

Research Goals

Allow a small airplane to perch autonomously on a variety of vertical surfaces Keep the system simple and lightweight Maintain the efficiency of conventional airplanes

7

8

Our Approach

• Quick maneuver to minimize

disturbance effects

• Focus on the suspension

and spines to simplify sensing and control

• Everything onboard!

Sonar Spines Suspension Elevator Paparazzi Autopilot & sensors

2) Wall detection 5) Rest 1) Approach 3) Pitch up 4) Touchdown

Modified Flatana Airplane

Sticking to the wall

• Small spines (10-15 µm tip

radius) that catch and hang on asperities

• Individual spine suspensions

distribute the load

• Why spines?

– They require no power – They work on a wide range of outdoor surfaces – They are relatively unaffected by films

• f dirt and moisture

– They leave no trace of their passage – They provide directional adhesion (multiple loading cycles)

9

1 2 3 4 5 Approach volume Loading Forces Volume y x

Spine Limit Surface

• Spines require a particular loading cycle

to engage asperities on the surface without slipping or failing

Loading cycle

• 1. Normal force
• 2. Pull down
• 3. Pull away

10

load

Shear force Normal force

Adhesion Compression

Different angles of surface asperities Surface failure Coulomb friction

1/µ

Spine Performances

• Used on Spinybot and RISE to

climb brick, stucco, concrete and rock

• Climbing robot spine

suspensions take advantage

• f the robot's control over foot

trajectories and forces

• With UAVs, the challenge is to

provide desired forces and velocities at the instant of contact with the wall

11

Suspension

• Tests reveal that vertical

rebound was the main failure mode

• Goal is to find the optimal

components (spring, damper, nonlinear elements) to:

– Minimize peak landing force – Minimize suspension travel – Prevent negative force, to stay on the wall (vertical rebound)

• Maximum energy dissipation

achieved with constant force during the impact

12

Simple Model

• Vertical model of a spring,

damper and coulomb friction suspension

• Damper creates forces

dependent on initial velocity

• Coulomb friction provides

constant force

• Balance friction and

damper to get desired properties

F B K M g v0

0.05 0.1 0.15 0.2 0.03 0.02 0.01 Position Airplane (m) 0.05 0.1 0.15 0.2 20 20 40 Force on spines(N) time (sec) Fric = 33 N = 0.62 = 0.29, Fric = 11 N Spine rebound region

13

Non-linear properties

• Material properties can

be used to create constant force

• Damping scaled w.r.t

position and velocity:

• Urethane foam exhibits

reduced damping at high velocity

14

b = Fmax − kx(t) v(t)

0.05 0.1 0.15 0.2 0.25 0.3 5 10 15 20 25 30 35

• Max. Velocity (m/s)

Viscous Damping (Ns/m)

Rubber CONFOR foam

Suspension Designs

15

k* = 780 N/m * = 0 k* = 695 N/m * = 0.15 k* = 871 N/m * = 0.38

Leg Structure

Foam hip Balsa/Carbon femur Sorbothane knee Carbon tibia Foam ankle Spines Attachment points

16

!! "! "!#$%! ! "& !&

'(

)*!") )!'

+

'! ,-!.//0#$1!.//02 ,3#$14/506402

Planar Model

Intermittent contact

• Simple cartesian suspension

model for now...

• Wing and control surfaces

modeled as flat plates [Cory &

Tedrake 2008]

• Equations of motion generated

using Kanes Dynamics

• Used to study the effect of:
• Incoming velocities
• Suspension parameters (foot

location, linkage non-linearity, etc.)

• Improve landing forces on the

spines

5 10 15 20 10 5 5 10 15 20 25 30

Shear Force (N) Normal Force (N)

Forces on spines during landing

= 0.1 = 0.5 = 0.8

Planar Landing Simulation

• Loading trajectory is

important

• Low damping ratio:

– Ratio Fn/Fs too high – Rebound

• High damping ratio:

– High peak force

• Moderate damping:

– Ratio Fn/Fs within adhesion limit surface

Adhesion limit surface

Rebound Steady state Initial Contact

Trajectory/Control

• Previous research focuses
• n low contact velocity:

– Low controllability at low velocity – The longer the approach, the riskier it gets (gust, etc)

• Spines need normal force to

engage, we want forward velocity!

• Use the dynamics of the

plane to reach the successful perching envelop

• f the suspension

19 Feedforward kick by the elevator Touchdown possible Pitch up maneuver Low angular velocity

Perching Strategy

• 1. Fly toward the wall at about 9 m/s
• 2. Detect the wall with ultrasonic sensor
• 20 Hz, 6 m range
• 3. Pitch up to slow down for landing (take about 2-3m)
• 4. Touchdown possible for about 1.5 to 2 m before impact
• 5. Touchdown at about 2 m/s, let the suspension absorb

the impact

20 Pitching up Successful landing Waiting for wall detection

6 5 4 3 2 1 0.8 0.6 0.4 0.2 x (m) y (m)

Simulated trajectory of the perching maneuver

Onboard Sensors

• Simple wall detection using

the LV-Maxsonar: – Range of 6 m – Update rate of 20 Hz

• Onboard accelerometer and

gyro are used for data analysis

• Combined using a second
• rder complementary filter:
• Need something better!!!

21

65 70 75 80 85 90 20 20 40 60 80

Pitch (deg) time (sec)

Different techniques for measuring pitch

Complementary Filter Rate Gyro Integration Gravity measurement Sensitive to vibrations Drifting

τs + 1

τs + 1

2

θ(s) = τ 2s (τs + 1)2 ˙ θ(s) + 2τs + 1 (τs + 1)2 θ(s)

22

Touchdown possible Pitch up maneuver Elevator up Wall detection

9 m/s 2 m/s

x y

23

30 successful landings (10 autonomous, 20 in manual control)... out of 40!

• Pitch = 60 to 105 deg
• Pitch rate = 0 to 200 deg/s
• vx = up to 3 m/s
• vy = up to 2.7 m/s (downward)

Landing Data

• Wall detection at 6m
• Maneuver duration
• f less than 0.7 sec
• Ready to perch

starting at t = 1.3 sec

• Lands at 1 m/s
• Most of the elevator

action happens at low angle of attack

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 50 100 time (sec) Pitch (deg) 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 2 4 6 Wall Distance (m) time (sec) 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 2 4 6 8 time (sec) vx (m/s) 20 40 60 80 100 120 140 160 180 0.5 0.5 1 Moment (Nm) Angle of attack (deg) Trim flight Elevator up Wall detection Throwing Autonomous flight Pitch up maneuver Touch Down

Improvement and future work

• Land on more

challenging surfaces

• Trajectory optimization

– Maximize horizontal distance travelled while ready to perch – Add propulsion

• Real conditions

landing (windy, side approach, etc.)

• Take off from the wall!!

25

Conclusion

• A properly tuned mechanical

system simplifies the perching maneuver

• Suspension is essential for:

– Proper spine engagement – Maintaining controllability – Reducing control & sensor requirements

• Only 7% (28g) of total

airplane mass

• Perching is interesting for a

wide range of applications

• Perching is pretty cool!

26

Questions?
