Lab calibration measurements with radioactive sources Julia Rietenbach 28. August 2012 Julia Rietenbach () Lab calibration measurements with radioactive sources 28. August 2012 1 / 17 Contents Motivation 1 Calibration Sources 2

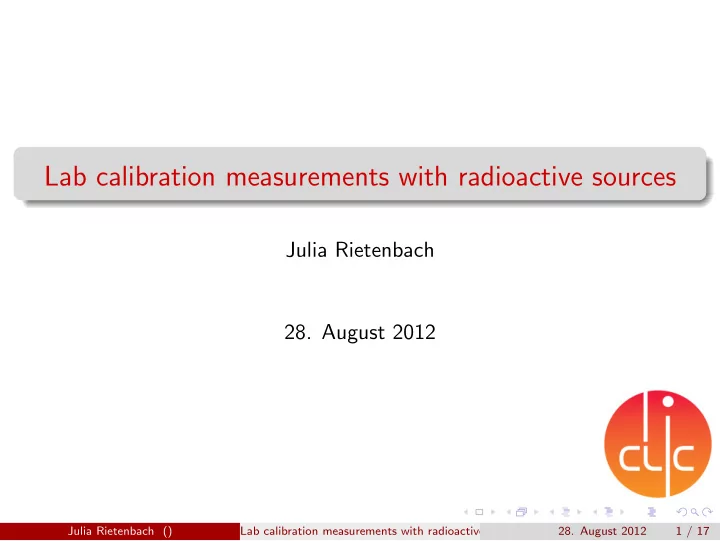

SLIDE 1

Lab calibration measurements with radioactive sources

Julia Rietenbach

28. August 2012

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

1 / 17

SLIDE 2

1

Motivation

2

Calibration Sources

3

Calibration measurements

4

Summary and Outlook

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

2 / 17

SLIDE 3

Motivation for the measurements

Chip had taken data during Test Beam Pixel are not calibrated → position of the Landau distribution varied from pixel to pixel

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

3 / 17

SLIDE 4

Motivation for the measurements

Chip had taken data during Test Beam Pixel are not calibrated → position of the Landau distribution varied from pixel to pixel Each pixel needs to be calibrated individually → a lot of statistic is needed

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

3 / 17

SLIDE 5

Motivation for the measurements

Chip had taken data during Test Beam Pixel are not calibrated → position of the Landau distribution varied from pixel to pixel Each pixel needs to be calibrated individually → a lot of statistic is needed Use sources in the lab to calibrate the pixel

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

3 / 17

SLIDE 6

Motivation for the measurements

Chip had taken data during Test Beam Pixel are not calibrated → position of the Landau distribution varied from pixel to pixel Each pixel needs to be calibrated individually → a lot of statistic is needed Use sources in the lab to calibrate the pixel Raw Test Beam data can be recalibrated; TOT ↔ dE

dx

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

3 / 17

SLIDE 7

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

4 / 17

SLIDE 8

Calibration Sources

Source Radiation Energy (keV) Intenstity (%) Source Radiation Energy (keV) Intenstity (%) Fe 55 Gamma/Xray 5,888 8,20 Cs 137 Beta 174,320 94,70 5,899 16,20 416,260 5,30 6,490 1,89 Sr 90 Beta 195,800 100,00 Electron 3,670 7,40 Am 241 Alphas 5388,000 1,66 26,400 0,78 5442,800 13,10 624,216 7,79 5485,560 84,80 655,668 1,40 5511,500 0,23 660,364 0,30 5544,500 0,37 Gamma/Xray 4,470 0,91 Electron 76,543 0,23 31,817 1,99 32,194 3,64 Gamma/Xray 13,900 37,00 36,304 0,34 26,345 2,27 36,378 0,67 59,541 35,90 37,255 0,21 C 14 Beta 49,470 100,00 661,657 85,10 Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

5 / 17

SLIDE 9

Calibration Sources

Source Radiation Energy (keV) Intenstity (%) Source Radiation Energy (keV) Intenstity (%) Cd 109 Electrons 2,610 167,10 Co 57 Electron 0,670 251,00 18,500 20,80 5,620 105,10 62,520 41,70 7,301 71,10 84,228 44,00 13,567 7,40 87,316 8,90 114,949 1,83 87,938 1,60 121,215 0,19 129,362 1,30 Gamma/Xray 2,980 10,30 Gamma/Xray 0,700 1,52 21,990 29,80 6,391 16,6 22,163 56,10 6,404 32,9 24,912 4,80 7,058 3,91 24,943 9,2 7,058 2,00 25,455 2,31 14,413 9,16 88,033 3,70 122,061 85,60 136,474 10,68 Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

6 / 17

SLIDE 10

Absorption in Silicon

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

7 / 17

SLIDE 11

Frames of different particle types

Am 241 α Source Am 241 γ Source Fe 55 Source Cd 109 Source Cs 137 Source

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

8 / 17

SLIDE 12

Laboratory

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

9 / 17

SLIDE 13

Laboratory

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

10 / 17

SLIDE 14

Calibration measurements

Already finished most of the measurements Statistics for different sources:

◮ Am 241 gamma: all: 70052360 entries; single pixel: 43037750 entries ◮ Fe 55: all: 45305420 entries; single pixel: 44670740 entries ◮ Cd 109: all: 30787630 entries; single pixel: 20522860 entries

next step fit peak for every pixel

◮ Stephane wrote a program which finds the peak automatically and

makes the fit

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

11 / 17

SLIDE 15

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

12 / 17

SLIDE 16

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

13 / 17

SLIDE 17

Single pixel occupancy for different Source

Calibration measurment → noisy pixel on diagonal?

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

14 / 17

SLIDE 18

TOT Spectrum from pixel on diagonal

normal physics events → no noise

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

15 / 17

SLIDE 19

TOT Spectrum of a single pixel

noise peak always in the lowest entries to small to get masked → physical events still measurable

Julia Rietenbach () Lab calibration measurements with radioactive sources

28. August 2012

16 / 17

SLIDE 20

Summary and Outlook

Calibration measurements are mostly finished Continue the analysis, next steps will be

◮ use Stephane’s program to fit peak of each single pixel for the different

sources

◮ Cross check the results with Am 241 α and Sr 90 source ◮ recalibrate the test beam data Julia Rietenbach () Lab calibration measurements with radioactive sources
