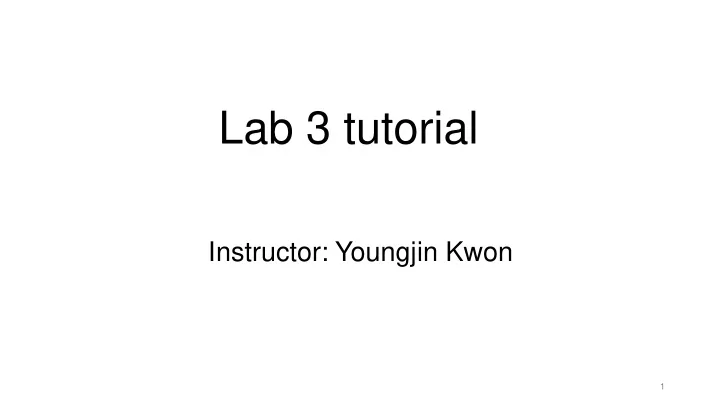

Lab 3 tutorial

Instructor: Youngjin Kwon

1

kern/entry.S Kern/init.c x64_vm_init() kern/bootstrap.S Initialize page metadata (struct PageInfo) array Implement simple physical memory allocator Setup kernel virtual memory

• Page table walk/manipulation

Key function: boot_map_region() Kernel Image

Lab 2 Lab 1

2

To support user-level processes

• Constructing process abstraction
• System calls
• Interrupts handling and return from interrupts
• User-level memory support
• User-level memory layout
• Page fault handling from the user-level memory
• Scheduling & Context switch (multi-processes)

3

About Lab 3

• Part A
• Building framework for user environments (a.k.a. processes)
• Handling interrupts
• Part B
• Handling page faults & exceptions
• Implementing system calls and kernel memory protection

4

Design thinking: control transfer between kernel and user

• Let’s say OS wants to do the control transfer
• E.g., system calls, interrupts, disk IO etc
• User  kernel: OS stores processor states to a certain location
• Kernel  user: OS restores the machine states from the location
• What is the processor states?
• Where is the location (revisit later)?

5

Representing processor states

CPU registers Page table (root pointer)

6

Process abstraction

7

How to launch a process?

• Create a new process (env_create)
• Allocate a new environment (env_alloc)
• Setup initial page table (env_setup_vm)
• Load a program binary (load_icode)
• Execute the process (env_run)

9

Load a program binary

• -b binary: Treat .o file as binary file
• KERN_BINFILES will be stored with ELF format along with kernel image)
• Load_icode (you should fill)
• Parse the program (formatted as elf binary)
• Load code section to memory; look at comments in code
• Set an initial entry point of the program
• Set user-level stack
• Setup debugging information (refer to find_debug_sections())

10

Execute a process: jump from kernel to user process

• env_run (you should fill)
• Set env state: current running env and the new env
• Switching address space (load new cr3 value)
• Loading processor states, struct Trapframe (env_pop_tf)

Do you know what does the code mean?

11

How to jump from kernel to user-level?

• X86 does not allow direct jump from kernel to user-level
• Kernel must use iret instruction
• X86 CPU has a protocol when executing iret
• Before executing iret, CPU expects a specific stack frame,

called exception parameter

RIP CS EFLAGS RSP SS RSP When iret is executed, The instruction to continue execute The code segment selector to change to The value eflags register to load The stack pointer to load The stack segment selector to change to high address low address

12

RSP pointers after the instruction is executed High address Low address RIP CS EFLAGS RSP SS Exception parameter Low address High address

13

Key code flow to implement

• env_create
• env_alloc – env_setup_vm
• load_icode – region_alloc
• env_run

14

Interrupt

• A event altering the sequence of instructions executed by

processer

• A electrical signal generated by hardware circuit both inside and
• utside CPU
• Asynchronous interrupt (interrupt)
• Generated by hardware at arbitrary time
• e.g., IO signal
• Synchronous interrupt (exception)
• Produced by CPU while executing instructions
• e.g., divided by zero
• Trap: software-generated exception

Interrupt or exception? Page fault System call timer Control + C General protection error

15

Interrupt as protected control transfer

• On interrupt, a user process running in a CPU stops
• CPU transfers control from user to kernel
• Who does decide the target address of the control transfer?
• Kernel carefully decides the target address
• Hardware performs the control transfer with the information
• What if a user-process decide the address?
• E.g., key-board interrupt -> a kernel function that set uid to 0

16

Interrupt and IRQ

Interrupt ReQuest (IRQ): Each hardware has a single output line connected to IRQ line All IRQ lines are connected to hardware circuit called Programmable Interrupt Controller (PIC)

• Each hardware assigned an IRQ

number (0 to 255)

• Check ‘cat /proc/interrupts’
• Also called interrupt number,

interrupt vector (or exception vector)

17

Interrupt descriptor table (IDT)

• Entry points of kernel when interrupt or exception happens
• A table indexed by interrupt vector

Each IDT entry looks like this:

CPU sets RIP to offset(16-31)||offset(0-15) to transfer control

18

Interrupt: What happens in user-level?

• Control is transferred to kernel

Kernel  User: OS stores processor states to a certain location User  Kernel: OS restores the machine states from the location

• The certain location: Task State Segment (TSS)
• Control transfer (to kernel) steps
• CPU stores current registers, RIP, and RSP to TSS
• CPU loads “Kernel stack pointer“ in TSS
• CPU sets “interrupt parameters” to the kernel stack
• CPU jumps to the entry point specified by IDT

19

RIP CS EFLAGS RSP SS Low address High address

Example: divided by zero

• CPU switches to kernel stack from TSS (SS0 and RSP0 field)
• CPU pushes the exception parameters onto the kernel stack
• CPU reads IDT entry 0 (divided by zero) and set RIP from IDT
• The RIP is the address of handler function of divided by zero
• Kernel takes the control and performs a proper action
• E.g., terminating the user environment

20

Call flow for interrupt handling

• i386_init()
• trap_init(): setup IDT; check trapname() function for # of traps to support
• trap_init_percpu(): Setup TSS and load IDT

[interrupt happens]

• IDT (trapentry.S)
• _alltraps: common routine to setup register and stack frame to call a

kernel function, trap()

• trap(): takes the parameter of struct trapframe, set by _alltraps
• Trap_dispatch(): do actions for corresponding traps

21

About lab 3

• Part A
• Building framework for user environments (a.k.a. processes)
• Handling interrupts
• Part B
• Handling page faults & exceptions
• Implementing system calls and kernel memory protection

22

Handling page fault

• T_PGFLT: exception vector 14
• CR2: linear address causing the page fault
• Page fault handling path
• IDT  Trap()
• Trap_dispatch()
• page_fault_handler()
• Panic in kernel page fault
• Print trapframe and destroy user environment in user page fault

23

Implementing system calls (user part)

• System call interrupt: int $0x30
• Interrupt vector 48 (0x30)
• System call x84_64 ABI

24

Implementing system calls (kernel part)

• trap_dispatch()
• syscall() (kern/syscall.c): execute handlers for each system call

25

User-mode setup

• The environment array, envs, is exposed to user level with read-only
• Control flow of a user program (e.g., user/hello.c)
• lib/entry.S
• libmain(): setup thisenv (currently running environment)

from sys_getenvid syscall

• umain(): body of a user program

26

Syscall: memory protection in action

• By syscall, a user program and kernel communicate
• E.g., sys_cputs

Pointer from a user process

• What are problems?
• If s is not mapped in user level, kernel would experience PF
• PF in kernel address  typically bug (e.g., NULL pointer reference in kernel code)
• PF in user address  Kernel maps the user page in PF handler
• How to distinguish the two case?
• What if s contains kernel address space?
• E.g., malicious user processes try to print contents of kernel memory

27

Buggy/malicous code examples

user/buggyhello.c user/buggyhello2.c user/evilhello.c

28

Sanity check in system call handler

• Implement user_mem_check() called in system call handler
• Check all pointer passed from user-level into kernel
• 1. The pointer address belongs to user-level
• 2. Page table of the pointer address has a right permission to allow the
• peration

Now you can defeat buggyhello and evilhello!

29
