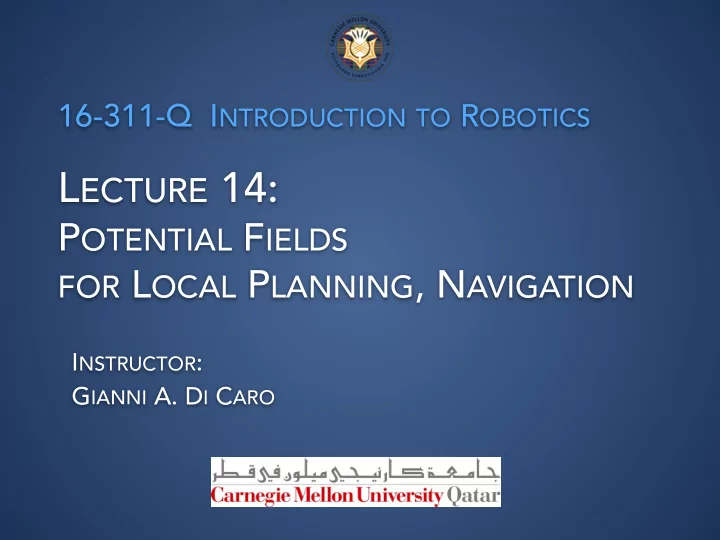

SLIDE 1

16-311-Q INTRODUCTION TO ROBOTICS

LECTURE 14:

POTENTIAL FIELDS

FOR LOCAL PLANNING, NAVIGATION

INSTRUCTOR: GIANNI A. DI CARO

SLIDE 2

2

RECAP: BEHAVIOR ARBITRATION

Environment

Sense Act

Behavior 3 Behavior n Behavior 1 Behavior 2

A r b i t r a t i

n

Conflict resolution module

It might be needed also to access / adjust sensory systems

SLIDE 3

3

RECAP: BEHAVIOR ARBITRATION STRATEGIES

Averaging / Composition B1 ⊕ B2 Voting {R1, R2, R3}: X {R4}: Y

⇒ X

Least Commitment {R1}: DON’T X Fixed priority B1(t) ≻ B2(t), ∀t Alternate B2([t1,t2]), B1([t2,t3]) Variable priority B1(t1) ≻ B2(t1), B2(t2) ≻ B1(t2), Subsumption Suppression: BNew ≻ BOld Inhibition: BNew ⋀ BOld ⇒ ∅

SLIDE 4

4

N AV I G AT I O N , L O C A L P L A N N I N G , G L O B A L P L A N N I N G

Robot has a global, detailed workspace map and has a model of its kino-

dynamics: it can plan the path or the trajectory to qGoal from the current configuration q (deliberative paradigm) General navigation task: define motion controls for (effectively) reaching a desired qGoal configuration while avoiding obstacles and being compliant with kinematic (and dynamic) constraints

Robot has a local, detailed workspace map and has a model of its kino-

dynamics: it can plan (iteratively) the local path or the trajectory towards qGoal from the current configuration q

Robot has partial, local, workspace information, collected during motion via

sensors (e.g., camera, range finder):

it can plan online the local path or the trajectory towards qGoal from the

current configuration q (deliberative approach), using kino-dyno knowledge

it can use a reactive approach, using local workspace information as a

(mostly memory-less) input to perform local navigation aiming to qGoal

SLIDE 5

5

USE THE COMPOSITION APPROACH: POTENTIAL FIELDS

Motor schemas / Potential field methods for navigation tasks The robot is represented in configuration space as a particle under the influence of an artificial potential field U(q) which superimposes:

1. Repulsive forces from obstacles
2. Attractive force from goal(s)

U(q) = Uatt(q) + Urep(q) F ⃗(q) = −∇ ⃗ U(q)

Different behaviors feels different fields, and the arbiter combines their proposed motion vectors

Following a gradient descent moves the robot towards the minima (goal = global minimum)

R. Arkin, Behavior-Based Robotics, MIT Press, 1998

SLIDE 6

6

POTENTIAL FIELDS AT WORK

Shape and mathematical properties of the potential functions matter …

SLIDE 7

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

4

objective: to guide the robot to the goal q g

attractive potential

two possibilities; e.g., in C = R2

paraboloidal conical

7

AT T R A C T I V E P O T E N T I A L

SLIDE 8

8

AT T R A C T I V E P O T E N T I A L

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

5

paraboloidal: let e = q g — q and choose ka > 0
the resulting attractive force is linear in e
conical:
the resulting attractive force is constant

SLIDE 9

9

AT T R A C T I V E P O T E N T I A L

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

6

fa1 behaves better than fa2 in the vicinity of q g but

increases indefinitely with e continuity of fa at the transition requires

a convenient solution is to combine the two profiles:

conical away from q g and paraboloidal close to q g i.e., kb = ½ ka

SLIDE 10

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

7

objective: keep the robot away from CO

repulsive potential

assume that CO has been partitioned in advance in

convex components COi

for each COi define a repulsive field

where kr,i > 0; ° = 2,3,...; ´ 0,i is the range of influence

f COi and

10

R E P U L S I V E P O T E N T I A L

SLIDE 11

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

8

equipotential contours the higher °, the steepest the slope Ur,i goes to 1 at the boundary of COi

11

R E P U L S I V E P O T E N T I A L

SLIDE 12

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

9

fr,i is orthogonal to the equipotential contour passing

through q and points away from the obstacle

the resulting repulsive force is
fr,i is continuous everywhere thanks to the convex

decomposition of CO

aggregate repulsive potential of CO

12

R E P U L S I V E P O T E N T I A L

SLIDE 13

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

10

total potential

force field:
superposition:

local minimum global minimum

13

T O TA L P O T E N T I A L

SLIDE 14

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

11

planning techniques

three techniques for planning on the basis of ft
1. consider ft as generalized forces:

the effect on the robot is filtered by its dynamics (generalized accelerations are scaled)

2. consider ft as generalized accelerations:

the effect on the robot is independent on its dynamics (generalized forces are scaled)

3. consider ft as generalized velocities:

the effect on the robot is independent on its dynamics (generalized forces are scaled)

14

P L A N N I N G / N AV I G AT I O N U S I N G P O T E N T I A L F I E L D

Robot has mass (inertia)! Kinematics

SLIDE 15

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

12

technique 1 generates smoother movements, while

technique 3 is quicker (irrespective of robot dynamics) to realize motion corrections; technique 2 gives intermediate results

strictly speaking, only technique 3 guarantees (in the

absence of local minima) asymptotic stability of q g; velocity damping is necessary to achieve the same with techniques 1 and 2

15

P L A N N I N G / N AV I G AT I O N U S I N G P O T E N T I A L F I E L D

SLIDE 16

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

13

on-line planning (is actually feedback!)

technique I directly provides control inputs, technique 2 too (via inverse dynamics), technique 3 provides reference velocities for low-level control loops the most popular choice is 3

off-line planning

paths in C are generated by numerical integration of the dynamic model (if technique 1), of (if technique 2), of (if technique 3) the most popular choice is 3 and in particular i.e., the algorithm of steepest descent

16

P L A N N I N G / N AV I G AT I O N U S I N G P O T E N T I A L F I E L D

SLIDE 17

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

14

local minima: a complication

if a planned path enters the basin of attraction of a

local minimum q m of Ut, it will reach q m and stop there, because ft (q m ) = —rUt(qm) = 0; whereas saddle points are not an issue

repulsive fields generally create local minima, hence

motion planning based on artificial potential fields is not complete (the path may not reach q g even if a solution exists)

workarounds exist but consider that artificial potential

fields are mainly used for on-line motion planning, where completeness may not be required

17

L O C A L M I N I M A : A C O M P L I C AT I O N

SLIDE 18

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

15

workaround no. 1: best-first algorithm

build a discretized representation (by defect) of Cfree

using a regular grid, and associate to each free cell of the grid the value of Ut at its centroid

planning stops when q g is reached (success) or no

further cells can be added to T (failure)

build a tree T rooted at q s: at each iteration, select the

leaf of T with the minimum value of Ut and add as children its adjacent free cells that are not in T

if success, build a solution path by tracing back the

arcs from q g to q s

18

W O R K A R O U N D 1 : B E S T- F I R S T A L G O R I T H M

SLIDE 19

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

16

best-first evolves as a grid-discretized version of

steepest descent until a local minimum is met

the best-first algorithm is resolution complete
at a local minimum, best-first will “fill” its basin of

attraction until it finds a way out

its complexity is exponential in the dimension of C,

hence it is only applicable in low-dimensional spaces

efficiency improves if random walks are alternated

with basin-filling iterations (randomized best-first)

19

W O R K A R O U N D 1 : B E S T- F I R S T A L G O R I T H M

SLIDE 20

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

17

workaround no. 2: navigation functions

path generated by the best-first algorithm are not

efficient (local minima are not avoided)

if the C-obstacles are star-shaped, one can map CO to

a collection of spheres via a diffeomorphism, build a potential in transformed space and map it back to C

a different approach: build navigation functions, i.e.,

potentials without local minima

another possibility is to define the potential as an

harmonic function (solution of Laplace’s equation)

20

W O R K A R O U N D 2 : N AV I G AT I O N F U N C T I O N S

SLIDE 21

Oriolo: Autonomous and Mobile Robotics - Motion Planning 3

18

an efficient alternative: numerical navigation functions
with Cfree represented as a gridmap, assign 0 to start

cell, 1 to cells adjacent to the 0-cell, 2 to unvisited cells adjacent to 1-cells, ... (wavefront expansion)

!! !" " ! ! ! ! # # # # $ $ $ $ % % % & & & & ' ' ' ' ' ' ' ( ( ( ( ( ( ( ( ( ) ) ) ) ) ) ) * * * * !" !" !" !! !! !# !# !# !# !$ !$ !$ !% !& !% !& !' !( !) !*

start goal solution path: steepest descent from the goal

21
