SLIDE 1

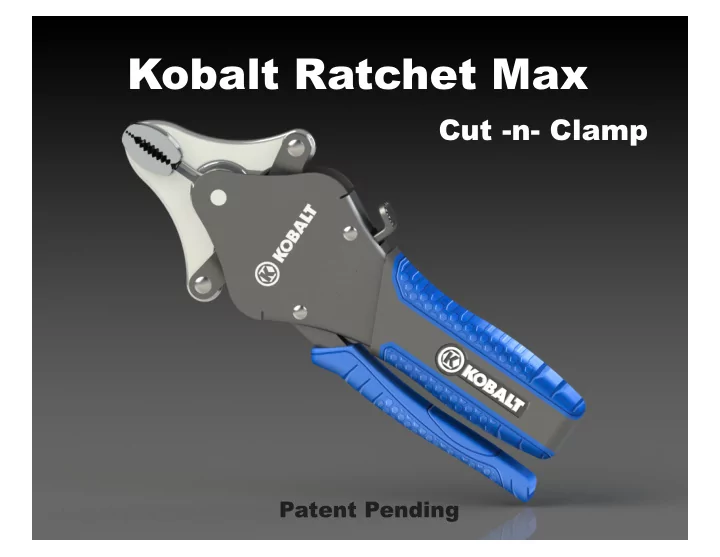

Kobalt Ratchet Max Cut -n- Clamp Patent Pending Two Sizes 10-inch - - PowerPoint PPT Presentation
Kobalt Ratchet Max Cut -n- Clamp Patent Pending Two Sizes 10-inch - - PowerPoint PPT Presentation
Kobalt Ratchet Max Cut -n- Clamp Patent Pending Two Sizes 10-inch 7-inch 1 Solid Steel Forged Jaws Provide Long Multiple Positioning Ratchet Lever Cutting and Clamping Forces Jaws-of-life Design Provides MAXIMUM Allows for Automatic
SLIDE 2
SLIDE 3
1 2 3 4 5 6 7 8
Features of the Kobalt Ratchet Max
1 2 3 4 5 6 7 8
Solid Steel Forged Jaws Provide Long Lasting Superior Strength for Cutting and Clamping Laminated Steel Body Construction Designed for Superior Durability Feather-Touch Push Button Release Maximum Jaw Position Limiter For Increased Speed Dual Durometer Handles Provide End User Gripping Comfort Spring Loaded Ratcheting Mechanism Allows for Automatic Opening Jaws-of-life Design Provides MAXIMUM Cutting and Clamping Forces Multiple Positioning Ratchet Lever Provides Greater End User Versatility
SLIDE 4
How the Kobalt Ratchet Max Works
Place the work piece into the jaws to clamp or into the cutting edge to cut, and simply squeeze the ratcheting lever until the desired force is achieved. To release the work piece, press the feather-touch thumb release, and the jaws will automatically open. Place the work piece into the jaws to clamp or into the cutting edge to cut, and simply squeeze the ratcheting lever until the desired force is achieved. To release the work piece, press the feather-touch thumb release, and the jaws will automatically open.
See the video “Ratchet-Max” https://youtu.be/G-RWpmD8z-c
SLIDE 5
Kobalt Ratchet Max Jaw Opening and Cutting Sizes
7-inch 10-inch Max Opening: 1-3/8” 1-7/8” Cuts Alum. Rod: 0.146” 0.200” Cuts Steel Rod: 0.136” 3/16” Also Cuts Wire Rope!
SLIDE 6
Versatile: Meets the demands of the professional as well as the do-it-yourselfer
Ÿ Work on farm machinery, heavy equipment, and automobiles Ÿ Assemble a swing set Ÿ Remove a rounded or rusted fastener Ÿ Loosen a stuck garden hose Ÿ Clamp workpieces to be welded Ÿ Cut wire rope
Unique design: Jaws-of-life mechanism and a force-multiplying ratchet lever combine to produce enough force to cut 3/16" steel rod with one hand Ratchet Mechanism: Eliminates thumbscrew and traditional lever manipulation to change sizes Feather-Touch Release: Allows user to safely release workpiece without the handle flying open, as on traditional locking pliers Three-Stage Preset: Restricts jaw opening to preset positions for smaller jobs Wave-Spring Arms: Unique and innovative design provides constant pressure
Summary
The Kobalt Ratchet Max Cut-n-Clamp is a must-have tool that will prove to be an asset to any person’s tool set. Its SUPERIOR JAW FORCE, combined with its ease of use, makes it a great tool for men and women alike.
See the video “Ratchet-Max” https://youtu.be/G-RWpmD8z-c
SLIDE 7
Conceptual design by Jay Fording, Lowes
