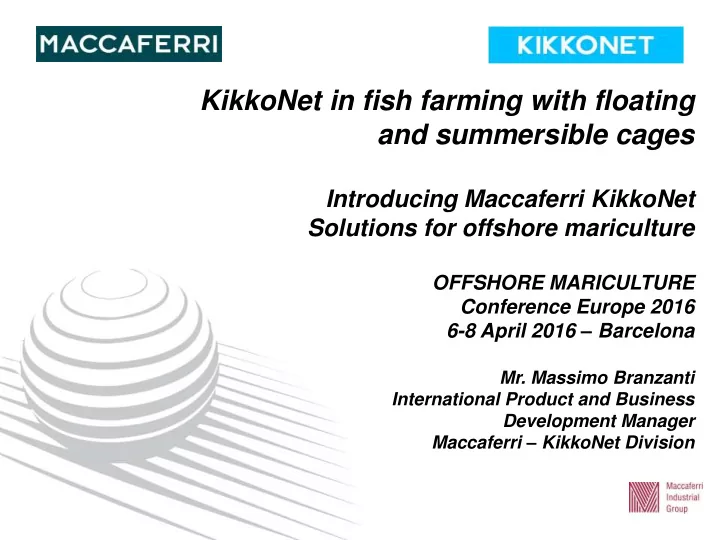

KikkoNet in fish farming with floating and summersible cages - - PowerPoint PPT Presentation

KikkoNet in fish farming with floating and summersible cages

Introducing Maccaferri KikkoNet Solutions for offshore mariculture

OFFSHORE MARICULTURE Conference Europe 2016 6-8 April 2016 – Barcelona

• Mr. Massimo Branzanti

International Product and Business Development Manager Maccaferri – KikkoNet Division

What is this KikkoNet?

KikkoNet is an innovative net made of UV stabilised PET monofilaments, woven into a double twisted hexagonal mesh, with specific and unique

• characteristics. KikkoNet

Net Pens provide ideal conditions for the growth

• f almost all fish species.

2

Our Mission

To become a leading international provider of advanced netting solutions for the aquaculture and mariculture market from design to commissioning.

Research Design Manufacturing Assembling Supply

3

Index

• 1. KikkoNet, double twisted hexagonal mesh
• 2. Mesh type
• 3. Characteristics of the KikkoNet
• 4. Floating Cages
• 5. Submersible Cages
• 6. Net pens engineering and design
• 7. Testing and certifications
• 8. Conclusions and Q&A

4

KikkoNet Mesh Type

Wire diameter

• Small Mesh

2,50 mm

• Small Mesh

3,00 mm

• Large Mesh

2,50 mm

• Large Mesh

3,00 mm

• Super Large Mesh

3,00 mm

• Super Large Mesh

3,50 mm

Mesh size Length – L1

35 mm 43 mm 45 mm 70 mm 75 mm 100 mm

5

Characteristics of the KikkoNet

• Long life (4-5 times more than traditional material). NS 9415
• Reduced biofouling
• No need to remove cage from water for a long time
• Low maintenance cost
• Less flexible than other material, hence less stress and more
• xigenation for the fish
• Resistant to virtually any predator

6

• Hard, smooth and tough surface that resists marine fouling thanks to the monofilament
• Frequency of cleaning cycles greately reduced
• Optimized water flow allows for maximum oxygen supply to fish

7

Biofouling and KikkoNet

The KikkoNet is easily cleaned, inspected and maintained while in the water (no anti-fouling used).

KikkoNet installations

• n Floating Cages in Norway

8

KikkoNet installations

• n Submersible Cages in Panama

Unique and customised net solutions for specialised containment systems for marine aquaculture, ideal for submersible cages in

• ffshore open sea conditions.

9

KikkoNet installations on Submersible Cages in Sweden

10

Net pen engineering and design

Data Input (usually provided by Costumer)

• 1. Mesh type
• 2. Waterline Top Circumference /Diameter (if circular) or sides (if square)
• 3. Tapering rate
• 4. Side wall height
• 5. Net base shape and dimensions
• 6. Jump net height

11

Net pen engineering and design

Design 1 – Overview of the final product

12

Net pen engineering and design

Design 2 – Assembling method of the lateral net

13

Net pen engineering and design

Design 3 – Construction method of the net base

14

Special net panels

…to KikkoNet design drawing proposal. From system developer input…

15

Testing and Certification

KikkoNet has very high durability, strength and other escape prevention properties: It is certified under NS 9415:2009 to stay in the sea for up to 14 years. EcoNet = KikkoNet “EcoNet” is the brand name given to KikkoNet by our Distributor Akva Group ASA

16

Thank You for Your Attention!

17
