Joint Research Centre the European Commission's in-house science service Serving society Stimulating innovation Supporting legislation Scales and components of Building Back Better : resilience, performance, efficiency Paolo Negro JRC.E.4

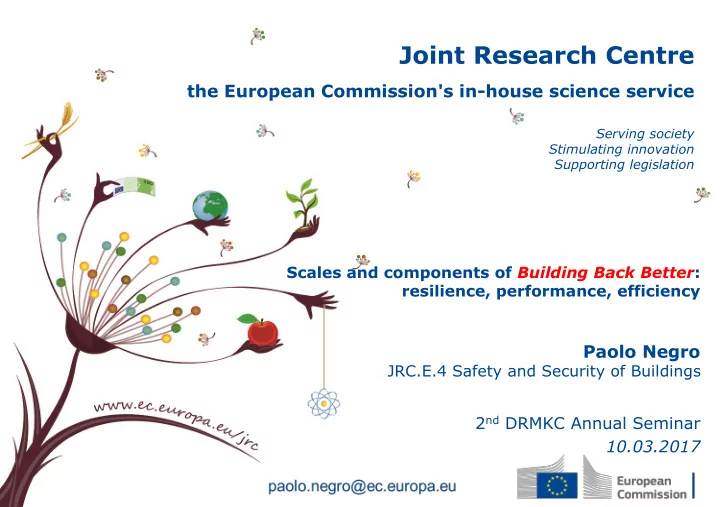

  1. Joint Research Centre the European Commission's in-house science service Serving society Stimulating innovation Supporting legislation Scales and components of Building Back Better : resilience, performance, efficiency Paolo Negro JRC.E.4 Safety and Security of Buildings 2 nd DRMKC Annual Seminar 10.03.2017

  2. Resilient Smart Societies Infrastructures & communities need Levels to be able to resist , absorb , adapt to and recover from the effects of a • Infrastructure hazard in a timely and efficient • City manner , including through the • Regional preservation and restoration of their • National essential basic structures and functions/services . Capacities • Resist • Absorb • Adapt • Recover RAPID-N

  3. Relevant areas of support E.2 E.1 E.4 Technology Disaster Risk Safety and Security Innovation in Management of Buildings Security “Space, Security and Migration”

  4. E.2 Technology Innovation in Security Bridging scientific outputs with real cases for the production of best practices to be shared with Member States Network Analysis • Resilience Assessment and Planning • Impact Assessment (Consequences) • Infrastructure mapping • Dependency Analysis • Stakeholder engagement • Policy support to DG HOME, DG CNECT, DG ECHO, DG ENER. Collaboration with European research organizations, CI Operators, Government Authorities, US NIST, Disaster Prevention Research Institute - Kyoto University – Japan.

  5. E.4: European Laboratory for Structural Assessment

  6. L’Aquila earthquake Coordination of a MIC mission to explore the possibilities for a collaboration among European Civil Protection agencies http://ec.europa.eu/echo/files/civil_protection/italy_2009.htm

  7. ……2016 Kumamoto earthquake Joint JRC/Japanese Building Research Institute reconnaissance

  8. Emilia earthquake, precast structures SAFECLADDING project

  9. Current design practices The façade elements are: • • simple masses, • without stiffness. • The connections are: • conceived for self-weight only, • (and/or) out of plane loads; • designed for low displacement capacity. • This does not hold true! And can lead to failure both panels and structure

  10. Seismic behaviour of precast structures: A long story, many research partners National Associations of RTD Providers: Precast Producers: BIBM (EU) ELSA (EU) • • VBBF/ECS (DE/EU) Politecnico di Milano (IT) • • Assobeton (IT) LNEC (PT) • • ANDECE (ES) NTUA (GR) • • ANPC (PT) University of Ljubljana (SI) • • SEVIPS (GR) Technical University Istanbul (TR) • • TPCA (TR) Tongji University (CN) • •

  11. Isostatic restraint configuration The connections between frame structure and panels allow mutual displacements that satisfy the deformation demands of the frame, uncoupling it from the kinematic behaviour of the panels. ( WP2 )

  12. Isostatic configuration: design strategies Isostatic Sliding Frame Double Hinged Panel Rocking Panel Different strategies for the Isostatic Restraint Configuration have been tested, both for vertical and horizontal panels . Similar configurations also tested for the Dissipative Restraint Configuration .

  13. Integrated restraint configuration The frame and panels are restrained, the displacement is coupled between the parts. The connections must be over-proportioned to bear the higher stress level requested. ( WP3 )

  14. Dissipative restraint configuration The joints between structure and panels (or among the panels) can dissipate energy. The overall building response can be balanced to reduce displacements keeping low loads in the connections. ( WP4 )

  15. Backup Connections The Backup Connections have to ensure the security against panels falling and overturning, once the main connections are jeopardized. These are suitable for the retrofitting of existing buildings. ( WP1 )

  16. SAFECLADDING: Design Guidelines http://doi.org/10.2788/546845 http://doi.org/10.2788/956612 Available in EU BOOKSHOP bound to adoption by ISO TC71 •

  17. Emilia: Energy efficiency vs. safety

  18. Life-Cycle Analysis (LCA, from cradle to grave … ) 25

  19. 26

  20. 27

  21. Look at the whole process 28 2

  22. SSD Methodology Sustainable Structural Design (SSD) is a methodology aiming at supporting the general design process of buildings. The methodology combines the structural and the environmental aspects of the buildings and summarises them in a single final parameter, provided in economic terms. 29

  23. Application to a building 1) Precast Structure 2) Cast-in-situ Structure Real scale building • Designed according to EC8 • Built and tested at ELSA • Reinforced concrete structure • (SAFECAST and SAFECLADDING) Same architectural layout • No walls, hinged connections • 30

  24. Life-Cycle Assessment 400 1400 350 1200 300 1000 CO2eq (tonnes) 250 CO2eq (tonnes) 800 200 600 150 400 100 200 50 0 0 20 years 100 years 500 years 20 years 100 years 500 years Precast Cast-in-situ Precast Cast-in-situ Precast Cast-in-situ Construction phase Demolition phase Internal walls External walls Structure Demolition phase Construction phase 31

  25. Cost of equivalent CO 2 emissions: European Union Emission Trading System 32

  26. Energy Assessment  For operation phase Climatic zone F  ENEA  Italian national data for office occupancy Electric consumption Heating consumption According Buildings Performance Institute Europe (BPIE) data: The annual average energy consumption in the non-residential sector is 280 kWh/m 2 . Electricity: 52 kWh/m 2 year × (263,5 m 2 × 3)× 50 years = 2.055.300 kWh 23,1 m 3 /m 2 year × (263,5 m 2 × 3) × 50 years = 913.027 m 3 gas Gas: 33

  27. (Simplified) Structural Performance Assessment Initial Cost: • Material Inventory from Environmental Assessment Definition of Damage (Limit) States: • Low damage : start of the damage for non-structural elements Deformation (Maximum inter-storey drift) limitations according EC8: • 0.5% for brittle non-structural elements attached to the structure (e.g. brick walls), • 0.75% for ductile non-structural elements attached to the structure (e.g. concrete panels), • 1.0% for non-structural elements not interfering with the structure (e.g. glass façade). Heavy damage : damage of all non-structural elements Maximum inter-story reaches goes twice the deformation limitations value. Severe damage: no-collapse requirement According EC8, the seismic action with 10 % probability of exceedance in 50 years i.e. with 475 years Return Period. Near Collapse Limit State : prevention of global collapse under a very rare event Full exploitation of the deformation capacity of structural elements. 34

  28. Structural Performance Assessment Cost Analysis: Precast Structure Limit Drift PGA R 50 Damage Loss T R [year] State [%] [g] [%] cost [€] [€] 1 0.75 0.088 49.0 64.3 8318 3505 𝑀 = ෍ 𝐷 𝑗 ∙ 𝑆 𝑗 − 𝑆 𝑗+1 2 1.50 0.174 199.6 22.2 80216 9790 𝑗=1 3 2.19 0.250 475.0 10.0 119743 8022 4 3.53 0.400 1489.5 3.3 988163 32631 Total expected loss [€] 53947 Cast-in-situ Structure Limit Drift PGA R 50 Damage Loss T R [year] State [%] [g] [%] cost [€] [€] 1 0.50 0.045 30.0 81.6 9278 1750 2 1.00 0.090 51.1 62.8 92254 48692 3 2.79 0.250 475.0 10.0 148305 9935 4 5.15 0.400 1489.5 3.3 1008819 33313 Total expected loss [€] 93690 35

  29. Global Assessment Parameter Cost [€ ] Precast Cast-in-situ Initial Cost 790.530 807.055 Environmental Impact 393.218 394.054 Total Expected Loss 53.947 93.690 Global Assessment 1.237.695 1.294.799 Parameter R SSD € 1,400,000 € 1,200,000 € 1,000,000 Initial Cost € 800,000 Cost [€] Environmental Impact € 600,000 € 400,000 Total Expected Loss € 200,000 € - Precast Cast-in-situ 36

  30. SAFESUST: combining safety and energy efficiency. A single parameter to assess the performance of the intervention

  31. Development of the SSD Methodology The methodology can be used at urban/regional/national level for supporting stakeholders in addressing policy projects on the territory Linking all the buildings of a defined territory to a single parameter leads to identifying the areas where an intervention is more urgent and would be more efficient

  32. Combined analysis of damages (expected), energy savings and environmental impact across the whole lifecycle INTEGRATED PLANNING i.e, optimization of policies for construction and reconstruction (level: city/region/state) FIELD DATA SAFESUST approach Energy data Earthquake performance Integrate seismic-energy-environmental analysis ( catasto energetico ) ( scheda CARTIS ) (validated at building level)
