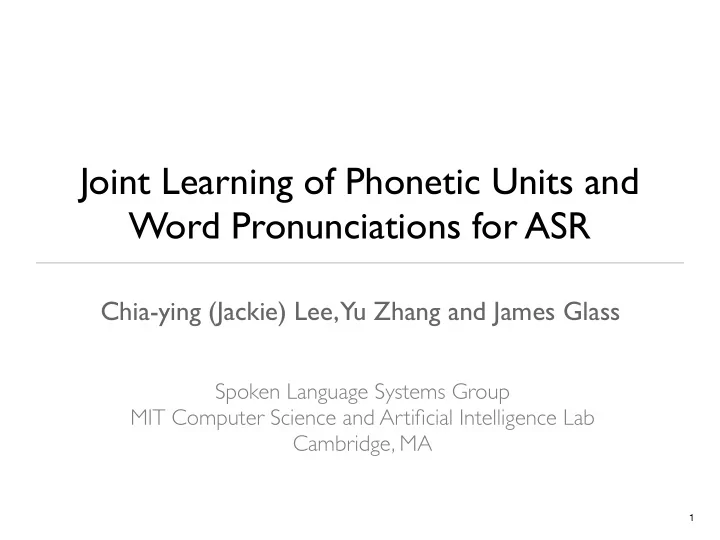

Joint Learning of Phonetic Units and Word Pronunciations for ASR

Chia-ying (Jackie) Lee, Yu Zhang and James Glass

Spoken Language Systems Group MIT Computer Science and Artificial Intelligence Lab Cambridge, MA

1

2

World Language Map

Data source: http://www.ethnologue.com/

• Roughly 7,000 living languages all around the world
• Only 2% are supported by automatic speech recognition (ASR) technology

Region # of living languages Americas 1,060 Africa 2,146 Europe 284 Asia 2,304 Pacific 1,311

2

World Language Map

Data source: http://www.ethnologue.com/

• Roughly 7,000 living languages all around the world
• Only 2% are supported by automatic speech recognition (ASR) technology

Region # of living languages Americas 1,060 Africa 2,146 Europe 284 Asia 2,304 Pacific 1,311

2

World Language Map

Data source: http://www.ethnologue.com/

• Roughly 7,000 living languages all around the world
• Only 2% are supported by automatic speech recognition (ASR) technology

Region # of living languages Americas 1,060 Africa 2,146 Europe 284 Asia 2,304 Pacific 1,311

3

2% Language Barrier

• Conventional ASR training is expensive
• Requires a lot of expert knowledge

3

2% Language Barrier

[b][p][k] [ae][iy]... Phonetic inventory

• Conventional ASR training is expensive
• Requires a lot of expert knowledge

3

2% Language Barrier

[b][p][k] [ae][iy]... Phonetic inventory big: [b I g] cat: [k ae t]

...

Lexicon

• Conventional ASR training is expensive
• Requires a lot of expert knowledge

3

2% Language Barrier

[b][p][k] [ae][iy]... Phonetic inventory big: [b I g] cat: [k ae t]

...

Lexicon hello world ... Annotated speech

• Conventional ASR training is expensive
• Requires a lot of expert knowledge

4

2% Language Barrier

big: [b I g] cat: [k ae t]

...

hello world ... [b][p][k] [ae][iy]... Phonetic inventory Lexicon

require linguistic expert knowledge difficult to collect

Annotated speech

• Conventional ASR training is expensive
• Requires a lot of expert knowledge

5

2% Language Barrier

big: [b I g] cat: [k ae t]

...

hello world ... [b][p][k] [ae][iy]...

• Conventional ASR training is expensive
• Requires a lot of expert knowledge

Annotated speech

easier to generate by non-experts

Phonetic inventory Lexicon

require linguistic expert knowledge difficult to collect

Towards ASR Training without Experts

6

big: [b I g] cat: [k ae t]

...

hello world ... [b][p][k] [ae][iy]... Phonetic inventory Lexicon Annotated speech

require linguistic expert knowledge difficult to collect easier to generate by non-experts

Towards ASR Training without Experts

7

big: [b I g] cat: [k ae t]

...

hello world ... [b][p][k] [ae][iy]... Phonetic inventory Lexicon Annotated speech

require linguistic expert knowledge difficult to collect easier to generate by non-experts

Towards ASR Training without Experts

8

big: [b I g] cat: [k ae t]

...

hello world ... [b][p][k] [ae][iy]... Phonetic inventory Lexicon Annotated speech

require linguistic expert knowledge difficult to collect easier to generate by non-experts

• Infer lexicon and phonetic units from transcribed speech

Towards ASR Training without Experts

9

big: [b I g] cat: [k ae t]

...

hello world ... [b][p][k] [ae][iy]... Phonetic inventory Lexicon Annotated speech

require linguistic expert knowledge difficult to collect

• Infer lexicon and phonetic units from transcribed speech

easier to generate by non-experts

Discover Pronunciation Lexicon

10

• Learn word pronunciations from transcribed speech

I need to fly to Texas

Discover Pronunciation Lexicon

11

[n] [iy] [d] [t][ux] [f] [l] [ay] [t] [ux][t] [e] [k] [s] [ax] [s] [ay] I need to fly to Texas

• Learn word pronunciations from transcribed speech

Discover Pronunciation Lexicon

12

[n] [iy] [d] [t][ux] [f] [l] [ay] [t] [ux][t] [e] [k] [s] [ax] [s] [ay] I need to fly to Texas

• Learn word pronunciations from transcribed speech

Discover Pronunciation Lexicon

12

[n] [iy] [d] [t][ux] [f] [l] [ay] [t] [ux][t] [e] [k] [s] [ax] [s] [ay] I need to fly to Texas I : need : to : fly : [ay] [n iy d] [t ux] [f l ay] ...

• Learn word pronunciations from transcribed speech

Without Linguistic Knowledge

13

ང་གzགས་པོ་sང་ད་གམེད། གས་rེ་ཆེ།

• Can we discover the word pronunciations?

Without Linguistic Knowledge

14

• Can we discover the word pronunciations?

ང་གzགས་པོ་sང་ད་གམེད། གས་rེ་ཆེ།

Without Linguistic Knowledge

15

ང་གzགས་པོ་sང་ད་གམེད། གས་rེ་ཆེ།

?

• Can we discover the word pronunciations?

16

I need to fly to Texas

• Latent phone sequence
• Latent letter to sound (L2S) mapping rules

Challenges

Challenges

17

I need to fly to Texas [n] [iy] [d] [t][ux] [f] [l] [ay] [t] [ux][t] [e] [k] [s] [ax] [s] [ay]

• Latent phone sequence
• Latent letter to sound (L2S) mapping rules

18

I need to fly to Texas [n] [iy] [d] [t][ux] [f] [l] [ay] [t] [ux][t] [e] [k] [s] [ax] [s] [ay]

• Latent phone sequence
• Latent letter to sound (L2S) mapping rules

Challenges

19

Hierarchical Bayesian Model

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

19

Hierarchical Bayesian Model

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

19

Hierarchical Bayesian Model

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

19

Hierarchical Bayesian Model

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

19

Hierarchical Bayesian Model

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

[s] [iy] [z] [k] θ1

...

θ2 θ3 θK θk: HMM

19

Hierarchical Bayesian Model

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

[s] [iy] [z] [k] θ1

...

θ2 θ3 θK θk: HMM

19

Hierarchical Bayesian Model

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

[s] [iy] [z] [k] θ1

...

θ2 θ3 θK θk: HMM

19

Hierarchical Bayesian Model

πs

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

[s] [iy] [z] [k] θ1

...

θ2 θ3 θK θk: HMM

19

Hierarchical Bayesian Model

πs

...

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

[s] [iy] [z] [k] θ1

...

θ2 θ3 θK θk: HMM

19

Hierarchical Bayesian Model

πc πs

...

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

[s] [iy] [z] [k] θ1

...

θ2 θ3 θK θk: HMM

19

Hierarchical Bayesian Model

πc

...

πs

...

• Unknown L2S rules
• Weights over HMMs
• Associated with each letter
• Unknown phone sequence
• Unknown phone inventory
• HMM-based mixture model

[s] [iy] [z] [k] θ1

...

θ2 θ3 θK θk: HMM

20

Generative Process

θ1

...

θ2 θ3 θK

...

1 2 3 K

π

li

21

Generative Process

θ1

...

θ2 θ3 θK li

red sox

xt

...

1 2 3 K

π

li

21

Generative Process

θ1

...

θ2 θ3 θK li

red sox

xt

...

1 2 3 K

π

li

22

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni li

red sox

ni xt

...

1 2 3 K

π

li

23

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni ni ~ 𝜚li li

red sox

ni

3-dim categorical distribution

xt

...

1 2 3 K

π

li

23

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni ni ~ 𝜚li li

red sox

ni

3-dim categorical distribution

xt ~ Dir(η)

...

1 2 3 K

π

li

24

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni li

red sox

ni 1 2 𝜚r xt ~ Dir(η)

...

1 2 3 K

π

li

24

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni li

red sox

ni 1 2 𝜚r xt ~ Dir(η)

...

1 2 3 K

π

li

25

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚r li

red sox

1

ni xt

...

1 2 3 K

π

li

~ Dir(η)

26

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚e li

red sox

1

ni xt

...

1 2 3 K

π

li

~ Dir(η)

26

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚e li

red sox

1

ni

1

xt

...

1 2 3 K

π

li

~ Dir(η)

27

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚d li

red sox

1 1

ni xt

...

1 2 3 K

π

li

~ Dir(η)

27

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚d li

red sox

1 1

ni xt

1

...

1 2 3 K

π

li

~ Dir(η)

28

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚_ li

red sox

1 1 1

ni xt

...

1 2 3 K

π

li

~ Dir(η)

28

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚_ li

red sox

1 1 1

ni xt

...

1 2 3 K

π

li

~ Dir(η)

29

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚s li

red sox

1 1 1 0

ni xt

...

1 2 3 K

π

li

~ Dir(η)

29

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚s li

red sox

1 1 1 0

ni xt

1

...

1 2 3 K

π

li

~ Dir(η)

30

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚o li

red sox

1 1 1 1 0

ni xt

...

1 2 3 K

π

li

~ Dir(η)

30

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 2 𝜚o li

red sox

1 1 1 1 0

ni xt

1

...

1 2 3 K

π

li

~ Dir(η)

31

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 𝜚x li

red sox

2

1 1 1 1 0 1

ni xt

...

1 2 3 K

π

li

~ Dir(η)

31

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 𝜚x li

red sox

2

1 1 1 1 0 1

ni xt

2

...

1 2 3 K

π

li

~ Dir(η)

32

Generative Process

θ1

...

θ2 θ3 θK

• Step 1
• Generate the number of phones that each letter maps to ( )

ni 1 𝜚 li

red sox

2

1 1 1 1 0 1

ni xt

2

...

1 2 3 K

π

li

~ Dir(η)

li

33

Generative Process

θ1

...

θ2 θ3 θK 1 2 li

red sox

2 1 1 1 1 0 1

ni xt ~ Dir(η) 𝜚li

...

1 2 3 K

π

li

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

33

Generative Process

θ1

...

θ2 θ3 θK 1 2 li

red sox

2 1 1 1 1 0 1

ni xt ~ Dir(η) 𝜚li

...

1 2 3 K

π

li

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

33

Generative Process

θ1

...

θ2 θ3 θK 1 2 li

red sox

2 1 1 1 1 0 1

ni xt ci,p ~ Dir(η) 𝜚li

...

1 2 3 K

π

li

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

34

Generative Process

θ1

...

θ2 θ3 θK 2 xt 1 li

red sox

2 1 1 1 1 0 1

ni ci,p ~ Dir(η) 𝜚li

...

1 2 3 K

πr

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

35

Generative Process

θ1

...

θ2 θ3 θK 1 2

πr

...

1 2 3 K li

red sox

2 1 1 1 1 0 1

ni ci,p xt ~ Dir(η) 𝜚li ~ Dir(γ)

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

36

Generative Process

θ1

...

θ2 θ3 θK 1 2

πr

...

1 2 3 K li

red sox

2 1 1 1 1 0 1

ni 3 ci,p xt ~ Dir(η) 𝜚li ~ Dir(γ)

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

37

Generative Process

θ1

...

θ2 θ3 θK 1 2

πe

...

1 2 3 K li

red sox

2 1 1 1 1 0 1

ni 3 1 ci,p xt ~ Dir(η) 𝜚li ~ Dir(γ)

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

38

Generative Process

θ1

...

θ2 θ3 θK 1 2

πd

...

1 2 3 K li

red sox

2 1 1 1 1 0 1

ni 3 1 17 ci,p xt ~ Dir(η) 𝜚li ~ Dir(γ)

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

39

Generative Process

θ1

...

θ2 θ3 θK 1 2

πs

...

1 2 3 K li

red sox

2 1 1 1 1 0 1

ni 2 3 1 17 ci,p xt ~ Dir(η) 𝜚li ~ Dir(γ)

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

40

Generative Process

θ1

...

θ2 θ3 θK 1 2

πo

...

1 2 3 K li

red sox

2 1 1 1 1 0 1

ni 2 3 1 17 19 ci,p xt ~ Dir(η) 𝜚li ~ Dir(γ)

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

41

Generative Process

θ1

...

θ2 θ3 θK 1 2

πx

li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19

...

1 2 3 K ci,p xt ~ Dir(η) 𝜚li ~ Dir(γ)

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

42

Generative Process

θ1

...

θ2 θ3 θK 1 2

πx

...

1 2 3 K li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 ci,p xt ~ Dir(η) 𝜚li ~ Dir(γ)

• Step 2
• Generate the phone label ( ) for every phone that a letter maps to,

ci,p

1≤ p ≤ ni

• Step 3
• Generate speech ( )

43

Generative Process

θ1

...

θ2 θ3 θK 1 2

...

1 2 3 K xt li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt ci,p xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

• Step 3
• Generate speech ( )

44

Generative Process

θ1

...

θ2 θ3 θK 1 2

...

1 2 3 K xt li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt ci,p xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

• Step 3
• Generate speech ( )

45

Generative Process

θ1

...

θ2 θ3 θK 1 2

...

1 2 3 K xt li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

ci,p

• Step 3
• Generate speech ( )

46

Generative Process

θ1

...

θ2 θ3 θK 1 2

...

1 2 3 K xt li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

ci,p

• Step 3
• Generate speech ( )

47

Generative Process

θ1

...

θ2 θ3 θK 1 2

...

1 2 3 K xt li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

ci,p

• Step 3
• Generate speech ( )

48

Generative Process

θ1

...

θ2 θ3 θK 1 2

...

1 2 3 K xt li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

ci,p

• Step 3
• Generate speech ( )

49

Generative Process

θ1

...

θ2 θ3 θK 1 2

...

1 2 3 K xt li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

ci,p

• Step 3
• Generate speech ( )

50

Generative Process

θ1

...

θ2 θ3 θK 1 2

...

1 2 3 K xt li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

ci,p

• Step 3
• Generate speech ( )

51

Generative Process

li

red sox

2 1 1 1 1 0 1

θ1

...

θ2 θ3 θK ni 1 2 56 2 3 1 17 19 2

...

1 2 3 K xt xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

ci,p

• Step 3
• Generate speech ( )

51

Generative Process

li

red sox

2 1 1 1 1 0 1

θ1

...

θ2 θ3 θK ni 1 2 56 2 3 1 17 19 2

...

1 2 3 K xt xt ~ Dir(η) 𝜚li

π

li ~ Dir(γ)

ci,p

• Take context into account for learning L2S mapping rules
• More specific rules
• Natural back-off mechanism

Context-dependent L2S Rules

52

θ1 θ2 θ3 θ4 ...

...

~DP(γ, ) 𝜚sox 𝜚

• ~

ci

πo

red sox

πo

...

1 2 3 K

• Take context into account for learning L2S mapping rules
• More specific rules
• Natural back-off mechanism

Context-dependent L2S Rules

53

θ1 θ2 θ3 θ4 ...

...

~DP(γ, ) 𝜚sox 𝜚

• red sox

...

1 2 3 K

πsox

...

1 2 3 K

~

ci

πsox πo

• Take context into account for learning L2S mapping rules
• More specific rules
• Back-off mechanism through hierarchy

Context-dependent L2S Rules

54

...

1 2 3 K

πsox

...

1 2 3 K

πo

• Take context into account for learning L2S mapping rules
• More specific rules
• Back-off mechanism through hierarchy

Context-dependent L2S Rules

55

...

1 2 3 K

...

1 2 3 K

~ Dir(απo) πsox πo

• Take context into account for learning L2S mapping rules
• More specific rules
• Back-off mechanism through hierarchy

Context-dependent L2S Rules

56

...

1 2 3 K

...

1 2 3 K

• View as the prior of
• If sox appears frequently
• If sox is rarely observed

πo πsox empirical distribution πsox πsox πo ~ Dir(απo) πsox πo

• Take context into account for learning L2S mapping rules
• More specific rules
• Back-off mechanism through hierarchy

Context-dependent L2S Rules

57

...

1 2 3 K

...

1 2 3 K

~ Dir(λβ) ~ Dir(𝛿) β

• View as the prior of
• If sox appears frequently
• If sox is rarely observed

πo πsox empirical distribution πsox πsox πo πo ~ Dir(απo) πsox

Graphical Model

58

𝛿, λ, α : concentration parameter x : observation speech li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

G : the set of graphemes l : sequence of three graphemes l : observed graphemes d : phone duration n : number of phones a grapheme maps to L : total number of graphemes K : total number of HMMs c : phone id 𝜚l : 3-dim categorical distribution πl,n,p, πl,n,p, β : K-dim categorical distribution θk : a HMM θ0 : HMM prior

Inference

59

li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

Inference

60

Latent model parameters Regular latent variables li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

Inference

60

Latent model parameters Regular latent variables

• Procedure
• 20,000 iterations

li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

Inference

60

Latent model parameters Regular latent variables Sample from prior

• Procedure
• 20,000 iterations

li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

Inference

60

Latent model parameters Regular latent variables Sample given a Sample from prior

• Procedure
• 20,000 iterations

li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

Inference

60

Latent model parameters Regular latent variables Sample given a Sample given a Sample from prior

• Procedure
• 20,000 iterations

li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

Inference

60

Latent model parameters Regular latent variables Sample given a Sample given a Sample from prior

• Procedure
• 20,000 iterations

li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

Inference

61

Latent model parameters Regular latent variables Sample given a Sample given a Sample from prior

• Procedure
• 10,000 iterations

li ni γ η xt

t = 1... di

θk

K

θ0

p = 1 ... ni

β

πl,n,p

G×G

𝜚l

G×G×G

ci,p

πl,n,p

λ

1 ≤ p ≤ n 1 ≤ n ≤ 2 G×{n,p}

α

i = 1 ... L

Block- sampling

62

Induce Lexicon and Acoustic Model

li

red sox

xt

• and define word pronunciations and phone transcriptions

ni ci

63

Induce Lexicon and Acoustic Model

• and define word pronunciations and phone transcriptions

ni ci

li

red sox

2 1 1 1 1 0 1

ni ci 56 2 3 1 17 19 2 xt

64

Induce Lexicon and Acoustic Model

li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt

• and define word pronunciations and phone transcriptions

ni ci

ci

64

Induce Lexicon and Acoustic Model

red : 3 1 17 sox : 2 19 56 2 li

red sox

2 1 1 1 1 0 1

ni 56 2 3 1 17 19 2 xt

• and define word pronunciations and phone transcriptions

ni ci

ci

65

Induce Lexicon and Acoustic Model

red : 3 1 17 sox : 2 19 56 2 56 2 3 1 17 19 2 xt li

red sox

2 1 1 1 1 0 1

ni

• and define word pronunciations and phone transcriptions

ni ci

ci

65

Induce Lexicon and Acoustic Model

red : 3 1 17 sox : 2 19 56 2 56 2 3 1 17 19 2 xt θ1

...

θ2 θ3 θK li

red sox

2 1 1 1 1 0 1

ni

• and define word pronunciations and phone transcriptions

ni ci

ci

66

Induce Lexicon and Acoustic Model

red : 3 1 17 sox : 2 19 56 2 θ1

...

θ2 θ3 θK Train a speech recognizer

• and define word pronunciations and phone transcriptions

ni ci

Experimental Setup

67

• Dataset
• Jupiter [Zue et al., IEEE Trans. on Speech and Audio Processing, 2000]
• Conversational telephone weather information queries
• 72 hours of training data and 3.2 hours of test data
• A subset of 8 hours of the training data used for training our model

Experimental Setup

67

• Benchmark and baseline
• A speech recognizer trained with an expert-crafted lexicon (Supervised)
• A grapheme-based recognizer (Grapheme)
• Dataset
• Jupiter [Zue et al., IEEE Trans. on Speech and Audio Processing, 2000]
• Conversational telephone weather information queries
• 72 hours of training data and 3.2 hours of test data
• A subset of 8 hours of the training data used for training our model

Experimental Setup

67

• Benchmark and baseline
• A speech recognizer trained with an expert-crafted lexicon (Supervised)
• A grapheme-based recognizer (Grapheme)
• A 3-gram language model is used for all experiments
• Dataset
• Jupiter [Zue et al., IEEE Trans. on Speech and Audio Processing, 2000]
• Conversational telephone weather information queries
• 72 hours of training data and 3.2 hours of test data
• A subset of 8 hours of the training data used for training our model

Results - Monophone Acoustic Model

68

WER (%) Grapheme 32.7 Our model 17.0 Supervised 13.8

• Word error rate (WER)

Results - Triphone Acoustic Model

69

• Word error rate (WER)
• Singleton questions are used to build the decision trees

Results - Triphone Acoustic Model

69

WER (%) Grapheme 15.7 Our model 13.4 Supervised 10.0

• Word error rate (WER)
• Singleton questions are used to build the decision trees

Related Work

70

• Word pronunciation learning
• A segment model based approach to speech recognition [Lee et al., ICASSP 1988]
• Lexicon-building methods for an acoustic sub-word based speech recognizer

[Paliwal, ICASSP 1990]

• Speech recognition based on acoustically derived segment units [Fukuda et al.,

ICSLP 1996]

• Joint lexicon, acoustic unit inventory and model design [Bacchiani and Ostendorf,

Speech Communication 1999]

Related Work

70

• Word pronunciation learning
• A segment model based approach to speech recognition [Lee et al., ICASSP 1988]
• Lexicon-building methods for an acoustic sub-word based speech recognizer

[Paliwal, ICASSP 1990]

• Speech recognition based on acoustically derived segment units [Fukuda et al.,

ICSLP 1996]

• Joint lexicon, acoustic unit inventory and model design [Bacchiani and Ostendorf,

Speech Communication 1999]

• Grapheme recognizer
• Grapheme based speech recognition [Killer et al., Eurospeech 2003]
• A grapheme based speech recognizer for Russian [Stuker and Schultz, SPECOM

2004]

Conclusion

71

• A joint learning framework for discovering pronunciation lexicon

and acoustic model

• Phonetic units are modeled by a HMM-based mixture model
• L2S mapping rules are captured by weights over mixtures
• L2S rules are tied together through a hierarchical structure

Conclusion

71

• A joint learning framework for discovering pronunciation lexicon

and acoustic model

• Phonetic units are modeled by a HMM-based mixture model
• L2S mapping rules are captured by weights over mixtures
• L2S rules are tied together through a hierarchical structure
• Automatic speech recognition experiments
• Outperforms a grapheme-based speech recognizer
• Approaches the performance of a recognizer trained with an expert lexicon

Conclusion

71

• A joint learning framework for discovering pronunciation lexicon

and acoustic model

• Phonetic units are modeled by a HMM-based mixture model
• L2S mapping rules are captured by weights over mixtures
• L2S rules are tied together through a hierarchical structure
• Automatic speech recognition experiments
• Outperforms a grapheme-based speech recognizer
• Approaches the performance of a recognizer trained with an expert lexicon
• Apply the lexicon and phone units to existing ASR training methods
• Use our model as an initialization

72

Thank you.

73

li ni xt

t = 1... di p = 1 ... ni

ci,p

i = 1 ... L

• and denote an alignment between text and speech

ni ci,p

Sample and ni ci,p

74

• Sample a new alignment
• Compute the probabilities of all possible alignments
• Backward message passing with dynamic programming
• Forward block-sample new and
• Similar to inference for hidden semi-Markov models
• and denote an alignment between text and speech

ni ci,p

ni ci,p

Sample and ni ci,p

74

• Sample a new alignment
• Compute the probabilities of all possible alignments
• Backward message passing with dynamic programming
• Forward block-sample new and
• Similar to inference for hidden semi-Markov models
• and denote an alignment between text and speech

ni ci,p

ni ci,p

Sample and ni ci,p

74

• Sample a new alignment
• Compute the probabilities of all possible alignments
• Backward message passing with dynamic programming
• Forward block-sample new and
• Similar to inference for hidden semi-Markov models
• and denote an alignment between text and speech

ni ci,p

ni ci,p

Sample and ni ci,p

74

• Sample a new alignment
• Compute the probabilities of all possible alignments
• Backward message passing with dynamic programming
• Forward block-sample new and
• Similar to inference for hidden semi-Markov models
• and denote an alignment between text and speech

ni ci,p

ni ci,p

Sample and ni ci,p

74

• Sample a new alignment
• Compute the probabilities of all possible alignments
• Backward message passing with dynamic programming
• Forward block-sample new and
• Similar to inference for hidden semi-Markov models
• and denote an alignment between text and speech

ni ci,p

ni ci,p

Sample and ni ci,p

pronunciation (b)

pronu ronunciation probabilities abilities

pronunciation (b)

Our model +1 PMM* +2 PMM* 93 56 87 39 19 0.125

• 93 56 61 87 73 99

0.125

• 11 56 61 87 73 99

0.125 0.400 0.419 93 20 75 87 17 27 52 0.125 0.125 0.124 55 93 56 61 87 73 84 19 0.125 0.220 0.210 93 26 61 87 49 0.125 0.128 0.140 63 83 86 87 73 53 19 0.125

• 93 26 61 87 61

0.125 0.127 0.107 Average entropy (H) 4.58 3.47 3.03 WER (%) 17.0 16.6 15.9

Refine Induced Lexicon

• Pronunciations of Burma

75

B(w)

p(b)

: all pronunciations of a word : pronunciation probability ! ≡ −1 |!| ! ! !"#$(!)

!∈!(!) !∈!

! !

p(b)

pronunciation (b)

pronu ronunciation probabilities abilities

pronunciation (b)

Our model +1 PMM* +2 PMM* 93 56 87 39 19 0.125

• 93 56 61 87 73 99

0.125

• 11 56 61 87 73 99

0.125 0.400 0.419 93 20 75 87 17 27 52 0.125 0.125 0.124 55 93 56 61 87 73 84 19 0.125 0.220 0.210 93 26 61 87 49 0.125 0.128 0.140 63 83 86 87 73 53 19 0.125

• 93 26 61 87 61

0.125 0.127 0.107 Average entropy (H) 4.58 3.47 3.03 WER (%) 17.0 16.6 15.9

Refine Induced Lexicon

• Pronunciations of Burma

V : vocabulary of the data

76

B(w)

p(b)

: all pronunciations of a word : pronunciation probability ! ≡ −1 |!| ! ! !"#$(!)

!∈!(!) !∈!

! !

p(b)

pronunciation (b)

pronu ronunciation probabilities abilities

pronunciation (b)

Our model +1 PMM* +2 PMM* 93 56 87 39 19 0.125

• 93 56 61 87 73 99

0.125

• 11 56 61 87 73 99

0.125 0.400 0.419 93 20 75 87 17 27 52 0.125 0.125 0.124 55 93 56 61 87 73 84 19 0.125 0.220 0.210 93 26 61 87 49 0.125 0.128 0.140 63 83 86 87 73 53 19 0.125

• 93 26 61 87 61

0.125 0.127 0.107 Average entropy (H) 4.58 3.47 3.03 WER (%) 17.0 16.6 15.9

Refine Induced Lexicon

• Pronunciations of Burma

V : vocabulary of the data

76

B(w)

p(b)

: all pronunciations of a word : pronunciation probability ! ≡ −1 |!| ! ! !"#$(!)

!∈!(!) !∈!

! !

p(b)

! ≡ −1 |!| ! ! !"#$(!)

!∈!(!) !∈!

! !

pronunciation (b)

pronu ronunciation probabilities abilities

pronunciation (b)

Our model +1 PMM* +2 PMM* 93 56 87 39 19 0.125

• 93 56 61 87 73 99

0.125

• 11 56 61 87 73 99

0.125 0.400 0.419 93 20 75 87 17 27 52 0.125 0.125 0.124 55 93 56 61 87 73 84 19 0.125 0.220 0.210 93 26 61 87 49 0.125 0.128 0.140 63 83 86 87 73 53 19 0.125

• 93 26 61 87 61

0.125 0.127 0.107 Average entropy ( ) 4.58 3.47 3.03 WER (%) 17.0 16.6 15.9

Refine Induced Lexicon

• Pronunciations of Burma

77

p(b)

! ≡ −1 |!| ! ! !"#$(!)

!∈!(!) !∈!

! !

pronunciation (b)

pronu ronunciation probabilities abilities

pronunciation (b)

Our model +1 PMM* +2 PMM* 93 56 87 39 19 0.125

• 93 56 61 87 73 99

0.125

• 11 56 61 87 73 99

0.125 0.400 0.419 93 20 75 87 17 27 52 0.125 0.125 0.124 55 93 56 61 87 73 84 19 0.125 0.220 0.210 93 26 61 87 49 0.125 0.128 0.140 63 83 86 87 73 53 19 0.125

• 93 26 61 87 61

0.125 0.127 0.107 Average entropy ( ) 4.58 3.47 3.03 WER (%) 17.0 16.6 15.9

Refine Induced Lexicon

• Pronunciations of Burma

78

p(b)

! ≡ −1 |!| ! ! !"#$(!)

!∈!(!) !∈!

! !

pronunciation (b)

pronu ronunciation probabilities abilities

pronunciation (b)

Our model +1 PMM* +2 PMM* 93 56 87 39 19 0.125

• 93 56 61 87 73 99

0.125

• 11 56 61 87 73 99

0.125 0.400 0.419 93 20 75 87 17 27 52 0.125 0.125 0.124 55 93 56 61 87 73 84 19 0.125 0.220 0.210 93 26 61 87 49 0.125 0.128 0.140 63 83 86 87 73 53 19 0.125

• 93 26 61 87 61

0.125 0.127 0.107 Average entropy ( ) 4.58 3.47 3.03 WER (%) 17.0 16.6 15.9

Refine Induced Lexicon

• Pronunciations of Burma

79

*Learning lexicon from speech using a pronunciation mixture model [McGraw et al., 2013]

! ≡ −1 |!| ! ! !"#$(!)

!∈!(!) !∈!

! !

Refine Induced Lexicon

80

pronunciation (b)

pronu ronunciation probabilities abilities

pronunciation (b)

Our model +1 PMM* +2 PMM* 93 56 87 39 19 0.125

• 93 56 61 87 73 99

0.125

• 11 56 61 87 73 99

0.125 0.400 0.419 93 20 75 87 17 27 52 0.125 0.125 0.124 55 93 56 61 87 73 84 19 0.125 0.220 0.210 93 26 61 87 49 0.125 0.128 0.140 63 83 86 87 73 53 19 0.125

• 93 26 61 87 61

0.125 0.127 0.107 Average entropy ( ) 4.58 3.47 3.03 WER (%) 17.0 16.6 15.9

• Pronunciations of Burma

*Learning lexicon from speech using a pronunciation mixture model [McGraw et al., 2013]

! ≡ −1 |!| ! ! !"#$(!)

!∈!(!) !∈!

! !

Refine Induced Lexicon

81

pronunciation (b)

pronu ronunciation probabilities abilities

pronunciation (b)

Our model +1 PMM* +2 PMM* 93 56 87 39 19 0.125

• 93 56 61 87 73 99

0.125

• 11 56 61 87 73 99

0.125 0.400 0.419 93 20 75 87 17 27 52 0.125 0.125 0.124 55 93 56 61 87 73 84 19 0.125 0.220 0.210 93 26 61 87 49 0.125 0.128 0.140 63 83 86 87 73 53 19 0.125

• 93 26 61 87 61

0.125 0.127 0.107 Average entropy ( ) 4.58 3.47 3.03 WER (%) 17.0 16.6 15.9

• Pronunciations of Burma

*Learning lexicon from speech using a pronunciation mixture model [McGraw et al., 2013]

• Take phone position into account

Position-dependent L2S Rules

82

πx

...

1 2 3 K

~

ci

πx

red sox

• Take phone position into account

Position-dependent L2S Rules

82

πx

...

1 2 3 K

~

ci

πx

red sox

(2,1) (2,2)

• Take phone position into account

83

red sox

(2,1) (2,2)

~

ci

πx,2,1 ~

ci

πx,2,2

Position-dependent L2S Rules

• Take phone position into account

83

red sox

(2,1) (2,2)

~

ci

πx,2,1 ~

ci

πx,2,2 πx,2,1

...

1 2 3 K

Position-dependent L2S Rules

• Take phone position into account

83

red sox

(2,1) (2,2)

~

ci

πx,2,1 ~

ci

πx,2,2 πx,2,1

...

1 2 3 K 56

Position-dependent L2S Rules

• Take phone position into account

83

red sox

(2,1) (2,2)

~

ci

πx,2,1 ~

ci

πx,2,2 πx,2,2

...

1 2 3 K

πx,2,1

...

1 2 3 K 56

Position-dependent L2S Rules

• Take phone position into account

83

red sox

(2,1) (2,2)

~

ci

πx,2,1 ~

ci

πx,2,2 πx,2,2

...

1 2 3 K

πx,2,1

...

1 2 3 K 56 2

Position-dependent L2S Rules
