DREDGING w ith particular emphasis on Oil and Gas activities in Canada John M. Waring SNAME Presentation Calgary 2010 DREDGING - for OIL and GAS activities in Canada Dredging is an excavation activity or operation usually carried out at

slide-1

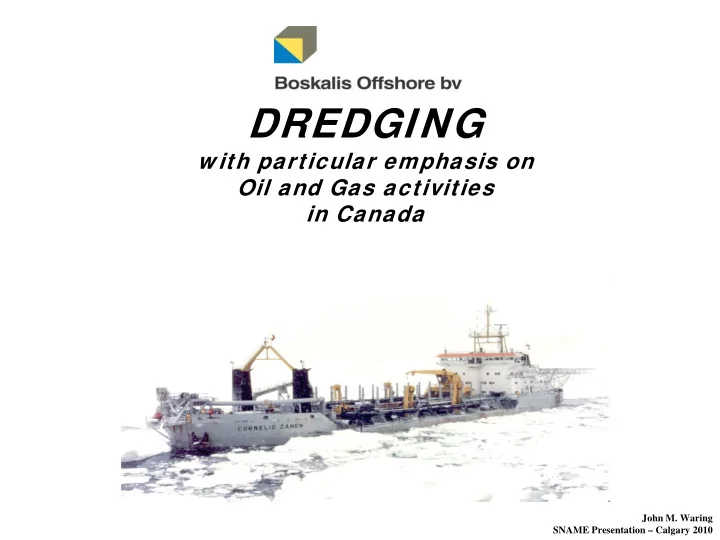

SLIDE 1

DREDGING

w ith particular emphasis on Oil and Gas activities in Canada

John M. Waring SNAME Presentation – Calgary 2010

slide-2
SLIDE 2

DREDGING - for OIL and GAS activities in Canada

Dredging is an excavation activity or operation usually carried out at least partly underwater, in shallow seas or fresh water areas with the purpose of gathering up bottom sediments and disposing of them at a different location. In Holland dredging and land reclamation has been ongoing for centuries, ever since the Frieslanders first settled there. GOD CREATED THE WORLD BUT THE DUTCH CONSTRUCTED HOLLAND

John M. Waring SNAME Presentation – Calgary 2010

slide-3
SLIDE 3

DREDGING - for OIL and GAS activities in Canada

  • Dredger categories
  • Construction of sacrificial beach islands and sub-sea berms
  • Channel and harbour dredging
  • Land reclamation and coastal protection
  • Tailings transfer, MFT reclamation & mud farming (Oil Sands)
  • Excavation of glory holes
  • Trenching for pipelines
  • Pipe and cable laying and intervention
  • Placement of protection/pipeline intervention
  • Platform and wellhead intervention
  • Land falls and shore approaches
  • Environmental clean up and disposal
  • Decommissioning
  • Innovation, Engineering and Development
  • Equipment – past present and future

John M. Waring SNAME Presentation – Calgary 2010

slide-4
SLIDE 4

DREDGING - CATEGORIES

  • MECHANICAL

– BUCKET DREDGERS – CLAMSHELL DREDGERS – BACK HOE DREDGERS

  • HYDRAULIC

– CUTTER SUCTION DREDGERS – SUCTION DREDGERS – TRAILING SUCTION HOPPER DREDGERS

  • SPECIALTY EQUIPMENT

– FALL PIPE VESSELS – ROCK PLACEMENT EQUIPMENT – DEEP WATER GRAB SYSTEMS

John M. Waring SNAME Presentation – Calgary 2010

slide-5
SLIDE 5

DREDGING - for OIL and GAS activities in Canada

Construction of sacrificial beach (artificial) islands

John M. Waring SNAME Presentation – Calgary 2010

slide-6
SLIDE 6

DREDGING - for OIL and GAS activities in Canada

Construction of sacrificial beach (artificial) islands

John M. Waring SNAME Presentation – Calgary 2010

Construction by pump ashore suction dredge and bow discharge from trailer suction hopper dredgers

slide-7
SLIDE 7

DREDGING - for OIL and GAS activities in Canada

Construction of artificial islands – Trailer Suction Hopper Dredge

John M. Waring SNAME Presentation – Calgary 2010

Stage 1 – bottom dumping Stage 2 - rainbowing Stage 3 – pump ashore

slide-8
SLIDE 8

DREDGING - for OIL and GAS activities in Canada

Construction of sub-sea berms for caisson deployment

John M. Waring SNAME Presentation – Calgary 2010

slide-9
SLIDE 9

DREDGING - for OIL and GAS activities in Canada

Channel and Harbour Dredging

John M. Waring SNAME Presentation – Calgary 2010

slide-10
SLIDE 10

DREDGING - for OIL and GAS activities in Canada

Rainbow ing

John M. Waring SNAME Presentation – Calgary 2010

slide-11
SLIDE 11

DREDGING - for OIL and GAS activities in Canada

Land Reclamation

John M. Waring SNAME Presentation – Calgary 2010

slide-12
SLIDE 12

DREDGING - for OIL and GAS activities in Canada

Reclamation

John M. Waring SNAME Presentation – Calgary 2010

slide-13
SLIDE 13

DREDGING - for OIL and GAS activities in Canada

Coastal protection – design and installation

John M. Waring SNAME Presentation – Calgary 2010

slide-14
SLIDE 14

DREDGING - for OIL and GAS activities in Canada

Tailings transfer, MFT reclamation & mud farming (Oil Sands)

John M. Waring SNAME Presentation – Calgary 2010

slide-15
SLIDE 15

DREDGING - for OIL and GAS activities in Canada

Tailings transfer, MFT reclamation & mud farming (Oil Sands)

John M. Waring SNAME Presentation – Calgary 2010

slide-16
SLIDE 16

DREDGING - for OIL and GAS activities in Canada

Excavation of Glory Holes

John M. Waring SNAME Presentation – Calgary 2010

Glory hole dredging has been achieved using trailer suction hopper dredgers with extended suction pipes and mechanical Grab Excavating Systems

slide-17
SLIDE 17

DREDGING -for OIL and GAS activities in Canada

Excavation of Glory Holes

John M. Waring SNAME Presentation – Calgary 2010

slide-18
SLIDE 18

DREDGING - for OIL and GAS activities in Canada

Trenching for Pipelines

John M. Waring SNAME Presentation – Calgary 2010

Modern plough design Conventional excavation with a draghead

slide-19
SLIDE 19

DREDGING - for OIL and GAS activities in Canada

Pipe and Cable laying

John M. Waring SNAME Presentation – Calgary 2010

slide-20
SLIDE 20

DREDGING - for OIL and GAS activities in Canada

Placement of protection

John M. Waring SNAME Presentation – Calgary 2010

slide-21
SLIDE 21

DREDGING - for OIL and GAS activities in Canada

Placement of protection

John M. Waring SNAME Presentation – Calgary 2010

slide-22
SLIDE 22

DREDGING - for OIL and GAS activities in Canada

Platform & Well Head intervention

John M. Waring SNAME Presentation – Calgary 2010

Material placed mechanically Material placed with a fall pipe

slide-23
SLIDE 23

DREDGING - for OIL and GAS activities in Canada

Landfalls and Shore Approaches

John M. Waring SNAME Presentation – Calgary 2010

slide-24
SLIDE 24

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - for OIL and GAS activities in Canada

Environmental cleanup and disposal

Pollution Recovery System

Designed to remove oil and chemicals from vessels lying on the sea bed in very deep water without using divers. Currently depths of 500 meters can be obtained and greater depths down to 4000 meters are envisaged. Artificial island constructed to place environmentally sensitive materials. Disc cutter developed for removing polluted materials. Trailer suction hopper dredge with modified suction pipe arms for collecting surface oil.

slide-25
SLIDE 25

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - for OIL and GAS activities in Canada

So what is new in the dredging business since our days in the Canadian Beaufort? HEALTH & SAFETY PROGRAMS QUALITY MANAGEMENT SYSTEMS TRAINING ENVIRONMENTAL MANAGEMENT SYSTEMS INNOVATION, RESEARCH & DEVELOPMENT FLEET REPLACEMENT PROGRAMS

slide-26
SLIDE 26

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - GOING DEEPER

Innovation, Engineering & Development

Concept designs are currently being engineered to excavate material and place protection at depths of more than 250 meters below sea level

slide-27
SLIDE 27

John M. Waring SNAME Presentation – Calgary 2010

DREDGING – EXCAVATING HARDER MATERIALS

Pipeline trenching is now possible in seabed soils with UCS values up to 30 MPa in harsh metocean conditions and environmentally sensitive areas. Hard soil is normally dredged by means

  • f a Cutter Suction Dredger.

Special drag heads (ripper drag heads) are developed for large Trailing Suction Hopper Dredgers for the dredging of harder soil.

Innovation, Engineering & Development

slide-28
SLIDE 28

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - EQUIPMENT PAST

D’Artagan – 28200 kw J.F.J DeNul – 27240 kw Cristobal Colon – 46000 M3 Leif Eriksson – 46000 M3 Ham 318 – 37293 M3 Cornelius Zanen – 8000 M3

  • W. D. Gateway – 6000 M3

Beaver Mackenzie Geopotes X – 10000 M3

slide-29
SLIDE 29

John M. Waring SNAME Presentation – Calgary 2010

DREDGING – EQUIPMENT PRESENT

D’Artagan – 28200 kw J.F.J DeNul – 27240 kw Cristobal Colon – 46000 M3 Leif Eriksson – 46000 M3 Ham 318 – 37293 M3

slide-30
SLIDE 30

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - FLEET REPLACEMENT PROGRAMS

Willem van Oranje Gateway A new generation

slide-31
SLIDE 31

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - Innovation, Engineering and Development

Dynamically Positioned Fallpipe Vessel (DPFV)

Carrying capacity 24,000 ton Under Construction

slide-32
SLIDE 32

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - Innovation, Engineering and Development

Side stone dumping Cable laying Diving Support Salvage Heavy lift & transport Pipeline shore approach construction (pipe-pull) Multi-purpose vessels for

  • ffshore project support
slide-33
SLIDE 33

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - Innovation, Engineering and Development

Development of remote controlled sub-sea excavating equipment

slide-34
SLIDE 34

John M. Waring SNAME Presentation – Calgary 2010

DREDGING - Innovation, Engineering and Development

Under development – special equipment for shallow water pipe laying

slide-35
SLIDE 35

John M. Waring SNAME Presentation – Calgary 2010

DREDGING w hen SIZE MATTERS

D’Artagan – 28200 kw J.F.J DeNul – 27240 kw Cristobal Colon – 46000 M3 Leif Eriksson – 46000 M3 Ham 318 – 37293 M3
