Java Interfaces 6 May 2019 OSU CSE 1 Conceptual Framework A - PowerPoint PPT Presentation

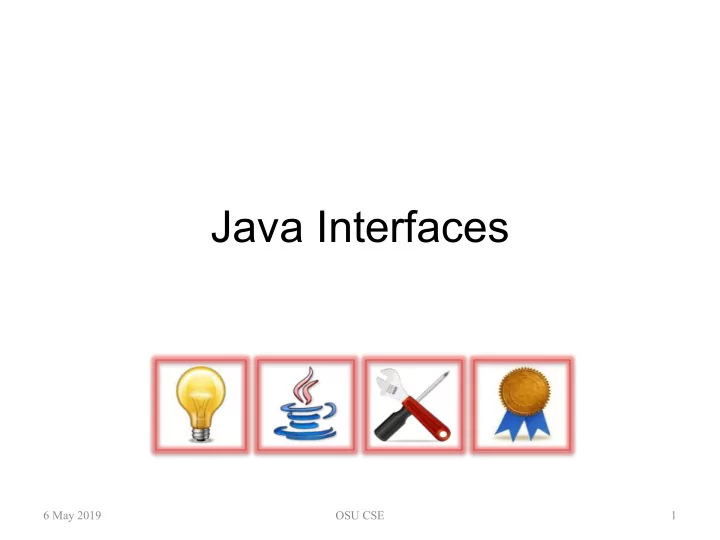

Java Interfaces 6 May 2019 OSU CSE 1

Conceptual Framework • A firm conceptual foundation for understanding and designing modern software recognizes: – Modern software consists of potentially large numbers of components that are composed into “larger” components/systems – In Java, one ordinarily thinks of a class as a component, with its client-visible specification in the interface(s) it implements 6 May 2019 OSU CSE 2

Conceptual Framework An interface contains a • A firm conceptual foundation for description of what understanding and designing modern software does. software recognizes: – Modern software consists of potentially large numbers of components that are composed into “larger” components/systems – In Java, one ordinarily thinks of a class as a component, with its client-visible specification in the interface(s) it implements 6 May 2019 OSU CSE 3

Conceptual Framework An interface contains a A class contains a • A firm conceptual foundation for description of what description of how the understanding and designing modern software does. software does it. software recognizes: – Modern software consists of potentially large numbers of components that are composed into “larger” components/systems – In Java, one ordinarily thinks of a class as a component, with its client-visible specification in the interface(s) it implements 6 May 2019 OSU CSE 4

Anatomy of an Interface /** * An informal Javadoc comment. * [additional Javadoc comments as needed; in our * case: the mathematical model, contract(s) for * constructor(s), optional contract for iterator] */ public interface I { // contract(s) for method(s) } 6 May 2019 OSU CSE 5

Anatomy of an Interface /** An interface may * An informal Javadoc comment. extend one or more * [additional Javadoc comments as needed; in our other interfaces. * case: the mathematical model, contract(s) for * constructor(s), optional contract for iterator] */ public interface I extends I1, I2 { // contract(s) for method(s) } 6 May 2019 OSU CSE 6

Anatomy of an Interface An interface may be /** generic , as seen here; * An informal Javadoc comment. formal parameter T may * [additional Javadoc comments as needed; in our have any name, but T is * case: the mathematical model, contract(s) for typical (for “type”). * constructor(s), optional contract for iterator] */ public interface I<T> extends I1<T>, I2 { // contract(s) for method(s) } 6 May 2019 OSU CSE 7

Technicalities • Interfaces may be used to define: – instance methods – static final variables (“constants”) – Not constructors – Not static methods – Not instance variables 6 May 2019 OSU CSE 8

Technicalities • Interfaces may be used to define: – instance methods – static final variables (“constants”) Instance methods in an – Not constructors interface are by default – Not static methods public abstract . – Not instance variables ( private instance methods and public / private static methods are allowed—but they cannot be abstract.) 6 May 2019 OSU CSE 9

Technicalities • Interfaces may be used to define: – instance methods – static final variables (“constants”) – Not constructors Variables are – Not static methods automatically – Not instance variables public static final ; it is unusual for an interface to define variables. 6 May 2019 OSU CSE 10

Technicalities • Interfaces may be used to define: – instance methods – static final variables (“constants”) – Not constructors – Not static methods A constructor always – Not instance variables has the name of a class, and is not an instance method. 6 May 2019 OSU CSE 11

Technicalities • Interfaces may be used to define: Interfaces allow static – instance methods methods with their – static final variables (“constants”) implementations . But – Not constructors providing code in interfaces goes – Not static methods against our use of – Not instance variables interfaces for client views (this biases designs to instance methods). 6 May 2019 OSU CSE 12

Technicalities • Interfaces may be used to define: – instance methods – static final variables (“constants”) – Not constructors – Not static methods This is a good thing: – Not instance variables instance variables are not client-view information! 6 May 2019 OSU CSE 13

Example: Queue Component Family Standard Iterable extends extends QueueKernel extends Queue 6 May 2019 OSU CSE 14

Example: Queue Component Family Standard Iterable extends extends QueueKernel Which methods are in Standard , extends and why? Queue 6 May 2019 OSU CSE 15

Example: Queue Component Family We call the “core interface” in this design style the kernel Standard Iterable interface. extends extends QueueKernel extends Queue 6 May 2019 OSU CSE 16

Example: Queue Component Family We call the “most powerful interface” in this design style the Standard Iterable enhanced interface. extends extends QueueKernel extends Queue 6 May 2019 OSU CSE 17

Let’s Examine... • Standard Ask about details, e.g.: • QueueKernel • Design choices (math model, constructor, kernel • Queue methods, other methods) • Javadoc (compare code in the Java interface with the generated documentation) 6 May 2019 OSU CSE 18

Interface Design • The kernel interface defines: – The mathematical model for the type – Contract(s) for the constructor(s) – Contract(s) for kernel methods – Contract(s) for methods inherited from Java library interfaces that do not have their own contract specifications (if applicable; e.g., an iterator or a comparator) • The enhanced interface defines contracts for all other methods for the type 6 May 2019 OSU CSE 19

Kernel Design Guidelines • Kernel methods generally should be: – A minimal set of methods that is functionally complete , i.e., powerful enough to: • Give a variable of the type any allowable value • Determine the value of a variable of the type – Powerful enough to allow a client to: • Implement equals and toString • Check every kernel method’s precondition 6 May 2019 OSU CSE 20

Kernel Design Guidelines • Kernel methods generally should be: – A minimal set of methods that is functionally complete , i.e., powerful enough to: “Minimal” means if any proposed • Give a variable of the type any allowable value kernel method were left out, you • Determine the value of a variable of the type could not satisfy one of the completeness tests—though – Powerful enough to allow a client to: sometimes an “extra” kernel • Implement equals and toString method is so parsimonious it is • Check every kernel method’s precondition included in the kernel anyway! 6 May 2019 OSU CSE 21

Notice: Circularity public interface QueueKernel<T> extends Standard<Queue<T>>, Iterable<T> { ... } public interface Queue<T> extends QueueKernel<T> { ... } 6 May 2019 OSU CSE 22

Notice: Circularity public interface QueueKernel<T> extends Standard<Queue<T>>, Iterable<T> { ... Using Queue<T> is necessary because it is the } return type of newInstance and the interface type we always use to declare Queue variables. public interface Queue<T> extends QueueKernel<T> { ... } 6 May 2019 OSU CSE 23

What “Mentions” What? Standard Iterable “mentions” “mentions” QueueKernel “mentions” “mentions” Queue 6 May 2019 OSU CSE 24

Interface = Type • Java permits the circularity here because: – A Java interface defines a type , i.e., the type name (which we consider to denote a set of mathematical model values that certain variables might have) along with the set of its instance methods – An interface type may be used in Java even if there is no implementation of it in scope 6 May 2019 OSU CSE 25

Interfaces: Only At Compile-Time • Interfaces are a compile-time construct – Used by the Java compiler for type-checking with declared types: to make sure variables are used only where they make sense • Recall the rules for declared types and object (dynamic) types – Once a Java program compiles, only object types are kept at run-time • Declared types literally “disappear” in the JVM 6 May 2019 OSU CSE 26

Interfaces: Only At Compile-Time • The declared type of a variable may be an interface type • The object type can never be an interface type, because you may not instantiate a variable using new followed by • Interfaces are a compile-time construct an interface type • If the declared type is an interface type, then the object – Used by the Java compiler for type-checking type (a class) must implement the declared type (an with declared types: to make sure variables interface) are used only where they make sense • Recall the rules for declared types and object (dynamic) types – Once a Java program compiles, only object types are kept at run-time • Declared types literally “disappear” in the JVM 6 May 2019 OSU CSE 27

Javadoc Tags • Recall that the short one-sentence informal overview, and the following standard Javadoc tags, are “expected”: – @param – @return 6 May 2019 OSU CSE 28
