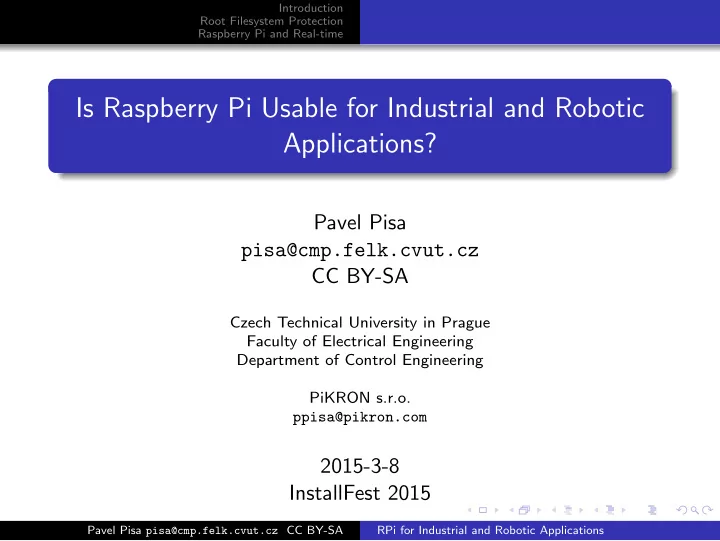

Is Raspberry Pi Usable for Industrial and Robotic Applications?

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA

Czech Technical University in Prague Faculty of Electrical Engineering Department of Control Engineering PiKRON s.r.o. ppisa@pikron.com

2015-3-8 InstallFest 2015

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time

Content of Presentation

1

Introduction

2

Root Filesystem Protection SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

3

Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time

Raspberry Pi Overview

affordable/cheap single board computer developed for promotion of the teaching computer science the low cost demand lead to significant compromises

version 1 is based on Broadcom BCM2835 chip based on ARM1176JZF-S (ARMv6 architecture, insufficient for Debian armhf port which demands ARMv7-A and VFPv3-D16) the cheap mobile applications SoC does not include ETHERNET controller which is added as USB converter no memory technology devices (MTD) or integrated storage – uses standard or micro SD-card CPU performance is not great and VideoCore IV GPU is proprietary/closed extension connectors mindlessly (much better on B+ and version 2)

the Debian compatibility solved by version 2 (BCM2836 quad-core ARM Cortex-A7). Performance enhanced.

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time

Raspberry Pi Applications

facts

intended for education provides decent performance for video playback is really cheap

the last point is important

used for many hobby projects, strong community used even in commercial solutions due to low cost even that it is not intended for such use

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time

Alternatives

Many better alternatives exists for industrial applications. There are listed few ones FreeScale i.MX53 – ARM Cortex A8, ETHERNET, CAN, USB, . . . FreeScale i.MX6 – ARM Cortex A9 TI AM335x Sitara ARM Cortex-A8 (Beagle Bone black) – adds quadrature encoder inputs, two real time coprocessor units (PRU)

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time

Why We Are Involved in RPi World?

Inquiry to PiKRON company to resolve SD-card failures in already running industrial application

RPi has been chosen (by price) as probe to collect data from workshops and send them into cloud infrastructure the SD-card proves to be main point of failures and correction required personal assistance on distant plants

RPi is hardware bought by many students and hobbyist

quite often more powerful solution is found for initial dream multimedia applications and boards are free for experiments RPi can be bridge to broad world of electronic tinkering, ideas prototyping and can open eyes people that there is much more to play with than virtual worlds and clouds

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Outline

1

Introduction

2

Root Filesystem Protection SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

3

Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Storage Technologies

Rotating disks Flash based technologies

Small capacity NOR based devices – still used for BIOSes, used for firmware, usually only for boot in embedded systems, can be mapped to CPU memory address space (even serial SPIFI) NAND based Flash – much larger capacity on same silicon, sequential access, much more susceptible to errors and wear, requires wear-leveling management and error correction control

can be achieved solely by software (slow) by controller integrated into central SoC or controller by controller integrated into device (SD-card, SSD)

SLC (Single-level cell) × MLC (Multi-level cell – cheaper) Industrial SLC SD-card 4 GB ≥1000 kˇ c, 16 GB ≥3500 kˇ c, MLC Industrial 16 GB 900 kˇ c MLC standard/customer grade Micro SDHC 16 GB 200 kˇ c, SDXC 64 GB 900 kˇ c

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Customer Grade SD-cards

MLC (Multi-level cell) – two or three bits per cell minimum spare blocks to replaced broken ones single block writes limit can be lower than 1000

thanks to big capacity, wear-leveling and obsolesce of customer devices (cameras, phones, etc.) the device manufacturer counts with only few complete overwrites during device lifespan but if the SD-card is used as a root filesystem then logs and

• ther data are overwritten quite often – even that chunks are

small an erase blocks are large (megabytes) and even clever wear-leveling cannot save device

Manufacturers count with typical large capacity devices usage

FAT/exFAT filesystem, video, pictures or film stored and then read only a few times time, temperature and reads contribute to cell (dis)charge, SD-cards could be designed for small (tens?) of reads before content rewrite

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Outline

1

Introduction

2

Root Filesystem Protection SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

3

Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Possible Ways to Lower Write Count

Use noatime, nodiratime or relatime mount options, select scheduled (ie. anticipatory), commit=300 for Ext4, /proc/sys/vm/dirty bytes, /proc/sys/vm/dirty background byte, TRIM Select suitable filesystem

has been easy for small capacity, i.e. JFFS2, then attempts LogFS for MTD, UBI layer and UBIFS, but most of today media has internal controller – try Samsung F2FS, may it be that BtrFS COW can be better then Ext4 journal

Use systemd“stateless”setup Left distribution intact and use RAM/tmpfs overlay setup and add partition for application persistent data

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Root Overlay Options

Use and modify initial RAM filesystem (initramfs) to setup

• verlay

Solution designed and maintained for diskless boot in laboratories for more than 10 years at Department of Control Engineering (persons involved Aleˇ s Kapica, Pavel P´ ıˇ sa, Michal Sojka, past Luk´ aˇ s Moc) The setup presented at InstallFest 2011 DiskLess Debian/GNU Linux at DCE FEL CVUT.cz The more complete documentation by Aleˇ s Kapica at https://support.dce.felk.cvut.cz/mediawiki/index. php/Diskless

Modified/replaced system init command

I.e. append init=/sbin/init-overlay to the kernel command line and implement required logic in that script This solution is more limited but much simpler for moderately experienced users

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Raspberry Pi Boot Process

VideoCore IV GPU loads the first stage bootloader from a SoC ROM GPU loads and executes bootcode.bin found on FAT32 or FAT16 partition on SD-card Third stage loader start.elf is load and executed by GPU and loads and parses config.txt file before the ARM core is initialized (see config.txt documentation at raspberrypi.org and eLinux.org for detailed description) This loader loads kernel specified by line of config.txt which requests kernel.img by defaults kernel=kernel.img The memory size and kernel command line found in the file cmdline.txt are placed to ATAGS parameters structure at memory address 0x100

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Starting the Linux Kernel

Linux kernel is finally started on ARM CPU with register r0 = 0, r1 specifying machine and r2 provides physical address of passed ATAGS structure or device tree block (dtb) in system RAM, more at kernel Documentation/arm/Booting The first SD-card partition has to be FAT and is unsuitable for GNU/Linux system root. The another partition or device is formated for suitable filesystem (ext4, btrfs, etc.) and used as root For init-overlay, check that root is initially mounted read only (ro kernel parameter) and append init=/sbin/init-overlay to cmdline.txt

dwc_otg.lpm_enable=0 console=ttyAMA0,115200 kgdboc=ttyAMA0,115200 root=/dev/mmcblk0p2 rootfstype=ext4 elevator=deadline rootwait ro init=/sbin/init-overlay

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Available Overlay Filesystems

UnionFS (http://unionfs.filesystems.org/) Aufs3 by Junjiro R. Okajima (http://aufs.sourceforge.net/) OverlayFS, now Overlay by Miklos Szeredi (kernel Documentation/filesystems/overlayfs.txt)

included in mainline form 3.18.0 version clean implementation but lacks some features unusable with NFS even as lower/base filesystem for now

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Script /sbin/init-overlay

Finds available overlay support (aufs overlay overlayfs unionfs) Code tests /proc/filesystems and tries to load appropriate module by modprobe and insmod /lib/modules/$(uname

• r)/extra/x .ko and /lib/modules/$(uname
• r)/kernel/fs/x /x .ko

OVERLAY=x can be specified on kernel command line for explicit selection The script requires mount-point /overlay on the root filesystem and executes /bin/mount -n -t tmpfs none /overlay /bin/mkdir -p /overlay/rwdata #ovr_rwdata /bin/mkdir -p /overlay/robase #ovr_robase /bin/mkdir -p /overlay/combined #ovr_combined /bin/mount --bind / /overlay/robase

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Setup Combined Filesystem

Setup in memory temporary filesystem for changed data /bin/mount -n -t tmpfs none ${ovr_rwdata} Setup combined mount for Aufs

/bin/mount -n -t aufs \

• o dirs=${ovr_rwdata}=rw:${ovr_robase}=ro aufs \

${ovr_combined}

• r for Overlay

mkdir -p ${ovr_rwdata}/data mkdir -p ${ovr_rwdata}/work /bin/mount -n -t overlay -o up- perdir=${ovr_rwdata}/data,workdir=${ovr_rwdata}/work,\ lowerdir=${ovr_robase} overlay ${ovr_combined}

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Move Moun-points and Pivot Root

Move mount-points from /overlay tmpfs to {ovr combined}/overlay to be accessible from running system

/bin/mkdir -p ${ovr_combined}/overlay/rwdata /bin/mount -n --move ${ovr_rwdata} \ ${ovr_combined}/overlay/rwdata /bin/mkdir -p ${ovr_combined}/overlay/robase /bin/mount -n --move ${ovr_robase} \ ${ovr_combined}/overlay/robase /bin/mkdir -p ${ovr_combined}/overlay/pivot chmod 755 ${ovr_combined} # Disable generic rw access

proceed by final root switch

cd ${ovr_combined} /sbin/pivot_root . overlay/pivot

and then start regular init

exec /usr/sbin/chroot . sbin/init

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Utility /sbin/overlayctl

Simple utility to automate overlay-init setup and control status – show actual setting status

• verlay is active
• verlay enabled for next boot

disable – disable overlay support for following boots creates $overlay_base/overlay/disable file in the base root filesystem, it remounts root temporarily read write enable – reenables overlay by removing disable file unlock – remounts base filesystem read-write this allows to do changes in base filesystem, it is even possible to proceed chroot /overlay/robase and run some distribution maintenance there (dangerous, does not work with overlay) lock – returns to read only base

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Installation of init-overlay

The utility overlayctl provides commands for easy overlay setup

• n standard Raspberry Pi

install – RPi specific setup - appends init=/sbin/init-overlay to the line in /boot/cmdline.txt uninstall – removes init specification from /boot/cmdline.txt

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Overlay Remarks

The init-overlay creates fastboot file to bypass Raspbian/Debian distribution root device and filesystem consistency check Check content of /etc/fstab /boot entry to specify defaults,ro. The default provided fstab mounts FAT /boot partition read-write (each reboot modifies FAT mount state which is hazard). Remount /boot read-write before changes

• r distribution updates

mount -o remount,rw /dev/mmcblk0p1 /boot

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Overlay Conclusion

Successfully used by company which ordered support/solution from PiKRON on Raspberry Pi systems Solution is even used for regular x86 64 Debian installs at other FEE department computer laboratories where only single NFS root is distributed to all stations and local changes are hold in local RAM/tmpfs. The complete work is available on GitHub https://github.com/ppisa/rpi-utils . The init-overlay directory layout mimic locations in the target system including basic documentation /usr/share/doc/init-overlay/init-overlay.txt. The core files are /sbin/init-overlay and /sbin/overlayctl .

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Outline

1

Introduction

2

Root Filesystem Protection SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

3

Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Why U-Boot on Raspberry Pi

Raspberry Pi provides its own configuration loader and parser but it is quite limited U-Boot enables to select at startup and script different boot scenarios Stephen Warren’s version provides extlinux menu and script support and not only for local boot but even for PXE, DHCP and static IP cases Even kernel can be loaded from network which enables fast testing during development and no data are lost when NFS root is used as well when system crashes U-Boot provides full support for Flattened Device Tree passing to the kernel (the current official the first+second stage boot loader adds this support as well)

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Building U-Boot for Raspberry Pi

Download and build U-Boot git clone git://github.com/swarren/u-boot.git cd u-boot git checkout -b rpi_dev origin/rpi_dev make rpi_defconfig ARCH=arm CROSS_COMPILE=arm- rpi-linux-gnueabihf- make ARCH=arm CROSS_COMPILE=arm-rpi-linux- gnueabihf- Copy u-boot.bin to the target system /boot directory (the first/FAT partition) Modify /boot/config.txt kernel line kernel=u-boot.bin

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

U-Boot Basic Commands

printenv - print actual environment variables savenev - set environment variables setenv - save environment to be kept over reboot load - load some file to memory location boot - restart boot process sysboot sysboot ${devtype} ${devnum}:${bootpart} any ${scriptaddr} ${prefix}extlinux/extlinux.conf The full documentation at http://www.denx.de/wiki/DULG/Manual

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

U-Boot Prompt Example

load mmc 0:1 0x00200000 cmdline.txt md.b 0x00200000 156 setenv bootargs "dwc_otg.lpm_enable=0 console=ttyAMA0,115200 kgdboc=ttyAMA0,115200 root=/dev/mmcblk0p2 rootfstype=ext4 elevator=deadline rootwait ro init=/sbin/init-overlay" load mmc 0:1 0x00200000 vmlinuz-3.18.8-rt2+ bootz 0x00200000

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

Extlinux Setup

Files in new directory /boot/extlinux: bcm2708-rpi-b-plus.dtb – Device Tree can be obtained from kernel build arch/arm/boot/dts/bcm2708-rpi-b-plus.dtb bcm2835-rpi-b-plus.dtb copy of above because U-Boot uses this name and it name preferred by Linux mainline extlinux.conf – menu for kernel/boot selection vmlinuz-3.18.8-rt2+ – standard Linux zImage kernel format The configuration is searched on mmc0, usb0, pxe, dhcp devices and network

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

U-Boot Extlinux Setup

/boot/extlinux/extlinux.conf : TIMEOUT 100 DEFAULT default MENU TITLE Boot menu LABEL default MENU LABEL Linux 3.18.8-rt2+ with Overlay LINUX vmlinuz-3.18.8-rt2+ FDTDIR . APPEND ... console=ttyAMA0,115200 smsc95xx.macaddr=${usbethaddr} root=/dev/mmcblk0p2 rootfstype=ext4 elevator=deadline rootwait ro init=/sbin/init-overlay

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Outline

1

Introduction

2

Root Filesystem Protection SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

3

Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

RT-Preempt Patch

Realtime is not as fast as possible - realtime is as fast as specified – Doug Niehaus, Summer 2001 More attempts to run RT task parallel to Linux base on same CPU (RT-Linux, RTAI) existed. But around 2001 and 2006 KURT/KUPS project tries to make whole kernel real-time. Work followed by Timesys, Thomas Gleixner, Ingo Molnar and OSADL.org now. The main idea behind changing Linux kernel to RTOS is to use already present support for multiple cores SMP and provide to system as many virtual CPUs as there are running threads/task. Realized by replacement of spin-lock synchronization by RT

• mutexes. redefinition of spin lock/spin unlock,

spin lock irqsave/spin unlock irqrestore to use struct rt mutex instead of atomic variables based lock

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Actual RT State (for RPi)

Open Source Automation Development Lab – long term testing and Quality Assurance Realtime Farm Latest available RT-Preempt for 3.18.7 kernel https: //www.kernel.org/pub/linux/kernel/projects/rt/ Maximal under about 100 ➭sec on powerful SMP x86 systems But what to expect at Raspberry Pi (BCM2708/BCM2835) Check at OSADL.org QA Farm Realtime rack-b-slot-3

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

RPi 3.18.7-rt2 Latency Plot

OSADL.org – OSADL.org QA Farm Realtime – BCM2835 rack-b-slot-3 cyclictest -l50000000 -m -n -a0 -t1 -p99 -i400 -h400 -q

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

RPi Latency Long Term 3D

OSADL.org – OSADL.org QA Farm Realtime – BCM2835 rack-b-slot-3 Long term latency trancing for organization members available

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Is It Enough?

The standard control application is motor servo control Small DC and permanent magnet synchronous motors mechanical time constant is between 3 and 10 msec (electrical

• ne can be under 1 msec, but mechanical is prevalent for

control). System, when controlled for position, is not stable (pure integrator)⇒controller sampling period should be shorter than time constant to achieve proper control Maximal latencies under 200 ➭sec⇒RPi should be suitable for such control

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

RT Kernel Patches

Official RPi kernel git://github.com/raspberrypi/linux.git branch rpi-3.18.y Patches applied

aufs3.18.1+ kbuild patch aufs3.18.1+ base patch aufs3.18.1+ mmap patch aufs3.18.1+ standalone patch Apply Aufs 3.18-20150305 sources by J. R. Okajima aufs3.18.1+ module build enabled in RPi default config. Allow ARMv6/ARM1176 to be selected for ARM Versatile PB. Apply patch-3.18.7-rt2.patch fully preemptive ker- nel patch by Sebastian Andrzej Siewior Provide individual CPU usage measure- ment based on idle time by Carsten Emde (OSADL) Save the current patchset in the kernel Reading /proc/slabinfo may cause large latencies Add trace latency histogram to monitor context switch time Workaround to access sysfs cpufreq variables ARM bcmrpi: add bcmrpi_rt_defconfig .

• vl: do not reject NFS when used as lowerdir (change is inse-

cure, could lead to crash when NFS content is changed).

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

RT Kernel Build

Patched kernel available in repository https://github.com/ppisa/linux-rpi , branch rpi-3.18.y-aufs-rt-ppisa The ARMv6 toolchain is required to build kernel. Unfortunately, arm-linux-gnueabihf- official Debian cross compiler targets ARMv7 VFPv3-D16. It can be used to build kernel (controlled by options) but user applications are miss-compiled and link against bad GLIBC Custom arm-rpi-linux-gnueabihf- toolchain used for crosscompile Kernel build

make ARCH=arm CROSS_COMPILE=arm-rpi-linux-gnueabihf- \ bcmrpi_rt_defconfig make ARCH=arm CROSS_COMPILE=arm-rpi-linux-gnueabihf- make ARCH=arm CROSS_COMPILE=arm-rpi-linux-gnueabihf- \ INSTALL_MOD_PATH=$(pwd)/_modules modules_install

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Toolchain RPi ARMv6

Can be downloaded from DCE RTime server. There is described GCC 4.9.x sources configuration as well. https: //rtime.felk.cvut.cz/hw/index.php/Raspberry_Pi Critical configure options to achieve compatibility with RPi ARMv6

• -with-arch=armv6 \
• -with-fpu=vfp \
• -with-float=hard \
• -enable-multiarch \
• -disable-sjlj-exceptions

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Outline

1

Introduction

2

Root Filesystem Protection SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

3

Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

System Events Rates

The 1 kHz control loop sampling frequency can be achieved by RPi But RPi has no hardware for position (usually quadrature incremental) sensor interfacing Incremental encoder output changes frequency can reach MHz units For 500 slots wheel and 4000 RPM the required frequency is about 150 kHz This is too much for user-space and even proper kernel space processing on RPi but it is nice experiment for system stability under load testing Serious solution requires to extend RPi by incremental encoder interface implemented in hardware (FPGA)

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

GPIO Only Based DC Motor Interfacing

3.3V 1 GPIO2 SDA 3 GPIO3 SCL 5 GPIO4 CLK 7 GND 9 GPIO17 11 GPIO27 13 GPIO22 15 3.3V 17 GPIO10 MOSI 19 GPIO9 MISO 21 GPIO11 SCLK 23 GND 25 2 5V 4 5V 6 GND 8 GPIO14 TX 10 GPIO15 RX 12 GPIO18 PWM 14 GND 16 GPIO23 18 GPIO24 20 GND 22 GPIO25 24 GPIO8 CE0 26 GPIO7 CE1

Raspberry Pi - P1 3.3V UART

1 GND 2 TX 3 3.3V 4 RX CHB CHA

IRC

HI DRV LO DRV IN HI DRV LO DRV IN

DC MOTOR

Motor Power Supply Czech T echnical University in Prague Departemet of Control Engineering FEE Radek Mečiar and Pavel Píša 2014

RPi Motor Control Interface Prototype

❼ As simple as possible ❼ Four NOR gates (SN74HCT02) ❼ H-bridge (L6203)

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Wire-wrapped Prototype Design

H-bridge (L6203) present on PSR course DC motor kit used

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Software IRC Signals Processing

GPIOs

Raspberry Pi

CHB CHA

IRC

Hard IRQ IRQ threaded handler

Position calculation works better if derived from the order of IRQs than from the signal values read in the handler. FIFO run queue preserve order! (Observation from Meˇ ciar Radek Motor control with Raspberry Pi board and Linux 2014 bachelor thesis)

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

IRC Kernel Driver

Simple character device /dev/irc0 which counts motor position Order of interrupts is converted to increment and accumulated in the kernel variable uint32 t (4-bytes) actual value is read from the device driver source available at GitHub repository https://github.com/ppisa/rpi-rt-control The core is a file kernel/modules/rpi gpio irc module.c Test from user-space modprobe rpi_gpio_irc_module hexdump -e ’"%d" ’ /dev/irc0

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

IRC Access from C Code

int irc_dev_fd; int irc_dev_init(void) { irc_dev_fd = open(irc_dev_name, O_RDONLY); if (irc_dev_fd == -1) { return -1; } return 0; } int irc_dev_read(uint32_t *irc_val) { if (read(irc_dev_fd, irc_val, sizeof(uint32_t)) != sizeof(uint32_t)) { return -1; } return 0; }

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Boost IRC Kernel Threads Priority

The fully preemptive kernel runs even IRQ processing in thread context, all interrupts use priority 50 by default

modprobe rpi_gpio_irc_module IRC_PIDS=$(ps Hxa -o command,pid | \ sed -n -e ’s/^\[irq\/[0-9]*-irc[0-9]_ir\][ \t]*\([0- 9]*\)$/\1/p’) for P in $IRC_PIDS ; do schedtool -F -p 95 $P done

List threads by real-time priority

ps Hxa --sort rtprio -

• pid,policy,rtprio,state,tname,time,command

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Power Output – PWM

Only single PWM signal generator easily available on Raspberry Pi Direction has to be controlled by GPIO pin GPIO access possible through /sys interface echo 22 >/sys/class/gpio/export echo out >/sys/class/gpio/gpio22/direction cat /sys/class/gpio/gpio22/value echo 1 >/sys/class/gpio/gpio22/value But access over /sys represent significant overhead Direct access from users-pace to GPIO and PWM peripheral registers is used instead

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Direct GPIO and PWM Registers Access

Implemented in int rpi_peripheral_registers_map(void) function The physical address range can be accessed from user-space by mmap() syscall mem_fd = open("/dev/mem", O_RDWR|O_SYNC) gpio_map = mmap(NULL, BLOCK_SIZE, PROT_READ|PROT_WRITE, MAP_SHARED, mem_fd, GPIO_BASE); Detailed description at http://elinux.org/RPi_Low-level_peripherals Fast GPIO and PWM access functions for controller application can be found in files rpi gpio.c and rpi bidirpwm.c found in appl/rpi simple dc servo example of https://github.com/ppisa/rpi-rt-control repository

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Simple PID Based Speed Controller

Implemented in file rpi simple dc servo.c Next commands are available setpwm, readirc and runspeed. The real time task cannot be swapped or code paged in on demand mlockall(MCL_FUTURE | MCL_CURRENT) real time priority has to be used for control task pthread_attr_t attr; struct sched_param schparam; pthread_attr_init(&attr); pthread_attr_setinheritsched(&attr, PTHREAD_EXPLICIT_SC pthread_attr_setschedpolicy(&attr, SCHED_FIFO); schparam.sched_priority = sched_get_priority_min(SCHED_ pthread_attr_setschedparam(&attr, &schparam); pthread_create(thread, &attr, start_routine, arg); pthread_attr_destroy(&attr);

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

The Controller Timing

The use CLOCK MONOTONIC for all control related timing is critical, CLOCK REATIME can skip forward and backward due to user or NTP adjustment

sample_period_nsec = 20*1000*1000; clock_gettime(CLOCK_MONOTONIC, &sample_period_time); do { sample_period_time.tv_nsec += sample_period_nsec; if (sample_period_time.tv_nsec > 1000*1000*1000) { sample_period_time.tv_nsec -= 1000*1000*1000; sample_period_time.tv_sec += 1; } clock_nanosleep(CLOCK_MONOTONIC, TIMER_ABSTIME, &sample_period_time, NULL); /* Run timed actions there */ ... } while(1);

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Ensure Proper Stop When Interrupted

void stop_motor(void) { rpi_bidirpwm_set(0); } void sig_handler(int sig) { stop_motor(); exit(1); } ... struct sigaction sigact; memset(&sigact, 0, sizeof(sigact)); sigact.sa_handler = sig_handler; sigaction(SIGINT, &sigact, NULL); sigaction(SIGTERM, &sigact, NULL);

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

The Controller Sample Time Step

Please consult application code for complete solution with overflow and anti-windup protection err = (pos_req - actual_pos); ctrl_i_sum += err * ctrl_i; action = ctrl_p * err + ctrl_i_sum + ctrl_d * (err - ctrl_err_last); ctrl_err_last = err; rpi_bidirpwm_set(action >> 8); More information can at pages of DCE’s Real-Time systems Programming course http://support.dce.felk.cvut.cz/psr/ and subject’s Semestral Work – Motor Control pages. Other valuable information on former subject page https://support.dce.felk.cvut.cz/pos/hlavni_uloha/

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Test Results

Reliable speed control achieved for smaller speeds RPi capable to cope with almost full speed of PSR course DC motor with low resolution IRC sensor The speed limit is much lower for industry grade motor used in real PiKRON’s applications The RPi is capable to process about 28 000 IRQ events per second but when more arrives the system and controller is

• verloaded/blocked and motor runs out of control

But even in overload case system is stable when motor is externally braked/hold/slow down controller receives CPU time again and system recovers from overload Solution is nice for education but not safe for industrial use The test with FPGA based IRQ processing in in preparation but even in this case RPi is not considered by us as platform reasonable for industrial motion control applications

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Outline

1

Introduction

2

Root Filesystem Protection SD-card Reliability GNU/Linux and Root Filesystem U-Boot on Raspberry Pi

3

Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Embedded Real Time and the DCE Department

CTU FEE Department of Control Engineering has been and is involved in Matlab/Simulink real-time support from its beginning (origin of real-time toolbox can be trace to our department) We have long term experience with fully preemptive kernel and hardware interfacing Embedded Real-time Target has been adapted/partially rewritten by Michal Sojka to be usable for real applications (MathWork included embedded solutions are often Windows

• nly and use POSIX timers and signals which have

uncontrolled latencies during delivery) The blocks for SocketCAN, Humusoft data acquisition PCI cards and minimal set of RPi periferals has been implemented COMEDI blockset has been updated and tested with our Linux ERT version as well

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

RPi DC Motor Control Simulink Diagram

sfIRCInput IRC0 int32 IRC-display Convert IRC int32 to Real double IRC-scope

• 0.01

Manual PWM double sfPWMwDirOutput PWMwDir Manual PWM Control double

• Opt. PSD

Controller w RSTs r red I u I P Subsys PSD double Position Request double RESET double Active Output Range double

• K-

Anti Windup double Position double Convert To int uint8 0.05976 PWM-display Pos Trajectory double PWM

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

RPi DC Motor Control Simulink Prototype

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

RPi DC Motor Control Simulink Remarks and Pointers

Incremental encoder input implemented as S-function sfIRCInput.c which opens /dev/irc0 and reads actual position from kernel driver Bidirectional PWM output is implemented in S-function sfPWMwDirOutput.c and uses same registers direct access approach as described in the previous section The whole setup is documented on respective Lintarget/Linux ERT project page http://lintarget.sourceforge.net/ rpi-motor-control/index.html used ert linux target and CC=arm-rpi-linux-gnueabihf-gcc set for make rtw. scp and ssh are used to copy and run binary on

• target. Simulink external mode (parameters on-line tune and

signals scope windows) is available. The generated code performance is the same as for hand written case – limitation is IRC events processing in the kernel

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

SocketCAN Simulink Blockset

The blockset is quick proof port of the CAN Autosar API based blocks developed at DCE initially for own automotive grade ARM Cortex-R4 based embedded platform The code is generated under designed control of TLC (Target Language Compiler) blocks description which allows to

• ptimize blocks code for used data-types and interconnection

For more information about embedded systems rapid prototyping support developed in our group look at http://rtime.felk.cvut.cz/rpp-tms570/ Notices about more Linux and embedded hardware used, tested and even some designed look at https://rtime.felk.cvut.cz/hw/

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Cortex-R4 Automotive Platform and Test Board

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

x86 Linux ERT and Parallel Kinematic Robot Control

4 DC motors, 4 incremental encoders, other I/Os Presented at Embedded world 2014 Sampling period 1 ms but complex computations More reliable that previously used Windows target

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications

Introduction Root Filesystem Protection Raspberry Pi and Real-time Fully Preemptive Kernel DC Motor Control by RPi Rapid Prototyping with Matlab/Simulink

Conclusion

More ready to be uses open-source building blocks for control applications have been presented and are available online We are looking for students who has interest in real-time,

• perating systems and control/embedded hardware

We cooperate with more industrial partners on many projects and students can gain experience and valuable knowledge during their work on the project in frame of thesis We offer control related courses Real-Time systems programming and participate on generic computer architectures courses at CTU FEE

Thanks for attention and questions

Pavel Pisa pisa@cmp.felk.cvut.cz CC BY-SA RPi for Industrial and Robotic Applications
