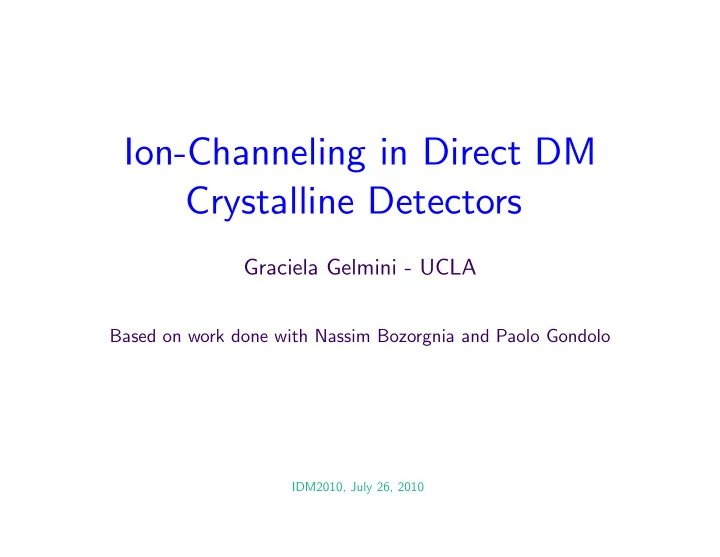

Ion-Channeling in Direct DM Crystalline Detectors

Graciela Gelmini - UCLA

Based on work done with Nassim Bozorgnia and Paolo Gondolo

IDM2010, July 26, 2010

slide-2
SLIDE 2

Graciela Gelmini-UCLA

Channeling and Blocking Effects in Crystals

refer to the orientation dependence of ion penetration in crystals.

Channeling:

Ions incident upon a crystal along symmetry axis and planes suffer a series

  • f

small-angle scattering that maintain them in the open“channels” and penetrate much further (ions do not get close to lattice sites)

Blocking:

Reduction

  • f

the flux

  • f

ions

  • riginating

in lattice sites along symmetry axis and planes (“blocking dip”) (From D. Gemmell 1974, Rev. Mod. Phys. 46, 129)

IDM2010, July 26, 2010 1

slide-3
SLIDE 3

Graciela Gelmini-UCLA

Channeling and blocking in crystals is used in

  • studies of lattice disorder
  • ion implantation
  • to locate dopant and impurity atoms
  • studies of surfaces and interfaces
  • measurement of nuclear lifetimes
  • production of polarized beams... etc
  • channeling is to be avoided in ion implantation (Boron, Phosphorus,

Arsenic) in Si to make circuits: good data at ∼ 100‘s keV (and analytic models by Gerhard Hobler from Vienna University of Technology, 1995)

IDM2010, July 26, 2010 2

slide-4
SLIDE 4

Graciela Gelmini-UCLA

NaI or CsI crystal: “mixed” and “pure” rows and planes Si or Ge crystal .

IDM2010, July 26, 2010 3

slide-5
SLIDE 5

Graciela Gelmini-UCLA

Channeling effect observed in NaI (Tl) Altman et.al 1973

IDM2010, July 26, 2010 4

slide-6
SLIDE 6

Graciela Gelmini-UCLA

Channeling effect observed in NaI(Tl) Altman et.al 1973

Measured the scintillation output of a monochromatic 10 MeV 16O beam through NaI(Tl) scintillator

Channeled ions produce more scintillation light (because they loose most of their energy via electronic stopping rather than nuclear stopping)

IDM2010, July 26, 2010 5

slide-7
SLIDE 7

Graciela Gelmini-UCLA

Channeling effect in DM detection:

The potential importance of the channeling effect for direct DM detection was first pointed

  • ut in stilbene crystals by H. Sekiya et al. (2003) and

subsequently for NaI (Tl) by Drobyshevski (2007) and by the DAMA collaboration (2008). When ions recoiling after a collision with a WIMP move along crystal axes and planes, they give their energy to electrons, so Q = 1 instead of QI = 0.09 and QNa = 0.3

ER (keV) fraction

Iodine recoils Sodium recoils

10

  • 3

10

  • 2

10

  • 1

1 10 20 30 40 50 60

(DAMA coll. 2008)

100 101 102 103 108 107 106 105 104 103 102 101 100

MWIMP GeV ΣΧp pb spinindependent

CDMS I Si CDMS II Ge XENON 10 SuperK CoGeNT TEXONO CRESST I DAMA 3Σ90 with channeling DAMA 7Σ5Σ with channeling DAMA 3Σ90 DAMA 7Σ5Σ

(For example: Savage,Gelmini, Gondolo, Freese JCAP 0904:010,2009) IDM2010, July 26, 2010 6

slide-8
SLIDE 8

Graciela Gelmini-UCLA

Daily-Modulation due to Channeling:

  • H. Sekiya et al. (2003); Avignone, Creswick, Nussinov (2008 and 1007.0214)
  • The WIMP wind comes preferentially from one direction (towards which the Sun moves)
  • When that direction is aligned with a channel, the scintillation or ionization output is

larger

  • Earth’s daily rotation makes the WIMP wind change direction with respect to the

crystal, which produces a daily modulation in the measured recoil energy (equivalent to a modulation of the quenching factor) which depends on the orientation of the crystal

This daily modulation would be a background free DM signature!

Nassim Bosognia, Paolo Gondolo and I set out more than a year ago to do an analytic calculation to understand channeling and blocking for DM detection, and estimate daily modulation amplitudes...

IDM2010, July 26, 2010 7

slide-9
SLIDE 9

Graciela Gelmini-UCLA

Our calculation

  • f

the fraction

  • f

recoils that are channeled as function of recoil energy and direction:

  • Use classical analytic models of the 60’s and 70’s, in particular Lindhard’s model(Lindhard

1965, Morgan & Van Vliet 1971, Dearnaley 1973, Gemmell 1974, Appleton & Foti 1977, Hobler 1995)

  • Continuum string and plane model, in which the

screened Thomas-Fermi potential is averaged

  • ver a direction parallel to a row/plane (took just one)

0.00 0.05 0.10 0.15 0.20 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 Distance nm U keV 100 Channel, Si ions

aSiSi Planar Axial

  • In the direction perpendicular the row or plane, the

“transverse energy” is conserved Eperp = Eφ2

i + Ui

vperp = v sin φ ≃ vφ transverse velocity component and Eperp = Mv2

perp/2 IDM2010, July 26, 2010 8

slide-10
SLIDE 10

Graciela Gelmini-UCLA

Axial and planar channeling

can be understood as overlap of Coulomb shadow cones, ρmin > ρc and ψ < ψc

(Fig. from Hiroshi Kudo, 2001) IDM2010, July 26, 2010 9

slide-11
SLIDE 11

Graciela Gelmini-UCLA

Axial and planar channeling

ρmin: min. distance of approach - ψ: angle far away from row or plane

(Fig. from D. Gemmell 1974, Rev. Mod. Phys. 46, 129)

Eperp = Eφ2

i + Ui

= U(ρmin) = Eψ2 + Umiddle

Umiddle: at middle of channel, far from row/plane, where angle is ψ =

  • [U(ρmin)−Umiddle)]

E

Channeling requires ρmin > ρc which amounts to ψ ≤ ψc

All the difficulty of this approach resides in calculating ρc

IDM2010, July 26, 2010 10

slide-12
SLIDE 12

Graciela Gelmini-UCLA

Channeling requires (Lindhard 1965, Morgan & Van Vliet 1971, Hobler 1995)

  • Min. distance of approach to row or plane larger than a critical value:

ρmin > ρc(E, T) =

  • ρ2

c(E) + [c u1(T)]2

ρc(E): for perfect-rigid-lattice decreases with E u1(T ): 1-dim. amplitude of thermal fluctuations . (used Debye model) increases with T, e.g. in Si

200 400 600 800 0.006 0.008 0.010 0.012 0.014 Crystal Temperature K nm

aSiSi u1

c: found through data/simulations, 1 < c < 2 u1(T )

  • Angle far from the row/plane smaller than a critical angle:

ψ ≤ ψc =

  • [U(ρc)−U(ρch)]

E

If ρc(E, T) ≥ the radius of the channel ρch, ψc = 0: NO CHANNELING POSSIBLE

IDM2010, July 26, 2010 11

slide-13
SLIDE 13

Graciela Gelmini-UCLA

Si ion in Si crystal, c = 1 (i.e. rc → u1(T) at high E)

(Bozorgnia, Gelmini, Gondolo 2010)

dach 2 u1 40 mK 293 K 600 °C 900 °C Static lattice

1 10 100 1000 104 0.002 0.005 0.01 0.02 0.05 0.1 0.2 E keV rc nm

100 axial channel, Si ions, c1

Static lattice 900 °C 600 °C 293 K 40 mK

1 10 100 1000 104 1. 5. 2. 3. 1.5 7. E keV Ψc deg

100 axial channel, Si ions, c1

IDM2010, July 26, 2010 12

slide-14
SLIDE 14

Graciela Gelmini-UCLA

Si ion in Si crystal, c = 2 (i.e. rc → 2 u1(T) at high E)

(Bozorgnia, Gelmini, Gondolo 2010)

dach 2 2 u1 40 mK 293 K 600 °C 900 °C Static lattice

1 10 100 1000 104 0.002 0.005 0.01 0.02 0.05 0.1 0.2 E keV rc nm

100 axial channel, Si ions, c2

Static lattice 900 °C 600 °C 293 K 40 mK

1 10 100 1000 104 0.5 1. 2. 5. E keV Ψc deg

100 axial channel, Si ions, c2

IDM2010, July 26, 2010 13

slide-15
SLIDE 15

Graciela Gelmini-UCLA

Data B and P ion in Si crystal fitted with c = 2 (data from Hobler-1995)

(Bozorgnia, Gelmini, Gondolo 2010)

  • <100>

{110} {100}

100 200 300 400 500 600 0.0 0.5 1.0 1.5 2.0 E keV Ψc deg

B in Si, c1c22

  • <100>

{110} {100}

100 200 300 400 500 600 0.0 0.5 1.0 1.5 2.0 E keV Ψc deg

P in Si, c1c22 IDM2010, July 26, 2010 14

slide-16
SLIDE 16

Graciela Gelmini-UCLA

In NaI, no data or modeling available at low energies

DAMA channeling fraction:(DAMA- Eur. Phys. J. C 53, 205-2313, 2008)

Calculated as if ions start from the middle of the channel. Good for incident ions but not for recoiling ions!

ER (keV) fraction

Iodine recoils Sodium recoils

10

  • 3

10

  • 2

10

  • 1

1 10 20 30 40 50 60

IDM2010, July 26, 2010 15

slide-17
SLIDE 17

Graciela Gelmini-UCLA

Reproduced DAMA calculations of channeled fraction

We used HEALPix (Hierarchical Equal Area iso Latitude Pixelisation) method to compute the integral over all directions. Dechanneling due to Tl doping (only first interaction and no rechanneling)

(Bozorgnia, Gelmini, Gondolo 1006.3110)

10 20 30 40 50 60 0.001 0.005 0.01 0.05 0.1 0.5 1. E keV Fraction Incident ions

NaDAMA IDAMA Na,dech I,dech Na I

IDM2010, July 26, 2010 16

slide-18
SLIDE 18

Graciela Gelmini-UCLA

Channeling probability of ions ejected from lattice sites

  • Recoiling nuclei start at or close to lattice sites
  • Blocking effects are important
  • In a perfect lattice no recoil would be channeled (“rule of reversibility”).
  • However, there are channeled recoils due to lattice vibrations! Collision

may happen when nucleus is somewhat within the channel, with prob. g(ρ) = ρ

u2

1e(−ρ2/2u2 1) thus PCh =

∞

ρi,min drg(ρ) = e(−ρ2

i,min/2u2 1)

and ρi,min is given by ρc (uncertainty in ρc is exponentiated in PCh)

  • Recoiling nucleus leaves an empty lattice site.

Two main T effects: amplitude u1(T) increases with T which increases channneling prob.- but ρc also increases with T what decreases the prob.

IDM2010, July 26, 2010 17

slide-19
SLIDE 19

Graciela Gelmini-UCLA

Channeling probability of ions ejected from lattice sites: Si

No dechanneling included (Bozorgnia, Gelmini, Gondolo 2010)

900 °C 600 °C 293 K 40 mK

1 10 100 1000 104 0.001 0.01 0.005 0.002 0.003 0.0015 0.015 0.007 E keV Fraction

Si ions, c1c21

900 °C 600 °C 293 K 40 mK

1 10 100 1000 104 0.0001 0.001 0.0005 0.0002 0.002 0.0003 0.003 0.00015 0.0015 0.0007 E keV Fraction

Si ions, c1c22

Upper bound (static lattice, c = 0)

900 °C 600 °C 293 K 40 mK

1 10 100 1000 104 1104 5104 0.001 0.005 0.01 0.05 E keV Fraction

Si ions, Static lattice

IDM2010, July 26, 2010 18

slide-20
SLIDE 20

Graciela Gelmini-UCLA

Channeling probability of ions ejected from lattice sites: Ge

No dechanneling included (Bozorgnia, Gelmini, Gondolo 2010)

900 °C 600 °C 293 K 40 mK

1 10 100 1000 104 105 1104 2104 5104 0.001 0.002 0.005 0.01 E keV Fraction

Ge ions, c1c21

900 °C 600 °C 293 K 40 mK

1 10 100 1000 104 105 0.0001 0.001 0.0005 0.0002 0.0003 0.00015 0.0015 0.0007 E keV Fraction

Ge ions, c1c22

Upper bound (static lattice, c = 0)

900 °C 600 °C 293 K 40 mK

1 10 100 1000 104 105 1104 5104 0.001 0.005 0.01 0.05 E keV Fraction

Ge ions, Static lattice

IDM2010, July 26, 2010 19

slide-21
SLIDE 21

Graciela Gelmini-UCLA

Channeling probability of ions ejected from lattice sites: NaI and CsI

T-dependent upper bounds with lattice oscillations included (c = 1) (no dechanneling included)

Na, 600 °C I, 600 °C Na, 293 K I, 293 K Na, 77.2 K I, 77.2 K

1 10 100 1000 104 1104 5104 0.001 0.005 0.01 0.05 0.1 E keV Fraction

c1c21

NaI (Bozorgnia, Gelmini, Gondolo 1006.3110)

600 °C 293 K 77.2 K

1 10 100 1000 104 0.001 0.002 0.005 0.01 0.02 0.05 0.1 E keV Fraction

c1c21

CsI (Bozorgnia, Gelmini, Gondolo 2010)

IDM2010, July 26, 2010 20

slide-22
SLIDE 22

Graciela Gelmini-UCLA

Channeling probability of ions ejected from lattice sites: NaI and CsI

Upper bounds at room temperature with lattice oscillations included (no dechanneling included)

Na, c = 1 I, c = 1 Na, c = 2 I, c = 2

1 10 100 1000 104 105 104 0.001 0.01 E keV Fraction

T293 K

NaI (Bozorgnia, Gelmini, Gondolo 1006.3110)

c = 1 c = 2

10 100 1000 104 105 104 0.001 0.01 0.05 E keV Fraction

T293 K

CsI (Bozorgnia, Gelmini, Gondolo 2010)

IDM2010, July 26, 2010 21

slide-23
SLIDE 23

Graciela Gelmini-UCLA

Compatibility of DAMA/LIBRA with other experiments

Then (Savage et al JCAP 0904:010,2009)

100 101 102 103 108 107 106 105 104 103 102 101 100

MWIMP GeV ΣΧp pb spinindependent

CDMS I Si CDMS II Ge XENON 10 SuperK CoGeNT TEXONO CRESST I DAMA 3Σ90 with channeling DAMA 7Σ5Σ with channeling DAMA 3Σ90 DAMA 7Σ5Σ

and now (diff. at 7σ)(Savage et al. 1006.3110)

100 101 102 107 106 105 104 103 102 101 100 101

MWIMP GeV ΣΧp pb spinindependent

total events with channeling total events modulation with channeling modulation 7Σ5Σ3Σ90

DAMA

IDM2010, July 26, 2010 22

slide-24
SLIDE 24

Graciela Gelmini-UCLA

Compatibility of DAMA/LIBRA with other experiments

If Leff extrapolated as a constant or zero below 4 keVnr (band: shows how the 90%CL bound changes with 1σ change in Leff) (Savage,Gelmini, Gondolo, Freese 1006.0972) (see talk of C. Savage)

1.0 0.5 2.0 5.0 10.0 20.0 50.0 0.00 0.05 0.10 0.15 0.20 0.25

Nuclear recoil energy keVnr eff

Solid curves: fiducial eff models Filled regions: 1Σ uncertainties

100 101 102 108 107 106 105 104 103 102

MWIMP GeV ΣΧp pb spinindependent eff constant below 3.9 keVnr

CDMS CoGeNT 712 GeV XENON100 XENON10 DAMA total events DAMA modulation 5Σ3Σ90 100 101 102 108 107 106 105 104 103 102

MWIMP GeV ΣΧp pb spinindependent eff zero below 3.9 keVnr

CDMS CoGeNT 712 GeV XENON100 XENON10 DAMA total events DAMA modulation 5Σ3Σ90

IDM2010, July 26, 2010 23

slide-25
SLIDE 25

Graciela Gelmini-UCLA

Conclusions:

  • The effect of blocking is important to understand the channeling of

recoiling nuclei: the channeled fraction of recoils is smaller and it is strongly temperature dependent. DAMA region is not affected by channeling up to the 5σ level.

  • Channeling in crystaline detectors can lead to a daily modulation of

a WIMP signal, a DM signature without any background (with small amplitudes- but larger for halo components with small velocity dispersion)

As initially proposed by H. Sekiya et al. (2003); Avignone, Creswick, Nussinov (2008 and 1007.0214)

  • Analytic models give good qualitative results but need data/simulations

to get good quantitative results (not available or NaI). Montecarlo simulations may be needed to settle these issues (many are used in other applications of channeling).

IDM2010, July 26, 2010 24
