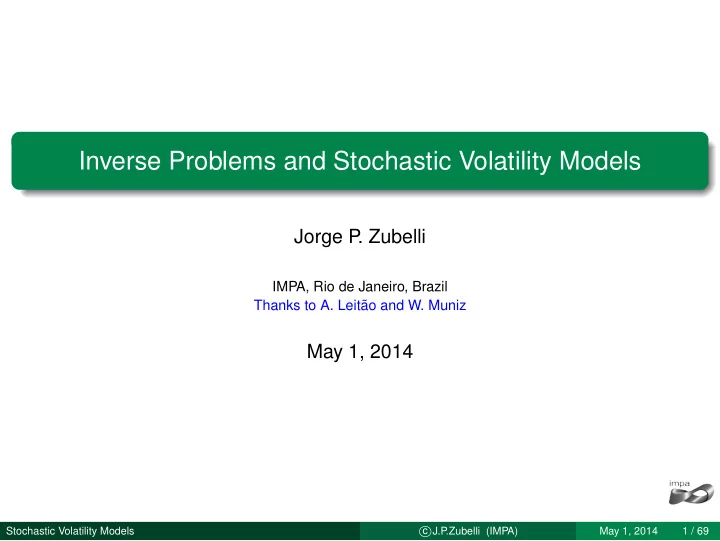

Inverse Problems and Stochastic Volatility Models Jorge P . Zubelli - - PowerPoint PPT Presentation

Inverse Problems and Stochastic Volatility Models

Jorge P . Zubelli

IMPA, Rio de Janeiro, Brazil Thanks to A. Leit˜ ao and W. Muniz

May 1, 2014

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 1 / 69

Outline

1

Intro and Background

2

Problem Statement and Results on Local Vol Models

3

Main Technical Results

4

Numerical Examples w/ Synthetic and w/ Real Data

5

Connections with Exponential Families and Risk Measures

6

Conclusions

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 2 / 69

Historical Remarks

Options and Derivatives

600BC Greek Philosopher and Geometer Thales from Miletus: Options and Futures of Olives (for Olive Oil) Call options on olive presses nine months ahead of the next harvest XVI century Dutch fisherman made forward contracts before departing XVII Netherlands - Options on prices of tulips XVII century future and option contracts on rice were negociated in Amsterdan and Osaka on rice. XIX century USA Contracts of to arrive type on flour started to be traded (CBOT) in 1849-1850, standard future contracts on grains were introduced in 1865.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 3 / 69

Historical Remarks

1972, CME started to negociate the first future contracts on currencies (6 currencies) Since the mid 80’s the growth of derivative markets overcame the growth

• f the underlyings

Theoretical Developments: 70’s F. Black - M. Scholes - R. Merton

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 4 / 69

Derivative Contracts

European Call Option: a forward contract that gives the holder the right, but not the obligation, to buy one unit of an underlying asset for an agreed strike price K on the maturity date T. Its payoff is given by h(XT) =

• XT − K

if XT > K, if XT ≤ K.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 5 / 69

Derivative Contracts

European Put Option: a forward contract that gives the holder the right to sell a unit of the asset for a strike price K at the maturity date T. Its payoff is h(XT) =

• K − XT

if XT < K, if XT ≥ K. At other times, the contract has a value known as the derivative price. The

• ption price at time t with stock price Xt = x is denoted by P(t,x).

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 6 / 69

Main Contributions

Historical Remarks

Figure: Thales

Thales (Miletus)

• L. Bachelier (Paris)

P . Samuelson (Nobel 1970)

• F. Black
• M. Scholes (Nobel 1997)
• R. Merton (Nobel 1997)

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 7 / 69

Main Contributions

Figure: L. Bachelier

Thales (Miletus)

• L. Bachelier (Paris)

P . Samuelson

• F. Black
• M. Scholes
• R. Merton

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 8 / 69

Figure: P . Samuelson

Thales (Miletus)

• L. Bachelier (Paris)

P . Samuelson

• F. Black
• M. Scholes
• R. Merton

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 9 / 69

Some Background, Terminology, and Notation

Classical Black-Scholes-Merton

Under highly simplifying assumptions, the call option price C on an underlying X is given by CBS(X,t;K,T,r,σ) = XN(d+)− Ke−r(T−t)N(d−) (1) where N is the cumulative normal distribution. d± = log(Xer(T−t)/K)

σ√

T − t

± σ√

T − t 2 . (2) Some of the Assumptions: Non dividend paying (just for simplicity) Complete and Frictionless Markets Exponential Brownian motion dynamics Constant Volatility

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 10 / 69

Plot of the Black-Scholes Price of a Call

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 11 / 69

However...

Volatility is not deterministic! It is even a multi-scale phenomena! It is not true that the underlying undergoes an Exponential Brownian Motion Even more so in high frequency contexts... Implied Volatility: The value of the volatility that should be used in the Black-Scholes formula to give the quote market price of a derivative.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 12 / 69

The Concept of Implied Volatility

Recall CBS(X,t;K,T,r,σ0) = XN(d+)− Ke−r(T−t)N(d−) (3) where N is the cumulative normal distribution function and d± = log(Xer(T−t)/K)

σ0 √

T − t

± σ0 √

T − t 2 . (4) Notion of Implied Volatility: Fix everything else and consider

σ − → CBS(X,t;K,T,r,σ)

The implied volatilty is the inverse to this map. IMPLIED VOL: ”wrong number that when plugged into the wrong equation gives the right price”

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 13 / 69

Figure: Implied Volatility Surface- (From Bruno Dupire - IMPA talk)

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 14 / 69

Remarks

1

Implied Vol is only a way of renaming the price (change of variables).

2

Crucial to find the connection with the underlying dynamics.

3

Crucial to introduce the concept of LOCAL VOLATILITY Concept of Stochastic Volatility: dXt Xt

= µtdt +σtdWt

Fundamental Issue: How to model the process σt? One Possibility: Following Dupire... (Local Volatility Model) assume that

σt = σ(t,Xt)

Another Possibility: Assume that the process σt = f(Yt) undergoes its own dynamics according to a SDE.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 15 / 69

Figure: Example of Data from IBOVESPA

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 16 / 69

Limitations of Classical Black-Scholes

log-normality of asset prices is not verified by statistical tests

• ption prices are subjet to the smile effects

volatility tends to fluctuate with time

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 17 / 69

Local Volatility Models

Idea: Assume that the volatility is given by

σ = σ(t,x)

i.e.: it depends on time and the asset price. Easy to check that the Black-Scholes eq. holds.

∂P ∂t + 1

2σ(t,x)2x2 ∂2P

∂x2 + r

• x ∂P

∂x − P

• = 0

(5) P(T,x) = h(x) (6)

• r in the case you have dividends:

∂P ∂t + 1

2σ(t,x)2x2 ∂2P

∂x2 +(r − d)x ∂P ∂x − rP = 0

P(T,x) = h(x)

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 18 / 69

Motivation and Goals

Focus

Dupire [Dup94] local volatility models Goal: Present a unified framework for the calibration of local volatility models Use recent tools of convex regularization of ill-posed Inverse Problems. Present convergence results that include convergence rates w.r.t. noise level in fairly general contexts Go beyond the classical quadratic regularization.

Applications

risk management hedging evaluation of exotic derivatives.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 19 / 69

The Direct and the Inverse Problem

The Direct Problem

Given σ = σ(t,x) and the payoff information, determine P = P(t,x,T,K;σ)

The Inverse Problem

Given a set of observed prices

{P = P(t,x,T,K;σ)}(T,K)∈S

find the volatility σ = σ(t,x). The set S is taken typically as [T1,T2]×[K1,K2]. In Practice: Very limited and scarce data Note: To price in a consistent way the so-called exotic derivatives one has to know σ and not only the transition probabilities

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 20 / 69

The Smile Curve and Dupire’s Equation

Assuming that there exists a local volatility function σ = σ(x,t) for which (5) holds Dupire(1994) showed that the call price satisfies

∂T C − 1

2σ2(K,T)K 2∂2 K C + rS∂K C = 0 ,

S > 0 , t < T C(K,T = 0) = (X − K)+ , (7) Theoretical: way of evaluating the local volatility

σ(K,T) =

• 2

∂T C + rK∂K C

K 2∂2

K C

• (8)

In practice To estimate σ from (7), limited amount of discrete data and thus

• interpolate. Numerical instabilities! Even to keep the argument positive is hard.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 21 / 69

Literature

Very vast!!!

Avellaneda et al. [ABF+00, Ave98c, Ave98b, Ave98a, AFHS97] Bouchev & Isakov [BI97] Crepey [Cr´ e03] Derman et al. [DKZ96] Egger & Engl [EE05] Hofmann et al. [HKPS07, HK05] Jermakyan [BJ99] Achdou & Pironneau (2004) Roger Lee (2001,2005) Abken et al. (1996) Ait Sahalia, Y & Lo, A (1998) Berestycki et al. (2000) Buchen & Kelly (1996) Coleman et al. (1999) Cont, Cont & Da Fonseca (2001) Jackson et al. (1999) Jackwerth & Rubinstein (1998) Jourdain & Nguyen (2001) Lagnado & Osher (1997) Samperi (2001) Stutzer (1997)

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 22 / 69

Problem Statement

Starting Point: Dupire forward equation [Dup94] −∂T U + 1

2σ2(T,K)K 2∂2

K U −(r − q)K∂K U − qU = 0,

T > 0, (9) K = X0ey , τ = T − t , b = q − r , u(τ,y) = eqτUt,X(T,K) (10) and a(τ,y) = 1 2σ2(T −τ;X0ey), (11)

Set q = r = 0 for simplicity to get:

uτ = a(τ,y)(∂2

yu −∂yu)

(12) and initial condition u(0,y) = X0(1− ey)+ (13)

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 23 / 69

Problem Statement

The Vol Calibration Problem

Given an observed set

{u = u(t,S,T,K;σ)}(T,K)∈S

find σ = σ(t,S) that best fits such market data Noisy data: u = uδ Admissible convex class of calibration parameters:

D(F) := {a ∈ a0 + H1+ε(Ω) : a ≤ a ≤ a}.

(14) where, for 0 ≤ ε fixed, U := H1+ε(Ω) and a > a > 0.

Parameter-to-solution operator

F : D(F) ⊂ H1+ε(Ω) → L2(Ω) F(a) = u(a) (15)

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 24 / 69

Setting of the problem

Theorem (H. Egger-H. Engl[EE05] Crepey[Cr´ e03])

The parameter to solution map F : H1+ε(Ω) → L2(Ω) is weak sequentialy continuous compact and weakly closed Consequences: The inverse problem is ill-posed. We can prove that the inverse problem satisfies the conditions to apply the regularization theory.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 25 / 69

Well-Posed and Ill-Posed Problems

Hadamard’s definition of well-posedness: Existence Uniqueness Stability The problem under consideration: Ill-posed. Equation: F(a) = u Need Regularization:

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 26 / 69

Approach

Convex Tikhonov Regularization

For given convex f minimize the Tikhonov functional

Fβ,uδ(a) := ||F(a)− uδ||2

L2(Ω) +βf(a)

(16)

• ver D(F), where, β > 0 is the regularization parameter.

Remark that f incorporates the a priori info on a.

||¯

u − uδ||L2(Ω) ≤ δ, (17) where ¯ u is the data associated to the actual value ˆ a ∈ D(F).

Assumption (very general!)

Let ε ≥ 0 be fixed. f : D(f) ⊂ H1+ε(Ω) −

→ [0,∞] is a convex, proper, coercive

and sequentially weakly lower semi-continuous functional with domain D(f) containing D(F).

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 27 / 69

Questions

Theoretical Questions:

Does there exist a minimizer of the regularized problem? Suppose that the noise level goes to zero... How fast does the regularized go to the true solution? Results obtained in joint work with D. Cezaro and O. Scherzer. Published in J. Nonlinear Analysis, 2012 [DCSZ12]

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 28 / 69

Questions

Practical Questions:

Can we devise an iterative algorithm to compute the solution? Does this algorithm converge? Can we regularize by stopping the iteration judiciously? We proved:

1

A tangential cone condition that ensures convergence of the Landwebber iteration. Joint work with D. Cezaro. (IMA J. of Applied Math.)

2

Obtained a Morozov-type criterium to stop the iteration.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 29 / 69

Main Theoretical Result

F(a) = u(a) (15)

Fβ,uδ(a) := ||F(a)− uδ||2

L2(Ω) +βf(a)

(16)

Theorem (Existence, Stability, Convergence)

For the regularized inverse problem F(a) = u (18) we have:

∃ minimizer of Fβ,uδ.

If (uk) → u in L2(Ω), then ∃ a seq. (ak) s.t. ak ∈ argmin

Fβ,uk(a) : a ∈ D

• has a subsequence which converges weakly to

a

• a ∈ argmin

Fβ,u(a) : a ∈ D

• Stochastic Volatility Models

c

J.P

.Zubelli (IMPA) May 1, 2014 30 / 69

Main Theoretical Result (cont)

F(a) = u(a) (15)

Fβ,uδ(a) := ||F(a)− uδ||2

L2(Ω) +βf(a)

(16)

Theorem (cont.) NOISY CASE

Take β = β(δ) > 0 and assume

β(δ) satisfies β(δ) → 0 and δ2 β(δ) → 0, as δ → 0 .

(19) The seq. (δk) converges to 0, and that uk := uδk satisfies ¯ u − uk ≤ δk. Then,

1

Every seq. (ak) ∈ argminFβk,uk , has weak-convergent subseq. (ak′).

2

The limit a† := w − limak′ is an f-minimizing solution of (15), and f(ak) → f(a†).

3

If the f-minimizing solution a† is unique, then ak → a† weakly.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 31 / 69

Bregman distance

Let f be a convex function. For a ∈ D(f) and ∂f(a) the subdifferential of the functional f at a. We denote by D(∂f) = {˜ a : ∂f(˜ a) = /

0} the domain of the subdifferential.

The Bregman distance w.r.t ζ ∈ ∂f(a1) is defined on D(f)×D(∂f) by Dζ(a2,a1) = f(a2)− f(a1)−ζ,a2 − a1 .

Assumption (1)

We assume that

1

∃ an f-minimizing sol. a† of (15), a† ∈ DB(f).

2

∃β1 ∈ [0,1), β2 ≥ 0, and ζ† ∈ ∂f(a†) s.t. ζ†,a† − a ≤ β1Dζ†(a,a†)+β2

• F(a)− F(a†)
• L2(Ω) for a ∈ Mβmax(ρ) ,

(20) where ρ > βmaxf(a†) > 0.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 32 / 69

Convergence rates [SGG+08]

Theorem (Convergence rates [SGG+08])

Let F, f, D, H1+ε(Ω), and L2(Ω) satisfy Assumption 1. Moreover, let

β : (0,∞) → (0,∞) satisfy β(δ) ∼ δ. Then

Dζ†(aδ

β,a†) = O(δ),

• F(aδ

β)− uδ

• L2(Ω) = O(δ) ,

and there exists c > 0, such that f(aδ

β) ≤ f(a†)+δ/c for every δ with

β(δ) ≤ βmax.

Example: The regularization functional f as the Boltzmann-Shannon entropy f(a) =

• Ω

alog(a)dx , a ∈ D(F),

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 33 / 69

Example of the Convergence Rate

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 34 / 69

How about the assumptions?

Although Assumption 1 may seem too restrictive, the next result reveals that it can be obtained from rather classical ones:

Proposition

Assume that ∃ an f-minimizing solution a† of F(a) = u and that F is Gˆ ateaux differentiable at a†. Moreover, assume that ∃γ ≥ 0 and ω† ∈ L2(Ω)∗ with γ

• ω†

< 1, s.t. ζ† := F ′(a†)∗ω† ∈ ∂f(a†)

(21) and ∃βmax > 0 satisfying ρ > βmaxf(a†) such that

• F(a)− F(a†)− F ′(a†)(a− a†)
• ≤ γDζ†(a,a†), for a ∈ Mβmax(ρ) .

(22) Then, Assumption 1 holds.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 35 / 69

How about algorithms?

NOTE: We have proved

We have also proved a tangential cone condition for this problem, which implies that the Landwever iteration converges in a suitable neighborhood. Landweber Iteration [EHN96]: aδ

k+1 = aδ k + cF ′(aδ k)∗(uδ − F(aδ k)).

(23) Discrepancy Principle:

• uδ − F(aδ

k∗(δ,yδ))

• ≤ rδ <
• uδ − F(aδ

k)

• ,

(24) where r > 2 1+η 1− 2η , (25) is a relaxation term. If the iteration is stopped at index k∗(δ,yδ) such that for the first time, the residual becomes small compared to the quantity rδ.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 36 / 69

Numerical Examples with Simulated Data

Description of the Examples

Using a Landweber iteration technique we implemented the calibration. Produced for different test variances a the option prices and added different levels of multiplicative noise. The examples consisted of perturbing a = 1 during a period of T = 0,··· ,0.2 and log-moneyness y varying between −5 and 5. Initial guess: Constant volatility.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 37 / 69

Numerical Examples - Exact Solution

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 38 / 69

Numerical Examples - Exact Solution

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 39 / 69

Numerical Examples 1 - noiseless - 4000 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 40 / 69

Numerical Examples 1 - error - 100 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 41 / 69

Numerical Examples 1 - error - 300 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 42 / 69

Numerical Examples 1 - error - 500 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 43 / 69

Numerical Examples 1 - error - 1000 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 44 / 69

Numerical Examples 1 - error - 2000 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 45 / 69

Numerical Examples 1 - error - 4000 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 46 / 69

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 47 / 69

Numerical Examples 2 - 5% noise level - 100 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 48 / 69

Numerical Examples 2 - 5% noise level - 200 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 49 / 69

Numerical Examples 2 - 5% noise level - 300 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 50 / 69

Numerical Examples 2 - 5% noise level - 400 steps

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 51 / 69

Numerical Examples 2 - 5% noise level - Stopping criteria

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 52 / 69

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 53 / 69

Numerical Examples 2 - 5% noise level - 2000 iterations

Too many!!!

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 54 / 69

Local Vol Surface from Heston Model

Figure: Local Vol Surface associated to Heston Model Calibrated on PBR data

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 55 / 69

Local Vol Surface from Heston Model

Figure: Local Vol Surface associated to Heston Model Calibrated on SPX data

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 56 / 69

Local Vol Surface for WTI Crude Oil

totally nonparametric

Figure: Local Vol Surface associated to Heston Model Calibrated on SPX data

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 57 / 69

Numerical Examples: with Real Data

Reconstruction of a = σ2/2 with PBR Stock Data (implemented by Vinicius L. Albani/IMPA)

Figure: Minimal Entropy functional / Landweber Method / a priori Implied Vol / maturities: 2010-11

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 58 / 69

Numerical Examples: with Real Data

Reconstruction of a with PBR Stock Data (implemented by Vinicius L. Albani/IMPA)

Figure: Minimal Entropy functional / Minimization (Levenberg-Marquadt) Method /

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 59 / 69

Comparison Kullback-Leibler × Quadratic Regularization

WTI Data

Figure: Left Kullback-Leibler Regularization and Right Quadratic Regularization

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 60 / 69

Comparison Kullback-Leibler × Quadratic Regularization

WTI Data

Figure: Left Kullback-Leibler Regularization and Right Quadratic Regularization

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 61 / 69

Local Vol Surface for Henry Hub Natural Gas

In the next plots we show an online approach (joint work w/ V. Albani). We performed the following: We consider the evolution of prices of futures and options for several days but kept the maturity dates and all the other features of the options. Calibrated using the extra information. This is part of an extension of the above results that leads to incorporating the flow of information.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 62 / 69

Figure: Local Vol Surface associated to Henry Hub Gas Prices

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 62 / 69

Figure: Local Vol Surface associated to Henry Hub Gas Prices

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 62 / 69

Figure: Local Vol Surface associated to Henry Hub Gas Prices

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 62 / 69

Figure: Local Vol Surface associated to Henry Hub Gas Prices

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 62 / 69

Figure: Local Vol Surface associated to Henry Hub Gas Prices

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 62 / 69

Figure: Local Vol Surface associated to Henry Hub Gas Prices

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 63 / 69

Connection with Statistics and Exponential Families

Regular Exponential Families:

family of probability distribution functions pψ,θ : R → R+ defined by pψ,θ(s) := exp(s ·θ−ψ(θ))p0(s) where ψ : R → R∪{+∞} is convex and p0 : R → R+ is continuous.

Example:

Gaussians parametrized by the mean. The Darmois-Koopman-Pitman Thm: Under certain regularity conditions on the probability density, a necessary and sufficient condition for the existence of a sufficient statistic1 of fixed dimension is that the probability density belongs to the exponential family [And70].

1no other statistic which b can be calculated from the same sample provides any

additional information as to the value of the parameter

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 63 / 69

Connection with Statistics and Exponential Families(cont.)

Recall the Fenchel Conjugate

Given a function f : X → R∪{+∞}, the Fenchel dual f ∗X ∗ → R∪{+∞} is defined by f ∗(x∗) := sup{x∗,x− f(x) | x ∈ X}

Theorem (Banerjee et al. [BMDG05])

Let ψ∗ denote the Fenchel transform of ψ, which we assume to be

• differentiable. Using the Bregman distance w.r.t. ψ∗

Dψ∗(ˆ a,˜ a) = ψ∗(ˆ a)−ψ∗(˜ a)−ψ∗′(˜ a)(ˆ a−˜ a) , if we assume that a(θ) ∈ int(dom(ψ∗)), then pψ,θ(a) = exp

• − Dψ∗ (a,a(θ))
• exp
• ψ∗(a)
• p0(a) .

(26)

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 64 / 69

Connection with Statistics and Exponential Families(cont.)

Example (Exponential Families and their Fenchel conjugates)

For a Gaussian distribution ψ(θ) = ϖ2

2 θ2, then ψ∗(a) = a2 2ϖ2 . For Poisson

distribution ψ(θ) = exp(θ) we have ψ∗(a) = alog(a)− a.

Example

According to Example 1, if we use the exponential family associated to Poisson distributions, we obtain Kullback-Leibler regularization, consisting in minimization of a −

→ Fβ,uδ(a) :=

• F(a)− uδ
• 2

L2(Ω) +βKL(ˆ

a,a) , (27) where KL(ˆ a,a) =

• Ω

alog(ˆ a/a)−(ˆ a− a)dx . We note that the Kullback-Leibler distance is the Bregman distance associated to the Boltzmann-Shannon entropy

• Stochastic Volatility Models

c

J.P

.Zubelli (IMPA) May 1, 2014 65 / 69

Connection with Statistics and Exponential Families(cont.)

Lemma (3)

Let Ω be a bounded subset of R2 with Lipschitz boundary. Moreover, assume that F is continuous w.r.t. the weak topologies on L1(Ω) and L2(Ω), respec.

1

Let a,b ∈ D(G). Then

a− b2

L1(Ω) ≤

• 2

3aL1(Ω) + 4 3bL1(Ω)

• KL(a,b) .

(29) (Convention: 0·(+∞) = 0)

2

Let 0 = ˆ a ∈ DB(G), then the sets

Mβ,uδ(M) := {a ∈ DB(G) : Fβ,uδ(a) ≤ M}

are τ˜

U sequentially compact.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 66 / 69

Connection with Statistics and Exponential Families(cont.)

An important consequence of (29) and Theorem 2 is that

• aδ

β − a†

• L1(Ω) = O(

√ δ).

(30) Now, let δk be a sequence converging to zero and ak = aδk

βk the respective

minimizers of the Tikhonov functional (16). Take bk = a† for all k ∈ N. Then, from Lemma 2

• ak − a†
• L1(Ω) → 0,

as

δk → 0.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 67 / 69

Conclusions

Volatility surface calibration is a classical and fundamental problem in Quantitative Finance We developed a unifying framework for the regularization that makes use

• f tools from Inverse Problem theory and Convex Analysis and

established:

1

Convergence and convergence-rate results.

2

Convergence of the regularized sol. w.r.t the noise level in L1(Ω) (when Ω is compact)

3

The connection with exponential families.

4

The source condition connection with convex risk measures

5

Implemented a Landweber type calibration algorithm.

Developed an Online Calibration Methodology Future Possibilities:

1

Use a priori asymptotic behavior (e.g.: following Roger Lee’s results for the implied volatility)

2

Enhance the model to incorporate jumps and perhaps more sofisticated models such as cogarch (for example).

.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 68 / 69

THANK YOU FOR YOUR ATTENTION!!! Collaborators:

• V. Albani (IMPA), A. de Cezaro (FURG), O. Scherzer (Vienna)

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 69 / 69

• M. Avellaneda, R. Buff, C. Friedman, N. Grandchamp, L. Kruk, and
• J. Newman.

Weighted Monte Carlo: A new technique for calibrating asset-pricing models. Spigler, Renato (ed.), Applied and industrial mathematics, Venice-2, 1998. Selected papers from the ‘Venice-2/Symposium’, Venice, Italy, June 11-16,

• 1998. Dordrecht: Kluwer Academic Publishers. 1-31 (2000)., 2000.
• M. Avellaneda, C. Friedman, R. Holmes, and D. Samperi.

Calibrating volatility surfaces via relative-entropy minimization.

• Appl. Math. Finance, 4(1):37–64, 1997.
• E. B. Andersen.

Sufficiency and exponential families for discrete sample spaces. 65:1248–1255, 1970.

• M. Avellaneda.

Minimum-relative-entropy calibration of asset-pricing models. International Journal of Theoretical and Applied Finance, 1(4):447–472, 1998.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 69 / 69

Marco Avellaneda. The minimum-entropy algorithm and related methods for calibrating asset-pricing model. In Trois applications des math´ ematiques, volume 1998 of SMF Journ. Annu., pages 51–86. Soc. Math. France, Paris, 1998. Marco Avellaneda. The minimum-entropy algorithm and related methods for calibrating asset-pricing models. In Proceedings of the International Congress of Mathematicians, Vol. III (Berlin, 1998), number Extra Vol. III, pages 545–563 (electronic), 1998.

• I. Bouchouev and V. Isakov.

The inverse problem of option pricing. Inverse Problems, 13(5):L11–L17, 1997. James N. Bodurtha, Jr. and Martin Jermakyan. Nonparametric estimation of an implied volatility surface. Journal of Computational Finance, 2(4), Summer 1999.

• A. Banerjee, S. Merugu, I.S. Dhillon, and J. Ghosh.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 69 / 69

Clustering with bregman divergences. Journal of Machine Learning Research, 6:1705–1749, 2005.

• S. Cr´

epey. Calibration of the local volatility in a generalized Black-Scholes model using Tikhonov regularization. SIAM J. Math. Anal., 34(5):1183–1206 (electronic), 2003.

• A. De Cezaro, O. Scherzer, and J. P

. Zubelli. Convex regularization of local volatility models from option prices: convergence analysis and rates. Nonlinear Anal., 75(4):2398–2415, 2012. Emanuel Derman, Iraj Kani, and Joseph Z. Zou. The local volatility surface: Unlocking the information in index option prices. Financial Analysts Journal, 52(4):25–36, 1996.

• B. Dupire.

Pricing with a smile. Risk, 7:18– 20, 1994.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 69 / 69

• H. Egger and H. W. Engl.

Tikhonov regularization applied to the inverse problem of option pricing: convergence analysis and rates. Inverse Problems, 21(3):1027–1045, 2005.

• H. W. Engl, M. Hanke, and A. Neubauer.

Regularization of inverse problems, volume 375 of Mathematics and its Applications. Kluwer Academic Publishers Group, Dordrecht, 1996.

• B. Hofmann and R. Kr¨

amer. On maximum entropy regularization for a specific inverse problem of

• ption pricing.
• J. Inverse Ill-Posed Probl., 13(1):41–63, 2005.
• B. Hofmann, B. Kaltenbacher, C. P¨
• schl, and O. Scherzer.

A convergence rates result for Tikhonov regularization in Banach spaces with non-smooth operators. Inverse Problems, 23(3):987–1010, 2007.

• O. Scherzer, M. Grasmair, H. Grossauer, M. Haltmeier, and F. Lenzen.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 69 / 69

Variational Methods in Imaging, volume 167 of Applied Mathematical Sciences. Springer, New York, 2008.

Stochastic Volatility Models c

J.P

.Zubelli (IMPA) May 1, 2014 69 / 69
