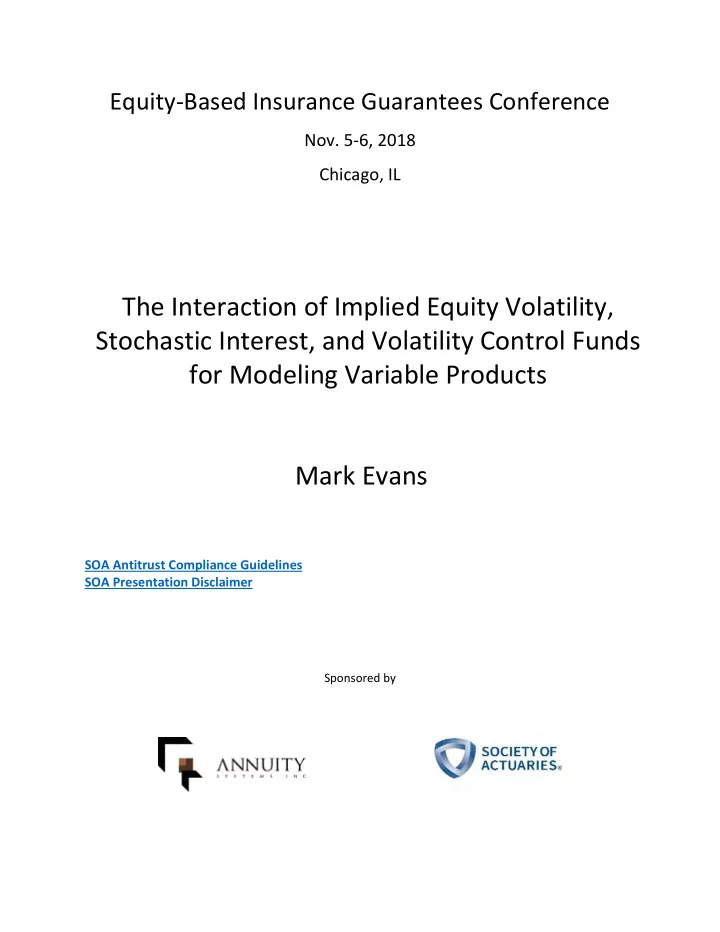

Equity-Based Insurance Guarantees Conference

• Nov. 5-6, 2018

Chicago, IL

The Interaction of Implied Equity Volatility, Stochastic Interest, and Volatility Control Funds for Modeling Variable Products Mark Evans

SOA Antitrust Compliance Guidelines SOA Presentation Disclaimer

Sponsored by

The Interaction of Implied Equity Volatility, Stochastic Interest, and Volatility Control Funds for Modeling Variable Products

EBIG Conference (Chicago) 6 Nov 2018 (830 – 1000 Hours)

Mark Evans, FSA, MAAA Applied Stochastic

Topics:

• Impact of stochastic interest rates on variable annuities
• Stochastic interest rate provision in implied volatility
• Adjusting implied volatility for the impact of stochastic interest rates
• Impact of adjusted implied volatility combined with use of stochastic

interest rates upon variable annuity modeling

• Accounting for stochastic interest rate impact with volatility control

funds

2

Black Scholes

• Black Scholes bases the equity return on the following formula.
• exp[(r-σ^2/2)t + ϵ σ √t]
• If we reflect stochastic interest rates, the formula becomes
• exp[(r(ϴ)-σ^2/2)t + ϵ σ √t]
• where r(ϴ) is a stochastic process.

3

Interest Impact

• r impacts the amount of the put option payoff associated with a GMxB.
• Unlike a vanilla put option, there are secondary compounding impacts.
• Lower interest environments result in not only a lower expected return,

but also policyholders are more likely to persist.

• Account value is lower relative to guarantee.
• Future payment stream has a higher present value.
• In extreme cases, policyholders are more likely to utilize (except for

GMDB).

4

Interaction with Implied Volatility

• Thus using stochastic interest rates results in higher GMxB costs.
• If modeling with implied volatility, however, one may want to adjust for

the provision the market makes for interest rate uncertainty in the implied volatility.

• If using stochastic interest and implied volatility, then we are accounting

for implied volatility twice.

5

Interaction with Implied Volatility

• Since a vanilla put option price is not impacted by policyholder

behavior, the impact of stochastic interest rates is less than for a variable annuity.

• So reducing the volatility for the stochastic interest rate provision and

using stochastic interest rates will result in a higher GMxB cost than using implied volatility and deterministic interest rates.

6

Example:

• Determine the size of the stochastic interest rate adjustment in implied

volatility for a 10 year put.

• 1) Calculate the put price based on the swap curve and other market

assumptions.

• 2) Use a stochastic interest rate model to generate a set of 120 month

interest rate paths.

• 3) Calculate the put prices for the set of paths from step 2.
• 4) Determine the average put price from step 3.
• 5) Lower the volatility and redo step 3. Iterate until result from step 4

matches the result from step 1. Iteration should be quick as this is a well behaved function.

7

Details:

• Stochastic Interest Rate Model
• Simple recombining BDT
• Monthly time steps
• Calibrated to swap curve (about 3% with slight upward slope)
• 30% lognormal interest rate volatility

8

Details:

• Calculate 10 Year Put Along Set of Paths from Step 2
• 2% Continuous Dividend
• 23% Implied Volatility
• 110% Strike
• 10 year spot rate from 121 ending present value factors from

recombining BDT tree

• Calculate weighted average from Pascal triangle probability

distribution

9

Results:

• Adjusted volatility ends up being about 22.5% for a .5% adjustment.
• If modeling a variable annuity without volatility control funds, we use

22.5% equity volatility and stochastic interest rates.

10

But what happens with a volatility control fund where the equity (or risky asset) percent is chosen to produce a target volatility?

Volatility Control Fund

• Let’s assume that the volatility target is 10%.
• Then if using stochastic interest rates we would project equity returns

using 22.5% volatility.

• Now the fund manager will observe volatility and use that observation

to set the equity percent.

• The stochastic interest rate has to introduce some volatility into this
• bservation, but it turns out not to be .5%.

12

Black Scholes Again

• When using stochastic interest rates, a lot of relationships that hold

with fish bowl Black Scholes assumptions no longer work.

• exp[(r(ϴ)-σ^2/2)t + ϵ σ √t]
• r(ϴ) is a function of prior periods interest rate changes so the expected

return along a given path now depends on the prior actual returns. The fish bowl is broken.

13

Example:

• Let’s work through an example.
• There are different ways of doing this, but let’s assume the volatility

control procedure bases the target on the last month’s observed volatility.

• We can go into our interest rate model and look at the impact upon

return volatility due to the interest rate volatility in month 120.

14

Month 120

• The interest rate at the start of month 120 is a function of what

happened in the previous 119 months.

• But, the interest rate volatility in the previous 119 months does NOT

impact the volatility the fund manager is going to see during the one month observation period.

15

10 Years Versus One Month

• So when we observe interest rate volatility standing at time zero and

look out over the next 10 years, it creates a wide range of possible

• utcomes.
• But for each of those possible interest rate paths, at any future point

along that separate path, the fund manager will see a much smaller impact from interest rate volatility because he only sees the last month.

16

+/- 1 Standard Deviation MM Growth

17

0.1 0.2 0.3 0.4 0.5 0.6 1 8 15 22 29 36 43 50 57 64 71 78 85 92 99 106 113 120 Series1 Series2 Series3 Series4

Interest Volatility in Month 120

18

Impact on Control Fund

• If we look at the volatility due to the impact of stochastic interest rates

along each path, we can do a direct measure of the result.

• Under a lognormal interest rate model, this varies dramatically by

interest rate level.

• It is small except for very high interest rate paths which have a low

probability and are less likely to produce GMxB claims anyway.

19

20

Method Equity Volatility Additional Volatility Risky Allocation Ignore Stochastic Interest 22.5% 0% 44.4% Pure Monthly Volatility 22.5% .0003% 44.4% Zero Mean Volatility 22.5% .052% 44.3% Implied Volatility 22.5% .5% 43.5%

Summary:

• Variable annuities are particularly sensitive to interest rate volatility.
• Implied volatility used for pricing vanilla options includes a provision for

interest rate volatility.

• The provision can be estimated from market data.
• The provision can be removed from equity volatility when modeling

variable annuities using stochastic interest rates.

• But this provision is likely much smaller when modeling volatility control

funds.

• Numbers shown here are for illustrative purposes only. They are not

intended to reflect current market conditions.

21
