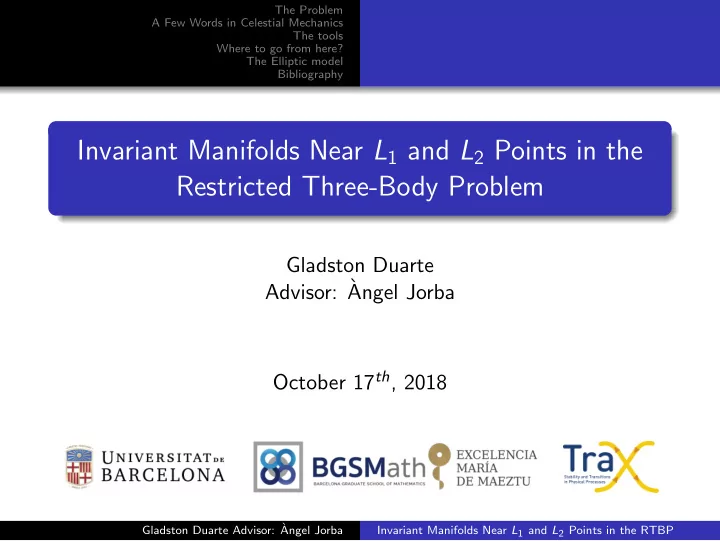

Invariant Manifolds Near L1 and L2 Points in the Restricted Three-Body Problem

Gladston Duarte Advisor: ` Angel Jorba October 17th, 2018

Gladston Duarte Advisor: ` Angel Jorba Invariant Manifolds Near L1 and L2 Points in the RTBP

The Problem A Few Words in Celestial Mechanics The tools Where to go from here? The Elliptic model Bibliography

Summary

1

The Problem

2

A Few Words in Celestial Mechanics Modelling the Problem

3

The tools Applying the tools Adjusting Oterma

4

Where to go from here?

5

The Elliptic model Model’s features The computations

6

Bibliography
