TOOLS 2008 New physics and its background June 30 - July 4, 2008 MPI Munich, Germany Introduction to the demo Dark Matter Tool on the Web http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/ R. Lemrani, ILIAS-N3 Dark Matter Network /

slide-1
SLIDE 1

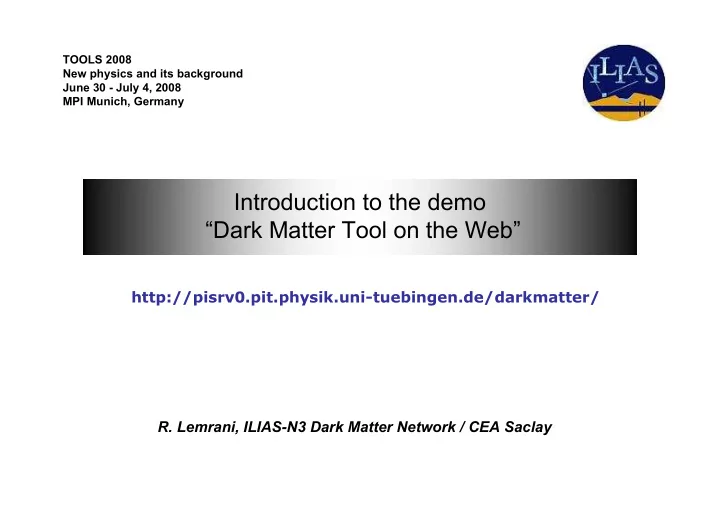

Introduction to the demo “Dark Matter Tool on the Web”

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

TOOLS 2008 New physics and its background June 30 - July 4, 2008 MPI Munich, Germany

  • R. Lemrani, ILIAS-N3 Dark Matter Network / CEA Saclay
slide-2
SLIDE 2

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

A word on ILIAS

Integrated Large Infrastructures for Astroparticle Science

European tool : I3 structure (Integrated Infrastructure Initiative) of FP6 Participants: 21 Contractors (70 laboratories), 14 European Countries Start date ; April 1st 2004 for 5 years Web site : ilias.in2p3.fr

Prime areas : Double Beta Decay, Dark Matter, Gravitational Waves Infrastructures : - Deep Underground Laboratories

  • Gravitational Wave Interferometers

“ … to produce a focused, coherent and integrated project to improve the existing infrastructures and their operation as well as to organise and structure the scientific community to prepare the best infrastructures for the future.”

slide-3
SLIDE 3

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

A word on ILIAS-N3 Dark Matter Network

Web site : http://ilias-darkmatter.uni-tuebingen.de/ Working groups

→ Input for ASPERA Roadmap

slide-4
SLIDE 4

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Web tool : Purpose

  • Build a web interface for dark matter calculations :

Expected spectra, limits extraction, …

  • Handling different detection techniques
  • Handling different theoretical assumptions
  • Cross check methods and codes
  • Available to the whole dark matter community
  • Allowing comparisons of experimental strategies

using the same theoretical inputs and varying them

Nothing to install. The calculations are done online with a web browser.

slide-5
SLIDE 5

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Homepage

slide-6
SLIDE 6

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

List of available pages

I will focuse on these 2 webpages

  • expected experimental signal for given WIMP
  • Deriving limits on WIMP-nucleon cross section

from experiments

slide-7
SLIDE 7

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Galactic Halo

ρ

=

= density

f(v) =

= velocity distribution

Nucleus

F = Nuclear form factor µ µ = WIMP-nucleus reduced mass

Detection q(E) = quenching ε(E) = efficiency r(E) = resolution

Direct Search for WIMPs

WIMP nature : ie Neutralino

σ = = WIMP-nucleus cross section (point-like) mχ

=

= WIMP mass

( (µ µ = = WIMP-nucleus reduced mass) dN dE = σ ρ 2µ 2µ2mχ F2 f(v) v dv

∫

Vesc Vmin(Er) X ε(E)/ q(E)⊗ r(E)

  • J. D. Lewin and P. F. Smith, Astropart. Phys. 6, (1996)87

Detection rate :

slide-8
SLIDE 8

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Experimental Spectra

Label of the produced figure WIMP mass (GeV) A of Target : defines nucleus form factor, WIMP-nucleon reduced mass Exposure (kg.days) : mass of detector x acquisition time WIMP-nucleon cross-section (pb) Add, Combine, reset

1 2 3 4 5 1 2 3 4 5

Default values are “standard” for galactic halo, nuclear form factors and recoil spectra are without experimental parameters

slide-9
SLIDE 9

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

  • Ex. : Dependence on WIMP Mass

Using ddmc tool (by J. Gascon, V. Sanglard and R.L.)

All parameters are entered in a form : The outputs are figures and tables

slide-10
SLIDE 10

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

How it works

When leaving the webpage or starting new figures the session is destroyed → before leaving copy the created figures and tables Input parameters PHP form

with a bit of Javascript for ergonomy

Shell script Root Physics program Session variables Temporary directory Results : figures, tables contains creates creates calls calls

slide-11
SLIDE 11

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Galactic Halo

ρ 0

0 = WIMP density (GeV/cm3)

V0

defines velocity distribution f(v) maxwellian

Galactic escape velocity Vesc= upper bound on integral dv f(v) v

∫

Vesc Vmin(Er)

slide-12
SLIDE 12

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Nuclear Form Factors

Two form factors function of A of target

slide-13
SLIDE 13

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Experimental Parameters

Experimental parameters default values : Quenching = 1 Resolution = 0 Efficiency = 1

slide-14
SLIDE 14

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Efficiency

Explained in next slide

slide-15
SLIDE 15

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Entering binned values

Nbins Bins edges Efficiencies

(Nbins+1 numbers) (Nbins numbers)

Example : 1 0 200 1 200 E eff 1 Example : 2 0 100 200 0.5 1 100 E eff 1 0.5 200

slide-16
SLIDE 16

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Quenching

Type : a) Lindhard parametrisation aEr

b

b) binned Type a) parameters a and b Type b) binned

slide-17
SLIDE 17

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Resolution

Type : a) parametrisation a+b√Er b) binned Type a) parameters a and b Type b) binned

slide-18
SLIDE 18

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Effect of resolution/quenching

Effect of resolution

Low resolution => flattens the spectra but worsens efficiency (discrimination)

quenching=0.36->0.3 An error on quenching estimation changes the recoil energy threshold

slide-19
SLIDE 19

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

LIMITS on WIMP-nucleon cross-section

slide-20
SLIDE 20

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

LIMITS on WIMP-nucleon cross-section

1 2 4 3 5

Method : 1. Poisson enter also number of Observed events

  • 2. Feldman-Cousins/Cousins-Highland

enter also number of Observed events and Expected background events and uncertainty on background (Feldman-Cousins for poisson process with a perfectly known background

Cousins-Highland if uncertainty on background)

  • 3. Enter directly predetermined limit on rate
  • 4. Yellin method : enter number of observed events

and their energy (uses optimal interval method)

2 2 4 3 2 2 5

slide-21
SLIDE 21

http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/

  • R. Lemrani, ILIAS N3 / CEA Saclay

TOOLS for the new physics and its background , June 30- July 4 2008, MPI, Munich, Germany

Demo

The webpage address is : http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/ Some examples can be found in : http://pisrv0.pit.physik.uni-tuebingen.de/darkmatter/examples.html All contributions, suggestions, cross-checks, feedback to enrich, improve the tool are very welcome
