11/26/19

• K. Chan: CSE435: Software Engineering

1

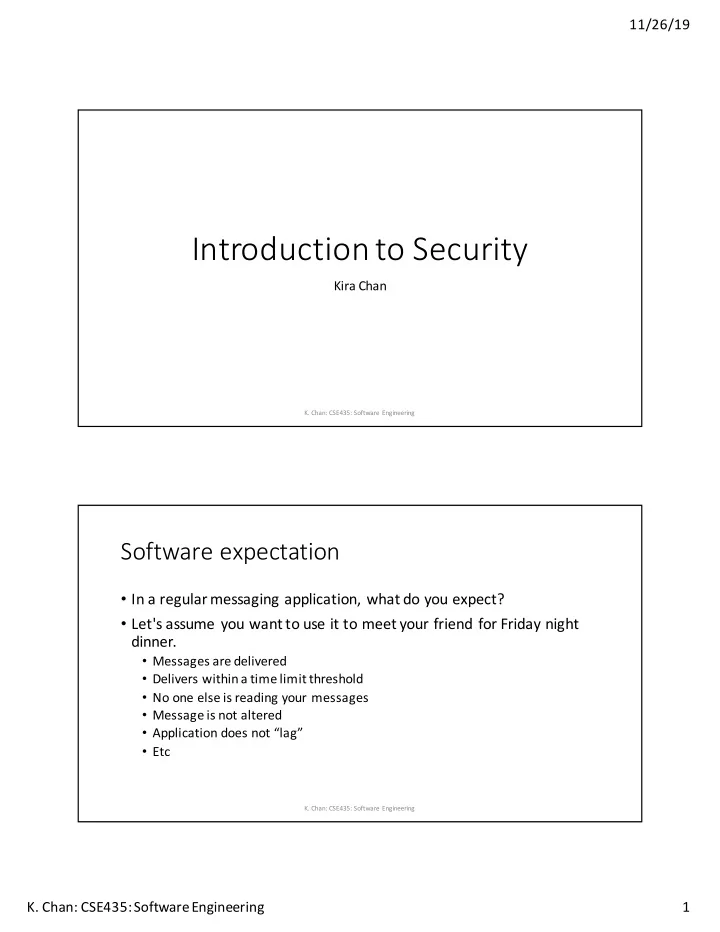

Introduction to Security

Kira Chan

• K. Chan: CSE435: Software Engineering

Software expectation

• In a regular messaging application, what do you expect?
• Let's assume you want to use it to meet your friend for Friday night

dinner.

• Messages are delivered
• Delivers within a time limit threshold
• No one else is reading your messages
• Message is not altered
• Application does not “lag”
• Etc
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

2

Terminology

• “A computer is secure if you can depend on it and its software to

behave as you expect (intent).” ​

• ‘Trust describes our level of confidence that a computer system will

behave as expected.’ (intended)​

[Garfinkel & Spafford, Kasten]​

• K. Chan: CSE435: Software Engineering

Why should we consider security?

• Can you build a messaging application that satisfies requirements
• Who are the requirements made for?
• Stakeholders?
• Users?
• Does every user conform to the expectations you have set?
• Resources and information contain monetary or other values
• Security breaches could be damaging to your reputation
• When is security usually taken into consideration?
• Security is often an after thought
• Added onto a system, it may not fully address the underlying issue
• Lots of new “Band-Aids” to patch an issue, causes inefficiency
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

3

Potential impact

• Wannacry
• Encrypts user data and demand ransom to decrypt it
• https://www.symantec.com/blogs/threat-intelligence/wannacry-ransomware-attack
• Say I encrypted your laptop, your final exam is tomorrow
• Ransom is every asset you have
• Do you pay it?
• Safety?
• What if critical systems are compromised?
• K. Chan: CSE435: Software Engineering

De Definition (NIST)

• Computer security is the protection afforded to an automated

information system in order to attain the applicable objective of preserving the integrity, availability and confidentiality of the system’s resources

• https://nvlpubs.nist.gov/nistpubs/Legacy/SP/nistspecialpublication800-14.pdf
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

4

Confidentiality, Integrity and Availability

• Confidentiality: information are not disclosed to unauthorized parties
• Integrity: assure that information and program are only changed in an

authorized manner

• A message is actually from where it claims to have come from
• Mailman delivers you a mail from your best friend overseas, how do you

know if this message have not been modified?

• Availability: assures that the systems work promptly, and services are

not denied to authorized users when they request them

• K. Chan: CSE435: Software Engineering

Castle analogy

Img source: McCallum

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

5

Security challenges.

• Defending a system is hard since we must secure all weak points
• Attacker only needs to find one exploit
• Users do not like complicated systems
• Benefit of security is not considered until a breach occurs
• IT tech person, why do we even hire this guy?
• Impediment to the user
• K. Chan: CSE435: Software Engineering

Terminology

• Security Policy: a set of rules and practices that specify or regulate

how a system provides security services to protect sensitive and critical system resources

• Vulnerability: a flaw or weakness in a system that can be exploited
• Threat: a potential violation of security; a possible danger that might

exploit a vulnerability

• Attack: an assault on the system that derives from a threat.
• Threats carried out
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

6

Threats

• Hardware: physical devices – easy target
• “Involuntary computer-slaughter”
• Accidental acts not intended to do harm
• E.g. Spilling a drink on computer
• “Voluntary computer slaughter” – machinicide:
• Purposely break a machine
• Software: equipment worthless without software
• Deletion
• Modification
• Theft

Slide provided from Dr. Cheng

• K. Chan: CSE435: Software Engineering

Why are we talking about this?

• Time is money
• Organizations want a product that makes money, so time spent not

making money producing software is wasted time.

• Monetory consequences are often not considered until a breach.
• Example: CSE3xx programs.
• Did you consider security when you developed your programs?
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

7

Patches

• K. Chan: CSE435: Software Engineering

Patches

• Changes made to fix, improve or update your system
• What are patches used for?
• Bug-fixes
• Improvements
• New features
• Why can we not just patch security issues away?
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

8

When to use patches for security

• Security should be defined in your original design
• Patches should only be given as emergency solution
• User ignores patches a lot of time
• Patches may not fix the fundamental issues
• K. Chan: CSE435: Software Engineering

How do we provide security to a system?

• Easiest way: no access.
• Challenge is to prevent unauthorized access to system, while causing

the least amount of impediment to legitimate users.

User experience Security for system

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

9

How to design your system?

• Design of security should be as small and simple as needed
• Easy to test/verify its strength, fewer flaws
• Open Design: security mechanism should not be a secret!
• Why?
• Experts can review and point to flaws
• Reverse engineering can expose your software
• You will not know if your software have been compromised
• K. Chan: CSE435: Software Engineering

How to design your system (cont.)

• Psychological acceptability: the security mechanisms should not interfere

with the work of the user

• Consider our messaging app
• Asks for user password every 30 seconds
• Less extreme of an example: require restart every 12 hours
• User will disarm if not!
• Layering: Multiple layers of security. Failure at one point will not leave your

system compromised

• Example: messaging application
• Encrypt stored messages
• Ensure other applications on same device cannot access those files
• Least astonishment: no surprises!
• Functions should conform to user expectation
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

10

Remainder of presentation

• I will focus on what you can do as a developer to help secure your

system

• What to do and what not to do
• K. Chan: CSE435: Software Engineering

Risk Assessment

• Three questions to answer:
• What am I trying to protect?
• What do I need to protect against?
• How much time, effort, and money am I willing to spend to obtain these

protection?

• Three key steps:
• Identify assets
• Identify threats
• Calculate risks
• Risk: expected loss from the probability that a threat that will exploit a vulnerability in

the system

Slide provided from Dr. Cheng

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

11

Identify Asset

• What are you trying to protect against? Recall CIA
• Data?
• Message confidentiality?
• System resources?
• Availability?
• Categories of vulnerabilities:
• Corruption (loss of integrity)
• Leaky (loss of confidentiality)
• Unavailable or slow access (loss of availability)
• K. Chan: CSE435: Software Engineering

Identify Threats

• What is the threat?
• Hackers?
• Political opponents
• Rival companies
• Activist
• What is the intent/objective of the threat?
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

12

3 classes of intruder skill level

• Apprentice: minimal technical skills
• Use existing technologies
• Most intruders belong in this category
• Easy to defend
• Why?
• Journeymen: modifies and extends attack toolkits
• Master: high-level technical skills
• Capable of discovering new attacks
• Understands underlying protocol used
• Writes their own attacks and toolkits
• Hardest to defend against
• K. Chan: CSE435: Software Engineering

Calculating risk

• How likely is a particular threat?
• What is the chance that X will happen, and what is the consequence
• f it?
• If an event happens on regular basis, you can estimate based on

previous experiences.

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

13

Different kind of attacks you may consider as a developer

• K. Chan: CSE435: Software Engineering

Denial of Service (DoS)

• Attack on availability of a system
• Deny legitimate user the ability to use a system or its resources
• Distributed Denial of Service attack (DDoS)
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

14

Quick overview of how the web works

• Very simplified
• Your client connects to a “socket” of a server and that socket serves

you

• Imagine a parking lot connected to a mall.
• You can only access this mall after parking at the lot
• Each parking spot (socket) serves one car (your computer) only
• K. Chan: CSE435: Software Engineering

Simple Implementation

• No fee or registration
• Let anyone in when they show up at the gate
• Only one car can pass through the gate at a time
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

15

in

• ut

1 (reserved port) 2 3 … 65535 One server

• K. Chan: CSE435: Software Engineering

Classic Ping of death attack (more info)

• Spam ping traffic to the victim,

which affects the network performance.

• Not very effective from one

computer

• It will also cripple the attacking

device, since you also must send the packets.

• Can use a botnet (a bunch of

compromised computers) to ping the same victim

Regular internet traffic is about 10kbps During DoS attack, this spikes to 32Mbps

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

16

1 2 … cars

• K. Chan: CSE435: Software Engineering

Signatures

• If a person generates a ticket that uses the same car model, year for

60,000 cars, it is probably not legit.

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

17

Naïve protocol

• 3 Way handshake
• Client requests connection
• Server response with a syn ack
• Allocate resources for the client
• Client response with an ack to ack

Client hello Server ack Client ack Connection established here

• K. Chan: CSE435: Software Engineering

in

• ut

1 (reserved port) 2 3 … 65535 One server

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

18

Naïve parking lot

• Driver request ticket online
• We reserve the parking space for them
• Save details of car model, make and year
• Driver shows up, inputs the ticket and enters the parking lot
• They finish their business in the mall and leaves the lot (disconnect)
• Their spot can then be reserved again for next car
• K. Chan: CSE435: Software Engineering

Website attacks

• Consume a web server’s entire capacity
• New legit users are unable to establish a connection
• Fairly common; you may have encountered one or will encounter one
• Example: TCP syn attack (more info)
• Recent DDoS attacks: Github2018, Wikipedia Sep 2019
• Consequences?
• Damage to reputation
• What if this happened to online selling platform?
• Consider if you are amazon, and this happens during black friday
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

19

TCP syn attack

• Take ticket online
• Parking lot reserves a spot for you
• Never show up to claim the spot

Client hello Server ack Client ack Connection established here

• K. Chan: CSE435: Software Engineering

How to defend against DoS attacks?

• You cannot prevent these entirely!
• High volumes of traffic may be completely legit
• Think of traffic amazon.com. It may be that a bunch of users want to buy at

the same time (Cyber Monday, last minute holiday shopping)

• How to minimize impact of DoS attacks
• Defenses at multiple layer
• TCP connections: use modified TCP connection code.
• Use TCP syn cookies
• Drop an entry for incomplete connection from TCP connection table when overflowing
• Use of captcha
• Use of mirrors and replicated servers
• Disadvantage?
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

20

TCP syn cookie using parking lot

• Driver takes a ticket, the information of the vehicle is embedded in

the ticket

• Add some information that we want to the ticket
• Spot is not reserved until the car arrives and enters the ticket to the

gate

• If a car is idle for too long, kick it out
• Again, this is simplified
• K. Chan: CSE435: Software Engineering

Slow Loris

• Another form of DoS attack
• Send a little bit of data at a time
• A legit client might have slow connection
• Only uses very little bandwidth and processing power of attacker
• Server loses ability to serve new clients
• How do we defend against Slow Loris?

Picture Credit: Tilo Nadler

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

21

Dynamic servers

• Idea came from an online multiplayer games
• Hardware host made to account normal level of traffic
• During peak time (when people get off work), dynamically spin up

more server on cloud

Server 1 … 1 65535 Cloud Server n … 1 Cloud Server 1 … 1 65535 Cloud Server 2 … 1 65535 …

• K. Chan: CSE435: Software Engineering

Other resources if you are hosting your own website

• https://www.cloudflare.com/
• Or similar services who can provide you DDoS protection
• If you host your own website as a small business, DDoS attacks can be

detrimental (since you have to pay for each packet sent to you)

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

22

Phishing

• K. Chan: CSE435: Software Engineering

Phishing attacks

• Social engineering attack
• Aims to get users to compromise their own system
• Very dangerous
• We cannot patch this away
• Masquerade as a trusted source (looks legit)
• Uses psychology tricks
• Time is running out, reset your password soon
• Spear-phishing: email specifically crafted for a target
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

23

Source: Cameron Camp

• K. Chan: CSE435: Software Engineering

How to defend?

• Knowledge is essential
• Check domain name of email (e.g. www.chasbank.com, no-

reply@bank.xyz.com)

• If you do need to reset a password, go to the website directly and

reset it through their portal. Email links are dangerous!

• If an email has a sense of urgency, proceed cautiously
• Ex: “Update your payment information or your services will be terminated”
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

24

Passwords (Important!)

• K. Chan: CSE435: Software Engineering

Passwords

• Commonly used
• User accounts must have an associated password with it
• How do we store these in a database?
• Plaintext?
• Encrypted?
• Key concept: developer never need to know a user’s password!
• The following concept will attempt to deter an attack on your system

but may not completely defend against all attacks!

• Entities with large resources and time can crack passwords
• If I want to know a certain password, I can try all combination possible using

many computers

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

25

Standard approaches to storing passwords

• 1. Take the input and hash it.
• A hash function takes any length input and converts it to a fixed length string that is

different for every input. (SHA256, SHA512)

• Issue?
• Some users use weak or common passwords
• Attacker can precompute the hashed value of common passwords and compare with

compromised data

• Rockyou.txt
• 2. Use a salt (random string)
• To solve this, we append a “salt” of random strings to the user password, then hash

the concatenated string. We then store the password and salt next to each other

• Each time the user enters their password, add the salt before you hash and compare
• K. Chan: CSE435: Software Engineering

Cont.

• 3. Use a “pepper” (random string)
• Similar concept to a salt, but the same string for the entire site
• Aim to slow down attacker
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

26

Example

• 1. Input: password -> sha512(password)
• B109F3BBBC244EB8244…
• 2. Salt and password: sha512(password + 103FD07)
• AB8B060C7283E36D93E…
• 3. Salt and pepper: sha512(sha512(password+salt), pepper)
• This is painful for an attacker to crack, especially if they are trying to execute a

broad comparison against a database of passwords

• K. Chan: CSE435: Software Engineering

Example Table

ID Name Username Password Salt 1 Jon Doe doejo@ex.com NVSQY8ZBod… JLDq1RBXzN 2 Wolfgang Mozart wolfzart fgKotr16PM… jWTNN7kXhm 3 Johann Pachelbel jpach 0iJExGx74e… yO1HoxSdoK 4 Claude Debussy debussy Y4hAdMD6Mr… 7Xz4iH0XMP 5 … … … … Site pepper (Not stored in database): UW2vdTKmZN

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

27

From an attacker’s perspective

• Let's consider the other perspective
• If you want to obtain a password, how would you?
• Phish
• Try all common passwords
• Eavesdropping
• Try all possible combinations
• K. Chan: CSE435: Software Engineering

How to secure your own passwords

• Do not use the same password for multiple sites
• If one site is compromised, the next one is too
• Some sites may store passwords in plaintext (there is no federal regulations)
• Do not use simple or common passwords
• Try to find it in rockyou.txt
• Use: passphrases
• myFavoriteBookIsGreatGatsby!
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

28

Password inputs

• K. Chan: CSE435: Software Engineering

SQL injection attacks (SQLi)

• One of the most dangerous form of attacks
• As of 2017, 51% of cyber attacks on web apps are from SQLi
• https://www.akamai.com/de/de/multimedia/documents/state-of-the-

internet/q2-2017-state-of-the-internet-security-report.pdf

• User enters code into the input boxes
• Server takes the input and runs it
• Damages: unauthorized login, unauthorized changes to table, drop

tables…

• Code …. TakeUserInputDirectly…Code
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

29

Example

• Use of Tautology (make condition always equal to true)
• Input password as 1’ OR ‘1’ = ‘1
• Use of comment mark “--”
• Subsequent code (password check) ignored
• https://www.w3schools.com/sql/trysql.asp?filename=trysql_comment_single_2
• Piggyback queries
• Insert SQL code after input
• userPassword+;+ DROP table…
• SELECT * FROM USERS WHERE ….. ; DROP TABLE USERS; --…..
• Examples taken from Dr. Scott Tu
• K. Chan: CSE435: Software Engineering

Relevant xkcd

https://xkcd.com/327/

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

30

Defenses against SQLi

• ALL INPUTS ARE EVIL!!
• Sanitize input (a function provided by php)
• Strips out any comment marks and quotations
• Make sure that input conforms to expected input
• Parameterized inputs
• “prepare statements”: SELECT FROM ?
• Placeholders are used for parameters and values are supplied at execution

times

• Take these as “plaintext” and do not run anything that resembles commands
• “Preattack” your system
• K. Chan: CSE435: Software Engineering

Other things that you may encounter

• Red team vs blue team
• Red team is the “adversary”
• They attempt to break into the system
• Penetration Testers
• Identifies weakness in a system (might be the company)
• Could be a person disguised as IT support to see if employees will fall for it
• Ethical hackers
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

31

Confidentiality and Integrity

• K. Chan: CSE435: Software Engineering

Confidentiality

• We do not want a third party listening to our communications
• Bank password?
• Example: wireshark
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

32

• K. Chan: CSE435: Software Engineering

Communication between Alice and Bob

Alice Bob Let’s meet for coffee tomorrow at 7 Eve

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

33

Alice Bob Plaintext M

Encryption Algorithm

Ciphertext C

Decryption Algorithm

Plaintext M

• K. Chan: CSE435: Software Engineering

Encryption

• Caesar cipher: earliest and simplest cipher (more info)
• Shift each character by a fixed number n.
• If n = 5
• Attack at dawn -> fyyfhp fy ifbs
• Strength?
• Weak
• Attacker only needs to try 26 combinations to obtain the plaintext message.
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

34

Encryption used today

• Based on mathematics
• Typically uses a “Classic Feistel Network”
• Uses substitution and transposition
• Substitution: replace x with y
• Transposition: switch bits around
• K. Chan: CSE435: Software Engineering

Disclaimer!

• Do not try to implement your own encryption algorithm!
• You will probably do it wrong or leave security flaws behind
• Use existing ones
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

35

Symmetric vs Asymmetric

• Symmetric encryption uses the same key to encrypt and decrypt
• Ex: DES, 3DES, AES
• Asymmetric encryption uses private key and public key
• Encrypting with private key means only public key can decrypt
• Encrypting with public key means only private key can decrypt
• User keeps private key private, public key can be sent to anyone
• What's the point of encrypting with private key?
• Ex: RSA
• K. Chan: CSE435: Software Engineering

Symmetric encryption

Alice Bob Plaintext M

AES encrypt

Ciphertext C

AES decrypt

Plaintext M Key A Key A

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

36

Asymmetric encryption

Alice Bob Plaintext M

RSA encrypt

Ciphertext C

RSA decrypt

Plaintext M Bob’ s Public Key Bob’ s Private Key

• K. Chan: CSE435: Software Engineering

Block Ciphers

• Chop messages into blocks of fixed size
• Run encryption algorithms on these blocks
• Permutate the key so we use a different one per block
• How?
• Hash(key + 1), Hash(key + 2)…
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

37

Symmetric encryption: DES (more info)

• Data Encryption Standard
• Key length: 56bits
• 16 rounds
• Developed in early 1970s
• Uses the Feistel function to permutate and add key half block at a

time

• Insecure since the key is short.
• Proven in 1998, key can be discovered in 56 hours.
• Used in WEP and WPA wifi encryption (do not use these)
• K. Chan: CSE435: Software Engineering

Source: Matt Crypto

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

38

How do we address weaknesses of DES?

• Hardware is made for DES, expensive to replace.
• Solution: 3DES
• Encryption: C = Encrypt(K3, Decrypt(K2, Encrypt(K1, Plaintext)))
• Decryption: P = Decrypt(K1, Encrypt(K2, Decrypt(K3, Ciphertext)))
• Variable key length of 168, 112, 56 bits
• Why Encrypt -> Decrypt -> Encrypt?
• K. Chan: CSE435: Software Engineering

Symmetric encryption: AES (more info)

• 3DES is not a permanent solution
• Advanced Encryption Standard aka Rijndael
• Replaced DES (2001)
• Input block size: 128, 192 or 256 bits
• 10, 12 and 14 rounds respectively
• Most popular form of symmetric encryption
• Used for WPA2
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

39

Each round of AES (Very simplified)

• 1. Substitution: Replace each data with respect to a table (S-box)
• 2. Shift rows: Perform circular shift on each row
• 3. Mix Column: Use of Galois finite field multiplication
• 4. Add round key: XOR with the key

https://www.commonlounge.com/discussion/e32fdd267aaa4240a446 4723bc74d0a5

• K. Chan: CSE435: Software Engineering

Img from stalling and brown textbook

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

40

Asymmetric encryption: RSA (more info)

• Rivest, Shamir, and Adleman MIT in 1977
• Best known and widely used public key algorithm
• Uses private and public keys
• Security relies on difficulty of factoring a prime
• K. Chan: CSE435: Software Engineering

How to generate keys

• 1. Select two primes p and q, say 17 and 11
• 2. Calculate p * q = 17 * 11 = 187
• 3. Calculate φ(n) = (p-1)*(q-1) [Euler’s product formula] = 16 * 10 = 160
• 4. Select public key e such that e is relatively prime to φ(n) and less than

φ(n). We choose e = 7

• 5. Determine private key d such that d*e mod φ(n) = 1. d = 23
• 23*7 = 161

Example from Dr. Scott T u

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

41

RSA Factoring Challenge

• Suppose attacker have public key and encrypted message C
• To decrypt C, they must infer private key d
• To do so, they must calculate d = (k * φ(n) + 1) / e
• Must try every possible combination
• Calculating φ(n) is in NP
• We use extremely large prime numbers for d and e
• K. Chan: CSE435: Software Engineering

Which encryption scheme should you use?

• You generally want to use RSA or AES
• Other concepts related to keys if you are interested
• Transport Layer Security (TLS)
• https
• Diffie Hellman Key Exchange
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

42

Malware

• K. Chan: CSE435: Software Engineering

Definition from [NISTIR 7298]

• A program that is inserted into a system, usually covertly, with the

intent of compromising the Confidentiality, Integrity, or Availability of the victim’s data, apps, OS or otherwise annoying/disruptive.

• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

43

Virus

• Infects programs (usually executables)
• Needs a host to infect
• When attached to an executable (.exe file), a virus can do anything

that the program can do

• OS specific!
• How to defend against this type of attack?
• Use of antivirus, they can look for know virus signatures
• K. Chan: CSE435: Software Engineering

Worms

• Similar to virus, spreads through network connection, email…
• STANDALONE PROGRAM
• Actively seeks out more hosts to infect and each infected machine

serves as a platform to launch further attacks.

• Examples:
• ILOVEYOU (2000s)
• Conflicker worm (2008)
• Wannacry (2017)
• Petya (2016)
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

44

Morris Worm

• Written by Robert Morris to highlight security flaws of the internet
• Was not meant to be an actual attack
• Worm infects same computer multiple times, causing a fork bomb
• Resulting in a denial of service attack
• Spread through the US and took down the entire internet
• Fun trivia: “The Worm Before Christmas”
• K. Chan: CSE435: Software Engineering

Bots

• Usually created from a worm
• A compromised computer
• Botnet: a network of compromised computers
• Attack can send commands to them
• Example: conflicker worm
• Infects a computer
• Computer then takes commands from some central location
• 10,500,000+ infected (source)
• K. Chan: CSE435: Software Engineering

11/26/19

• K. Chan: CSE435: Software Engineering

45

Key takeaways

• Security should be considered as an integral part of your system
• It should be a part of your design document
• Do not wait until you have been compromised
• Stay vigilant and look out for possible attacks
• Expect the unexpected!
• We design programs for the majority of user. This is totally valid
• But the “edge cases” is often a vulnerability
• Know how to store passwords
• What is the difference between a salt and pepper?
• Why do we use salt and pepper?
• K. Chan: CSE435: Software Engineering

Key takeaways (cont.)

• ALL INPUTS ARE EVIL!
• Username: you expect user to type in legit usernames
• True for most of the time
• But SQL injection attacks rely on inputting different inputs
• Know what SQLi attacks are and how to prevent them!
• This is important, you can get in legal trouble if software you wrote is left

vulnerable to attacks.

• What does encrypting a message with a private key ensure?
• Encrypting with a public key?
• If you need to use encryption, AES and RSA are the current standards
• K. Chan: CSE435: Software Engineering
