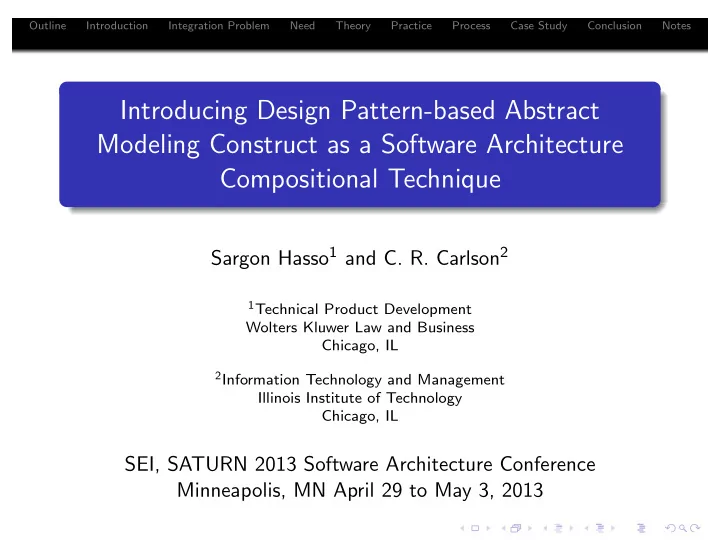

Introducing Design Pattern-based Abstract Modeling Construct as a Software Architecture Compositional Technique

Sargon Hasso1 and C. R. Carlson2

1Technical Product Development

Wolters Kluwer Law and Business Chicago, IL

2Information Technology and Management

Illinois Institute of Technology Chicago, IL

SEI, SATURN 2013 Software Architecture Conference Minneapolis, MN April 29 to May 3, 2013
