Chair of Softw are Engineering C# Programming in Depth Prof. Dr. Bertrand Meyer March 2007 June 2007 Introducing C# and .NET Framework Lisa (Ling) Liu Welcome Course web page:


slide-1

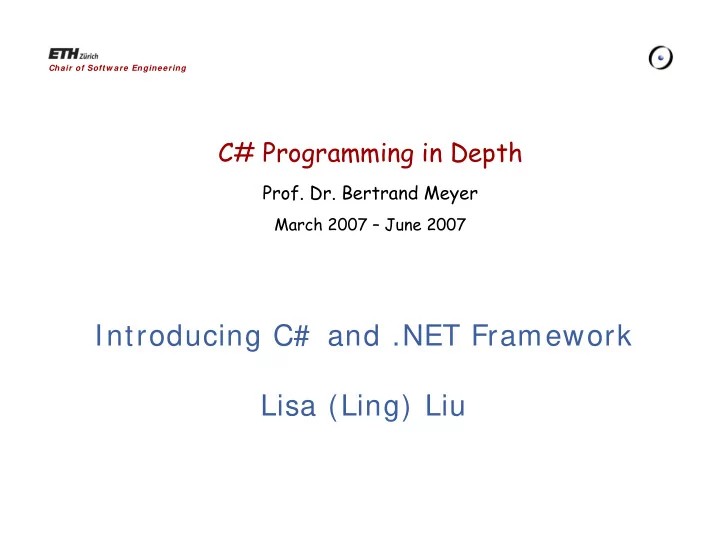

SLIDE 1

C# Programming in Depth

  • Prof. Dr. Bertrand Meyer

March 2007 – June 2007

Chair of Softw are Engineering

Introducing C# and .NET Framework Lisa (Ling) Liu

slide-2
SLIDE 2

C# Programming lecture 1: I ntroduction 2

Welcome

Course web page:

http://se.inf.ethz.ch/teaching/ss2007/251-0290-00/index.html

Books:

Judith Bishop & Nigel Horspool C# Concisely, Addison Wesley,

2004 ISBN 0 321 15418 5

Andrew Troelsen: Pro C# 2005 and the .NET 2.0 Platform, Third

Edition, Apress, 2005, ISBN 1-59059-419-3

Test

The exam for C# programming is to deliver the source code and

documents for the given project specifition.

slide-3
SLIDE 3

C# Programming lecture 1: I ntroduction 3

Overview

Why have this course? Who should/can take this course? What are the components of this course? Overview of .NET and C#

slide-4
SLIDE 4

C# Programming lecture 1: I ntroduction 4

Why have this course?

.NET provides:

Full interoperability with existing code Complete and total language integration A common runtime engine shared by all .NET-aware

languages

slide-5
SLIDE 5

C# Programming lecture 1: I ntroduction 5

Who should take this course?

The only requirement is object-oriented programming (OOP) experience

slide-6
SLIDE 6

C# Programming lecture 1: I ntroduction 6

Microsoft .NET framework architecture

Windows Linux Common Language Runtime Base Class Library Common Language Spcification

VB COBOL C++ C# ...

.NET-Aware Programming Language

.NET can be understood as a new runtime environment and a comprehensive base class library.

slide-7
SLIDE 7

C# Programming lecture 1: I ntroduction 7

C# features

No pointers required Automatic memory management through garbage collection Formal syntactic constructs for enumerations, structures and class properties The C++ like ability to overload operators for a custom type, without the complexity Using a syntax very similar to C++ templates to build generics Full support for interface-based programming techniques Full support for aspect-oriented programming techniques via attributes

slide-8
SLIDE 8

C# Programming lecture 1: I ntroduction 8

Important point of C#

It can only produce code that can execute within the .NET runtime

Managed code: the term used to describe the code

targeting .NET runtime

Assembly: the binary units that contains the managed

code

slide-9
SLIDE 9

Your .NET Source Code from Some .NET-Aware Language Some .NET Compiler *.dll or *.exe Assembly (CIL, Metadata and Manifest) Base Class Libraries (mscorlib.dll and so forth) Class Loader Jitter Platform-specific Instructions Execute the member .NET Execution Engine (mscoree.dll) Understanding .NET Framework

Common Language Runtime

slide-10
SLIDE 10

C# Programming lecture 1: I ntroduction 10

.NET assemblies

C# Source code VB Source code COBOL Source code VB .NET Compiler COBOL .NET Compiler CIL and Metada (*.dll or *.exe) C# .NET Compiler

slide-11
SLIDE 11

C# Programming lecture 1: I ntroduction 11

Contents of .NET assemblies

IL/CIL code metadata manifest

slide-12
SLIDE 12

C# Programming lecture 1: I ntroduction 12

Benefit of CIL

//Calc.cs public class Calc { public int Add (int x, int y) { return x+y; } }

//Calc.vb public class Calc Public Function Add (ByVal x As Integer, ByVal y As Integer) As Integer return x+y; End Function END Class //CIL code for C# Calc::add method .method public hidebysig instance int 32 Add (int32 x, int32 y) cil managed { //Code size 8 (0x8) .maxstack 2 .locals int ([0] int 32 CS$1$0000) IL_0000: ldarg.1 IL_0001: ldarg.2 IL_0002: add IL_0003: stloc.0 IL_0004: br.s IL_0006 IL_0006: ldloc.0 IL_0007: ret } //end of method Calc::Add //CIL code for VB Calc::add method .method public instance int 32 Add (int32 x, int32 y) cil managed { //Code size 9 (0x9) .maxstack 2 .locals int ([0] int 32 Add) IL_0000: nop IL_0001: ldarg.1 IL_0002: ldarg.2 IL_0003: add.ovf IL_0004: stloc.0 IL_0005: br.s IL_0007 IL_0007: ldloc.0 IL_0008: ret } //end of method Calc::Add

  • Allow you to build applications using your language of choice
  • A single code base running on numerous operating systems
slide-13
SLIDE 13

C# Programming lecture 1: I ntroduction 13

JIT/ Jitter (just-in-time) Compiler

.NET runtime environment leverages a JIT compiler for the underlying platform Cache the results in memory in a manner suited to the target operating system

slide-14
SLIDE 14

C# Programming lecture 1: I ntroduction 14

Base class libraries

Encapsulate various primitives Provide support for a number of services required by most real-world applications Be broken into a number of discrete assemblies

slide-15
SLIDE 15

C# Programming lecture 1: I ntroduction 15

Common Language Runtime (CLR)

Physically represented by a library named mscoree.dll

(common object runtime execution engine)

Locate, load and manage .NET types on your behalf Take care of memory management Perform security checks

Class Loader Jitter Platform-specific Instructions Execute the member .NET Execution Engine (mscoree.dll)

slide-16
SLIDE 16

Data Access Window Forms Security XML/SOAP Threading File I/O Web Forms ……

The Base Class Library

Common Type System Common Language Specification

The Common Language Runtime (CLR)

slide-17
SLIDE 17

C# Programming lecture 1: I ntroduction 17

Common type system (CTS)

A formal specification that documents how types must be defined in order to be hosted by the CLR {class, structure, interface, enumeration, delegate} Intrinsic CTS data types (mscorlib.dll)

slide-18
SLIDE 18

C# Programming lecture 1: I ntroduction 18

Common language specification

A set of rules that compiler builder must conform to, if they intend their products to function seamlessly within the .NET universe.

Rule: CLS rules apply only to those parts of a type

that are exposed outside the defining assembly

Using C# compiler to check your code for CLS

compliance: [assembly: System.CLSCompliant[true]]

slide-19
SLIDE 19

public class Calc { //Exposed unsigned data is not CLS compliant public int Add (ulong x, ulong y) { return x+y; } } public class Calc { public int Add (int x, int y) { //As this ulong variable is only used internally //we are still CLS compliant ulong temp; …... return x+y; } }

slide-20
SLIDE 20

C# Programming lecture 1: I ntroduction 20

Assembly/ Namespace/ Type Distinction

A namespace is a group of related types contained in an assembly. A single assemble (such as mscorlib.dll) can contain any number of namespaces. Any language targeting the .NET runtime makes use of the same namespace and same types.

slide-21
SLIDE 21

//Hello world in C# Using System; public class MyApp { static void Main() { Console.WriteLine(“Hi from C#”); } } //Hello world in VB .NET Imports System Public Module MyApp Sub Main() Console.WriteLine(“Hi from C#”); End Sub End Module //Hello world in Manage Extensions for C++ #include “stdafx.h” using namespace System; int main(array<System::String ^> ^args) { Console::WriteLine(“Hi from managed C++”); }

slide-22
SLIDE 22

C# Programming lecture 1: I ntroduction 22

Referencing External Assemblies

Need to tell the C# compiler the name of the assembly containing the actual CIL definition for the referenced type.

slide-23
SLIDE 23

C# Programming lecture 1: I ntroduction 23

Documents

ECMA-334: The C# Language Specification ECMA-335: The Common Language Infrastructure (CLI)
