Interference Localisation Methods using Direct Position Determination Concept Joon Wayn Cheong Andrew Dempster Introduction GNSS signals are A network of phased inherently weak array sensors tuned to the GNSS band can Spurious

slide-1
SLIDE 1

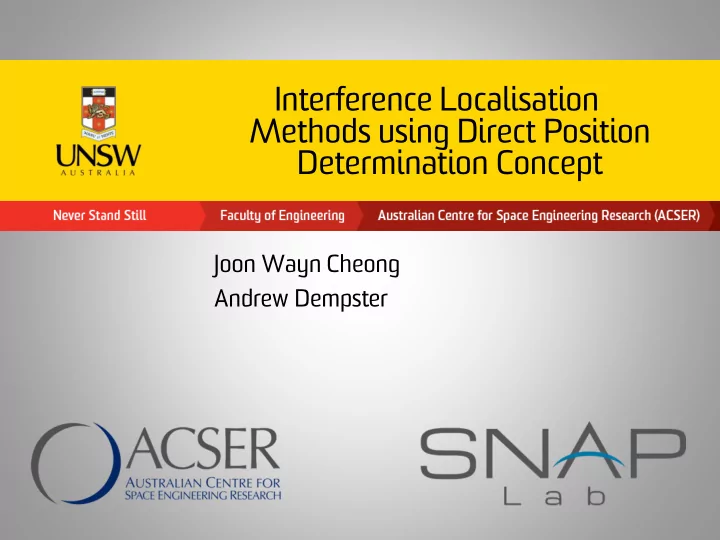

Joon Wayn Cheong Andrew Dempster

Interference Localisation Methods using Direct Position Determination Concept

slide-2
SLIDE 2

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 2

  • GNSS signals are

inherently weak

  • Spurious

transmissions and intentional jammers in the GNSS band threatens safety critical applications that depends on GNSS

Introduction

  • A network of phased

array sensors tuned to the GNSS band can be used to detect jammers.

slide-3
SLIDE 3

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 3

  • Narrowband

– Strong jammer signal strength will affect receiver performance – Can be detected using AOA

  • Wideband

– Weak jammer signal strength is sufficient to affect receiver performance – Can be detected using TDOA and AOA

Jammer Characteristics

slide-4
SLIDE 4

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 4

  • AOA: Angle of Arrival utilising phased array

processing

  • TDOA: Time Difference of Arrival utilising cross

correlation

  • Geo-localisation of jammer

– AOA: Intersection of lines – TDOA: Intersection of hyperbolas

Introduction

slide-5
SLIDE 5

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 5

  • A signal processing

technique to directly localise the jammer in the position domain

  • Aims to combine signal

energy from all antenna elements in the network

  • Provides better position

resolution than conventional methods

Direct Position Determination (DPD)

slide-6
SLIDE 6

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 6

  • Most DPD approaches models narrowband signals

(e.g. DPD, LOST, LOST-FIND, HR-DPD)

  • Assumes wideband signal as a combination of

multiple narrowband channels

  • These DPD algorithms does not exploit good

cross-correlation properties of wideband signals

Existing DPD Approaches

slide-7
SLIDE 7

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 7

Taxonomy of DPD Methods

slide-8
SLIDE 8

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 8

  • Signal model:
  • Eigen-decomposition
  • Form noise subspace

TARGET 1/2

Correct eigendecomposition requires Q < M

slide-9
SLIDE 9

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 9

  • Cost function:
  • Gridded position domain search:

TARGET 2/2

(left) X‐Y, (middle) Y‐Z and (right) X‐Z domain plot of the test statistic (z‐axis) vs position space (x,y‐axis)

slide-10
SLIDE 10

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 10

  • Requires assumed knowledge of Q
  • Limited number of detectable sources
  • Lack sensitivity

– Does not fully utilise signal energy from all antenna elements within the array

Limitations of TARGET

slide-11
SLIDE 11

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 11

  • Global

Covariance Matrix

  • Modified Global

Covariance Matrix

Cross-correlation DPD (1/2)

slide-12
SLIDE 12

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 12

  • Eigen

decomposition and cost function

Cross-correlation DPD (2/2)

slide-13
SLIDE 13

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 13

TARGET ccDPD

Multiple Jammer

SNR = 0dB

slide-14
SLIDE 14

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 14

TARGET ccDPD

Heavy Background 8x GNSS Signals

SNR = ‐10dB

slide-15
SLIDE 15

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 15

TARGET ccDPD

Large Number of Sources (Ns = 12)

SNR = ‐10dB

slide-16
SLIDE 16

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 16

Multiple Jammer Heavy Background GNSS Signals Large number of sources

Performance Evaluation

  • 10
  • 5

5 10 5 10 15 20 25 30

SNR (dB) RMSE (m) SNR (dB) RMSE (m) SNR (dB) RMSE (m)

slide-17
SLIDE 17

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 17

TARGET ccDPD

Field Data Results

SNR = ‐10dB

East (m) North (m) East (m) North (m)

  • 420
  • 400
  • 380
  • 360
  • 340
  • 340
  • 320
  • 300
  • 280
  • 260
slide-18
SLIDE 18

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 18

  • Derived a taxonomy and compared

various DPD approaches

  • Proposed ccDPD method has superior

SNR sensitivity in comparison to recent methods

  • Proposed ccDPD method can localise

more sources than TARGET

Conclusion

slide-19
SLIDE 19

IGNSS 2018 - UNSW Sydney Australia – 7-9 February2018 | 19

Questions?

Email: cjwayn@unsw.edu.au

Acknowledgement

  • ARC Linkage LP140100252
  • GPSat Systems Australia
  • Dr Ryan Thompson
  • Dr Graeme Hooper
