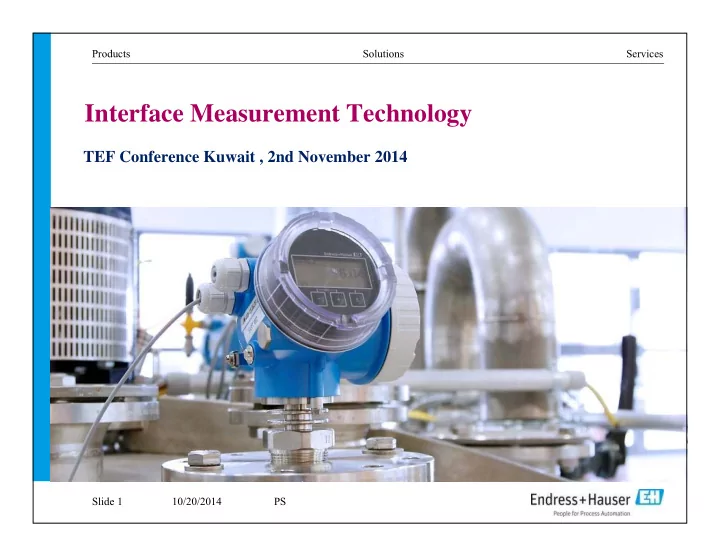

Interface Measurement Technology

TEF Conference Kuwait , 2nd November 2014

Slide 1 PS

Introduction : Prasanth Sreekumar

Organization: E+H Consult – Middle East Support Centre Location: Dubai, United Arab Emirates Job Title: Head of Marketing : M.E

• Holding company in Reinach, Switzerland
• 24 production facilities in 12 countries
• Sales centers and representatives in more than 120 countries
• Regional sales support centers

Our structure

Our figures 2013

• Net sales of 1.8 billion euros

…a strong partner

• 12,000 employees worldwide

…a reliable employer

• Net income of 187 million euros

…economically successful

• Equity ratio of 68%

…solidly financed

• Investments of 130 million euros

…future-oriented

• 5,700 patents and patent applications

…innovative and creative

Level Product Portfolio

Guided radar Capacitance Radiometric Vibronic Radiometric Vibronic Conductive Capacitance Float switch Radiometric Radar Guided Radar Ultrasonic Hydrostatic Capacitance Radiometric Vibronic Capacitance Paddle switch Microwave barrier Radiometric Radar Guided Radar Ultrasonic Electromechani c Radiometric Vibronic (solids in water) Radiometric

Liquids Bulk solids Point level detection Continuous Interface Density

03/18/2014

Our Level and Pressure Product Portfolio

Continuous level measurement Pressure / Differential Pressure Interface measurement Density measurement Tank gauging Point level detection

Interface Solutions Slide 6 PS

05/28/2014

Challenges in Level Measurement

Foam formation

Condensate Conductivity 1…100μs/cm Changing media (density)

Low DK

Viscosity

Build-up formation

Small tank (blocking distance) Hygienic application (cleanability)

Pressurization Simple maintenance (disassembly) Unaffected by obstacles

Small tank (fast level change)

Vapor pressure

(> 50mbar / +20°C, > 0.73psi / +68°F)

Interface Solutions Slide 7 PS

05/28/2014

Technology Evolution in Level Measurement

• Moving parts can fail due to build-up
• Medium properties affect accuracy
• May need a lot of maintenance to ensure

reliable operation Modern technology: safe, reliable, maintenance friendly

Interface Solutions Slide 8 PS

05/28/2014

Displacer Replacement

Replace with

• Density changes => Displacer has to be adjusted
• Build-up has more influences on displacer than on Guided Radar
• Displacer are extremely affected by vibration
• due to the big displacement body over the whole measurement

range and due to the small mechanical movement of the torque tube

Interface Solutions Slide 9 PS

05/28/2014

The Principle – Time of Flight (ToF)

 Emission of ultrasound- or

microwave-pulses

 Reflection of the pulses from the

product surface

 Receiving of the reflected pulses  Measurement of the Time of Flight

calculation of the distance between the device and the product surface by

emitting receiving

00.40

2 d = c

Interface Solutions Slide 10 PS

Interface measurement – Guided Radar

• Simultaneous measurement of

level + interface or thickness of the oil layer

• Independent of temperature and

density changes

• Measurement in high P and T

applications

• Emulsion layer max. 50mm
• Delta DC min. 10
• DC of upper fluid max. 10
• Upper thickness > 60mm
• DC upper medium must remain

Infrared thermal image of emulsion layer in separator

Water Emulsion Oil

Technology Challenges ….Interface Displacer

Moving Parts Density changes increase error Maintenance issues

Capacitance

No overall Level measurement

GWR

If Emulsion Layer exists no interface measurement

Radiometric

Complicated importing procedures

Technology Options -Interface measurement ?

Guided radar Capacitance Multiparameter Radiometry

• Clear interface

liquid / liquid

• Clear interface liquid / liquid
• Interface with emulsion layer

liquid / liquid

• Interface with emulsion

layer liquid / liquid

• Interface with emulsion layer

liquid / liquid

• Interface liquid / solid
• Multiple layer interface liquid

/ solid Levelflex FMP51/52/54 Levelflex FMP55 Liquicap FMI51/52 Gammapilot FMG60

Animation FMP55 SensorFusion - Multiparameter

FMP55 – Multiparameter – SensorFusion Technology

• +/- 2 mm accuracy (highest accuracy

available on the market)

• Combination of guided radar and

capacitance probe for interface measurement even in emulsion layers

• Up to 3 measurements (level, interface,

upper phase thickness) with one device

• PTFE coated probe
• Measuring range up to 10m (33ft)
• Temperature: -50…+200°C

(-58…+392°F)

• Pressure: -1...+40bar

(-14.5…+580psi)

Key Features

• Reliable measurement even for

changing product and process conditions

• HistoROM data management for easy

commissioning, maintenance and diagnostics

• Highest reliability due to Multi-Echo

Tracking

• Hardware and software developed

according to IEC 61508 (up to SIL3)

• Seamless integration into control or

asset management systems

• Easy proof test for SIL

The The Hist HistoROM OM is is fixe fixed in d in the the hou housin ing (c (can not be lost an not be lost or

• r

“forg “forgotten”) en”)

FMP55 – probe selection

Coaxial probes:  Measuring range up to 6m (20ft)  Independent from mounting:

• No influences from

nozzles

• No influences by
• bstacles, fixtures and

fittings in vessel Rope probes:  Measuring range up to 10m (33ft)  For the mounting in bypass or stilling well  At narrow installation conditions, e.g. at low ceiling space Rod probes:

• Measuring range

up to 4m (13ft)

• For the mounting in

bypass or stilling well

• Very low influence by
• bstacles, fixtures and

fittings, if the distance is  300mm (11.8")

08/24/2010

FMP55 – operation methods

• Level and interface

Level and interface with TDR with TDR

• Specific capacitance

Specific capacitance (pF/m) is (pF/m) is permanently permanently calibrated calibrated Standard (*)

 is constant and known** Clear interface Emulsion/Damping Build-up Always better than TDR alone Diagnostics of heavy build-up

Build-up Emulsion layer

Works even when never a clear cut interface exists

• As

As with TDR only with TDR only

• In case

In case of emulsion

• f emulsion
• nly moderate effect
• nly moderate effect

due to previous due to previous recalibrated recalibrated capacitance value capacitance value

Specific capacitance (pF/m) is known (factory calibrated < 2m/6.6ft probe length)*** Accurate measurement with variable (unknown) 

Special: Auto DC calc.

• Level with TDR

Level with TDR

• Interface with capacitance

Interface with capacitance

• Level and interface

Level and interface with TDR with TDR

•  is con

continuously uously calculated calculated

• Not recommended

Not recommended

• Level and interface

Level and interface with TDR with TDR

• Redundant interface

Redundant interface detection with capa- detection with capa- cita citance mea e measuremen urement

(*) Default

• Message

Message “maintenanc “maintenance required” ís required” ís gener generated ted (for clear (for clear interfac interface only e only)

• Level with TDR

Level with TDR

• Interface with

Interface with capacitance capacitance

• For lev

For level as with as with TDR alone TDR alone

• For Interface

For Interface as with as with capacitance alone capacitance alone

(**) must be programmed (***) wet calibration > 2m/6.6ft  is constant and known**  is constant and known** Specific capacitance (pF/m) is known (factory calibrated < 2m/6.6ft probe length)*** Specific capacitance (pF/m) is known (factory calibrated < 2m/6.6ft probe length)***

Interface Solutions

Slide 19 PS

05/27/2014

Nuclear interface application

MR

Source container with rope extension Source position Dip pipe

Interface measurement: The system is measuring the profile

Compact transmitter

Internal source: Source is installed in a dip pipe inside the tank

Interface Solutions Slide 20 PS

05/27/2014

Interface Application Challenges

• All Oil wells need to be tested periodically for proper allocation
• Each well is put on test periodically to calculate it’s yield
• Done in a horizontal separator called a Free Water Knock Out (FWKO)
• Usually continuous level with point level

Interface Solutions Slide 21 PS

05/27/2014

Interface in Test Seperator

• Reliable separator efficiency

delivered by Levelflex FMP5x instruments

• Levelflex FMP55 for interface

and overall level (in front of the weir) in the oil/water/emulsion section of the separator

• Levelflex FMP51 – level only

for the oil section of the separator

• No shut down of the unit anymore because of blockage
• No continuous tweaking of floats to get oil quality back in check because the density is

changing

Interface Solutions Slide 22 PS

FMP 55 used in a oil-water separator

Reference Application

• Tank Height: 2.4 m
• Capacity: 100 bbl
• Fluida: Condensate (0.7) and brine

(1.2)

FMP55 in a crude oil processing facility

• Crude Oil and water interface

FMP55 in bypass

Selection Guide

ENDRESS+HAUSER Continuous Level Selection and engineering guide for the process industry

Summary

• Levelflex FMP55 with SensorFusion offers the worlds first combination of

the capacitance and guided radar measuring principle in one device.

• The instrument guarantees safe measured value even in emulsion layers and

provide level and interface layer signals simultaneously.

• Reliable measurement even for changing product and process conditions
• HistoROM data management concept for fast and easy commissioning,

maintenance and diagnostics

• Hardware and Software developed according to IEC 61508 up to SIL3
