Information Systems Security Dr. Ayman Abdel-Hamid College of - - PowerPoint PPT Presentation

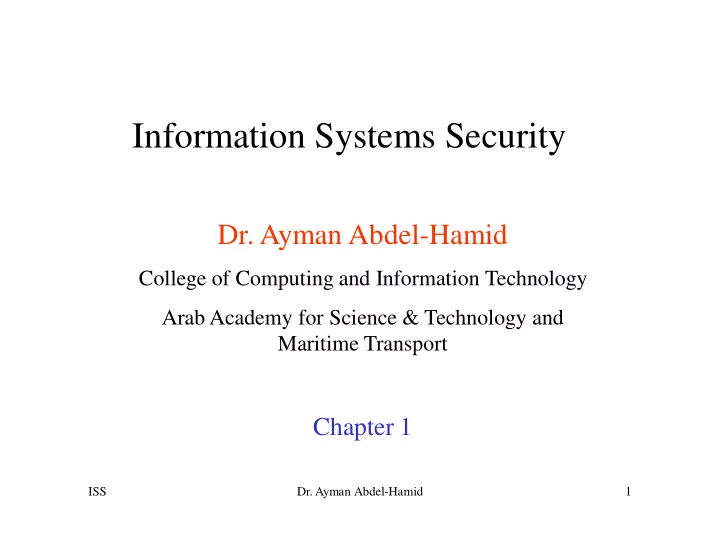

Information Systems Security Dr. Ayman Abdel-Hamid College of Computing and Information Technology Arab Academy for Science & Technology and Maritime Transport Chapter 1 ISS Dr. Ayman Abdel-Hamid 1 Outline Attacks, services and


slide-1
SLIDE 1

ISS

  • Dr. Ayman Abdel-Hamid

1

Information Systems Security

  • Dr. Ayman Abdel-Hamid

College of Computing and Information Technology Arab Academy for Science & Technology and Maritime Transport

Chapter 1

slide-2
SLIDE 2

ISS

  • Dr. Ayman Abdel-Hamid

2

Outline

  • Attacks, services and mechanisms
  • Security attacks
  • Security services
  • Security mechanisms
  • A model for network security, and network

access security

slide-3
SLIDE 3

ISS

  • Dr. Ayman Abdel-Hamid

3

Background

  • Information Security requirements have

changed in recent times

  • traditionally provided by physical and

administrative mechanisms

  • computer use requires automated tools to

protect files and other stored information

  • use of networks and communications links

requires measures to protect data during transmission

slide-4
SLIDE 4

ISS

  • Dr. Ayman Abdel-Hamid

4

Definitions

  • Computer Security - generic name for the

collection of tools designed to protect data and to thwart hackers

  • Network Security - measures to protect

data during their transmission

  • Internet Security - measures to protect

data during their transmission over a collection of interconnected networks

slide-5
SLIDE 5

ISS

  • Dr. Ayman Abdel-Hamid

5

Possible Security Violations

  • A transmits a file to B. C (not authorized to read

the file) monitors transmissions and captures a copy

  • D transmits a message to computer E, instructing E

to update an authorization file. User F intercepts the message, alters its contents to add or delete entries and forward to E which accepts the message as being from D

  • User F constructs its own message and transmits to

E as if coming from D

  • Denying sending a message
slide-6
SLIDE 6

ISS

  • Dr. Ayman Abdel-Hamid

6

Services, Mechanisms, Attacks

  • Need systematic way to define security requirements
  • Consider three aspects of information security:

– security attack action that compromises the security of information

  • wned by an organization

– security mechanism Designed to detect, prevent, or recover from a security attack – security service Enhances the security of data processing systems and information transfers of an organization

  • Consider in reverse order
slide-7
SLIDE 7

ISS

  • Dr. Ayman Abdel-Hamid

7

Security Service

  • enhances the security of the data processing

systems and the information transfers of an

  • rganization
  • intended to counter security attacks
  • make use of one or more security mechanisms to

provide the service

  • replicate functions normally associated with

physical documents

e.g., have signatures, dates; need protection from disclosure, tampering, or destruction; be notarized or witnessed; be recorded or licensed (problems with electronic documents)

slide-8
SLIDE 8

ISS

  • Dr. Ayman Abdel-Hamid

8

Security Mechanism

  • a mechanism that is designed to detect,

prevent, or recover from a security attack

  • no single mechanism that will support all

functions required

  • however one particular element underlies

many of the security mechanisms in use: cryptographic techniques

slide-9
SLIDE 9

ISS

  • Dr. Ayman Abdel-Hamid

9

Security Attack

  • Any action that compromises the security of

information owned by an organization

  • information security is about how to prevent

attacks, or failing that, to detect attacks on information-based systems

  • have a wide range of attacks
  • can focus of generic types of attacks
  • note: often threat & attack mean same
slide-10
SLIDE 10

ISS

  • Dr. Ayman Abdel-Hamid

10

OSI Security Architecture

  • ITU-T (International Telecommunication

Union, Telecommunication Standardization Sector) X.800 Security Architecture for OSI

  • defines a systematic way of defining and

providing security requirements

slide-11
SLIDE 11

ISS

  • Dr. Ayman Abdel-Hamid

11

Security Service

  • X.800 defines it as: a service provided by a

protocol layer of communicating open systems, which ensures adequate security of the systems or of data transfers

  • RFC 2828 defines it as: a processing or

communication service provided by a system to give a specific kind of protection to system resources

  • X.800 defines it in 5 major categories
slide-12
SLIDE 12

ISS

  • Dr. Ayman Abdel-Hamid

12

Security Services (X.800) 1/7

  • Authentication - assurance that the

communicating entity is the one claimed

  • Access Control - prevention of the unauthorized

use of a resource

  • Data Confidentiality –protection of data from

unauthorized disclosure

  • Data Integrity - assurance that data received are

exactly as sent by an authorized entity

  • Nonrepudiation - protection against denial by one
  • f the parties in a communication
  • What about Availability?
slide-13
SLIDE 13

ISS

  • Dr. Ayman Abdel-Hamid

13

Security Services (X.800) 2/7

  • Authentication - assurance that the

communicating entity is the one claimed

Peer Entity Authentication

Confidence in the identities of entities connected (corroboration of identity of peer entity in an association) Used at establishment of connection, and during data transfer phase

Data-Origin Authentication

Source of received data is as claimed

slide-14
SLIDE 14

ISS

  • Dr. Ayman Abdel-Hamid

14

Security Services (X.800) 3/7

  • Access Control - prevention of the

unauthorized use of a resource

Who can have access to a resource? Under what conditions? If you are granted access, what are you allowed to do?

slide-15
SLIDE 15

ISS

  • Dr. Ayman Abdel-Hamid

15

Security Services (X.800) 4/7

  • Data Confidentiality –protection of data

from unauthorized disclosure

Connection Confidentiality

All user data is protected

Connectionless Confidentiality

All user data in a single data block is protected

Selective-Field Confidentiality

Specific fields are protected

Traffic-flow Confidentiality

Protecting traffic flow from analysis

slide-16
SLIDE 16

ISS

  • Dr. Ayman Abdel-Hamid

16

Security Services (X.800) 5/7

  • Data Integrity - assurance that data received

are exactly as sent by an authorized entity (no modification, insertion, deletion, or replay)

Connection Integrity with Recovery Connection Integrity without Recovery Selective-field Connection Integrity Connectionless Integrity Selective-Field Connectionless Integrity

slide-17
SLIDE 17

ISS

  • Dr. Ayman Abdel-Hamid

17

Security Services (X.800) 6/7

  • Nonrepudiation - protection against denial

by one of the parties in a communication

Nonrepudiation, Origin Nonrepudiation, Receiver

slide-18
SLIDE 18

ISS

  • Dr. Ayman Abdel-Hamid

18

Security Mechanisms (X.800) 7/7

  • specific security mechanisms:

– encipherment, digital signatures, access controls, data integrity, authentication exchange, traffic padding, routing control, notarization

  • pervasive security mechanisms:

– trusted functionality, security labels, event detection, security audit trails, security recovery

  • Others not included here?
slide-19
SLIDE 19

ISS

  • Dr. Ayman Abdel-Hamid

19

Classify Security Attacks as

  • passive attacks - eavesdropping on, or monitoring
  • f, transmissions to:

– obtain message contents, or – monitor traffic flows – Difficult to detect since no alteration of data

  • active attacks – modification of data stream, or

creation of a false stream

– masquerade of one entity as some other – replay previous messages – modify messages in transit – denial of service

slide-20
SLIDE 20

ISS

  • Dr. Ayman Abdel-Hamid

20

Model for Network Security 1/2

slide-21
SLIDE 21

ISS

  • Dr. Ayman Abdel-Hamid

21

Model for Network Security 2/2

  • using this model requires us to:

– design a suitable algorithm for the security transformation – generate the secret information (keys) used by the algorithm – develop methods to distribute and share the secret information – specify a protocol enabling the principals to use the transformation and secret information for a security service

slide-22
SLIDE 22

ISS

  • Dr. Ayman Abdel-Hamid

22

Network Access Security Model 1/2

slide-23
SLIDE 23

ISS

  • Dr. Ayman Abdel-Hamid

23

Network Access Security Model 2/2

  • using this model requires us to:

– select appropriate gatekeeper functions to identify users – implement security controls to ensure only authorised users access designated information

  • r resources
  • trusted computer systems can be used to

implement this model

slide-24
SLIDE 24

ISS

  • Dr. Ayman Abdel-Hamid

24

Further Reading

  • RFC 2828 (Informational), Internet Security

Glossary, available at http://www.ietf.org
