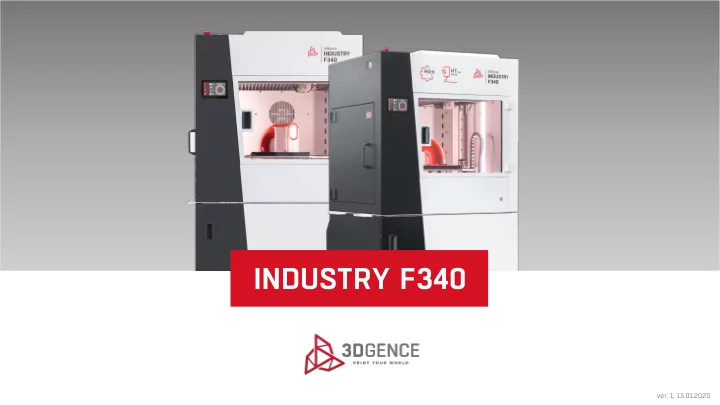

INDUSTRY F340

• ver. 1, 15.01.2020

3DGence

INDUSTRY F340

Main in fea eatures es: 1. 1. Interch changeable printi ting modules les – wide use of technical materials 2. 2. Hi High gh-temperatu ture printi ting chamb amber – accurate and durable parts 3. 3. PEEK EEK and and PE PEKK 3D printi ting – high performing polymers 4. 4. Solub luble materia ials ls – support structures made of ESM-10 5. 5. High gh-qua ualit lity co compon

• nents – dedicated electronics, fast and rigid

kinematic system, robust design 6. 6. Smar mart Mat aterial al Man anag ager – control

• ver

printing proces and materials management

SPECIFICATION Build volume (w × d × h) 260 × 300 × 340 mm Printing nozzles 2 per module Hotend temp. (max) 500°C Table temp. (max) 160°C Chamber temp. (max) 85°C Filament chamber temp. (max) 70°C Software 3DGence SLICER 4.0

3DGence

INDUSTRY F340

The most versatile industrial 3D printer capable of 3D printing with the widest range of engineering materials, certified by TÜV Rheinland. Designed to produce high-quality and durable parts with complex geometry. This 3D printer is suitable for working with a wide range of technical materials including the high-performance thermoplastics.

INDUSTRY F340 4

3DGence INDUSTRY F340

UNIQUE SELLING POINTS:

Mod

• dular

ar prin intin ing s sys ystem Ul Ultr tra polym lymers ( (PEK PEKK, PEEK PEEK) Build ildin ing vo volum ume Built ilt-in in S SMM MM sys ystem f m for mat ater erial al recog

• gni

nition

• n

INDUSTRY F340 5

Modular system used in the 3DGence INDUSTRY F340 is practical and cost-effective solution. What distinguishes the modular system? – Easy and tool-less change – No calibration needed due to internal module memory – Direct drive – Mechanical hotends plugs. The possibility of using four different modules in one 3D printer allows to produce repeatable models from the widest range of filaments, from high-performance materials such as PEEK and PEKK to commodity materials such as PA, ASA, ABS. Each module is customised to a specific group of materials in order to optimize the printing process as much as possible. The modules replacement is easy, tool-less and takes only a few minutes.

KEY FEATURE: MODULARITY

Tempera rature: : up to 340°C Nozzl zzle diame ameter: 0.4 mm Mo Model l mat material: PC, PC-ABS, PC-ESD, PC-CF Suppo pport materia ials: ls: ESM-10 (soluble), ABS (break-away) Tempera rature: : up to 265°C Nozzl zzle diame ameter: 0.6 mm Mod

• del

el m materials: s: ABS, ASA, PA-CF, PP, PA6-GF30 Suppo pport materia ials: ls: ESM-10 (soluble), HIPS (break-away) Tempera rature: : up to 265°C Nozzl zzle diame ameter: 0.4 mm Mod

• del

el m materials: s: ABS, PA, PLA, ASA, PP, Flex Suppo pport materia ials: ls: ESM-10 (soluble), HIPS (break-away)

Module PRO Module HF Module HT

KEY FEATURE: MODULARITY

Tempera rature: : up to 500°C Nozzl zzle diame ameter: 0.4 mm Mo Model l mat material: PEEK, PEKK Suppo pport materia ials: ls: ESM-10 (soluble), dedicated break- away

Module HTmax

INDUSTRY F340 7

Dimensional accuracy of the models and their high quality The actively heated chamber can reach temperature up to 85°C and it makes 3D printing with ABS, PEEK, PEKK and other engineering polymers an easy process. The use of heated printing chamber in 3DGence INDUSTRY F340 ensures high print quality and durability of the models. Maintaining the optimal 3D printing environment inside the 3D printer and proper temperature is crucial to produce accurate parts. Air filter used in this 3D printer makes it possible to work in the production hall or

• ffice. This solution prevents odours and ensures user’s safety.

KEY FEATURE: HEATED PRINTING CHAMBER

INDUSTRY F340 8

Humidity for the loaded materials will be reduced regardless of the 3D printer's

• perational status thanks to the active filament chamber heating system

The material control system indicating the weight of the loaded material on each of the reels measures its accuracy up to 5 grams. The data is compared with the information about the required amount of filament needed to complete the printing process. In the case of undersupplying, the system informs the user about the lack of the material before the start of the printing process. The flow control system located in the extruders is designed to maintain constant control of print precision during the process. When the margin of error is exceeded, 3DGence INDUSTRY F340 will automatically stop printing.

KEY FEATURE: HEATED MATERIAL CHAMBER

INDUSTRY F340 9

Guarantee of optimal working conditions. The NFC scanner collects data connected with the filament used during the printing process – optimal working conditions and maximum speed. All the information concerning the weight, type, colour and percentage quantity of remaining filament loaded on a particular hotend. Smart Material Manager is an intelligent filament and printing environment control system. SMM consists of several solutions: – NFC reader recognizing loaded material – material weight control system – automatic material loading system – flow control sensor

KEY FEATURE: SMART MATERIAL MANAGER

INDUSTRY F340 10

Low maintenance solution Tensometric system used in 3DGence INDUSTRY F340 allows to automatically calibrate this 3D printer.

KEY FEATURE: AUTOCALIBRATION

INDUSTRY F340 11 WHAT IS INCLUDED?  3DGence INDUSTRY F340 3D printer  Set of accessories WHAT IS THE ADDITIONAL EQUIPMENT?  The PRO dual-extruder printing module (+2 kg ABS, +2 kg HIPS)  The HF dual-extruder printing module (+2 kg ABS, +2 kg HIPS)  The HT dual-extruder printing module (+0,75 kg PolyMax PC, +0,5 kg ESM-10)  The HTmax dual-extruder printing module (+0,25 kg PEEK, +0,5 kg ESM-10, +3 pcs VXL SOLVE)

PACKAGE CONTENT AND OPTIONS

INDUSTRY F340 12

print technology: FFF build chamber: 260 × 300 × 340 mm build volume: 26 520 cm3

• min. layer height: 40 um

number of printheads: 2 per module nozzle diameter: 0.4/0.4 mm or 0.6/0.6 mm filament diameter: 1.75 mm printhead temperature (max): 500°C buildplate temperature (max): 160°C chamber temperature (max): 85°C (Active heating) filament chamber temperature (max): 70°C PRINTING external dimensions: 1200 × 800 × 1100 mm mass: 200 kg DIMENSIONS AND MASS chassis: powder coated steel build plate material: borosilicate glass positioning resolution XY: 0.006 mm positioning resolution Z: 0.0004 mm CONSTRUCTION power requirements: 240 V AC

• max. power draw: 2700 W

communication: USB drive, SD card POWER working temperature: 15-32°C storage temperature: 0-32°C ENVIRONMENT slicing software: 3DGence SLICER 4.0 SOFTWARE filtration: air filter UPS device: yes, optional SAFETY

FULL SPECIFICATION
