Industrial waste heat for electricity and DH production: Demonstration Plant based on ORC technology for using EAF fumes Mercedes G. de Arteche Miguel Ramirez Tecnalia Research & Innovation 3 rd Engine ORC Consortium Workshop September

slide-1
SLIDE 1

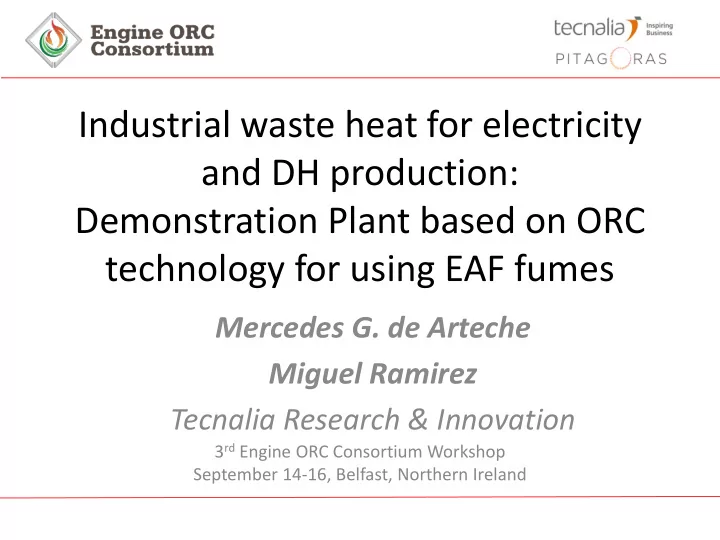

3rd Engine ORC Consortium Workshop September 14-16, Belfast, Northern Ireland

Industrial waste heat for electricity and DH production: Demonstration Plant based on ORC technology for using EAF fumes

Mercedes G. de Arteche Miguel Ramirez Tecnalia Research & Innovation

slide-2
SLIDE 2
  • 1. Introduction and objectives.
  • 2. Steel mill & Demo-plant description.
  • 3. Technical & socio-economic data.
  • 4. Conclusions.

3rd EORC workshop, Belfast, 2016

slide-3
SLIDE 3
  • 1. INTRODUCTION AND OBJECTIVES
  • Industrial waste heat recovery for electricity (ORC system) and district

heating (DH) production.

  • Exhaust flue gases from an Electric Arc Furnace

thermal and energetic valorization.

  • A 16MWth demonstration plant was performed in a

steel mill from ORI MARTIN in Brescia (Italy). Start-Up: January 2016

  • The plant produces hot water (10 MWth) for feeding a DH network in

wintertime (October-April) and produces electricity (1,8 MWe) in summer season ( May-September) for plant self-consumption.

3rd EORC workshop, Belfast, 2016 Industrial waste heat source Residential area

slide-4
SLIDE 4

PITAGORAS project Consortium members

3rd EORC workshop, Belfast, 2016

Project Coordinator Subcontractors:

PITAGORAS PROJECT IS FRAMED INTO FP7, SMART CITIES PROGRAMME (EUROPEAN UNION FUNDING PROJECT)

slide-5
SLIDE 5

3rd EORC workshop, Belfast, 2016

  • 2. STEEL MILL & DEMO-PLANT DESCRIPTION

EAF WHRU

exhaust gases (hot) water exhaust gases (cold)

ORC unit DH system

hot water cold water BRESCIA CITY ORI MARTIN STEEL MILL DEMO PLANT steel charge steel molten

DH INFRASTRUCTURE Incomes from heat supply Savings in electricity purchase

steam

STEAM ACCUM.

electricity steam steam

slide-6
SLIDE 6

Demo-plant location

  • ORI MARTIN premises in Brescia (Italy).

3rd EORC workshop, Belfast, 2016 ORC unit Heat recovery system Electric Arc Furnace Quenching Tower District Heating system

slide-7
SLIDE 7

Plant scheme

3rd EORC workshop, Belfast, 2016

EAF 1 Feed Water Tank WHB 2 Steam Accumulator 3 4 ORC unit 5 DH system 6

slide-8
SLIDE 8

3rd EORC workshop, Belfast, 2016

Electric Arc Furnace (EAF)

  • Mixed EAF: scrap melting (electrodes) + natural gas burners.
  • Responsible of the flue gas generation.
  • Flue gas flow are partially directed to the WHRB due to a damper. The rest,

are conducted to the Quenching Tower.

  • Approximately, 120.000 Nm3/h of fumes are directed to the WHRB.

Quenching Tower EAF 1

slide-9
SLIDE 9

Waste Heat Recovery Boiler

  • Responsible of saturated steam generation due to the thermal exchange

with EAF exhaust gases.

  • Formed by 4 Evaporators and 1 Economizer (feed water preheating). At

the top, there is a Steam Drum (steam/water reservoir).

  • Feed water circulates through vertical tubes inside the WHRB,

absorbing the thermal heat exchanged by the flue gases circulating through the shell side.

  • WHB thermal power (design): 16 MWth
  • Flue gases inlet/outlet temperature:

440ºC/ 180ºC.

  • A pneumatic system to remove dust cake

has been installed to maintain tubes clean.

3rd EORC workshop, Belfast, 2016

WHRB + Steam Drum 2

slide-10
SLIDE 10

3rd EORC workshop, Belfast, 2016

Steam Accumulator

  • Store the recovered thermal energy from the WHB due to batch operation
  • f the EAF melting process.
  • Two

phase (water/steam) vessel with two

  • perating

modes (charging/discharging). Pressure modulation.

  • Operating pressure and temperature: 10-24 barg / 185-224ºC.
  • Store capacity: 3MWhth.

Steam Accumulator 3

slide-11
SLIDE 11

3rd EORC workshop, Belfast, 2016

ORC unit

  • Electricity generation during summertime for plant self-consumption.
  • The ORC unit is composed by:

– Evaporator. – Turbine + Generator. – Regenerator. – Condenser. – Circulating pump. – LT and HT Preheaters. – Post-cooler.

  • ORC internal fluid: silicone oil (MM).
  • ORC system electric capacity: 1,8 MWe.
  • Expected average cycle efficiency: 18%.
  • Expected electricity generation: near 5.745 MWh/year (during 5 months).

4

slide-12
SLIDE 12

3rd EORC workshop, Belfast, 2016

District Heating system

  • Hot water generation during wintertime for a local district heating supply.
  • The DH system is composed by:

– Two circuits: steam/condensate; cold/hot water to DH. – Two heat exchangers. – Flash Tank + Condenser. – Circulating pumps.

  • DH heat capacity: 10 MWth.
  • Average hot water supply temperature to DH: 95-120ºC.
  • Expected thermal energy generation: 44.700 MWhth/year

(during 7 months).

Heat Exchanger 1 & 2 Flash Tank & Condenser 5

slide-13
SLIDE 13

3rd EORC workshop, Belfast, 2016

Feed Water Tank

  • FW Tank: Stores the condensate water coming from the whole installation

in order to feed the WHRU through a pump (BFW pump).

  • Deaerator: removal of oxygen and other dissolved gases from the feed

water.

6 FW Tank & Deaerator BFW Tank

slide-14
SLIDE 14
  • 3. TECHNICAL & SOCIO-ECONOMIC DATA (I)

3rd EORC workshop, Belfast, 2016 TECHNICAL DATA WHRU

  • Average flow rate of flue gases (dry) 120.000Nm3/h
  • Average inlet/ outlet operating temperature : 440ºC/200ºC
  • Nominal thermal capacity: 16MWth
  • Expected generation 92.800MWhth/year.

STEAM ACCUMULATOR

  • Operating pressure and temperature: 10 - 24 barg /185 - 224ºC.
  • Storage capacity of 3MWhth

ORC

  • Thermal power at Evaporator inlet: 10,42 MWth
  • Expected efficiency to be achieved: 18%.
  • Nominal output power: 1.800kWe.
  • Expected electricity generation: 5.745 MWh/year (Summer season)

DH SYSTEM

  • Thermal power to DH network: 10MWth
  • Supply /return water temperature to DH: 95-120ºC/ 60-85ºC
  • Expected thermal energy generation: 44.700 MWhth/year (Winter season)
slide-15
SLIDE 15
  • 3. TECHNICAL & SOCIO-ECONOMIC DATA (II)

(*): ESTIMATION. ONLY 8 MONTHS OF PLANT RUNNING. 3rd EORC workshop, Belfast, 2016 SOCIO-ECONOMIC DATA TOTAL INVESTMENT 12M€ where:

  • WHRU: around 75%
  • ORC: around 20%
  • DH system: around 5%

OPERATION & MAINTENANCE COST 3-5% of the total investment (*) HEAT PRICE 10-15 €/MWhth supplied EMPLOYEES 4 (FULL TIME)

slide-16
SLIDE 16
  • 4. CONCLUSIONS
  • Waste heat recovery takes place in a steel mill to generate steam to feed a DH

network in winter and generate electricity in summer through an ORC unit.

  • The ORC unit operates during summertime, where heat demand decreases
  • considerably. This alternative allows electricity production with an average net

electric output of 1800 kWe and a target efficiency of 18%.

  • DH system works in wintertime, having an average capacity of 10MWth and a

hot water supply of 44.700 MWhth/year to the network.

  • Total investment is established in 12M€ and O&M yearly costs represents

between 3-5%.

  • Incomes are expected regarding heat supply to the DH network (10-15

€/MWhth) and savings on electricity related to ORC electricity self- consumption.

  • Social and environmental benefits are confirmed regarding employment

increment and waste heat recovery in heavy industry. This installation contributes to the decrement of the GHE and reduces CO2 emissions to the atmosphere.

3rd EORC workshop, Belfast, 2016

slide-17
SLIDE 17

The research leading to these results has received funding from the European Union Seventh Framework Programme FP7/2007-2013 under grant agreement n° ENER / FP7EN / 314596 / PITAGORAS. This publication reflects

  • nly the author’s views and the Union is not liable for any use that may be

made of the information contained therein.

3rd EORC workshop, Belfast, 2016
