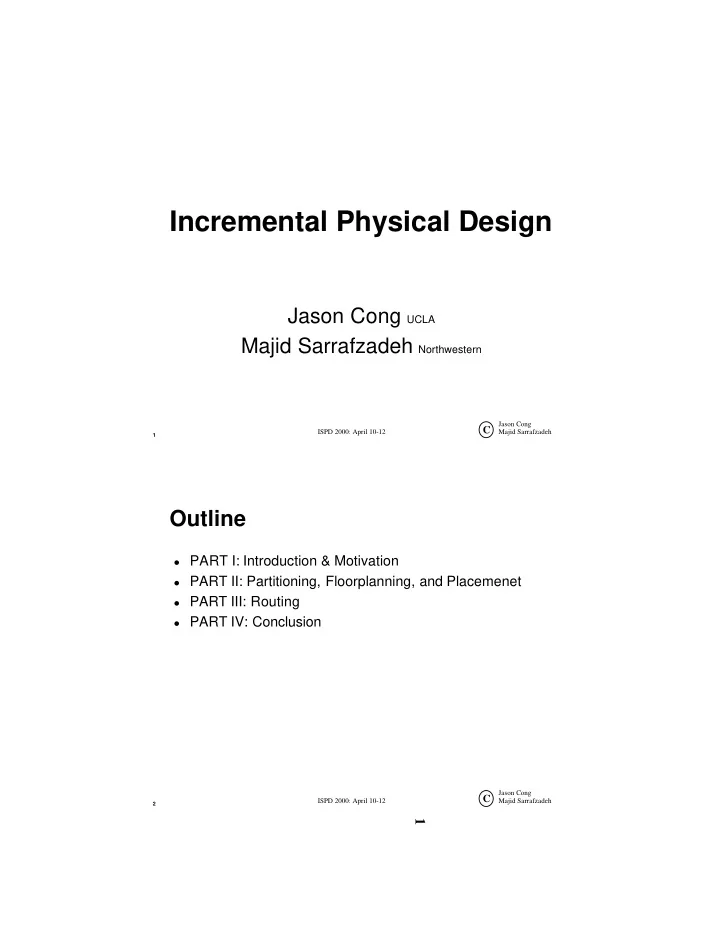

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Physical Design

Jason Cong UCLA Majid Sarrafzadeh Northwestern

2

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Outline

PART I: Introduction & Motivation PART II: Partitioning, Floorplanning, and Placemenet PART III: Routing PART IV: Conclusion

SLIDE 2

2

3

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

PART I: Introduction & Motivation

4

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Introduction & Motivation

Concurrent optimization:
problems are getting complex
need quick evaluation of a number of alternatives

Existing algorithms are “incremental”

what can we say about the quality of the final solution? when to do, and how much, incremental “moves”?

A more fundamental concept: Given a solution, assess

its quality

Design for change The right data structures

SLIDE 3

3

5

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Current Methods

Ad-hoc (low-temp annealing or rip-up and reroute) No or very little understanding of the solution quality Painful and slow updates May have undesired global impact There has been very little done on the topic (We provide a reasonable list of references as a starting

points: data structures, layout algorithms, synthesis algorithms, etc)

Today’s presentation is meant to serve as a motivator

6

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

PART II: Partitioning, Floorplanning, and Placement

SLIDE 4

4

7

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Partitioning

8

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning

An original (hyper)graph and its near-optimal partitioning

results are given.

An incrementally changed (hyper)graph is obtained by

adding/deleting vertices/edges from the original graph.

Incremental partitioning problem is to find the near-

ptimal partitioning for the changed (hyper)graph

without doing from the scratch.

Incremental partitioning should be much faster than the

riginal partitioning.

It is preferable to use the existing partitioning results for

the original (hyper)graph.

SLIDE 5

5

9

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Original Graph

10

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

One Vertex Changed (e.g., resized)

SLIDE 6

6

11

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

One Edge Added (logic restructuring)

12

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

3rd Vertex Changed

SLIDE 7

7

13

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

0-proximity Vertices

0-proximity 0-proximity 0-proximity 0-proximity 0-proximity

14

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

1-proximity Vertices

0-proximity 0-proximity 0-proximity 1-proximity 1-proximity 0-proximity 0-proximity 1-proximity

SLIDE 8

8

15

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

2-proximity Vertices

0-proximity 0-proximity 0-proximity 1-proximity 1-proximity 0-proximity 2-proximity 1-proximity 0-proximity

16

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Partitioning Problem on the Original Graph

SLIDE 9

9

17

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Partitioning Problem on the Changed Graph (inf-threshold)

0-proximity 0-proximity 0-proximity 1-proximity Changed Vertices 0-proximity

18

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

0-Threshold Incremental Partitioning

0-proximity 0-proximity 0-proximity 0-proximity 0-proximity

SLIDE 10

10

19

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

1-Threshold Incremental Partitioning

0-proximity 0-proximity 0-proximity 1-proximity 1-proximity 0-proximity 0-proximity

20

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 1% Change In the Original Graph

0.2 0.4 0.6 0.8 1 1.2 ibm01 ibm02 ibm03 ibm04 ibm05 0-threshold 1-threshold 2-threshold inf-threshold

Net-cut results normalized to infinity-threshold results.

SLIDE 11

11

21

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 1% Change In the Original Graph

0.2 0.4 0.6 0.8 1 ibm01 ibm02 ibm03 ibm04 ibm05 0-threshold 1-threshold 2-threshold inf-threshold

Runtime normalized to infinity-threshold results.

22

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 5% Change In the Original Graph

0.2 0.4 0.6 0.8 1 1.2 1.4 ibm01 ibm02 ibm03 ibm04 ibm05 0-threshold 1-threshold 2-threshold inf-threshold

Net-cut results normalized to infinity-threshold results.

SLIDE 12

12

23

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 5% Change In the Original Graph

0.2 0.4 0.6 0.8 1 1.2 ibm01 ibm02 ibm03 ibm04 ibm05 0-threshold 1-threshold 2-threshold inf-threshold

Runtime normalized to infinity-threshold results.

24

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 10% Change In the Original Graph

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 ibm01 ibm02 ibm03 ibm04 ibm05 0-threshold 1-threshold 2-threshold inf-threshold

Net-cut results normalized to infinity-threshold results.

SLIDE 13

13

25

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 10% Change In the Original Graph

0.2 0.4 0.6 0.8 1 1.2 ibm01 ibm02 ibm03 ibm04 ibm05 0-threshold 1-threshold 2-threshold inf-threshold

Runtime normalized to infinity-threshold results.

26

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 20% Change In the Original Graph

0.5 1 1.5 2 ibm01 ibm02 ibm03 ibm04 ibm05 0-threshold 1-threshold 2-threshold inf-threshold

Net-cut results normalized to infinity-threshold results.

SLIDE 14

14

27

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 20% Change In the Original Graph

0.2 0.4 0.6 0.8 1 1.2 ibm01 ibm02 ibm03 ibm04 ibm05 0-threshold 1-threshold 2-threshold inf-threshold

Runtime normalized to infinity-threshold results.

28

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 1% Change In the Original Graph

SLIDE 15

15

29

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 5% Change In the Original Graph

30

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 10% Change In the Original Graph

SLIDE 16

16

31

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Partitioning with 20% Change In the Original Graph

32

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Some more ideas

Localized proximity Net-list dependent proximity New/ targeted algorithms (not “locked full partitioner”)

for incremental partitioning

Create an initial solution that is suitable for change

SLIDE 17

17

33

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Floorplanning

34

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Floorplanning

Do not resize the floorplan if not needed or if not needed

“badly” (based on an enhanced sizing tree) [Crenshaw- Sarrafzadeh]

Time Ratio Plot

1 10 100 1000 10000 Vec1x Vec5x Vec10x Vec50x Vec100x Vector File Ex10 Ex20 Ex50

SLIDE 18

18

35

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

A slack based sizing tree (for quick decision making)

w+ - slack in width h+ - slack in height Horizontal critical path Vertical critical path

6 1 2 3 4 5

7 5 6 10 5 4 5 5 5 8 7 8 10 11 14 7 7 8-7

2 1 6 5 3

w+=0 h+= 2 w+=0 h+= 0 w+=0 h+= 0 w+=3 h+= 0 w+=0 h+= 2 w+=0 h+= 0 w+=0 h+= 0

4

w+=0 h+= 0 w+=0 h+= 0 w+= 1 h+= 0 w+=2 h+= 0

10-8

TSS

module width height 1 3 2 2 2 3 4 4 3 5 2 6

36

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Speed-up after a series of moves

(adding buffers, sizing, gate duplication

User Times for Finding Area Improving Moves

0.00 100.00 200.00 300.00 400.00 500.00 600.00 700.00 800.00 900.00 f r a c t

4

f r a c t

5

f r a c t

6

f r a c t

7

f r a c t

9

s t r u c t

9

s t r u c t

1

s t r u c t

1

2 s t r u c t

1

3 s t r u c t

1

5 p r i m a r y 1

7

p r i m a r y 1

8

p r i m a r y 1

9

p r i m a r y 1

1

p r i m a r y 1

1

3 p r i m a r y 2

7

p r i m a r y 2

8

p r i m a r y 2

9

p r i m a r y 2

1

2 p r i m a r y 2

1

5 benchmarks CPU runtime (s) slack-aware greedy-local greedy-global

SLIDE 19

19

37

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

(Floorplan) Design for Change

Accurate data is not available in early phases:
Missing cells: Some cells have not been designed yet. Use

estimates from previous design.

Formulate designer’s experience in estimation of the cell area.

Evolving (cell / IP) library: Final area of modules can be estimated

from current area.

Geometric synthesis, timing improvement, ….
Nostradamus: A Floorplanner of Uncertain Designs [Bazargan-

Kim-Sarrafzadeh]

38

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Problem Formulation

Distribution lists for width/height:
Wi = { (wi1,p(wi1)),…,(wi,mi,p(wi,mi)) }

Σj p(wij) = 1

Hi = { (hi1,p(hi1)), … , (hi,ni,p(hi,ni)) }

Σj p(hij) = 1

Example:

W1 = { (5,0.3) , (7,0.5), (8,0.2) } W2 = { (2,0.9), (3,0.1) } H1 = { (1,.1),(2,.2),(7,.7) } H2 = { (4,.4),(6,.6) }

We could also use:
Li = { (wi1, hi1, pi1), … , (wim, him, pim) }

SLIDE 20

20

39

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Output Distributions

40

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Input/Output Correlation

Width: Input and output std dev of diff data sets

20 40 60 80 100 120 140

a1 a3 b1 b3 c1 c3 c5 d1 d3 e1 e3 f1 f3 g1 h1 h3 c6f1

data sets stddev Ouput deviation Scaled input deviation

Height: Input and output std dev of diff data sets

10 20 30 40 50 60 70 80

a1 a3 b1 b3 c1 c3 c5 d1 d3 e1 e3 f1 f3 g1 h1 h3 c6f1

data sets stddev Output deviation Scaled input deviation

SLIDE 21

21

41

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Experimental Results

Ratio of actual area of traditional methods to area of Nostradamus : 30% uncertainty 0% 20% 40% 60% 80% 100% 120% 140% a1 a2 a3 a4 b1 b2 b3 b4 f1 f2 f3 f4 g1 g2

Conservative Optimistic

Exp. Val.

42

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Experimental Results

Ratio of actual area of traditional methods to area of Nostradamus : 10% uncertainty 0% 20% 40% 60% 80% 100% 120% 140% a1 a2 a3 a4 b1 b2 b3 b4 f1 f2 f3 f4 g1 g2

Conservative Optimistic

Exp. Val.

SLIDE 22

22

43

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Placement

44

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Placement Problem

Input:

A set of cells and their complete information (a cell library).
Connectivity information between cells (netlist information).

Output:

A set of locations on the chip: one location for each cell.

Goal:

Total chip area and wirelength, under timing constraints.

Challenge:

Rapid growing circuit size (> 1 million).
Multi objectives (timing constraint, routability)

SLIDE 23

23

45

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Placement Problem

Input: Cells and Interconnections Output: Locations on a 2-D plane

46

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Predictors based on the given algorithm or based on absolute truth

A bad placement A good placement

SLIDE 24

24

47

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Placement Algorithms (both incremental, so do

we understand incremental?) Constructive Placement

e.g. Analytical optimization Build up placement from scratch. Fast, but most of them lack of solution quality.

Iterative Improvement

e.g. Simulated annealing Gradually improve existing solutions. Slow, but with good solution quality, easy to consider multi-objectives.

48

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Placement

Caused by:

Adding cells/nets Meeting timing constraints

while minimizing total chip area.

Reducing congestion

A post processing algorithm is more effective

SLIDE 25

25

49

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Proximity In Placement

Topological Proximity Geometrical Proximity

A B C B A

Cell A and B are topological proximate Cell A and B are geometrical proximate

In a good placement, topological proximity and geometrical proximity generally correlate well

C D

50

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Preliminary studies

Reducing length of long net Helps meeting timing constraints

SLIDE 26

26

51

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Shrinking long nets

Pick up cells which are located on the edge of the Bounding box, switch them with other cells.

52

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Experimental setup

Given a placement produced by a fresh placement run, find the longest nets, Let its length be L, then find all the nets which are longer than (1-x%)L, reduce all these long nets to (1-x%)L or less. Data reported are number of long nets and x%

SLIDE 27

27

53

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Experiment results

It is not difficult to reduce the longest net by up to 20% without considerably increasing the total wirelength

N/A 13 1.85% 10 0.14% 2 0.06% 1 25114

avql

1.67% 6 0.78% 5 0.16% 3 0.03% 1 21854

avqs

N/A 5 0.06% 1 0.04% 1 0.01% 1 15059

industry3

N/A 39 N/A 17 0.48% 6 0.06% 2 12142

industry2

N/A 13 2.48% 7 0.37% 3 0.06% 1 2907

Primary2

WL

# nets

WL

# nets

WL

# nets

WL

# nets

30% 20% 10% 5 %

Length of long nets are reduced to (1-x)% of longest net

#cells Circuit

54

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Experiment results

Experiments of Shrinking Long Nets

0.00% 0.50% 1.00% 1.50% 2.00% 2.50% 3.00% 3.50% 0% 5% 10% 15% 20% Long nets length reduction Total WL increase primary2 industry2 industry3 avqs avql

It’s a greedy, simple approach. More effective algorithms are to be studied.

SLIDE 28

28

55

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

PART III: Incremental Routing

56

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Routing Problem

Basic operations:

Net removal (easy) Net addition (focus of this talk)

Objective

Preserve as much previous results as possible

Applications

Changes of the netlist due to functionality modification Modification of placement due to performance consideration Change of a route (width, spacing, possible buffer insertion)

after post-layout extraction and simulation

...

SLIDE 29

29

57

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Sub-problems in Incremental Routing

Single Net Routing

No change of existing routes

Rip-up and Reroute

Change some existing routes but no change of

placement/floorplan

Incremental Floorplan and Placement Update

Invoke when Rip-up & re-route fails

Increasing flexibility Increasing runtime

58

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Single Net Routing Problem

Problem Formulation

Given

a set of existing routes/obstacles
the width and spacing of a given net

Find a valid route for this net

Need for gridless (GLS) routing

Variable wire width for delay optimization Variable wire spacing for noise constraints

Challenges

Construction of GLS routing graph Representation of GLS routing graph Search on GLS routing graph

SLIDE 30

30

59

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Existing Approaches to GLS SNR

Obstacle expansion

Reduced to zero-width routing

Construction of routing graph

Tile-based approach Point-based approach

Uniform grid graph Non-uniform grid graph

Search on the routing graph

60

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Obstacle Expansion for Gridless Routing

Expansion of Obstacles According to Width Rule and

Spacing Rule to Reduce the Routing Problem into Zero Width Routing Ww=4 Sw=2 Ew=Ww/2+Sw

SLIDE 31

31

61

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Tile-based Approach

[Margarino CAD’87; Sechen ISPD’98]

1. Tile Partition
2. Corner-Stitching

Data Structure

[Ousterhout, TCAD84]

3. A Tile-to-Tile

Searching s t

T1 T2 T4 T3 T7 T5 T6

62

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Uniform Grid Approach [Lee’61]

Representing the region using uniform grids Graph can be very large!

SLIDE 32

32

63

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Minimal Routing Graph Approach

[Wu T-Comp’87; Zheng TCAD’96]

Extend the boundries

f expanded rectangles

Sparser than uniform- grid but irregular

64

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Limitations of Existing Approaches for Incremental Routing

Pre-expansion of obstacles - very costly

Need to re-expand if routing a net of different width and/or spacing

Pre-construction of routing graph - very costly

Incremental route may use only a small portion of the graph (but

cannot be determined a priori)

SLIDE 33

33

65

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

S T

Non-Uniform Grid Graph Approach

[Cong-Fang-Khoo, ICCAD’99]

Given a set of obstacles and a source s and sink t
GS is an orthogonal grid graph

66

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

S T

Implicit Representation of GS

y1 y2 y3 y4 y5 y6 y7 y8 x1 x3 x4 x2 x5 x6 x7 x8 x9 x10

Store x, y locations in arrays
Space Pre-construction
Can be maintained incrementally (O(logN) time)

) (N O

) log ( N N O

SLIDE 34

34

67

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

S T

Searching on GS

y1 y2 y3 y4 y5 y6 y7 y8 x1 x3 x4 x2 x5 x6 x7 x8 x9 x10

Determine the Location of Neighboring Node: Easy

Free?

Determine If the Location Is Valid: Difficult

68

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

No Pre-Expansion of Obstacles

Point enclosure query -> rectangle intersection query

a b d c q a b d c q

SLIDE 35

35

69

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Our 2-D Query Data Structure

a b d c q Data Structure

Is q in free space

Query

c b,d

70

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Experimental Results

701172 25668 2 3

2741.5 x 3192.8

Eco-7 372240 13959 2 3

2926.1 x 1676.8

Eco-6 196947 7542 2 3

1556.6 x 1676.8

Eco-5 232633 6417 2 3

1372.5 x 1608.6

Eco-4 232004 6417 5 3

1372.5 x 1593.3

Eco-3 232453 6417 2 3

1372.5 x 1593.3

Eco-2 232309 6417 3 3

1372.5 x 1593.3

Eco-1 Rects Cells Pins Layers Dimension Ex.

Examples Comparison

Explicit Uniform Grid Graph Iroute from Magic Layout Editor [Arnold 88]

SLIDE 36

36

71

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Comparison of Memory Usage

Unit: MB

3.0 1.00 14.3 Ratio 84.7 43.6 641.1 Eco-7 52.6 15.9 359.4 Eco-6 35.2 12.7 191.0 Eco-5 32.6 10.9 161.7 Eco-4 32.6 7.2 160.2 Eco-3 32.7 10.9 160.2 Eco-2 32.7 10.9 160.2 Eco-1 Iroute Non-Uni. Grid

Uni. Grids

Ex.

72

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Comparison of Runtime and ECO Routing Quality

47591 / 20 79.79 35690 / 74 38.2 Eco-7 56423 / 20 74.29 37858 / 70 24.7 Eco-6 34543 / 12 43.14 27061 / 54 12.3 Eco-5 24385 / 153 57.39 21760 / 122 24.0 Eco-4 36593 / 103 68.70 34736 / 110 34.5 Eco-3 13162 / 62 26.58 11332 / 44 6.3 Eco-2 22629 / 89 42.15 17374 / 66 19.1 Eco-1 Iroute Result(wl/vc) Time(s) Non-Uniform Result(wl/vc) Time(s) Ex.

SLIDE 37

37

73

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Sub-problems in Incremental Routing

Single Net Routing

No change of existing routes

Rip-up and Reroute

Change some existing routes but no change of

placement/floorplan

Incremental Floorplan and Placement Update

Invoke when Rip-up & re-route fails

Increasing flexibility Increasing runtime

74

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Rip-up and Reroute

Invoke when net-by-net routing fails Objectives

Complete all the nets Minimize number of rip-ups

Challenges

Gridless nature of routing problem makes routing resource

difficult to model and manage

SLIDE 38

38

75

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Overview of Existing R&R Approaches

Maintain Design-Rule Correctness

Pros: always has a valid partial solution Cons: too restrictive; net order dependent

Allow Temporary Design-Rule Violation

Pros: allow cross and touch [Kawamura ICCAD’90], more flexibility Cons:

Difficult to model routing resources in gridless routing Lack of global picture

Planning Based Ripup and Re-route

Preferred approach

Can model routing resources with flexible resolution Allow a more global view Can be applied iteratively

76

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Planning Graph Construction

SLIDE 39

39

77

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Planning Based Rip-up & Re-route

Advantages

More Global Picture Reasonably Accurate Routing Region Information

Very efficient on the planning graph Similar to global routing, but only serve as a guide Re-planning Approaches

Local Refinement Ripup and Re-plan

78

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Local Refinement

S1 S2 S3 T1 T2 T3

SLIDE 40

40

79

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Local Refinement

S1 S2 S3 T1 T2 T3

80

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Local Refinement

S1 S2 S3 T1 T2 T3

SLIDE 41

41

81

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Ripup & Re-planning

S1 S2 S3 T1 T2 T3

82

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Sub-problems in Incremental Routing

Single Net Routing

No change of existing routes

Rip-up and Reroute

Change some existing routes but no change of

placement/floorplan

Incremental Floorplan and Placement Update

Invoke when Rip-up & re-route fails

Increasing flexibility Increasing runtime

SLIDE 42

42

83

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Incremental Floorplan and Placement Update

Problem Formulation

When rip-up and re-route fails, determine how to complete the

design with minimum changes of the floorplan and/or placement

Need efficient heuristics to decide what routing regions

to enlarge

May apply compaction/de-compaction techniques Earlier discussions on incremental floorplan and

placement also apply

84

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Conclusions

Design iteration is unavoidable Incremental PD is an important enabling technology to

allow design convergence

Trade-off of efficiency, preservability, and design quality

is the key issue in incremental designs

Much work is needed in this area Need to start thinking about “Design for Incremental

Changes” (DFI)

SLIDE 43

43

85

Jason Cong Majid Sarrafzadeh ISPD 2000: April 10-12

C

Acknowledgements

NSF, DARPA, and Fujitsu Laboratories Jie Fang and Kei-Yong Khoo from UCLA Kiarash Barzagan, Maogang Wang, and Xiaojian Yang
