SLIDE 1

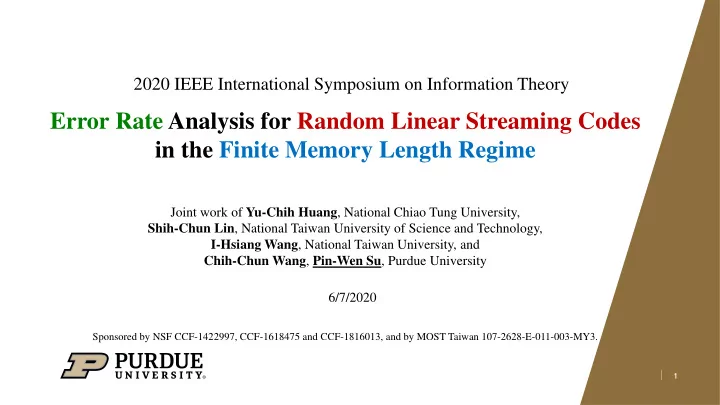

Error Rate Analysis for Random Linear Streaming Codes in the Finite Memory Length Regime
Sponsored by NSF CCF-1422997, CCF-1618475 and CCF-1816013, and by MOST Taiwan 107-2628-E-011-003-MY3.
in the Finite Memory Length Regime Joint work of Yu-Chih Huang , - - PowerPoint PPT Presentation
in the Finite Memory Length Regime Joint work of Yu-Chih Huang , - - PowerPoint PPT Presentation
2020 IEEE International Symposium on Information Theory Error Rate Analysis for Random Linear Streaming Codes in the Finite Memory Length Regime Joint work of Yu-Chih Huang , National Chiao Tung University, Shih-Chun Lin , National Taiwan
SLIDE 2
SLIDE 3
5G Communication Systems
IMT-2020
Enhanced mobile broadband (eMBB) Massive machine type communications (mMTC) Ultra-reliable and low latency communications (URLLC)
Low Latency Requirements
End-to-end delay ≤ 1 ms Streaming codes may be a possible solution.
The figure is copied from International Telecommunication Union, “Setting the Scene for 5G: Opportunities and Challenges.” (2018). https://www.itu.int/dms_pub/itu-d/opb/pref/D-PREF-BB.5G_01-2018-PDF-E.pdf
SLIDE 4
Streaming Codes
Very small queueing delay: Good for URLLC & mMTC Streaming Codes: Align the convolutional code structure with the actual transmission/encoding schedule. There are other definitions of Streaming Codes, but we use this basic definition. What we are interested: Error Rate of Streaming Codes with a given finite memory length.
SLIDE 5
Existing Results for Streaming Codes
Adversarial Channel Model: Optimal streaming code rate and code construction given a deterministic set of possible channel error patterns
Burst Channel Model [Martinian and Sundberg 2004] [Khisti and Singh 2009] Burst and Arbitrary Erasure Channel Model [Fong et al. 2019] [Krishnan et al. 2018] [Badr et al. 2017] Variable-Size Arrivals [Rudow and Rashmi 2018]
Stochastic Channel Model: Error exponent analysis and finite-memory code construction [Draper and Khisti 2011]
Draper and Khisti 2011 Our Work Deadline Constraint (Δ) Finite Infinite Memory Length (𝛽) 𝛽 ≥ Δ Arbitrary Error Probability Error Exponent Analysis Exact Error Rate Analysis
SLIDE 6
Exponentially tight is not tight enough. Draper et al. 2011; Viterbi 1967 Our Work Exponential Asymptotic analysis, in addition to exact error rate analysis
Error Exponent Analysis for Convolutional-based Codes
Continue from previous slide
Draper and Khisti 2011 Our Work Deadline Constraint (Δ) Finite Infinite Memory Length (𝛽) 𝛽 ≥ Δ Arbitrary Error Probability Error Exponent Analysis Exact Error Rate Analysis
SLIDE 7
Outline
Motivation and Related Work System Model Main Contributions
Information-Debt Under Finite Memory Exact Error Rate Analysis A Provably-Tight Closed-Form Error Rate Approximation
Numerical Verification and Conclusion
SLIDE 8
Slotted Coding System
In every time slot 𝑢 ≥ 1, Encoder:
Receives 𝐿 packets: 𝑡𝑙(𝑢) in GF(2𝑟). Stores 𝛽𝐿 packets in the previous 𝛽 slots 𝛽 is the memory length. Encodes (𝛽 + 1)𝐿 packets and outputs 𝑂 coded packets: Linear encoder: Define 𝐇𝑢 as the 𝑂-by- (min 𝛽 + 1, 𝑢 𝐿) generator matrix, we have Random linear streaming codes (RLSCs): each entry of 𝐇𝑢 is chosen uniformly randomly from GF(2𝑟), excluding 0. Cumulative generator matrix:
𝛽 = 2:
SLIDE 9
Comparison to [Martinian 2004] Coding System
Our work: Finite memory Martinian setting: Infinite memory
𝛽 = 2
finite 𝛽 𝛽 = ∞
SLIDE 10
Slotted Coding System
In every time slot 𝑢 ≥ 1, Packet Erasure Channel:
Only a random subset of 𝑂 coded packets, denoted by , will arrive at the decoder perfectly. is i.i.d. across 𝑢. Define is the probability of receiving 𝑗 packets successfully.
𝛽 = 2:
SLIDE 11
Slotted Coding System
In every time slot 𝑢 ≥ 1, Packet Erasure Channel:
Only a random subset of 𝑂 coded packets, denoted by , will arrive at the decoder perfectly. is i.i.d. across 𝑢. Define is the probability of receiving 𝑗 packets successfully.
Received Signal:
The received packets: Denote 𝐈𝑢 the projection of 𝐇𝑢 onto the random set Cumulative receiver matrix:
𝛽 = 2:
SLIDE 12
Slotted Coding System
Objective: Given any finite 𝑂, 𝐿, 𝛽 and 𝑄𝑗 ,
Definition 1. The vector 𝐭(𝑢) is decodable by time 𝑢 + Δ if all 𝑡𝑙 𝑢 ∶ 𝑙 ∈ 1, 𝐿 are decodable by time 𝑢 + Δ.
Random matrix depends on channel realization
With optimal decoder on the received 𝐳1
𝑢+Δ, we
aim to solve the following: Average Error Rate Infinite Deadline Slot Error Rate
SLIDE 13
Technical Assumptions
Less-than-Capacity (LC) condition: Assume Each slot: Generalized MDS Condition:
𝐇(𝑢): as full rank as possible (details in the paper) MDS holds when 𝑟 → ∞ See Schwartz-Zippel Theorem in [Ho et al. 2006, Theorems 3 and 4] Avoid corner cases in the analysis
Encoder Channel
𝐿 pkts 𝑂 pkts 𝐷𝑢 pkts
SLIDE 14
Outline
Motivation and Related Work System Model Main Contributions
Information-Debt Under Finite Memory Exact Error Rate Analysis A Provably-Tight Closed-Form Error Rate Approximation
Numerical Verification and Conclusion
SLIDE 15
Information-Debt Under Infinite Memory
Mutual information debt under infinite memory 𝛽 = ∞ [Martinian 2004]
- Definition. Initialize . For any
, we iteratively compute Debt is Nonnegative
SLIDE 16
Information-Debt Under Infinite Memory
Mutual information debt under infinite memory 𝛽 = ∞ [Martinian 2004]
- Definition. Initialize . For any
, we iteratively compute Observation: wherever 𝐽𝑒(𝑢) hits 0, we can decode 𝐭(𝑢) backwards.
3 1
𝐿 < 𝐷𝑢: decrease 𝐿 > 𝐷𝑢: increase
2 7 3 3
SLIDE 17
Information-Debt Under Infinite Memory
Mutual information debt under infinite memory 𝛽 = ∞ [Martinian 2004]
- Definition. Initialize . For any
, we iteratively compute Observation: wherever 𝐽𝑒(𝑢) hits 0, we can decode 𝐭(𝑢) backwards.
Q: What if 𝐈(𝑢+Δ) is NOT full triangular? E.g. a 4-by-4 matrix which is not full rank
SLIDE 18
Information-Debt Under Finite Memory
New information debt definition under finite memory 𝛽 < ∞ Definition 2. Define a constant and initialize _ . For any , we iteratively compute ∵ Memory length 𝛽 ∴ Maximum allowable debt one can carry forward is at most 𝛽𝐿 Absolute “ceiling” Bankruptcy
𝛽𝐿
Maximum Allowable Debt Bankruptcy
SLIDE 19
Define , , and as the 𝑗-th time that 𝐽𝑒 𝑢 hits 0 and , respectively.
Decodability Events
Proposition 1. For any fixed 𝑗0 ≥ 0, a) No 𝜐𝑘 ∈ 𝑢𝑗0, 𝑢𝑗0+1 , then 𝐭(𝑢) is decodable by time 𝑢𝑗0+1 for all 𝑢 ∈ (𝑢𝑗0, 𝑢𝑗0+1]. b) Exists 𝜐𝑘 ∈ 𝑢𝑗0, 𝑢𝑗0+1 , define 𝜐𝑘∗ the one with the largest 𝑘. Then 𝐭(𝑢) is decodable by time 𝑢𝑗0+1 for all 𝑢 ∈ (𝜐𝑘∗− 𝛽, 𝑢𝑗0+1].
- Decodable
- 𝛽 − 1
- 𝐿 = 1, 𝛽 = 3
- Decodable
SLIDE 20
Define , , and as the 𝑗-th time that 𝐽𝑒 𝑢 hits 0 and , respectively.
Error Events
Proposition 2. None of 𝐭 𝑢 : 𝑢 ∈ (𝑢𝑗0, 𝜐𝑘∗− 𝛽] is decodable by time 𝜐𝑘∗− 𝛽 + Δ, regardless how large we set the deadline Δ.
- Decodable
- 𝛽 − 1
- 𝐿 = 1, 𝛽 = 3
- Decodable
x x x x x x x x Error
SLIDE 21
Define , , and as the 𝑗-th time that 𝐽𝑒 𝑢 hits 0 and , respectively.
Intuition Behind
- Decodable
- 𝛽 − 1
- 𝐿 = 1, 𝛽 = 3
- Decodable
x x x x x x x x Error
Enough linear equations Start decoding from 𝐭(𝑢𝑗0+1), 𝐭(𝑢𝑗0+1 − 1), ⋯, in a backward fashion
SLIDE 22
Define , , and as the 𝑗-th time that 𝐽𝑒 𝑢 hits 0 and , respectively.
Intuition Behind
- Decodable
- 𝛽 − 1
- 𝐿 = 1, 𝛽 = 3
- Decodable
x x x x x x x x Error
Coupling between 𝐭 𝑢 : 𝑢 ≤ 𝜐𝑘∗− 𝛽 and 𝐭 𝑢 : 𝑢 > 𝜐𝑘∗− 𝛽 is severed once 𝐽𝑒(𝑢) hits (bankruptcy)
SLIDE 23
Exact Error Rate Analysis
𝐷𝑢 is i.i.d. ⟹ 𝐽𝑒 𝑢 is a renewal Markov process. The state space: . Lemma 2. Assuming the LC and MDS conditions, we have for any fixed 𝑗0, where is the indicator function.
𝐽𝑒 𝑢 from state-0 to state-0 Stopping Time Not Stopping Time More involved analysis
With 𝐽𝑒(𝑢) being renewal Markov process, the long term average error rate can be computed by
Information debt:
SLIDE 24
Exact Error Rate Analysis
Denote the transition matrix where . The formulas 𝑔
1 Γ , 𝑔 2 Γ and 𝑔 3 Γ can be found in the paper.
Complexity may be too high for large 𝛽 and 𝐿
Information debt:
Proposition 3. Assume the LC and MDS conditions. The error rate 𝑞𝑓 in Lemma 2 equals where 𝑔
1 ∙ , 𝑔 2 ∙ and 𝑔 3 ∙ are matrix-based functions involving multiplication, summation, and
inversion, with the complexity 𝑃 𝛽𝐿 3 where the dimension of Γ is 𝛽𝐿 + 2 -by- 𝛽𝐿 + 2 .
SLIDE 25
Observation 1: Γ is almost Toeplitz Matrix Observation 2: The three functions 𝑔
1 Γ , 𝑔 2 Γ
and 𝑔
3 Γ can be solved by Difference Equation
Provably-Tight Closed-Form Error Rate Approximation
Goal: Derive an approximation formula of the form 𝐶1, 𝐶2 and 𝐶3 depend only on 𝐿, 𝑂, and 𝑄𝑗 , not on 𝛽.
Example:
Recall Γ is the transition matrix Since the transition probability depends on 𝐿 − 𝐷𝑢, Γ is near-Toeplitz. Here is an example. Information debt:
SLIDE 26
Observation 1: Γ is almost Toeplitz Matrix Observation 2: The three functions 𝑔
1 Γ , 𝑔 2 Γ
and 𝑔
3 Γ can be solved by Difference Equation
Provably-Tight Closed-Form Error Rate Approximation
Goal: Derive an approximation formula of the form 𝐶1, 𝐶2 and 𝐶3 depend only on 𝐿, 𝑂, and 𝑄𝑗 , not on 𝛽.
Example:
Recall Γ is the transition matrix Since the transition probability depends on 𝐿 − 𝐷𝑢, Γ is near-Toeplitz. Here is an example. Information debt:
Boundary Conditions
SLIDE 27
Observation 1: Γ is almost Toeplitz Matrix Observation 2: The three functions 𝑔
1 Γ , 𝑔 2 Γ
and 𝑔
3 Γ can be solved by Difference Equation
The closed-form expressions for 𝐶1 and 𝐶3 are in the paper. 𝐶2 expression is in our journal version under preparation.
Provably-Tight Closed-Form Error Rate Approximation
Goal: Derive an approximation formula of the form 𝐶1, 𝐶2 and 𝐶3 depend only on 𝐿, 𝑂, and 𝑄𝑗 , not on 𝛽.
Example:
Recall Γ is the transition matrix Since the transition probability depends on 𝐿 − 𝐷𝑢, Γ is near-Toeplitz. Here is an example. Information debt:
SLIDE 28
Outline
Motivation and Related Work System Model Main Contributions
Information-Debt Under Finite Memory Exact Error Rate Analysis A Provably-Tight Closed-Form Error Rate Approximation
Numerical Verification and Conclusion
SLIDE 29
Numerical Verification
Let 𝐿 = 2, 𝑂 = 5 𝐷𝑢 : binomial distribution with 𝑞 =
𝐿 𝑂 + 0.01 = 0.41
⟹ 𝑄𝑗 =
5 𝑗 𝑞𝑗 1 − 𝑞 5−𝑗
By our formulas in the paper, Monte Carlo Simulation: ground truth Exact: Approximation 1: Approximation 2:
SLIDE 30
Numerical Verification
Let 𝐿 = 2, 𝑂 = 5 𝐷𝑢 : binomial distribution with 𝑞 =
𝐿 𝑂 + 0.05 = 0.45
⟹ 𝑄𝑗 =
5 𝑗 𝑞𝑗 1 − 𝑞 5−𝑗
By our formulas in the paper, Monte Carlo Simulation: ground truth Exact: Approximation 1: Approximation 2:
SLIDE 31
Conclusion
New information debt definition to describe the decodability events of RLSCs with finite memory length. Transition-Matrix-based procedure that computes the exact error rate Closed-form approximation of the error rate that is provably tight for large memory lengths
SLIDE 32
Questions are welcome. Pin-Wen Su su173@purdue.edu
SLIDE 33
References I
[1] H. Ji, S. Park, J. Yeo, Y. Kim, J. Lee, and B. Shim, “Ultra-reliable and low-latency communications in 5G downlink: Physical layer aspects,” IEEE Wireless Communications, vol. 25, no. 3, pp. 124–130, Jun. 2018. [2] A. Viterbi, “Error bounds for convolutional codes and an asymptotically optimum decoding algorithm,” IEEE Transactions
- n Information Theory, vol. 13, no. 2, pp. 260–269, Apr. 1967.
[3] R. G. Gallager, Information Theory and Reliable Communication. Springer, 1968, vol. 2. [4] N. Merhav, “List decoding—random coding exponents and expurgated exponents,” IEEE Transactions on Information Theory, vol. 60, no. 11, pp. 6749–6759, Nov. 2014. [5] P. S. Rybin and F. I. Ivanov, “On estimation of the error exponent for finite length regular graph-based ldpc codes,” Journal
- f Communications Technology and Electronics, vol. 63, no. 12, pp. 1518–1523, 2018.
[6] Y. Polyanskiy, H. V. Poor, and S. Verdu, “Channel coding rate in the finite blocklength regime,” IEEE Transactions on Information Theory, vol. 56, no. 5, pp. 2307–2359, May 2010. [7] E. Martinian, “Dynamic information and constraints in source and channel coding,” Ph.D. dissertation, Massachusetts Institute of Technology, 2004. [8] E. Martinian and C.-E. W. Sundberg, “Burst erasure correction codes with low decoding delay,” IEEE Transactions on Information Theory, vol. 50, no. 10, pp. 2494–2502, Oct. 2004. [9] A. Khisti and J. P. Singh, “On multicasting with streaming burst-erasure codes,” in 2009 IEEE International Symposium on Information Theory, Jun. 2009, pp. 2887–2891. [10] A. Badr, A. Khisti, and E. Martinian, “Diversity embedded streaming erasure codes (DE-SCo): Constructions and
- ptimality,” IEEE Journal on Selected Areas in Communications, vol. 29, no. 5, pp. 1042–1054, May 2011.
SLIDE 34
References II
[11] A. Badr, A. Khisti, W. Tan, and J. Apostolopoulos, “Streaming codes with partial recovery over channels with burst and isolated erasures,” IEEE Journal of Selected Topics in Signal Processing, vol. 9, no. 3, pp. 501–516, Apr. 2015. [12] A. Badr, P. Patil, A. Khisti, W. Tan, and J. Apostolopoulos, “Layered constructions for low-delay streaming codes,” IEEE Transactions on Information Theory, vol. 63, no. 1, pp. 111–141, Jan. 2017. [13] M. Rudow and K. V. Rashmi, “Streaming codes for variable-size arrivals,” in 2018 56th Annual Allerton Conference on Communication, Control, and Computing (Allerton), Oct. 2018, pp. 733–740. [14] M. N. Krishnan and P. V. Kumar, “Rate-optimal streaming codes for channels with burst and isolated erasures,” in 2018 IEEE International Symposium on Information Theory (ISIT), Jun. 2018, pp. 1809–1813. [15] S. L. Fong, A. Khisti, B. Li, W. Tan, X. Zhu, and J. Apostolopoulos, “Optimal streaming codes for channels with burst and arbitrary erasures,” IEEE Transactions on Information Theory, vol. 65, no. 7, pp. 4274–4292, Jul. 2019. [16] S. C. Draper and A. Khisti, “Truncated tree codes for streaming data: Infinite-memory reliability using finite memory,” in 2011 8th International Symposium on Wireless Communication Systems, Nov. 2011, pp. 136–140. [17] T. Ho, M. Medard, R. Koetter, D. R. Karger, M. Effros, J. Shi, and B. Leong, “A random linear network coding approach to multicast,” IEEE Transactions on Information Theory, vol. 52, no. 10, pp. 4413–4430, Oct. 2006. [18] R. Durrett, Essentials of Stochastic Processes. Springer, 1999.
