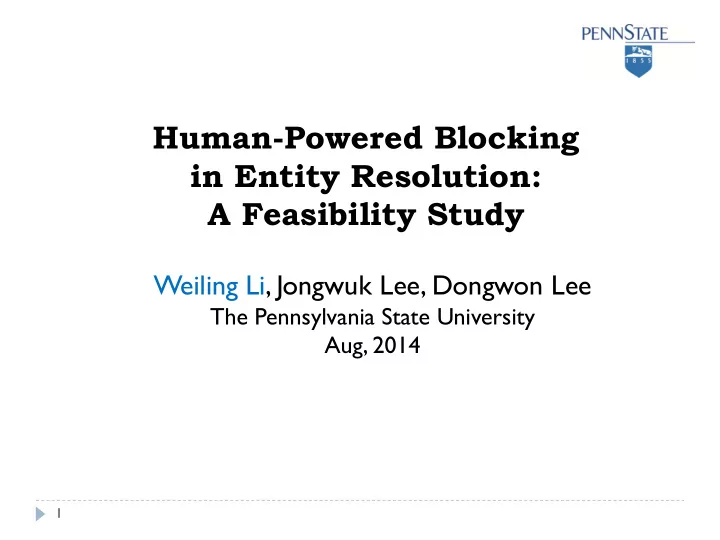

SLIDE 1
Human-Powered Blocking in Entity Resolution: A Feasibility Study
1
A Motivating Example
Matching: the same sport type in an image data set. Entity Resolution (ER) Challenging!
2
in Entity Resolution: A Feasibility Study Weiling Li, Jongwuk Lee, - - PowerPoint PPT Presentation
in Entity Resolution: A Feasibility Study Weiling Li, Jongwuk Lee, - - PowerPoint PPT Presentation
Human-Powered Blocking in Entity Resolution: A Feasibility Study Weiling Li, Jongwuk Lee, Dongwon Lee The Pennsylvania State University Aug, 2014 1 A Motivating Example Matching : the same sport type in an image data set. Entity
SLIDE 2
SLIDE 3
Machine Based ER Techniques
Similarity Based
Might not get an accurate result (e.g., an image data set).
Learning Based
Need a good training set to train the classifier.
3
SLIDE 4
Crowdsourced ER
Human workers are assigned tasks referred to the
Human Intelligence Tasks (HITs).
Example: Naïve Approach:
The # of HITs for ER on n records would be .
) (
2
n O
4
SLIDE 5
Crowdsourced ER
Blocking:
Group records that are more likely to match into the same
“block”. Run pair-wise comparisons only within blocks.
The # of HITs would be reduced to , where k is the
number of blocks and b is the average number of records in a block.
5
) (
2
kb n O
SLIDE 6
Workflow
…
…
Two variations of human-powered blocking:
An extension of the crowd-median method for blocking [1] A hierarchical blocking method Data Set Human- powered Blocking Block 1 Block 2 Block N Human-powered Pair-wise matching Human-powered Pair-wise matching Human-powered Pair-wise matching Matching Pairs
6
SLIDE 7
Human-powered Operations
hp_match(r, r’) hp_most_similar(rt, C)
7
SLIDE 8
Human-powered Components
FindCentroids
Given a data set D, the workers choose K centroids. Use hp_match(r, r’)
Assign
Given a data set D, and the set of centroids C, the workers
assign each record r to one block whose centroid Ci is most similar to r.
Use hp_most_similar(rt, C)
PairwiseMatch
Given a data set D, the workers make decisions on whether
pairs are matched.
Use hp_match(r, r’)
8
SLIDE 9
Human-powered Median-based Blocking
Human-powered UpdateCentroids [1]: Identify a centroid of a
data set
finding the “outlier” in a set of three records (i.e., triplet). block centroid: the least selected one. Sampling of the triplets: L=1, H=5
Crowdsourced k-means clustering: Assign, and
UpdateCentroids.
9
SLIDE 10
Human-powered Hierarchical Blocking
build a K-ary tree of blocks in a top-down fashion Split: FindCentroids and Assign. Example：
10
SLIDE 11
11
SLIDE 12
Stopping criterion:
|block| ≤ the pre-defined block size threshold S The number of HITs due to further blocking (HITb) exceeds
that from direct matching (HITd).
Stringent condition: minHITb ≥ HITd
To improve the overall accuracy, the algorithm runs
multiple iterations.
12
SLIDE 13
Experimental Setting
We employ two different HIT designs:
binary HIT: processes two records at a time. n-ary HIT: all centroids can be displayed to the workers at
- nce.
Table: # of HITs for each component:
13
Human-Powered Component Binary HIT N-ary HIT FindCentroids ≥1 + 2 + … + (K-1) = K*(K-1)/2 ≥ K-1 Assign (|D|-K)*(K-1) (|D|-K)* 1= |D| - K
SLIDE 14
Evaluation on Synthesis Data
Synthesis data
1000 points.
Ground truth: Euclidean distance d(p, q) ≤ a
distance threshold T (=1.41), points p and q are matched.
Parameter setting: S=100, K=5.
14
SLIDE 15
Results on Synthesis Data: F1
15
SLIDE 16
Results on Synthesis Data: cost
16
SLIDE 17
Evaluation on Real-life Data
Image data
100 images from ImageNet[2]. Ground truth: If two images share the same
parent node in the hierarchy, they are matched.
Parameter setting: S=15, K=4. Paid $0.01/question to crowd works on Amazon
Mechanical Turk (AMT)
Majority voting
Optimization of HIT assignments 17
SLIDE 18
Image Data
This data set has 585 pairs of matching records in eight leaf
nodes.
18
SLIDE 19
Results on Image Data: F1
19
SLIDE 20
Results on Image Data: cost
20
SLIDE 21
Conclusions
Feasibility study for human-powered blocking
Relatively High accuracy Much Lower cost compared to the naïve approach
21
SLIDE 22
References
[1] H. Heikinheimo and A. Ukkonen. The crowd-median
- algorithm. In First AAAI Conference on Human Computation
and Crowdsourcing, 2013.
[2] http://www.image-net.org/ Dataset URLs: http://pike.psu.edu/download/crowdsens14/1k http://pike.psu.edu/download/crowdsens14/100imgs
22
SLIDE 23
Questions?
23
