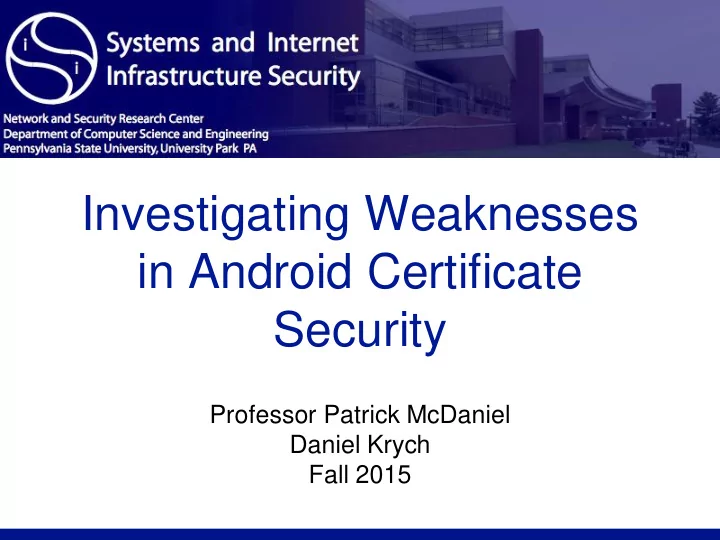

Investigating Weaknesses in Android Certificate Security

Professor Patrick McDaniel Daniel Krych Fall 2015

Page

Devin’s App dek5156@cse.psu.edu

2

Investigating Android Certificate Security

Devin Mallory

Google Play Store

Devin’s App CERT. Devin’s App CERT. CERT.

Page

Introduction

• We tested the Google Play Store for certificate

vulnerabilities

• Sufficient randomness/entropy needed to generate

sufficiently secure key pairs

• Android app developers are not cryptographers!
• Lack of entropy  Calculable keys

 Takeover applications

dek5156@cse.psu.edu

3

Investigating Android Certificate Security

Page

Our Motivation

• Private keys using RSA/DSA have been recently

computed for a large number of TLS and SSH hosts

• Quasilinear Greatest Common Divisor Finding

Algorithm

• Each private key is generated with two very large,

random prime numbers

• If two different keys share 1 prime number

 Keys can be calculated by finding the GCD

dek5156@cse.psu.edu

4

Investigating Android Certificate Security

Page

RSA Encryption

• RSA public keys have two components:
• Exponent e - can be shared openly
• Modulus N - can be shared openly
• N = p*q where p and q are randomly chosen primes
• z = φ(N) = (p-1)*(q-1) in the case of primes
• 1 < k < z, where k is prime and a co-prime to z
• ( k*j )mod z = 1
• kU = public key = (k, N)
• kR = private key = (j, N)

5

Encrypt: Pk = EmodN Decrypt: Ej = PmodN * P is the plain message E is encrypted message

Page

dek5156@cse.psu.edu

6

Investigating Android Certificate Security

App 2

CER T.

App 1

CER T.

Public Modulus 1 Public Modulus 2

+

GCD

B

N1 / B = A N2 / B = C

B A

Public Modulus N1 × Secret

C B

Public Modulus N2 × Secret

Page

Euclid’s GCD Factoring RSA Example

• Consider the private key pairs:
• p1 = 3, q1 = 11 

N1 = p1q1 = 33

• p2 = 3, q2 = 17 

N2 = p2q2 = 51

• Find GCD (N1, N2)  GCD (33, 51) = 3 *common prime
• Now we can determine the other prime factor
• N1 / 3 = 11 = q1
• N2 / 3 = 17 = q2
• Now sign and falsify desired certificate with respective key

pair!

• This method could find the GCD of two 1024-bit RSA moduli in

15 μs, but this would take roughly 30 years with their data set 7

Page

Quasilinear GCD Finding Algorithm[1]

8

• GCD Quasilinear

Finding Algorithm based

• ff of D.J. Bernstein[4]

and the Euclidian Algorithm

• If one prime factor is

shared (p or q) between two moduli, public keys appear distinct, but private keys are computable by finding the GCD of the two moduli

Page

RSA/DSA Encryption

• Encryption requires sufficient

randomness

• Lack of randomness = weak keys
• Encryption would then be broken

dek5156@cse.psu.edu

9

Investigating Android Certificate Security

Page

Our Dataset

• 571,431 Android applications
• 551,553 use RSA
• 19,878 use DSA
• Dataset compiled in 2013
• 60% of the applications available on the market in

2013

dek5156@cse.psu.edu

10

Investigating Android Certificate Security

Page

Methodology: RSA Certificates

• Quasilinear-time GCD finding algorithm
• Openssl used to extract moduli from certificates
• Moduli sorted according to bit-size
• 99.8% of certificates signed with keys using 1024-bit or

2048-bit encryption

dek5156@cse.psu.edu

11

Investigating Android Certificate Security

Page

Methodology: DSA Certificates

• DSA signature also consists of two large, random

prime numbers

• Similar to RSA
• A Quick Investigation:
• If different DSA signatures share either an r or

s value, the shared values lead to a calculable private key.

dek5156@cse.psu.edu

12

Investigating Android Certificate Security

Page

Python OpenSSL Parsing Scripts

13

• Our scripts’ moduli pull
• openssl pkcs7 –print_certs

certificate information

Page

dek5156@cse.psu.edu

14

Page

RSA Certificates

Bit-Size Moduli Count Unique Moduli

512-bit 4 75.00% 1024-bit 348484 33.90% 2048-bit 202042 34.28% 4096-bit 826 34.14% 8192-bit 52 34.62% 16384-bit 2 50.00% Other 142 38.73%

dek5156@cse.psu.edu

15

Investigating Android Certificate Security

Page

Methodology: Certificate Reuse

• Every certificate with a matching modulus was

identical

• all APKs had different md5sums
• Some apps had multiple versions in dataset
• Top certificate found 4,515 times
• Belonged to an app creating website – no coding

required

• How much reuse?

dek5156@cse.psu.edu

16

Investigating Android Certificate Security

Page

Methodology: Certificate Reuse

Page

Results

RSA

• No vulnerabilities found using the Quasilinear GCD

Alg.

• The entropy pool contains enough randomness and

the keys are unbiased - no shared primes

• 34% RSA certificate uniqueness

DSA

• No keys were found to be weak - no shared primes
• 30% DSA certificate uniqueness

dek5156@cse.psu.edu

18

Investigating Android Certificate Security

Page

Results: Certificate Reuse

• Trust relationship between applications sharing a certificate and

userid

• Can access eachother’s data and run in same process
• Roughly 1/3 of Certificates were unique!
• App creating sites using a few certificates for thousands of

customers

• Top 3 RSA certificates account for 11,438 different APKs
• Using virustotal.com determined the malicious rating of these

applications through the use of multiple antiviruses.

• 71% of these 11,438 APKs had been analyzed by them

dek5156@cse.psu.edu

19

Investigating Android Certificate Security

Page

Results: Certificate Reuse

• 451 APKs were marked as malicious by 2
• r more antivirus softwares (~4%)
• Most frequent modulus accounted for 1
• Second most frequent modulus

accounted for the other 450 APKs

• Highest malicious score seen was

11/52

• Antivirus TrendMicro-HouseCall detected

several variants of the TROJ_GEN.F47V0

• Antivirus VIPRE detected the

Trojan.AndroidOS.Generic.A and Adware.AndroidOS.RevMob.a

dek5156@cse.psu.edu

20

Investigating Android Certificate Security

Page

Discussion

• Heninger et al. found weaknesses from the generation of

keys on headless or embedded devices, which were unable to generate enough entropy

• When did 2048-bit became more prevalent than 1024-bit

for encryption?

• Sep-2012 - tipping point from 1024-bit to 2048-bit moduli

dek5156@cse.psu.edu

21

Investigating Android Certificate Security

Page

Discussion

dek5156@cse.psu.edu

22

Investigating Android Certificate Security

Page

Takeaway

• Sufficient entropy exists when generating keys used for Android apps
• Certificates commonly reused across applications – and sometimes

developers

• RSA certificates – 34% uniqueness
• DSA certificates – 30% uniqueness
• The top 3 most seen certificates were present in 451

applications that were marked as malicious by virustotal.com

• Trust relationships exist between these applications
• If the userid can be mimicked - access eachother’s data

and run in same process

• Half of the security is thus broken
• The Android market is now primarily using 2048-bit encryption

dek5156@cse.psu.edu

23

Investigating Android Certificate Security
