Improvement of Log Pattern Extracting Algorithm Using Text Similarity ZHAO Yining Computer Network Information Center, Chinese Academy of Sciences in HPBDC18, 2018/05/21 Content v CNGrid & LARGE v Why Log Patterns & Extracting

SLIDE 1

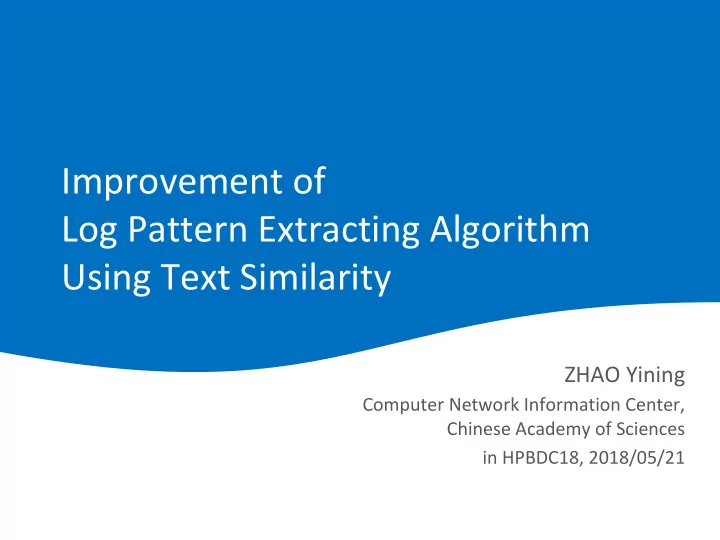

Improvement of Log Pattern Extracting Algorithm Using Text Similarity

ZHAO Yining

Computer Network Information Center, Chinese Academy of Sciences in HPBDC18, 2018/05/21

SLIDE 2

Content

v CNGrid & LARGE v Why Log Patterns & Extracting Algorithm v Algorithm of Identical Word Rate v Text Similarity Based Approach

Ø Improved Extracting Formation & LCS Ø Experiment Result

v Modified Log Comparing Model v Summary & Future Work

SLIDE 3

CNGrid & LARGE

v China National HPC Environment

2 Operating Centers

( Beijing / Hefei )

19 Sites

( 200PF + 162PB ) Portal with Micro-Service Architecture Application oriented Global Scheduling & Predicting Resource Evaluation Standard & Comprehensive Evaluation Index

SLIDE 4

CNGrid & LARGE

v Log Analyzing fRamework in Grid Environment

SLIDE 5

Log Patterns & Extracting Algorithm

v We want to be alerted for logs in certain patterns, but…

Ø too many logs for human to read Ø need to summarize patterns before defining alert rules

v Set of log patterns in our context:

Ø patterns are different from each other Ø covering all logs in original set Ø significantly less than original

v The process of using log patterns

Ø filter and remove frequent normal logs Ø use log pattern extraction algorithms to get the set of patterns Ø manually check the set and pick out abnormal patterns Ø define rules to generate alerts for these patterns

SLIDE 6

Algorithm of Identical Word Rate

v Algorithm of identical word rate – a straight forward way

Ø identical words

2 words that are identical
and in the same position in 2 original logs

Ø identical word rate

(number of identical words) / (total words)
predefined threshold t
If IWR is greater than t, the two logs are in one pattern

v Process of algorithm of IWR

Ø set threshold t and initial empty pattern set P Ø for each new incoming logs, compute IWR with each pattern in P Ø if pattern matched, skip to next; if none matched, add to P

v Significant Limitation

Ø Logs with different length has IWR of ZERO!

SLIDE 7

Text Similarity Based Approach (1)

v Using Text Similarity to resolve the problem

Ø S = P x O Ø S: similarity, P: propotion of common words, O: order factor

v Two logs l1 and l2, L1 and L2 are word sets respectively

Ø define P: P(l1, l2) = ( |L1 ∩ L2| × 2) / ( |L1| + |L2| ) Ø define O: O(l1, l2) = SeqSim(l1, l2) / |L1 ∩ L2| Ø hence S: S(l1, l2) = (SeqSim(l1, l2) × 2) / (|L1| + |L2|)

v By this, logs in different lengths can be compared

SLIDE 8

Text Similarity Based Approach (2)

v Using Longest Common Subsequence to define SeqSim(l1,l2)

Ø S(l1, l2) = ( |LCS(l1, l2)| × 2) / ( |L1| + |L2| ) Ø Same pattern if S(l1, l2) ≥ t, where t is the predefined threshold

v The process of improved log pattern extracting algorithm

Ø set the threshold value t. Set the initial log pattern set P to be an empty set Ø for a new log l appearing from the input log set L, compute Si(l, pi) between l and every pi ∈ P using a LCS algorithm Ø if there is no Si(l, pi) ≥ t, add l to P Ø after all logs in L have been checked, return P

v Increase time cost for single comparison

Ø but reduce total number of comparisons Ø can be offset by choosing a better LCS algorithm

SLIDE 9

Text Similarity Based Approach (3)

v Experiment result

Ø numbers of extracted patterns

SLIDE 10

Text Similarity Based Approach (3)

v Experiment result

Ø time costs of candidate algorithms (in milliseconds)

SLIDE 11

Modified Pattern Comparing Model (1)

v The original model is bad in time cost of searching patterns

Ø has to visit all patterns until the one is met

v Use hashmap to accelerate the matching

Ø divide pattern set into subsets by initial words Ø skip majority of patterns in irrelevant subsets

v Matching process :

1. get initial word of the log 2. hash the word 3. find desired subset in hashmap 4. compare with patterns in the subset

SLIDE 12

Modified Pattern Comparing Model (2)

v This approach cannot deal with patterns with unfixed initials

Ø build an unfixed pattern set

v In real system, we split pattern set in 4 parts:

Ø fixed alert pattern set Ø unfixed alert pattern set Ø fixed normal pattern set Ø unfixed normal pattern set

v When a new log comes, it is compared in the 4 sets in turn to decide processing methods

SLIDE 13

Modified Pattern Comparing Model (3)

v Real time cost comparison between original & modified models

200000 400000 600000 800000 1000000 1200000 1400000 1600000 1800000

riginal model

modified model

cron

millisecond

500000 1000000 1500000 2000000 2500000 3000000

riginal model

modified model

maillog

millisecond

100000 200000 300000 400000 500000 600000

riginal model

modified model

secure

millisecond

1000000 2000000 3000000 4000000 5000000 6000000 7000000 8000000 9000000 10000000

riginal model

modified model

messages

millisecond

SLIDE 14

Summary & Future Work

v Log patterns: used to build log recognition v Algorithm of IWR isn’t capable to match logs in different lengths v Using the idea of text similarity and LCS to improve the algorithm v Modify log comparing model to accelerate the process v Future work: log pattern based analyses in CNGrid
