Impact of Custom Interconnect Masks on Cost and Performance of Structured ASICs Final Doctoral Exam Usman Ahmed Department of Electrical and Computer Engineering April, 2011 Overview Motivation Research Problem Previous Work

slide-1
SLIDE 1

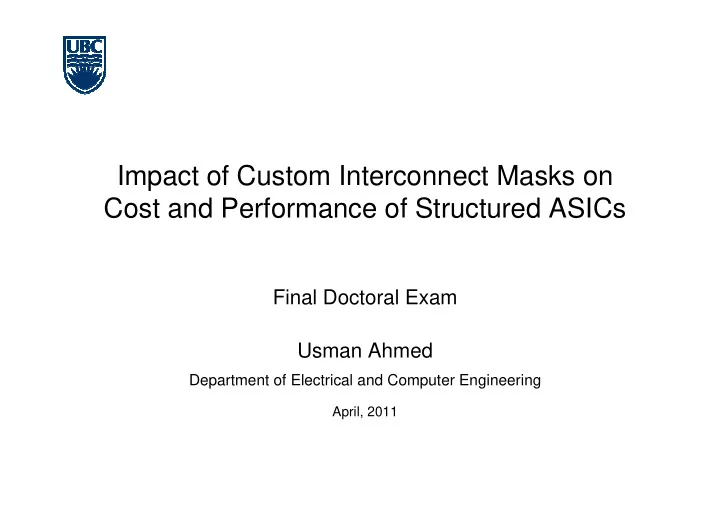

Impact of Custom Interconnect Masks on Cost and Performance of Structured ASICs

Final Doctoral Exam Usman Ahmed

Department of Electrical and Computer Engineering

April, 2011

slide-2
SLIDE 2

2

Overview

  • Motivation
  • Research Problem
  • Previous Work
  • Contributions

– Cost Model to Estimate Structured ASIC Die-cost – Structured ASIC Evaluation Framework – Area, delay, power, and die-cost trends for Structured ASICs

  • Limitations and Future work
slide-3
SLIDE 3

3

Motivation

IP Blocks (e.g., memories, multipliers, microprocessors) I/O Cores Logic Fabric

All mask layers are customized for a design

  • Most layers are prefabricated, shared by all designs

User design obtained by customizing only a few interconnect layers

  • All mask layers are prefabricated, shared by all designs

User design obtained by programming memory cells

  • Interconnect

Layers Transistor Layers

Crosssection

Masks are Used to Fabricate Each Layer

Masks are used to fabricate each layer

slide-4
SLIDE 4

4

Motivation

slide-5
SLIDE 5

5

Research Problem

How is the cost and performance of Structured ASICs affected by the number of custom masks?

slide-6
SLIDE 6

6

Types of Structured ASICs

  • Which masks need to be customized?

Interconnect Layers Transistors

Via Programmable (VPSA) Metal-and-via Programmable (MPSA)

slide-7
SLIDE 7

7

Types of Structured ASICs

slide-8
SLIDE 8

8

Previous Work

  • Academic Efforts

– Ran & Sadowska: VPSA logic and interconnect fabrics – Pillegi et al. and Koorapaty et al.: VPSA logic block – Kheterpal et al.: VPSA interconnect fabrics – Veredas et al.: MPSA (Zelix) – Nakamura et al.: VPSA (VPEX) – Chau et al.: VPSA logic block

  • Point solutions

– Logic block and routing fabrics with fixed configurability

slide-9
SLIDE 9

9

Previous Work

VPSA VPSA MPSA MPSA MPSA MPSA MPSA MPSA MPSA MPSA MPSA

  • Commercial Efforts

– Point Solutions – Mostly MPSAs – Wide range for configurability – Products with high configurability have been discontinued

slide-10
SLIDE 10

10

Contributions

  • 1. Cost Model to Estimate Die-cost of

Structured ASICs

  • 2. Structured ASIC Evaluation Framework
  • 3. Area, Delay, Power, and Die-cost Trends

for Structured ASICs

slide-11
SLIDE 11

11

Contributions

  • 1. Cost Model to Estimate Die-cost of

Structured ASICs

  • 2. Structured ASIC Evaluation Framework
  • 3. Area, Delay, Power, and Die-cost Trends

for Structured ASICs

slide-12
SLIDE 12

12

Structured ASIC Die-Cost

  • Primary cost components

– Die Area – Number of configurable layers (New for structured ASICs)

  • Metal layers used for routing
  • Configured by one or more via, or metal-and-via masks
  • Secondary cost components

– Die Yield – Mask-set and processing costs – Volume requirements

slide-13
SLIDE 13

13

Cost Model

  • Variables

– Die Area and Yield – Configurable layers

  • Constants

– Mask/wafer processing cost – Volume requirements – Architecture Related

slide-14
SLIDE 14

14

Cost Model

  • At constant cost, area can be traded for number
  • f customizable layers

MPSA

Core Area (mm

2)

Slope ≈ 15mm2/Layer

slide-15
SLIDE 15

15

Contributions

  • 1. Cost Model to Estimate Die-cost of

Structured ASICs

  • 2. Structured ASIC Evaluation Framework
  • 3. Area, Delay, Power, and Die-cost Trends

for Structured ASICs

slide-16
SLIDE 16

16

Structured ASIC Evaluation Framework

  • Architecture Modeling

– Logic Fabric – Interconnect Fabric

  • Metrics
  • CAD Flow
slide-17
SLIDE 17

17

Metrics

  • Cost

– Detailed cost model (just presented)

  • Area

– Chip Area

  • Delay

– Average net delay (Elmore model)

  • Power

– Total metal + via capacitance

slide-18
SLIDE 18

18

CAD Overview

Input Circuit

  • #Routing Layers

Routing Grid Resolution Routing Grid Capacity No Logic Fabric Architecture Logic Elements Physical Size Pin Locations

  • Area/Delay/Power/Cost Estimate
slide-19
SLIDE 19

19

Contributions

  • 1. Cost Model to Estimate Die-cost of

Structured ASICs

  • 2. Structured ASIC Evaluation Framework
  • 3. Area, Delay, Power, and Die-cost Trends

for Structured ASICs

slide-20
SLIDE 20

20

Performance and Cost Trends

  • MPSAs

– Two Benchmark Suites

  • Homogeneous (MCNC) Circuits
  • Heterogeneous (eASIC) Circuits

– Comparison to CBIC costs – Impact of Whitespace Insertion

  • VPSAs

– Fixed-metal Routing Fabrics – Impact of Logic Block Pin Positions – Power, Delay, Area, and Die-cost – Comparison to MPSAs

slide-21
SLIDE 21

21

Performance and Cost Trends

  • MPSAs

– Two Benchmark Suites

  • Homogeneous (MCNC) Circuits
  • Heterogeneous (eASIC) Circuits

– Comparison to CBIC costs – Impact of Whitespace Insertion

  • VPSAs

– Fixed-metal Routing Fabrics – Impact of Logic Block Pin Positions – Power, Delay, Area, and Die-cost – Comparison to MPSAs

slide-22
SLIDE 22

22

Trends for Heterogeneous Circuits

  • Device Architecture

– Logic Elements

  • eCell, eDff, BlockRAM, RegFile
  • Circuits

– Up to 1 Million logic blocks

  • Placement Enhancement

– Different logic elements

  • Layout Effort
  • Dense
  • Medium
  • Sparse

Block RAM Register File Register File

eASIC Group

slide-23
SLIDE 23
  • Area and Die-Cost

23

Trends for Heterogeneous Circuits

slide-24
SLIDE 24
  • Area and Die-Cost

24

Trends for Heterogeneous Circuits

slide-25
SLIDE 25
  • Area and Die-Cost

– Lowest cost obtained with 3 or 4 layers – More than 4 layers offer little advantage

25

Trends for Heterogeneous Circuits

slide-26
SLIDE 26

26

Performance and Cost Trends

  • MPSAs

– Two Benchmark Suites

  • Homogeneous (MCNC) Circuits
  • Heterogeneous (eASIC) Circuits

– Comparison to CBIC costs – Impact of Whitespace Insertion

  • VPSAs

– Fixed-metal Routing Fabrics – Impact of Logic Block Pin Positions – Power, Delay, Area, and Die-cost – Comparison to MPSAs

slide-27
SLIDE 27

27

Trends for VPSAs

  • Routing Fabrics (by Ran & Sadowska)

– Crossover – Jumper20, Jumper40 – SingleVia

  • Logic Blocks

– Logic Capacity

  • 2-in,1-out to 16-in,8-out

– Layout Effort

  • Dense
  • Medium
  • Sparse

n-1 custom via layers 1 custom via layer n fixed-metal layers

slide-28
SLIDE 28

28

VPSA Area and Die-cost Example

  • Logic Block

– Logic Capacity: 2-in, 1-out – Layout Effort: Medium

  • MPSAs: Small Area

VPSAs: Lower Cost

  • Gap between different VPSA

Fabrics

slide-29
SLIDE 29

29

VPSA Area and Die-cost Trends

MPSAs vs. VPSAs VPSAs

0 to 89%

0 to 36%

1 to 10x

VPSAs are up to 50% cheaper

  • Key Observations

0 to 85% 0 to 60% 1 to 3.5x 1 to 5x

slide-30
SLIDE 30

30

Contributions

  • 1. Cost Model to Estimate Die-cost of

Structured ASICs

  • 2. Structured ASIC Evaluation Framework
  • 3. Area, Delay, Power, and Die-cost Trends

for Structured ASICs

slide-31
SLIDE 31

31

Limitations

  • Uniform Whitespace Distribution
  • No Buffer Insertion
  • No Detailed Logic Block Architectures

– “Approximate” Technology Mapping – Delay and Power of Logic Blocks – Critical Path Delay

  • Logic Block Configuration Schemes
  • Overhead of Power and Clock Networks
slide-32
SLIDE 32

32

Future Work

  • Short term

– Congestion-driven Whitespace Insertion – Impact of Buffer Insertion – Efficient Algorithm for VPSA Detailed Routing – Timing and/or Power Aware CAD Flows – New Logic and Interconnect Fabrics

  • Long term

– Improved Manufacturability – Ease of Design

slide-33
SLIDE 33

33

Publications

  • Refereed Journal Publication
  • U. Ahmed, G. Lemieux, S. Wilton, “ Performance and Cost Tradeoffs in Metal-Programmable

Structured ASICs (MPSAs),” IEEE Transactions on VLSI Systems, 2010. Available Online: http://dx.doi.org/10.1109/TVLSI.2010.2076841

  • Refereed Conference Publications
  • U. Ahmed, G. Lemieux, S. Wilton, “Area, Delay, Power and Cost Trends for Metal-

Programmable Structured ASICs (MPSAs),” International Conference on Field-Programmable Technology (ICFPT’09), Dec. 2009.

  • U. Ahmed, G. Lemieux, S. Wilton, “The Impact of Interconnect Architecture on Via-

Programmed Structured ASICs (VPSAs),” International Symposium on Field-Programmable Gate Arrays (FPGA 2010), Feb. 2010.

  • In Preparation
  • U. Ahmed, G. Lemieux, S. Wilton, “Performance and Cost Tradeoffs in Via-Programmable

Structured ASICs (VPSAs),” to be submitted to IEEE Transactions on VLSI Systems.

slide-34
SLIDE 34

34

slide-35
SLIDE 35

35

Structured ASIC Vendor and User

Vendor designs and fabricates a portion of the device

  • User runs CAD tools to generate the

required data for the masks

  • Cannot make architectural decisions

Vendor prepares the necessary masks and fabricates the remaining portion of the device

slide-36
SLIDE 36

36

Cost Comparison

slide-37
SLIDE 37

37

Cost Model

slide-38
SLIDE 38

38

Cost Model

  • Cost of the masks for the base

(common portion) Cost of fabricating the base portion

+ +

slide-39
SLIDE 39

39

Cost Model

  • Cost of the masks for the base

(common portion) Cost of fabricating the base portion

+ +

Cost of the remaining masks Cost of fabricating the remaining portion

+ +

slide-40
SLIDE 40

40

Cost Model

  • Cost of the masks for the base

(common portion) Cost of fabricating the base portion

+ +

Cost of the remaining masks Cost of fabricating the remaining portion

+ +

Similar to Ccustom, but depends on the number of spins

slide-41
SLIDE 41

41

Cost Model

  • At constant cost, area can be traded for number
  • f customizable layers

MPSA VPSA

(Multiple Via Layers)

VPSA

(Single Via Layer)

Core Area (mm

2)

Slope ≈ 15mm2/Layer Slope ≈ 6mm2/Layer

slide-42
SLIDE 42

42

Logic Block Model

  • Characteristics of logic block

– Physical dimensions (in wire pitches) – Pin locations

  • Do not need low-level

layout details

slide-43
SLIDE 43

43

Parameterize Logic Block

  • Cover wide search space for logic blocks
  • Vary layout density

– Dense: Determined by # pins (small layout area) – Sparse: Determined by Standard Cell implementation

  • Vary logic capacity

– Sweep number of inputs and outputs

  • 2-input, 1-output logic blocks (shown here)
  • 16-input, 8-output logic blocks (also in paper)

– Use logic clustering (T-VPack) as tech-mapper

slide-44
SLIDE 44

44

Interconnect Model

  • MPSAs

– Set of equally-wide and equally-spaced horizontal or vertical wires for each configurable layer

  • VPSAs

– Detailed architecture specified for a basic tile

  • Metal segments (start, end positions)
  • Potential via sites (fixed or configurable vias)
slide-45
SLIDE 45

45

CAD Framework for Structured ASICs

  • Increase Placement Grid Size
  • Simulated Annealing Too Slow
  • Logic Cells Snapped to Grid
  • Can Handle different Types of

Logic Blocks

  • Detailed routing only for VPSAs
  • Difficult to find Global Routing Capacities
  • Limit the search space by performing

detailed routing only within the Global Route

slide-46
SLIDE 46

46

CAD Framework

  • !"#!$

%& $" '&

  • (")(

Input Circuit

  • Area/Delay/Power/Cost Estimate

#Routing Layers Routing Grid Resolution Routing Grid Capacity

  • (!)

No Yes No

!" #

Logic Fabric Architecture Logic Elements Physical Size Pin Locations Routing Fabric Architecture

slide-47
SLIDE 47

47

MPSA vs. VPSA Detailed Routing

slide-48
SLIDE 48

48

Impact of Whitespace Insertion

  • Estimated using Routing Capacity
slide-49
SLIDE 49

49

Impact of Whitespace Insertion

  • Area and Die-cost

Small Block Small Block

  • 60% reduction in area and 55% reduction in cost
slide-50
SLIDE 50
  • Three schemes

50

Logic Block Pin Positions

  • Each pin can connect

to more tracks

  • Fewer routing tracks

in the lowest layer

  • Multiple pins per track
  • More tracks available for routing
  • Each pin can connect to fewer

tracks

slide-51
SLIDE 51
  • Three schemes

51

Logic Block Pin Positions

  • Better when number
  • f routing resources is

large

  • Better when routing resources are

limited (e.g., routing layers = 2)

Experiments used best scheme for each case

slide-52
SLIDE 52
  • Significant difference between different schemes
  • Performance dependent on

– Routing fabric architecture – Number of routing layers

52

Logic Block Pin Positions

slide-53
SLIDE 53

53

Trends for Heterogeneous Circuits

  • Delay and Power

– Best performance obtained with 3 or 4 layers – More than 4 layers offer little advantage

slide-54
SLIDE 54

54

VPSA Area and Die-cost Trends

slide-55
SLIDE 55

55

Technology Scaling
