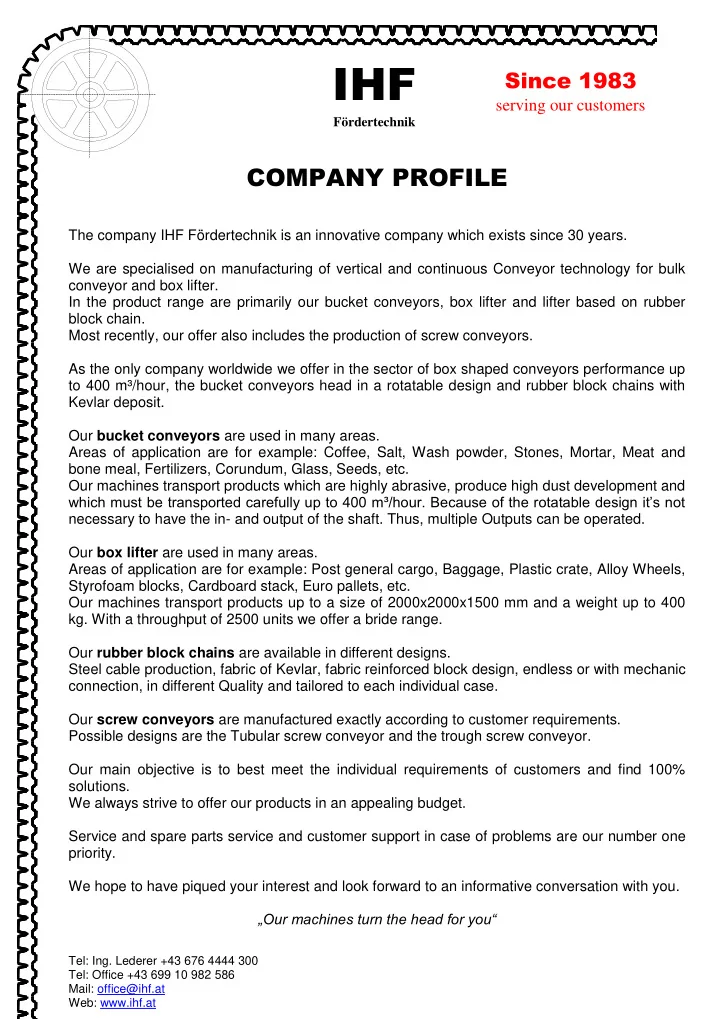

IHF Since 1983 serving our customers Fördertechnik COMPANY PROFILE The company IHF Fördertechnik is an innovative company which exists since 30 years. We are specialised on manufacturing of vertical and continuous Conveyor technology for bulk conveyor and box lifter. In the product range are primarily our bucket conveyors, box lifter and lifter based on rubber block chain. Most recently, our offer also includes the production of screw conveyors. As the only company worldwide we offer in the sector of box shaped conveyors performance up to 400 m³/hour, the bucket conveyors head in a rotatable design and rubber block chains with Kevlar deposit. Our bucket conveyors are used in many areas. Areas of application are for example: Coffee, Salt, Wash powder, Stones, Mortar, Meat and bone meal, Fertilizers, Corundum, Glass, Seeds, etc. Our machines transport products which are highly abrasive, produce high dust development and which must be transported carefully up to 400 m³/hour. Because of the rotatable design it’s not necessary to have the in- and output of the shaft. Thus, multiple Outputs can be operated. Our box lifter are used in many areas. Areas of application are for example: Post general cargo, Baggage, Plastic crate, Alloy Wheels, Styrofoam blocks, Cardboard stack, Euro pallets, etc. Our machines transport products up to a size of 2000x2000x1500 mm and a weight up to 400 kg. With a throughput of 2500 units we offer a bride range. Our rubber block chains are available in different designs. Steel cable production, fabric of Kevlar, fabric reinforced block design, endless or with mechanic connection, in different Quality and tailored to each individual case. Our screw conveyors are manufactured exactly according to customer requirements. Possible designs are the Tubular screw conveyor and the trough screw conveyor. Our main objective is to best meet the individual requirements of customers and find 100% solutions. We always strive to offer our products in an appealing budget. Service and spare parts service and customer support in case of problems are our number one priority. We hope to have piqued your interest and look forward to an informative conversation with you. „Our machines turn the head for you“ Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik RUBBER BLOCK CHAIN for BUCKET CONVEYOR and BOX LIFTER Bucket materials: Polyamide – glass fibre reinforced Polyamide – heat-resistant Polyamide antistatic Steel Stainless Aluminium Kevlar fabric Bucket tape chain with fabric reinforced block Kevlar fabric chain Platform Steel rope chain Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik BOX LIFTER continuous horizontal- vertical- Movement Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik LIFTER For vertical transport with less box shaped components High Dimensions and weight of the transported components It’s able to transport above several Floors with any amount of in- and outputs ! Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik PERFORMANCE CALCULATIONS performance 7000 6000 5000 C2310 C 1848 4000 C 1386 C 1155 C 924 3000 C 693 C 492 2000 1000 0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 speed of vertical conveyor in m/sec In terms of product development, we reserve the right to change specifications without prior notice! Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik PRODUCTS FOR BOX LIFTER AND LIFTER Conveyed Material Carton Barrels Collis Packages Alloy Wheels Styrofoam cubes Euro Pellets Boxes Bags Trays Carton stack Post general cargo Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik Platform for Styrofoam cube 1300 x 1750 Weight load: 200 kg S-conveyor for plastic crates Weight load: 400kg Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik Feeding station S-conveyor Dispensing station C-conveyor Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik Base station S-conveyor Aufgabestation S-Förderer Abwärts Platform in the deflection Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik Drive wheel mad of stainless steel (also available as plastic, aluminium, steel) Conveyor plate Mass: 100 – 2000 mm Weight: max. 400 kg Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik DELIVERY OF SPARE PARTS We can favourable offer spare parts for all common partial vertical conveyors with rubber block chain: Platform holder (left, middle, right) Clamping sleeve Shaft sleeve Platform holder (Platform bushes) Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
IHF Since 1983 serving our customers Fördertechnik IHF WHEELS SYSTEMS Wheels made to customers request Support wheel Driving wheel Idler wheel Idler wheel Standard supporting role Idler wheel (special model) Driving wheel (special model) Tel: Ing. Lederer +43 676 4444 300 Tel: Office +43 699 10 982 586 Mail: office@ihf.at Web: www.ihf.at
