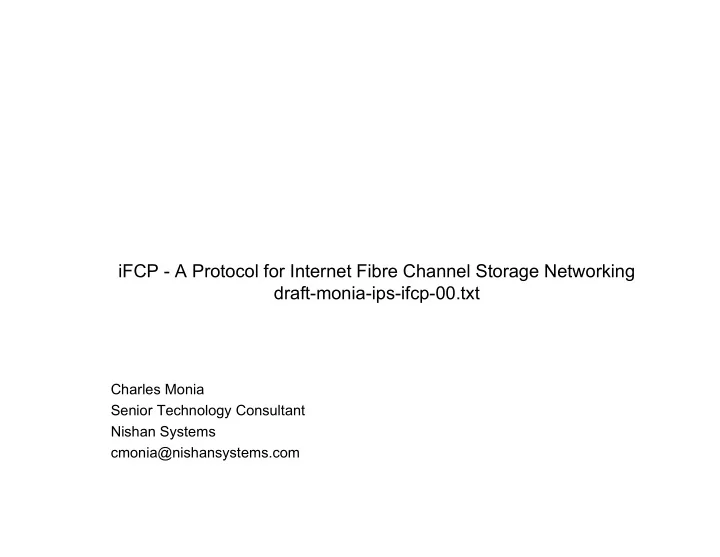

iFCP - A Protocol for Internet Fibre Channel Storage Networking draft-monia-ips-ifcp-00.txt

Charles Monia Senior Technology Consultant Nishan Systems cmonia@nishansystems.com

12/12/00 Charles Monia, Nishan Systems 2

iFCP and FCIP Comparison

• iFCP

– An IP gateway protocol for internetworking Fibre Channel storage devices

• FCIP

– An IP tunneling protocol for connecting islands of FC SANs

12/12/00 Charles Monia, Nishan Systems 3

FCIP Tunneling Model

Fibre Channel SAN Fibre Channel SAN FCIP Tunnel

Tunnel Session

FCIP Tunnel FC Server FC JBOD FC Server FC Tape Library FC JBOD FC Server FC Server FC Tape Library

IP Network

12/12/00 Charles Monia, Nishan Systems 4

iFCP Network Model

IP Network

iFCP Gateway iFCP Gateway iFCP Gateway iFCP Gateway FC Server FC JBOD FC Server FC Tape Library FC JBOD FC Server FC Server FC Tape Library Device-to-Device Session Device-to-Device Session

12/12/00 Charles Monia, Nishan Systems 5

iFCP Goals

• Consolidate FC storage switching and routing

functions within the IP fabric to:

– Reduce total cost of ownership – Unify network and storage management domains – Exploit IP technology investment and innovation

• Leverage MPLS, CoS/QoS, ToS, DiffServ,…
• Manage traffic flows between individual FC devices

And… – Extend SAN reach to LAN/MAN/WAN distances

12/12/00 Charles Monia, Nishan Systems 6

• Next Step

– Prepare rev 01

• Major goals for this revision

– Complete the N_PORT session model – Encapsulation changes for additional end-to-end error detection

• Action Request

– Adopt iFCP as an official IPS work item

Status
