Identification of Damping Using Proper Orthogonal Decomposition M Khalil, S Adhikari and A Sarkar Department of Aerospace Engineering, University of Bristol, Bristol, U.K. Email: S.Adhikari@bristol.ac.uk Identification of Damping p.1/26


slide-1
SLIDE 1

Gran Canaria, Spain, September 2006

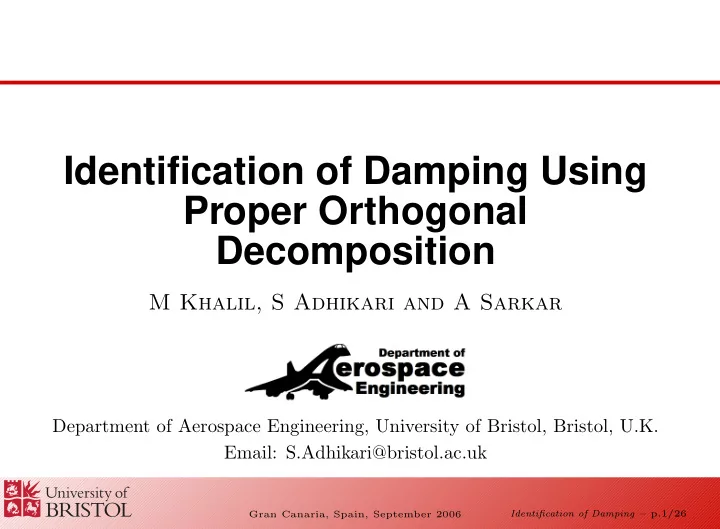

Identification of Damping Using Proper Orthogonal Decomposition

M Khalil, S Adhikari and A Sarkar

Department of Aerospace Engineering, University of Bristol, Bristol, U.K. Email: S.Adhikari@bristol.ac.uk

Identification of Damping – p.1/26

slide-2
SLIDE 2

Gran Canaria, Spain, September 2006

Outline

Motivation Brief overview of damping identification Independent Component Analysis Numerical Validation Conclusions

Identification of Damping – p.2/26

slide-3
SLIDE 3

Gran Canaria, Spain, September 2006

Damping Identification 1

Unlike the inertia and stiffness forcers, in general damping cannot be obtained using ‘first principle’. Two briad approaches are: damping identification from modal testing and analysis direct damping identification from the forced response measurements in the frequency or time domain

Identification of Damping – p.3/26

slide-4
SLIDE 4

Gran Canaria, Spain, September 2006

Some References

  • 1. Adhikari, S. and Woodhouse, J., “Identification of damping: part 1, viscous damping,”

Journal of Sound and Vibration, Vol. 243, No. 1, May 2001, pp. 43–61.

  • 2. Adhikari, S. and Woodhouse, J., “Identification of damping: part 2, non-viscous

damping,” Journal of Sound and Vibration, Vol. 243, No. 1, May 2001, pp. 63–88.

  • 3. Adhikari, S. and Woodhouse, J., “Identification of damping: part 3,

symmetry-preserving method,” Journal of Sound and Vibration, Vol. 251, No. 3, March 2002, pp. 477–490.

  • 4. Adhikari, S. and Woodhouse, J., “Identification of damping: part 4, error analysis,”

Journal of Sound and Vibration, Vol. 251, No. 3, March 2002, pp. 491–504.

  • 5. Adhikari, S., “Lancaster’s method of damping identification revisited,” Transactions of

ASME, Journal of Vibration and Acoustics, Vol. 124, No. 4, October 2002,

  • pp. 617–627.
  • 6. Adhikari, S., “Damping modelling using generalized proportional damping,” Journal of

Sound and Vibration, Vol. 293, No. 1-2, May 2006, pp. 156–170.

  • 7. Adhikari, S. and Phani, A., “Experimental identification of generalized proportional

damping,” Transactions of ASME, Journal of Vibration and Acoustics, 2006, submitted.

Identification of Damping – p.4/26

slide-5
SLIDE 5

Gran Canaria, Spain, September 2006

Damping Identification 2

Some shortcomings of the modal analysis based methodologies are: Difficult to extend in the mid-frequency range: Relies on the presence of FRF distinct peaks Computationally expensive and time-consuming for large systems Non-proportional damping leading to complex modes adds to the computational burden

Identification of Damping – p.5/26

slide-6
SLIDE 6

Gran Canaria, Spain, September 2006

Mid-Frequency Range

Low-Frequency Range: A uniform low modal density High-Frequency Rage: A uniform high modal density Mid-Frequency Range: Intermediate band in which modal density varies greatly

Identification of Damping – p.6/26

slide-7
SLIDE 7

Gran Canaria, Spain, September 2006

Discrete Linear Systems

The equations describing the forced vibration of a viscously damped linear discrete system with n dof: Mn¨ un (t) + Cn ˙ un (t) + Knun (t) = fn (t) Mn is the mass matrix, Cn is the damping matrix and Kn is the stiffness matrix un (t) is the displacement vector, and fn (t) is the forcing vector at time t In the frequency domain, one has

  • −ω2Mn + iωCn + Kn
  • Un(ω) = Fn(ω)

Identification of Damping – p.7/26

slide-8
SLIDE 8

Gran Canaria, Spain, September 2006

Damping Matrix Identification

Applying Kronecker Algebra and taking the vec operator to the frequency domain representation

  • Un(ωi)T ⊗ iωiIn
  • vecCn = Fn(ωi)+ω2

i MnUn(ωi)−KnUn(ωi),

For many frequencies, we have

2 6 6 6 6 6 6 4

Un(ω1)T ⊗ iω1In Un(ω2)T ⊗ iω2In . . . Un(ωJ)T ⊗ iωJIn

3 7 7 7 7 7 7 5

vecCn =

8 > > > > > > < > > > > > > :

Fn(ω1) + ω2

1MnUn(ω1) − KnUn(ω1)

Fn(ω2) + ω2

2MnUn(ω2) − KnUn(ω2)

. . . Fn(ωJ) + ω2

JMnUn(ωJ) − KnUn(ωJ)

9 > > > > > > = > > > > > > ;

.

The above equation can be written as Ax = y

Identification of Damping – p.8/26

slide-9
SLIDE 9

Gran Canaria, Spain, September 2006

Least-Square Approach

In case the system of equations being

  • verdetermined, x can be solved in the

least-square sense using the least-square inverse of the matrix A, as follows

  • x =
  • ATA

−1 ATy.

  • x is the least-square estimate of x and
  • ATA

−1 AT is the Moore-Penrose inverse of A

Identification of Damping – p.9/26

slide-10
SLIDE 10

Gran Canaria, Spain, September 2006

Physics-Based Tikhonov Regularisation

In order to satisfy symmetry, for instance, in the damping matrix Cm, we need to have Cn = CT

n

The symmetry condition in the mass matrix gives rise to the constraint equation: LCx = 0n2 0m2 is the zero vector of order m2 and the subscript in LC indicates that the constraint is on the damping matrix

Identification of Damping – p.10/26

slide-11
SLIDE 11

Gran Canaria, Spain, September 2006

Tikhonov Regularisation

Applying Tikhonov Regularisation to estimate x, we

  • btain the following solution
  • x =
  • ATA + λ2

CLT CLC

−1 ATy

  • .

The above solution depends on the values chosen for the regularisation parameter λC If λC is very large, the constraint enforcing the symmetry condition predominates in the solution of x On the other hand, if it is chosen to be small, the symmetry constraint is less satisfied and the solution depends more heavily on the observed data y

Identification of Damping – p.11/26

slide-12
SLIDE 12

Gran Canaria, Spain, September 2006

The Need for Model Order Reduction

In the proposed recursive least squares method, we are required to obtain the inverse of a square matrix of order n2 If we are trying to estimate the damping matrix

  • f a complex system with large n, this is not

feasible, even on high performance computers There is a need to reduce the order of the model prior to the system identification step

Identification of Damping – p.12/26

slide-13
SLIDE 13

Gran Canaria, Spain, September 2006

Proper Orthogonal Decomposition

Entails the extraction of the dominant eigenspace of the response correlation matrix over a given frequency band These dominant eigenvectors span the system response

  • ptimally on the prescribed frequency range of interest

POD is essentially the following eigenvalue problem Ruuϕ = λϕ Ruu is the response correlation matrix given by Ruu =

  • un (t) un (t)T

≃ 1 T

T

  • t=1

un (t) uT

n (t)

Identification of Damping – p.13/26

slide-14
SLIDE 14

Gran Canaria, Spain, September 2006

Spectral Decomposition of Ruu

Using the spectral decomposition of Ruu, one obtains Ruu =

n

  • i=1

λiϕiϕT

i

The eigenvalues are arranged: λ1 ≥ λ2 ≥ . . . ≥ λn The first few modes capture most of the systems energy, i.e. Ruu can be approximated by Ruu ≈ m

i=1 λiϕiϕT i

m is the number of dominant POD modes, generally much smaller than n

Identification of Damping – p.14/26

slide-15
SLIDE 15

Gran Canaria, Spain, September 2006

Model Reduction using POD

The output vector can be approximated by a linear representation involving the first m POD modes using un (t) =

m

  • i=1

ai (t) ϕi = Σa (t) Σ is the matrix containing the first m dominant POD eigenvectors: Σ = [ϕ1, . . . , ϕm] ∈ Rn×m

Identification of Damping – p.15/26

slide-16
SLIDE 16

Gran Canaria, Spain, September 2006

Model Reduction using POD

Using Σ as a transformation matrix, our reduced order model becomes ΣTMnΣ¨ a (t) + ΣTCnΣ˙ a (t) + ΣTKnΣa (t) = ΣTfn (t) The system of equations can now be rewritten in the reduced-order dimension as Mm¨ um (t) + Cm ˙ um (t) + Kmum (t) = fm (t)

Identification of Damping – p.16/26

slide-17
SLIDE 17

Gran Canaria, Spain, September 2006

Model Reduction using POD

The reduced order mass, damping, and stiffness matrices as well as the reduced order displacement and forcing vectors are Mm = ΣTMnΣ ∈ Rm×m Cm = ΣTCnΣ ∈ Rm×m Km = ΣTKnΣ ∈ Rm×m um (t) = ΣTun (t) = a (t) fm (t) = ΣTff (t)

Identification of Damping – p.17/26

slide-18
SLIDE 18

Gran Canaria, Spain, September 2006

Reduced-Order Model Identification

Once either the POD transformation is applied, there will be m2 unknowns to be identified, as

  • pposed to n2 for our original model, where m is

much smaller than n The aforementioned least square estimation method can now be used to estimate the reduced order damping matrix Once the reduced order damping matrix is estimated, we can carry out system simulations at the lower order dimension m, and project the displacement results back into the original n-dimensional space

Identification of Damping – p.18/26

slide-19
SLIDE 19

Gran Canaria, Spain, September 2006

Numerical Validation

A coupled linear array of mass-spring oscillators is considered to be the original system A lighter system is coupled with a heavier system The lighter system posses higher modal densities compared to the heavier system

Identification of Damping – p.19/26

slide-20
SLIDE 20

Gran Canaria, Spain, September 2006

System Description

The mass and stiffness matrices have the form

Mn =

2 4m1In/2

0n/2 0n/2 m2In/2

3 5

Kn = ku

2 6 6 6 6 6 6 6 6 6 6 6 6 6 4

2 −1 −1 2 −1 ... ... ... −1 2 −1 ... ... −1 −1 2

3 7 7 7 7 7 7 7 7 7 7 7 7 7 5

n, m1, and m2 are chosen to be 100 DOFs, 0.1kg, and 1kg and ku = 4 × 105 N/m The system is assumed to have Rayleigh damping by Cn = α0Mn + α1Kn, where α0 = 0.5 and α1 = 3 × 10−5

Identification of Damping – p.20/26

slide-21
SLIDE 21

Gran Canaria, Spain, September 2006

Typical System Response

200 400 600 800 1000 1200 −140 −130 −120 −110 −100 −90 −80 −70 −60 −50 −40 Frequency (rad/s) Log amplitude (dB) of H (60,40) (ω) Original FRF Frequency band of interest

The frequency range considered for the construction of the POD is shown

Identification of Damping – p.21/26

slide-22
SLIDE 22

Gran Canaria, Spain, September 2006

POD Eigenvalues

10 20 30 40 50 60 70 80 90 100 −120 −100 −80 −60 −40 −20 Log (dB) of normalized POD eigenvalues ( λ / λmax ) Eigenvalue number

Normalized eigenvalues of the correlation matrix

Identification of Damping – p.22/26

slide-23
SLIDE 23

Gran Canaria, Spain, September 2006

POD-Reduced Model

A typical FRF of the POD reduced model is compared with the original FRF below The reduced order model FRF match reasonably well with the original FRF in the frequency band of interest

550 600 650 700 750 800 850 −140 −135 −130 −125 −120 −115 −110 −105 Frequency (rad/s) Log amplitude (dB) of H

(60,40) (ω)

Original TF, n= 100 POD−Simulated TF, m= 13

Identification of Damping – p.23/26

slide-24
SLIDE 24

Gran Canaria, Spain, September 2006

Noise-Free Identification

In the noise-free case, we obtain the identified POD reduced order damping matrix The identified matrix is used to obtain a typical FRF of the system below

550 600 650 700 750 800 850 −140 −135 −130 −125 −120 −115 −110 −105 Frequency (rad/s) Log amplitude (dB) of H

(60,40) (ω)

Original TF, n= 100 POD−Identified TF, m= 13

Identification of Damping – p.24/26

slide-25
SLIDE 25

Gran Canaria, Spain, September 2006

Effect of Noise

The system response is contaminated with noise The variance of the noise is ten times smaller than that of the response We obtain the identified FRF shown below

550 600 650 700 750 800 850 −135 −130 −125 −120 −115 −110 −105 Frequency (rad/s) Log amplitude (dB) of H

(60,40) (ω)

Original TF, n= 100 POD−Identified TF, m= 13

Identification of Damping – p.25/26

slide-26
SLIDE 26

Gran Canaria, Spain, September 2006

Conclusion

The salient features that emerged from the current investigation are: POD can be successfully applied for reduced-order modelling Kronecker Algebra in conjunction with Tikhonov Regularisation provide an elegant theoretical formulation involving identification of the damping matrix Using a noise-sensitivity study, the identification method is demonstrated to be robust in a noisy environment
