Stock 00.00 min Roughing 21.02 min Side Parallel 22.75 min Parallel + 19.35 min IAAC Parallel - 16.58 min FABRICATION CLASS 02.// MILLING 01. Milling Strategy --- Prof. Edouard Cabay & Tomas Diez, Asissted by Alexandre Dubor

SLIDE 1

IAAC

FABRICATION CLASS 02.// MILLING

01. Milling Strategy
Prof. Edouard Cabay & Tomas Diez,

Asissted by Alexandre Dubor Group 21 Alexander Dolan Kartik Gala Rasheed Shallah 27th of November 2012

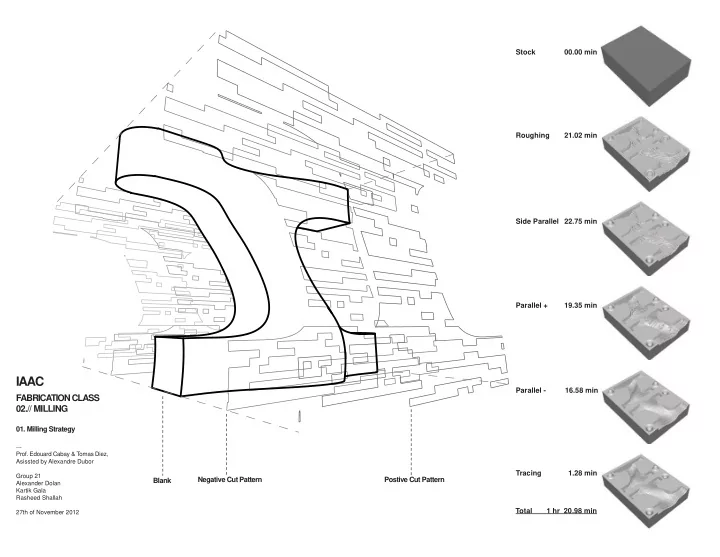

Postive Cut Pattern Negative Cut Pattern Blank Stock 00.00 min Roughing 21.02 min Side Parallel 22.75 min Parallel + 19.35 min Parallel - 16.58 min Tracing 1.28 min Total 1 hr 20.98 min
