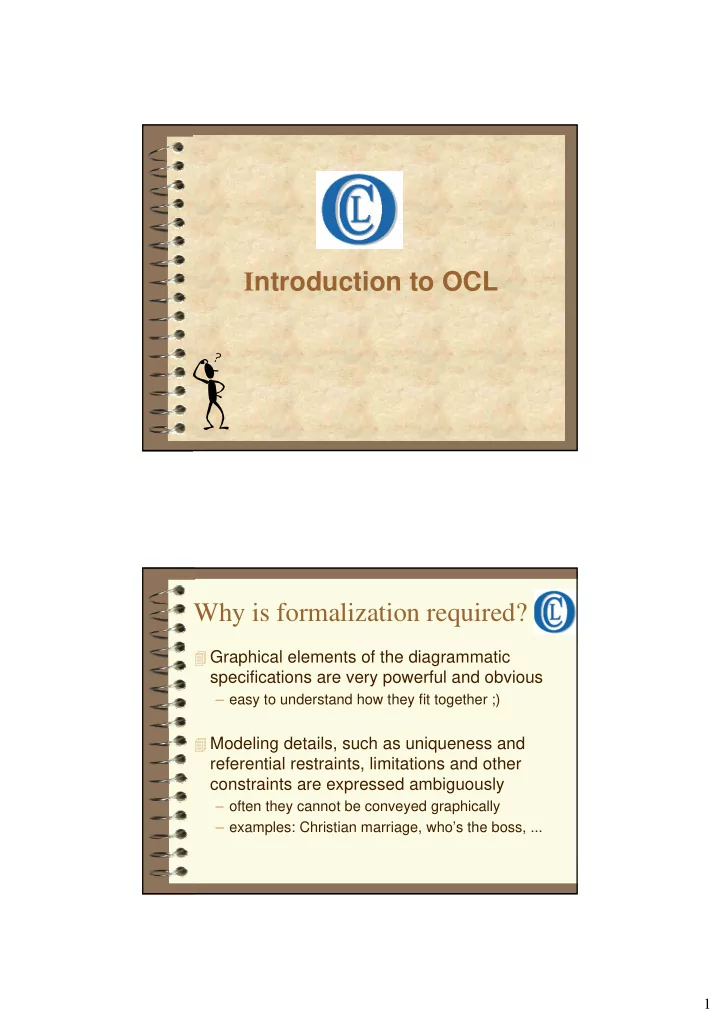

Introduction to OCL Why is formalization required?

Graphical elements of the diagrammatic

specifications are very powerful and obvious

– easy to understand how they fit together ;) Modeling details, such as uniqueness and

referential restraints, limitations and other constraints are expressed ambiguously

– often they cannot be conveyed graphically – examples: Christian marriage, who’s the boss, ...

2

The quest for formalization ...

Accuracy and unambiguity in specification is the

aim of the branch of computer science known as “formal methods”

Several attempts have been made to combine

them with object-oriented modeling …

Formal methods in OO (1/4)

Extending and adapting an existing formal

language with object-oriented constructs

– Ex: Z++, Object-Z, VDM++ This approach is not in line with industrial

practice trends to use the simple, but powerful, graphical notations in OOAD.

Most practitioners are not at ease in using

traditional formal specification languages ...

3

Z, Z++ and Object Z

Z is a specification language developed by the Programming

Research Group at Oxford University

– "Understanding Z", J.M.Spivey, Cambridge U Press, 1988

Z is used for describing and modeling computing systems

– It is based on axiomatic set theory and first order predicate logic – Z is written using many non-ASCII symbols

Z++ is an object-oriented extension of Z

– "Z++, an Object-Oriented Extension to Z", Lano, Z User Workshop, Oxford 1990, Springer Workshops in Computing, 1991, pp.151-172

Object Z is another object-oriented extension of Z developed

at University of Queensland, Australia

– "Object Orientation in Z", S. Stepney et al eds, Springer 1992

An Object-Z extract …

4

Formal methods in OO (2/4)

Complementing diagrammatic notations with

some existing formal language constructs

– Ex: Syntropy (subset of Z combined with OMT), ROOA (A. Moreira), Metamorphosis (J. Araújo) Compromise solution, joining the benefits of

graphical modeling and formal languages

– Drawback1: conceptual gap between formalisms – Drawback2: same as in previous approach

A bit of Syntropy

5

Formal methods in OO (3/4)

Use of a constraint language to express design

by contract modeling issues (B. Meyer)

– Ex: BON (Business Object Notation) object-oriented method (Waldén 95).

• Has a full-fledged textual assertion mechanism, allowing to

specify system structure and semantics (constraints, invariants, properties of expected results)

– Bridges the semantic gap but failed widespread acceptance (too tied to Eiffel language world) – Acceptance often comes from standardization ...

BON:

Elevator example

6

Formal methods in OO (4/4)

The last and more promising road is OCL Is a part of the UML standard published by the

OMG (let’s have a look at it ...)

Used in the standard itself to clarify the

semantics of the graphical notations

Allows to specify invariants, preconditions,

postconditions, guard conditions, and other types of constraints (restrictions)

Therefore supports design by contract

Object Constraint Language

It is a formal, yet simple notation, to be used

jointly with UML diagrams

Its syntax has some similarities to those of

some OO programming languages

It is underpinned by mathematical set theory

and logic, like in formal languages

However it was designed for usability and is

easily grasped by those familiar with OO modeling concepts (particularly UML ones)

7

Object Constraint Language

OCL brings the best of the previous

approaches:

– simplicity and powerfulness of graphical notations – preciseness and unambiguity granted by formality, in a usable and conceptually integrated fashion – Moreover, since it is a part of UML, it has become a de jure standard (soon de facto?)

Adding OCL to UML models

Graphic Editors

System X Diagrams System Z Diagrams System Y Diagrams

Modeling Tools

Tool Repository

OCL Expressions Evaluator

UML Model Workload (Model Objects) OCL Expressions (Model Constraints) Expression Results

Workload Generator

UML Model

8

Some bits of history ...

Version Date Submitters / Supporters

1.1 (36 p.) Sep 1997 Rational, Microsoft, Hewlett-Packard, Oracle, Sterling Software, MCI Systemhouse, Unisys, ICON Computing, IntelliCorp, i-Logix, IBM, ObjecTime, Platinum Technology, Ptech, Taskon, Reich Technologies, Softeam 1.2 … … 1.3 June 1999 … 1.4 … … 2.0 (214 p.) Jan 2003 Submitters: Boldsoft, Rational, IONA, Adaptive Ltd. Supporters: Klasse Objecten, Borland, Kings College, University of Bremen, Dresden University of Technology, Kabira Technologies, IBM, Telelogic, University of Kent, Project Technology, University of York, Compuware, Syntropy Ltd., Oracle, Softeam

Objectives of OCL 2.0

Define a MOF 2.0-compliant metamodel for OCL.

– This metamodel should define the concepts and semantics of OCL and act as an abstract syntax for the language.

(Re)define the OCL 1.4 syntactical definition

– That is done by means of a grammar, as a concrete syntax expressing the abstract syntax defined above.

To allow for alternative concrete syntaxes (e.g. Java-like

syntax or visual constraint diagrams)

– This is achieved by defining a strict separation between the metamodel and the concrete syntax.

9

OCL features evolution

OCL 1.* is side-effect free (only selectors allowed)

– Selectors are query operations which return a value but do not change the object state (their label isQuery = true)

OCL 2.* allows expressing messages sent by

components, classes or other constructs that may have behavior (using the OclMessage concept)

– This allows the specification of behavioral constraints

UML 1.4 predefined types and operations are defined

as the OCL 2.0 Standard Library.

The concrete syntax of OCL 2.0 is backwards

compatible with OCL 1.4 !!!

OCL types

OclAny Enumeration Collection Real Integer Sequence Bag Set String Boolean

10

Standard operators

Type Operations Boolean =, not, and, or, xor, implies, if-then-else Real =, +, -, *, /, abs, floor, max, min, <, >, <=, >= Integer =, +, -, *, /, abs, div, mod, max, min, <, >, <=, >= String =, size, toLower, toUpper, concat, substring

Expressing class invariants

Constraints that represent conditions that must

be met by all class instances, at all times.

– Their context is, therefore, a class, hereafter represented in the first line, underlined, as in:

Sequence self.oclIsKindOf( Collection )

• sequence inherits from Collection and therefore its

instances can be used where a collection is allowed (this is a comment) Percentage (self >= 0) and (self <=1)

• - Percentage inherits from Real 0 is 0% and 1 is 100%

11

Expressing operation assertions

Pre-conditions are constraints that must be

true before an operation is executed

– In the design by contract paradigm, they represent the rights of the object that offers the service or, if you want, the client responsibilities. Post-conditions are constraints that must be

true when the operation ends its execution

– They represent the obligations to be fulfilled by the

• bject that offers the service, or, if you want, the

client rights.

Design by Contract

Obligation Right SUPPLIER Right Obligation CLIENT POST-CONDITION PRE-CONDITION

12

Operation assertions: examples

The context of both pre and post-conditions is,

therefore, an operation:

Sequence::prepend(object: T): Sequence(T) post: result->size() = self@pre->size() +1 post: result->at(1) = object

“::” is a scope indicator “->” is used for applying an operation to a collection “@pre” is a timing tag (state at preconditions evaluation)

Expressing operation semantics

Date::isBefore(t:Date): Boolean = if self.year = t.year then if self.month = t.month then self.day < t.day else self.month < t.month endif else self.year < t.year endif

Date

day : In teger mon th : In tege r ye ar : In teger now : Date isBefore(t : Date) : Boolean isAfter(t : Date) : Boolean isEqual(t : Date) : Boolean ye arsSince(t : Da te) : In teger today() : Date

13

Collection operations

Collection is an abstract

class

Collection

s ize() : Integer i ncludes (obj ect : OclAny) : Boolean count(object : OclAny) : Integer includesAll(c2 : Collection(T)) : Boolean i s Empty() : Boolean notEmpty() : Boolea n s um () : Real exists (expr : OclExpres sion) : Boolean forAl l(expr : Ocl Expres sion) : Boolea n iterate(expr : OclExpres sion) : OclType

Sequence Bag Set Collection

Set operations

Sets are non

• rdered

collections without duplicates.

Set

union(s et2 : Set(T)) : Set (T) union(bag1 : Bag(T)) : Bag (T) =(s et2 : Set(T)) : Boolean inters ection(s et2 : Set(T)) : Set (T) inters ection(bag1 : Bag(T)) : Bag (T)

• (s et2 : Set(T)) : Set (T)

including(object : T) : Set (T) excluding(object : T) : Set (T) s ym m etricDifference(s et2 : Set(T)) : Set (T) s elect(expr : OclExpres s ion) : Set (T) reject(expr : OclExpres s ion) : Set (T) collect(expr : OclExpres s ion) : Set (expr.evaluationType()) count(object : T) : Integer as Sequence() : Sequence (T) as Bag() : Bag (T)

14

Bag operations

Bags are unordered collections that may hold duplicate elements

Bag

=(bag2 : Bag(T)) : Boolean union(bag2 : Bag(T)) : Bag (T) union(set1 : Set(T)) : Bag (T) intersection(bag2 : Bag(T)) : Bag (T) intersection(s et1 : Set(T)) : Set (T) including(object : T) : Bag (T) excluding(object : T) : Bag (T) select(expr : OclExpress ion) : Bag (T) reject(expr : OclExpress ion) : Bag (T) collect(expr : OclExpress ion) : Bag (expr.evaluationType[)) count(object : T) : Integer asSequence() : Sequence (T) asSet() : Set (T)

Sequence operations

Sequences are

• rdered

collections that may hold duplicate elements

Sequence

count(object : T) : In teger =(sequence2 : Sequence(T)) : Boolean union(s equence2 : Sequence(T)) : Sequence (T) append(object : T) : Sequence (T) prepend(object : T) : Sequence (T) s ubSequence(lower : Integer, upper : Integer) : Sequence (T) at(at : Integer) : T firs t() : T las t() : T including(object : T) : Sequence (T) excluding(object : T) : Sequence (T) s elect(expr : OclExpress ion) : Sequence (T) reject(expr : OclExpres sion) : Sequence (T) collect(expr : OclExpress ion) : Sequence (expr.evaluationType[)) iterate(expr : OclExpres sion) : OclType asBag() : Bag (T) asSet() : Set (T)

15

Collection type:

• perations

The Collection class is an abstract class

from which the previous three are derived:

Collection Collection.allInstances->select(oclType = Collection)- >isEmpty()

• - the allInstances operation returns the set of all objects of

the named class and of all its subclasses;

• - this operation is defined in the OclType meta-class.

Note: the dot notation is used both for attribute access and for expressing navigation through class associations

Expressing unicity constraints

Customer Customer.allInstances->forAll(c1, c2: Customer | c1 <> c2 implies c1.client_id <> c2.client_id)

• -Customer identifiers should always be unique

Customer

client_id : Integer name : String title : String isMale : Boolean dateOfBirth : Date age()

16

Navigation and collections

OCL expressions can be built by

navigating in the class diagram

By definition, the result of navigating

through just one association is a Set

The result of navigating through more

than one association where at least one has multiplicity many is a Bag.

– Exception: if the association is adorned with the {ordered} tag, we get a Sequence.

Navigation example

Customer not (related_with->includes(self))

• - what does this mean?

+related_with 0..* Customer

client_id : Integer name : String title : String isMale : Boolean dateOfBirth : Date age()

17

“Royal & Loyal” case study

Loyalty program management system Customers must become members to get an

account and then have cards

Customers make earning and burning transactions Transactions are associated with a given card Program partners offer services of a given level Adapted example from [Warmer & Kleppe 1999]

Burning Earning Membership LoyaltyAccount 0..1 1 0..1 1 ProgramPartner ServiceLevel 1 0..* +actualLevel 1 0..* Transaction 0..* 1 +trans actions 0..* 1 Service 0..* 1 +deliveredServices 0..* 1

• 0. .*

1 +availableServices

• 0. .*

1 0..* 1 +transactions 0..* 1 LoyaltyProgram 1..* 1..* +partners 1..* 1..* 1..* 1 1..* {ordered} 1 CustomerCard 1 1 +card 1 1

• 0. .*

1 +transactions

• 0. .*

+card 1 Customer 0..* 0..* +program 0..* 0..* 1 0..* +owner 1 +cards 0..*

• 0. .*
• 0. .*

+related_with

18

Navigation and naming rules

Rule 0 - Class names start with an uppercase

letter and role names with a lowercase letter

Rule 1 - While navigating from a class to

another, if the role of the destination class is defined then use it. Otherwise apply rule 2

Rule 2 - While navigating from a class to

another, if the role of the destination class is not defined, then use the name of the destination class starting with a lowercase letter

Navigating and naming rules

Problem: a card issued for a membership is in the possession of the customer who is mentioned in the membership

Membership

card.owner = customer

19

Navigating and naming rules

Problem: construct a function “program()” that returns the loyalty program corresponding to the transaction Transaction::Program():LoyaltyProgram = (H1) card.membership.program (H2) service.serviceLevel.loyaltyProgram (H3) ? (H4) ? (H5) ?

Enumerations

Enumeration values are prefixed with “ #”

Ex 1: a CustomerCard color is silver or gold CustomerCard

color = #silver or color = #gold

Ex 2: the card color relative to a given membership must match the corresponding service level Membership

actualLevel.name = 'Silver' implies card.color = #silver and card.color = #silver implies actualLevel.name = 'Silver' and actualLevel.name = 'Gold' implies card.color = #gold and card.color = #gold implies actualLevel.Name = 'Gold'

20

Operations over collections

The partners of a given program cannot burn

more than 10000 points (as a whole)

LoyaltyProgram

partners.deliveredServices.transactions-> select (OclType = Burning)->collect(points)->sum < 10000

• - same as above but using the shorthand for collect

partners.deliveredServices.transactions.points->sum < 10000

• - is there something wrong?

Operations over collections

The partners of a given program cannot burn

more than 10000 points (individually)

LoyaltyProgram

partners->forAll(p: Partner | p.deliveredServices.transactions-> select (OclType = Burning)->collect(points)->sum < 10000) partners->forAll(deliveredServices.transactions-> select (OclType = Burning)->collect(points)->sum < 10000)

21

Notation may be simplified ...

Example: there is one service level whose

name is 'basic’

LoyaltyProgram

• - inv BasicService:

self.serviceLevel->exists( s: ServiceLevel | s.name = 'basic' )

• - inv BasicService2:

serviceLevel->exists( s | s.name = 'basic' )

• - inv BasicService3:

serviceLevel->exists( name = 'basic' )

Operation Semantics example

Customer.age() ? Customer.age():Integer = (H1) dateOfBirth.today().yearsSince( dateOfBirth ) (H2) dateOfBirth.yearsTo( dateOfBirth.today() )

Date

day : Integer month : Integer year : Integer now : Date isBefore(t : Date) : Boolean isAfter(t : Date) : Boolean isEqual(t : Date) : Boolean yearsSince(t : Date) : Integer today() : Date yearsTo(t : Date) : Integer

Customer

client_id : Integer name : String title : String isMale : Boolean dateOfBirth : Date age()

22

Invariant example

The initial date of the card

validity must be previous to the cancellation date

CustomerCard (H1) validFrom.isBefore(goodThru) (H2) goodThru.isAfter(validFrom)

Date

day : Integer month : Integer year : Integer now : Date isBefore(t : Date) : Boolean isAfter(t : Date) : Boolean isEqual(t : Date) : Boolean yearsSince(t : Date) : Integer today() : Date yearsTo(t : Date) : Integer

Invariant example

The name printed in the card is a concatenation of the

• wner title followed by the owner name

CustomerCard printedName = owner.title.concat(owner.name) Customer cards->forAll(printedName=self.title.concat(self.name))

23

Invariant example

The number of valid cards for every customer

must be equal to the number of programs the customer participates in CustomerCards program->size = cards->select(valid)->size

Invariant example

A customer cannot hold more than one valid card

for every program in which he participates

Customer program->forAll(membership.card-> select (valid and (owner=self))->size <=1)

24

Operation semantics example

Write the predicate Alarm that allows detecting

that a given balance (alarm level) between burned points and earned points was exceeded, for a named LoyaltyProgram

LoyaltyProgram::Alarm(level: Real): Boolean= Burning.allInstances->select(program() = self) -> collect(points)->sum > (Earning.allInstances->select(program() = self) -> collect(points)->sum) * level

Now that you are feeling confident :)

Example: Valid cards are "gold" for holders that

have had in the past some card (expired before the issue of the current one) within the same program, for which they have had transactions of at least 150000 points or if they have always had done more than 5000 points worth of transactions for all expired cards, no matter which program. If cards are not gold then they are "silver”!!!

25

This is almost correct. Why?

CustomerCard

color = if membership.program.customer.cards ->select(owner = self.owner) -> exists(goodThru.isBefore(self.validFrom) and transactions.points->sum >= 15000) or owner.cards -> select (goodThru.isBefore(self.validFrom)) -> forAll (transactions.points -> sum > 5000) then #gold else #silver endif

Implementation of OCL in USE

OCL syntax

Implicit flattening is only done when used with the shorthand notation for collect. For instance: company.branches.employees

– results in a Bag(Employee)

company.branches->collect(c | c.employees)

– results in a Bag(Set(Employee))

This result can be flattened into a Bag(Employee) by explicit flattening the collection with the `flatten' operation added in USE: company.branches->collect(c | c.employees)->flatten

26

Implementation of OCL in USE

OCL syntax Type checking requires that empty collections must be specified as:

• clEmpty(<collection-type>)

For example:

• clEmpty(Set(Integer))

instead of

• Set{}

Implementation of OCL in USE

OCL semantics

Some OCL operations are non-deterministic, e.g.,

• Set(T)->asSequence

The result of these operations are implementation

• dependent. The equation:
• s1->asSequence = s1->asSequence

will therefore be wrong in general.

27

Implementation of OCL in USE

OCL extensions/variations

Collection types can be nested to any level, e.g.,

Bag(Set(Sequence(Person)))

All types include an undefined value. For example, the expression 1/0 results in the value "undefined" of type Integer Checking for an undefined value can be done with the new

• perations "isDefined" and "isUndefined". These are defined for

all types, e.g., (1/0).isUndefined() results in "true" An undefined value may be explicitly specified with the new

• peration "oclUndefined(T)" where T may be any type

OCL Tools

Feature IBM Parser Dresden Toolkit TU Munich Tool ModelRun (… Rose) Bremen USE Syntactical analysis

• Type checking
• Logical

consistency checking Dynamic invariant validation

• Dynamic pre /

post condition validation

• Test

automation

• Code

verification and synthesis
