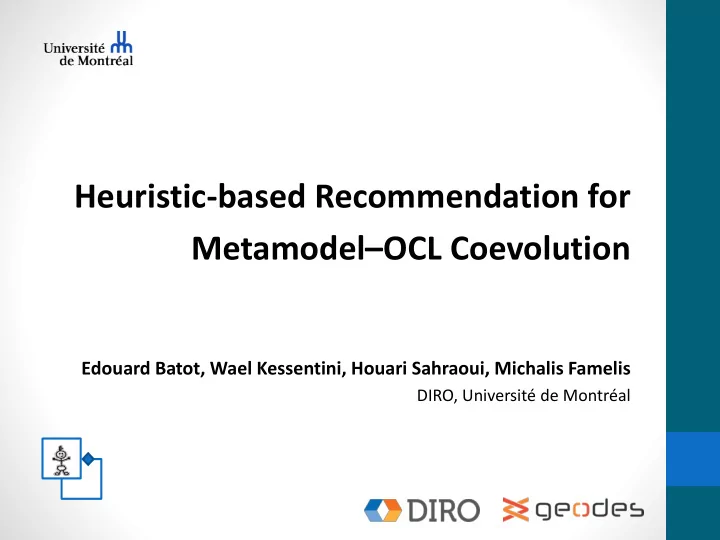

Heuristic-based Recommendation for Metamodel–OCL Coevolution

Edouard Batot, Wael Kessentini, Houari Sahraoui, Michalis Famelis

DIRO, Université de Montréal

slide-2
SLIDE 2

OCL basics: Family tree example

21/11/2017

2 To exclude the bad ones, we need this OCL constraints:

father

Person

mother

Type graph

Context Person: inv inheritance_bares_no_loop_mum: self.mother->closure()->excludes(self) inv inheritance_bares_no_loop_dad: self.father->closure()->excludes(self)

A person cannot be its

  • wn mother or father

… transitively. Metamodel = Type graph + constraints

slide-3
SLIDE 3

Schematically:

21/11/2017

3 Type graph OCL

Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model

Metamodel

slide-4
SLIDE 4

Context Person: inv inheritance_bares_no_loop_mum: self.mother->closure()->excludes(self) inv inheritance_bares_no_loop_dad: self.father->closure()->excludes(self)

OCL Coevolution

21/11/2017

4

Employee name:Estring age:EInt salary:Edouble nameCategory:EString Employee Category nameCategory:EString 1 * name:Estring age:EInt salary:Edouble

category

self.nameCategory self.category.nameCategory

  • More complicated example of evolution

Name change in type graph impacts OCL constraints

father

Person

mother mum mum

Indirection inserted

What happens if the type model changes ?

slide-5
SLIDE 5

Problem: OCL Coevolution

21/11/2017

5

Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model Instance model

OCL ? Type graph version 1.0 Type graph version 2.0 OCL / ?

Usually:

  • Force determinism, or
  • Trace rationale behind high-level changes
slide-6
SLIDE 6

Our Approach

21/11/2017

6 Heuristic search 1 2 3 4 Recommendation

slide-7
SLIDE 7

Additional Benefits

  • Does not depend on tracing of high level changes

(tedious, error-prone)

  • Search a large solution space

(chance for innovation)

  • Extensible framework for new coevolution strategies

(as new mutation ops)

21/11/2017

7

slide-8
SLIDE 8

Outline

21/11/2017

8 Heuristic search 1 2 3 4 Recommendation

slide-9
SLIDE 9

21/11/2017

9 Front 3 Front 1 Front 3 Front 2 Front 5 Front 4

G0 Q0 Rejected

G e n e t i c o p e r a t o r s

Non-dominance Sorting

Crowding distance Sorting within the fronts

G1 Repeat

Heuristic Search: Genetic programming

Pareto front

until end condition is reached

Output

Non-sorting Genetic Algorithm – II (NSGA-II)

slide-10
SLIDE 10
  • Representation: a solution is a set of OCL constraints
  • Each constraint: Ecore Abstract Syntax Tree
  • In each generation, OCL evolved by crossovers and mutations
  • End condition: Stabilization, at 300 iterations

21/11/2017

10

Heuristic Search: Genetic programming

slide-11
SLIDE 11

Heuristic Objectives

  • 1. Minimize change
  • # of mutations/crossover applied from original
  • 2. Minimize syntax error
  • # of rules fired (Not strict zero to loosen the search)
  • 3. Minimize information loss
  • # of metamodel elements removed during OCL evolution

21/11/2017

11

slide-12
SLIDE 12

Genetic operators

  • Solution representation and creation
  • Initial generation = original set of OCL constraints
  • Point-cut crossover

21/11/2017

12

C1-4 mutant C 1-1 C 1-2 C 1-3 C 1-4 C 1-5 Parent Mutation C 1-1 C 1-2 C 1-3 CM 1-4 C 1-5 Child : Constraint

C X-X

Set of constraint Mutated set of constraint C 1-1 C 1-2 C 1-3 C 1-4 C 1-5 C 2-1 C 2-2 C 2-3 C 2-4 Parent 1 Parent 2 C 1-1 C 1-2 C 1-3 C 1-4 C 1-5 C 2-1 C 2-2 C 2-3 C 2-4 Point-cut Child 1 Child 2 Crossover C 2-5 C 2-5

  • Indirection insertion
  • Change typing methode
  • Mutation patterns
  • Renaming
  • Context change
  • Pruning
slide-13
SLIDE 13

Output Set: Solutions

  • NSGA-II: Multi-objective non-dominant search
  • Output: Pareto front of solutions
  • No total ordering
  • All solutions in the front are “equally good”
  • No solution dominates
  • Output can be too large to present to user
  • Instead: generate recommendations

21/11/2017

13

slide-14
SLIDE 14

Outline

21/11/2017

14 Heuristic search 1 2 3 4 Recommendation

slide-15
SLIDE 15

Recommending solutions

  • NSGA-II gives many solutions (Pareto front)

Which one is of user’s interest?

21/11/2017

15

Recommendations Solutions representative

  • f their cluster

(closest to the centroid) Clusters Pareto front Centroid Abstract centre

  • f a cluster
  • Ranking solutions using fitness objectives
  • Clustering solutions with syntactic comparison Levenstein distance

Two strategies:

slide-16
SLIDE 16

Outline

21/11/2017

16 Heuristic search 1 2 3 4 Recommendation

slide-17
SLIDE 17

Evaluation

  • RQ0: Are the results of our approach attributable to the

search strategy or to the number of explored solutions?

  • RQ1: To which extent our approach finds the expected

solution?

  • RQ2: To which extent our approach recommends the

expected solution?

  • Setup
  • 3 metamodels of different sizes (Family, State Machine, Project Management)
  • 30 executions for each metamodel/OCL couple
  • 300 iterations with a population of 100 set of constraints

21/11/2017

17

slide-18
SLIDE 18

RQ0: Sanity check

  • Better than random search
  • Same number of solutions explored, way better results

21/11/2017

18

slide-19
SLIDE 19

RQ1: Algorithm recall

21/11/2017

19

10 20 30

1/5 2/5 3/5 4/5 5/5 # of constraints fixed

10 20 30

1/6 2/6 3/6 4/6 5/6 6/6 # of constraints fixed

10 20 30

1/4 2/4 3/4 4/4

# of executions

# of constraints fixed

# of expected solutions found

  • Family and State Machine cases: solutions found
  • Project Management case contains two missing constraints that

require particularly complex changes

  • To address such changes we aim at expanding the mutation
  • perator store

Family State Machine Project Management

slide-20
SLIDE 20

RQ2: Recommendation system precision

21/11/2017

20

1 2 3 4 3 5 7 9 11 13 15 17 19 # of constraints fixed

# of recommendations Clusters Ranking Pareto

1 2 3 4 5 3 5 7 9 11 13 15 17 19 # of recommendations Clusters Ranking Pareto 1 2 3 4 5 6 3 5 7 9 11 13 15 17 19 # of recommendations Clusters Ranking Pareto

# of expected solutions recommended

  • Accuracy of the recommender grows with the number of

recommendations

  • No dramatic increase beyond 7
  • Simple ranking is a better recommendation strategy

Clustering is computationally costlier

Family State Machine Project Management

slide-21
SLIDE 21

Conclusion

  • Metamodel-OCL Coevolution is crucial to DSML design and

maintenance

  • Our approach

1. Multi-objective optimization problem 2. Recommendation of a subset of generated solutions

  • Benefits
  • Does not depend on tracing high-level changes
  • Does not assume single solution
  • Explores a large solution space
  • Extensible with new coevolution strategies
  • High recall; Efficient ranking-based recommendation

21/11/2017

21

Problem definition Approach Evaluation Conclusion

Heuristic search 1 2 3 4 Recommendation
