Under contract for Thematic Plenary I: INSPIRE for Environment closing the implementation gap I NSPI RE for Reporting and Dissem ination of Urban W aste W ater I nform ation Benot Fribourg-blanc 1 & Bruno Rakedjian 2 ( 1) Office

slide-1

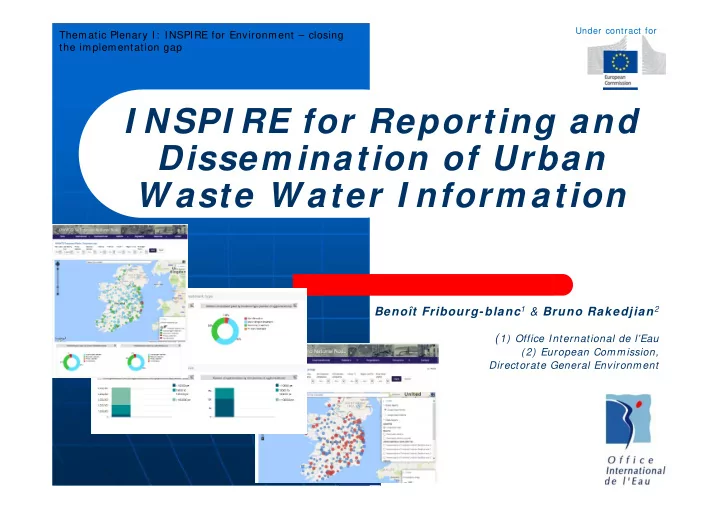

SLIDE 1

Under contract for

I NSPI RE for Reporting and Dissem ination of Urban W aste W ater I nform ation

Benoît Fribourg-blanc1 & Bruno Rakedjian 2 (1) Office International de l’Eau

(2) European Commission, Directorate General Environment Thematic Plenary I: INSPIRE for Environment – closing the implementation gap

slide-2
SLIDE 2

2

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

Objectives & context

  • Better im plem entation of Directives:
  • Urban W aste W ater Directive 91/ 271/ EEC
  • I NSPI RE Directive 2007/ 2/ EC
  • public access to environm ental inform ation Directive 2003/ 4/ EC
  • A specific context:

 A need to speed up availability of information on Urban Waste Water and its Treatment (UWWT)  A new concept: Structured Implementation and Information Framework (SIIF)  A requirement for testing on a well established EU reporting framework: the biannual UWWT Directive reporting

slide-3
SLIDE 3

3

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

UW W TD SI I F: I NSPI RE Them es covered

 INSPIRE highly relevant for the UWWTD SIIF  BUT: not ultimate objective for UWWTD SIIF

Useful for domain assessment Part of UWWTD reporting

slide-4
SLIDE 4

4

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

W hat w as done?

  • In close collaboration with Com m ission and pilot Mem ber

States

  • Creation of a generic open source waste water w ebsite
  • Inspire compatible (Inspire

services, organisation,… )

  • showing and using the data,
  • disseminating the data
  • tool free to be reused,
  • including many functionalities,
  • with maps, graphs, tables
  • with individual fiches…
  • and allowing regular evolution.
  • 1. Generic website: uw w td.oieau.fr
  • 2. web tool and documentation for developers:

https:/ / github.com / OI Eau/ uw w td

Homepage

slide-5
SLIDE 5

5

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

Agglomerations Treatment plants Discharge points Sensitive areas

Implementation YES YES YES YES Userfriendly YES YES YES YES Catalogue Midlleware YES YES YES YES Comment / layer YES YES YES YES url hyperlink Comment for the service Doesn't exist but the metadata a available on the geo catalogue Implementation YES YES YES YES Userfriendly YES YES YES YES SIG Midlleware Geoserver Geoserver Geoserver Geoserver Comment / layer url hyperlink WMS URL Comment for the service implemented and fully functionnal Implementation YES YES YES YES Userfriendly YES YES YES YES SIG Midlleware Geoserver Geoserver Geoserver Geoserver Comment / layer url hyperlink WFS URL Comment for the service implemented and fully functionnal Implementation NO NO NO NO Userfriendly NO NO NO NO SIG Midlleware Geoserver Geoserver Geoserver Geoserver Comment / layer pre processed pre processed pre processed pre processed url hyperlink Comment for the service [INSPIRE] Service that makes it possible, as a minimum, to display, navigate, zoom in and out, pan or overlay viewable spatial data sets and to display legend information and any relevant content of metadata.

VIEW SERVICE DOWNLOAD SERVICE

[INSPIRE] Service that enables copies of spatial data sets, or parts of such sets, to be downloaded and, where practicable, accessed directly.

DISCOVERY SERVICE TRANSFORMATION SERVICE

[INSPIRE] Service that enables spatial data sets to be transformed with a view to achieving interoperability http://www.uwwtd.oieau.fr/catalogue/srv/ows/catalog.search#/home No implemented yet

UWWT Directive

[INSPIRE] Service making it possible to search for spatial data sets and services on the basis of the content of the corresponding metadata and to display the content of the metadata.

UW W TD SI I F: a tool for environm ental dom ain experts

 INSPIRE schemas are not available for all objects  The INSPIRE services are not fully implemented (needed?)

Agglom eration Treatm ent plant

slide-6
SLIDE 6

6

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

I m plem ent I NSPI RE Article 1 1 : Discover

Country

Dedicated m enus

Discover: Metadata Dissem ination via Geoserver ( cartographic service) and Geonetw ork ( catalogue) Metadata fiches for each geographical object

 To be developed: dissem ination of statistics

slide-7
SLIDE 7

7

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

I m plem ent I NSPI RE Article 1 1 : View

Discover/ View : Maps Graphs Tables

slide-8
SLIDE 8

8

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

I m plem ent I NSPI RE Article 1 1 : Dow nload

W ebservice DescribeFeatureType : description of the information layers, name and type of fields. GetFeature: access to data in GML format Agglom eration Agglomeration Agglomeration Treatm ent plant Download UrbanWasteWaterTreat mentPlant UrbanWasteWater TreatmentPlant Discharge point DischargePoint DischargePoint Receiving area ReceivingArea ReceivingArea

 Urban w aste w ater data can be now reused everyw here

Dow nload Data and m etadata Services

slide-9
SLIDE 9

9

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

I m plem ent I NSPI RE Article 1 1 :

Transform ation services: Focused on pragm atic and useful solution

UWWT Directive XML files UWWTD SIIF: 11 Algorithms Visualisation: Compliance maps Visualisation: Compliance graphs UWWTD SIIF Transformation Pre-processed (no WPS) UWWTD SIIF Visualisation Publically available Small audience, 28MS national authorities

slide-10
SLIDE 10

10

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

I NSPI RE: an incentive for environm ental dom ains experts

Online available layers ( OGC w eb services) :

Administrative and hydrographic EEA Natura 2000 bathing water, State of Environment water monitoring layers

Agglom eration not com pliant Bathing w ater in poor quality Natura 2 0 0 0

 Allow crossing different layers for a better understanding of the relationships betw een pressure and im pact

slide-11
SLIDE 11

11

Setting the scene: INSPI RE for Reporting and Dissemination of Urban Waste Water Information: B. Fribourg-blanc (OIEau) & B. Rakedjian (DGENV) Thematic Plenary I: INSPIRE for Environment – closing the implementation gap, 27th September 2016, Barcelona, Spain

Under contract for

Conclusion: A w in-w in process

The Commission has financed the development of a urban waste water website that :

  • Fills the INSPIRE national im plem entation gap,
  • Increases transparency,
  • Increases the use of reporting data by different types of

users,

  • Improves the reporting process,
  • Avoids some MS to develop their ow n w ebsite
  • Can be improved and updated with new needs by all users
  • Contributes to grow th and jobs and digital agenda of the

Commission

slide-12
SLIDE 12

Under contract for

Come and visit… …Live presentation today at 1 5 .0 0 - Room H1

+ feedback of Rom ania and the European Com m ission ( DGENV)

Thanks for your attention

Benoît Fribourg-blanc Office International de l’Eau b.fribourg-blanc@oieau.fr
