A New Microcosm Design for Treatability Assessment in Cold Region Petroleum Hydrocarbon Impacted Clayey Sites Aime Schryer, Lisa Moehlman and Steven D. Siciliano Presenting Members Integrity Excellence Responsibility Microcosm Designs

slide-1
SLIDE 1

Integrity  Excellence  Responsibility

Presenting Members

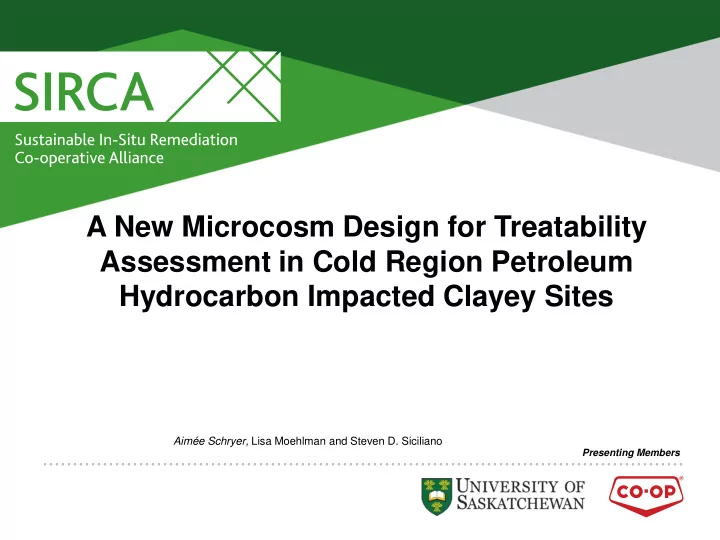

A New Microcosm Design for Treatability Assessment in Cold Region Petroleum Hydrocarbon Impacted Clayey Sites

Aimée Schryer, Lisa Moehlman and Steven D. Siciliano

slide-2
SLIDE 2

Microcosm Designs

  • Microcosm design

limitations

  • Alters soil properties
  • Surface area
  • Structure
  • Fractured Flow
  • Microbial communities
  • Extrapolation
slide-3
SLIDE 3

Objective

Improve current microcosm designs to better mimic cold region PHC contaminated site

slide-4
SLIDE 4

Background

  • Want a site representative

unit to test new techniques

  • Keeps soil intact
  • Structure
  • Microbial activity
  • PHC “pockets”
  • BTEX/F1 in water tracking

BTEX/F1 in soil

slide-5
SLIDE 5
  • Use cores with varying PHC concentration
  • Constructed and shake for 1 hour
  • Water samples taken for BTEX/F1 concentrations
  • Destructively sample the microcosms for final BTEX/F1

concentrations

Methods – Microcosm Assembly

slide-6
SLIDE 6

Methods – Microcosm Assembly

slide-7
SLIDE 7

Methods – Microcosm Assembly

slide-8
SLIDE 8

Methods – Microcosm Assembly

slide-9
SLIDE 9

Methods – Microcosm Assembly

slide-10
SLIDE 10

Methods – Microcosm Assembly

slide-11
SLIDE 11

How to transform the data

  • Ordinary least-squares regression (OLR) not applicable
  • OLR assumes only y axis contains measurement errors
  • Causes biased slope
  • Deming better suited
  • Both measurements subject to random errors
  • Can specify variance in the dependent variable.

y = mx+b x±? Log(BTEX/F1 concentration in bio-stimulatory solution)+1 y±? (BTEX/F1 concentration in Soil)1/3

slide-12
SLIDE 12

Bio-stimulatory Concentrations Track Soil Concentrations

  • For initial (1 hour)

timeframe

  • Each point signifies

a microcosm

slide-13
SLIDE 13

Bio-stimulatory Concentrations Track Soil Concentrations

  • For initial (1 hour)

timeframe

  • Each point signifies

a microcosm

slide-14
SLIDE 14

Bio-stimulatory Concentrations Track Soil Concentrations

  • For initial (1 hour)

timeframe

  • Each point signifies

a microcosm

slide-15
SLIDE 15

Quality Control Experiments

  • Water solution
slide-16
SLIDE 16

Quality Control Experiments

  • Gamma Radiation
slide-17
SLIDE 17

A New Treatability System

  • No changes were noted in water and

sterile microcosms suggesting that there were no abiotic losses.

  • BTEX/F1 in water closely tracks BTEX/F1 in

soil.

  • This means no need to destructively

sample soil.

  • Weekly water changes do not significantly

deplete BTEX/F1 in microcosm

  • Design allows for flexible use.
  • For example, we have constructed

microcosms using strict anaerobic technique.

slide-18
SLIDE 18

Acknowledgements

Supervisor: Dr. Steven Siciliano The Environmental Soil Toxicology Lab Group and Undergrads (5E75) Sustainable In-Situ Remediation Co-operative Alliance (SIRCA) Federated Co-operatives Limited

slide-19
SLIDE 19

Integrity  Excellence  Responsibility

Questions?

slide-20
SLIDE 20

Allan Summary Data for Transformation Outlook Summary Data for Transformation

slide-21
SLIDE 21

Davidson Summary Data for Transformation
