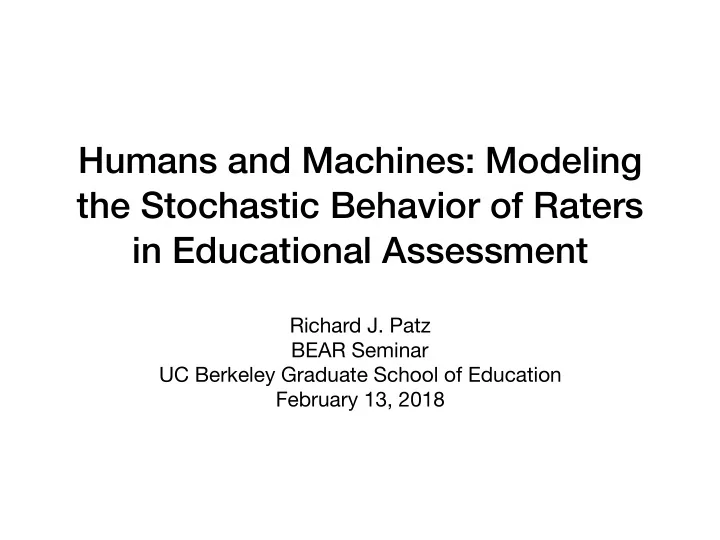

Humans and Machines: Modeling the Stochastic Behavior of Raters in Educational Assessment

Richard J. Patz BEAR Seminar UC Berkeley Graduate School of Education February 13, 2018

Outline of Topics

• Natural human responses in educational assessment
• Technology in education, assessment and scoring
• Computational methods for automated scoring (NLP

, LSA, ML)

• Rating information in statistical and psychometric analysis: Challenges
• Unreliability and bias
• Combining information from multiple rating
• Hierarchical rater model (HRM)
• Applications
• Comparing machine to humans
• Simulating human rating errors to further related research

Why natural, constructed response formats in assessment?

• Learning involves constructing knowledge and expressing

through language (written and/or oral)

• Assessments should consist of ‘authentic’ tasks, i.e., of a

type that students encounter during instruction

• Artificially contrived item formats (e.g., multiple-choice)

advantage skills unrelated to the intended construct

• Some constructs (e.g., essay writing) simply can’t be

measured through selected-response formats

Disadvantages of Constructed- Response formats

• Time consuming for examinees (fewer items per unit time)
• Require expensive human ratings (typically)
• Create delay in providing scores, reports
• Human rating is error-prone
• Consistency across rating events difficult to maintain
• Inconsistency impairs comparability
• Combining multiple ratings creates modeling, scoring problems

Practical Balancing of Priorities

• Mix constructed-response formats with selected response

formats, to realize benefits of each

• Leverage technology in the scoring of CR items
• Rule-based scoring (exhaustively enumerated/

constrained)

• Natural language processing and subsequent automated

rating for written (sometimes spoken) responses

• Made more practical with computer-based test delivery

Technology For Automated Scoring

• Ten years ago there were relatively few providers
• Expensive, proprietary algorithms
• Specialized expertise (NLP

, LSA, AI)

• Laborious, ‘hand crafted’, engine training
• Today solutions are much more ubiquitous
• Students fitting AS models in CS, STAT classes
• Open source libraries abound
• Machine learning, neural networks, accessible, powerful, up to job
• Validity and reliability challenges remain
• Impact of algorithms on instruction, e.g., in writing? Also threat of gaming strategies
• Managing algorithm improvements, examinee adaptations, over time
• Quality human scores needed to train the machines (supervised learning)
• Biases or other problems in human ratings ‘learned’ by algorithms
• Combining scores from machines and humans

Machine Learning for Automated Essay Scoring

Example characteristics:

• Words processed in relation to corpus for frequency, etc., etc.
• N-grams (word pairs, triplets, etc.)
• Transformations (non-linear, sinusoidal), and dimensionality reduction
• Iterations improving along gradient, memory of previous states
• Data split into training and validation; maximizing predication accuracy on validation; little else “interpretable” about parameters

Taghipour & Ng (2016) Example architecture:

Focus of Research

• Situating rating process within overall measurement and statistical

context

• The hierarchical rater model (HRM)
• Accounting for multiple ratings ‘correctly’
• Contrast with alternative approaches, e.g., Facets
• Simultaneous analysis of human and machine ratings
• Example from large-scale writing assessment
• Leveraging models of human rating behavior for better simulation,

examination of impacts on inferences

Hierarchical Structure of Rated Item Response Data

• If all levels follow normal distribution, then Generalizability Theory applies
• Estimates at any level weigh data mean and prior mean, using ‘generalizability coefficient’
• If ‘ideal ratings’ follow IRT model and observed ratings a signal detection model, HRM

Patz, Junker & Johnson, 2002

θi ~ i.i.d. N(µ,σ 2), i = 1,…,N ξij ~ an IRT model (e.g. PCM), j = 1,…,J,for each i Xijr ~ a signal detection model r = 1,…,R, for each i, j ⎫ ⎬ ⎪ ⎪ ⎭ ⎪ ⎪

HRM levels

Hierarchical Rater Model

• Raters detect true item score (i.e., ‘ideal rating’) with a degree of bias

and imprecision

φr = −.2 ψ r = .5

ξ = 3

p32r = .08 p33r = .64 p34r = .27

Hierarchical Rater Model (cont.)

• Examinees respond to items according to a polytomous item response

theory model (here PCM; could be GPCM, GRM, others):

P ξij = ξ |θi,β j,γ jξ ⎡ ⎣ ⎤ ⎦ = exp θi − β j

k=1 ξ

∑

−γ jk ⎧ ⎨ ⎩ ⎪ ⎫ ⎬ ⎭ ⎪ exp

h=0 K−1

∑

θi − β j

k=1 h

∑

−γ jk ⎧ ⎨ ⎩ ⎫ ⎬ ⎭

θi ~ i.i.d. N(µ,σ 2), i = 1,…,N,

HRM Estimation

• Most straightforward to estimate using Markov chain

Monte Carlo

• Uninformative priors specified in Patz et al 2002,

Casablanca et al, 2016

• WinBugs/JAGS (may be called from within R)
• HRM has been estimated using maximum likelihood and

posterior modal estimation (Donoghue and Hombo, 2001; DeCarlo et al, 2011)

Facets Alternative

• Facets (Linacre) models can capture rater effects:

where 𝜇rjk is the effect rater r has on category k of item j. Note: rater effects 𝜇 may be constant for all levels of an item, all items at a a given level, or for all levels of all items. Every rater-item combination has unique ICC Facets models have proven highly useful in the detection and mitigation of rater effects in operational scoring (e.g., Wang & Wilson, 2005; Myford & Wolfe, 2004)

P ξij = ξ |θi,β j,γ jξ,λrjk ⎡ ⎣ ⎤ ⎦ = exp θi − β j

k=1 ξ

∑

−γ jk − λrjk ⎧ ⎨ ⎩ ⎪ ⎫ ⎬ ⎭ ⎪ exp

h=0 K−1

∑

θi − β j

k=1 h

∑

−γ jk − λrjk ⎧ ⎨ ⎩ ⎫ ⎬ ⎭

Dependence structure of Facets models

• Ratings are directly related to proficiency
• Arbitrarily precise 𝜄 estimation achievable by increasing ratings R
• Alternatives (other than HRM) include:
• Rater Bundle Model (Wilson & Hoskens, 2001)
• Design-effect-like correction (Bock, Brennan, Muraki, 1999)

Applications & Extensions

• f HRM
• Detecting rater effects and “modality” effects in Florida

assessment program (Patz, Junker, Johnson, 2002)

• 360-degree feedback data (Barr & Raju, 2003)
• Rater covariates, applied to Golden State Exam (image vs.

paper study) (Mariano & Junker, 2007)

• Latent classes for raters, applied to large-scale language

assessment (DeCarlo et al, 2011)

• Machine (i.e., automated) and human scoring (Casabianca et

al, 2016)

HRM with rater covariates

• Introduce design matrix 𝛷 associating individual raters to

their covariates

• Bias and variability of ratings vary according rater

characteristics

Bias: Variability:

Application with Human and Machine Ratings

• Statewide writing assessment program (provided by CTB)
• 5 dimensions of writing (“items”); each on 1-6 rubric
• 487 examinees
• 36 raters: 18 male, 17 female, 1 machine
• Each paper scored by four raters (1 machine, 3 humans)
• 9740 ratings in total

Results by “gender”

• Males and female very similar (and negligible on average) bias
• Machine less variable (esp. than males) more severe (not sig.)
• Individual rater bias and severity is informative (next slide)

Most lenient, r=11

Most harsh and least variable, r=20 (problematic pattern confirmed)

Most variable (r=29)

Individual rater estimate may be diagnostic

Continued Research

• HRM presents systematic way to simulate rater behavior
• What range of variability and bias are typical? Good? Problematic?
• Realistic simulations yielding predictable agreement rates,

quadratic weighted kappa statistics, etc.?

• What are the downstream impacts of rater problems on: Measurement

accuracy? Equating? Engine training?

• To what degree and how might modeling of raters (often unidentified
• r ignored) improve machine learning results in the training of

automated scoring engines

• Under what conditions should different (esp. more granular) signal

detection models be used within the HRM framework?

Quadratic Weighted Kappa

• Penalizes non-adjacent disagreement more than unweighted

kappa or linearly (i-j) weighted kappa

• Widely used as a prediction accuracy metric in machine

learning

• Kappa statistics are an important supplement to rates of

agreement (exact/adjacent) in operational rating κ = 1− wi, jOi, j

i, j

∑

wi, jEi, j

i, j

∑

wi, j = (i − j)2 (N −1)2

where

Oi, j =

Ei, j =

Observed count in cell i,j Expected count in cell i,j

HRM Rater Noise

• How do HRM signal detection accuracy impact reliability and agreement

statistics for rated items?

• Use HRM to simulate realistic patterns of rater behavior
• Example
• For 10,000 examinees with normally distributed proficiencies
• True item scores (ideal ratings) from PCM/RSM: 10 items, 5-levels per item
• Vary rater variability parameter 𝛺, with rater bias 𝟈=0

Ideal ratings follow PCM

ψ r = 0

Ideal Ratings:

Results

Continued Research

• HRM presents systematic way to simulate rater behavior
• What range of variability and bias are typical? Good? Problematic?
• Realistic simulations yielding predictable agreement rates, quadratic

weighted kappa statistics, etc.?

• What are the downstream impacts of rater problems on: Measurement

accuracy? Equating? Engine training?

• To what degree and how might modeling of raters (often unidentified
• r ignored) improve machine learning results in the training of

automated scoring engines

• Under what conditions should different (esp. more granular) signal

detection models be used within the HRM framework?

Summary

• Constructed response item formats remain important
• Technology making these formats more feasible
• Modeling rater behavior is important
• HRM provides useful framework for characterizing rater error

patterns, from humans and/or machines

• HRM signal detection model layer useful in simulation
• Modeling raters may improve machine scoring solutions

(TBD)
