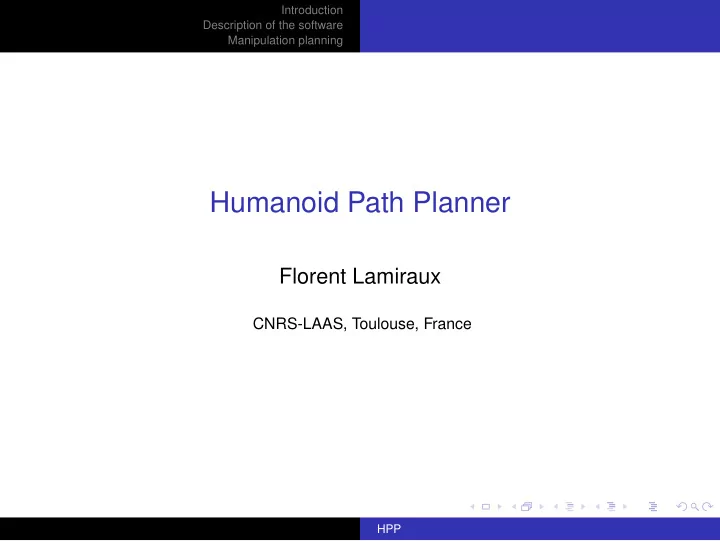

SLIDE 1

Introduction Description of the software Manipulation planning

Humanoid Path Planner

Florent Lamiraux

CNRS-LAAS, Toulouse, France

HPP

SLIDE 2

Introduction Description of the software Manipulation planning

Humanoid Path Planner

Introduction Description of the software Manipulation planning

HPP

SLIDE 3

Introduction Description of the software Manipulation planning

Outline

Introduction Description of the software Manipulation planning

HPP

SLIDE 4

Introduction Description of the software Manipulation planning

Path Planning

Given

◮ A robot (kinematic chain), ◮ obstacles, ◮ constraints, ◮ an initial configuration and ◮ goal configurations,

Compute a collision-free path satisfying the constraints from the initial configuration to a goal configuration.

HPP

SLIDE 5

Introduction Description of the software Manipulation planning

Path Planning

Given

◮ A robot (kinematic chain), ◮ obstacles, ◮ constraints, ◮ an initial configuration and ◮ goal configurations,

Compute a collision-free path satisfying the constraints from the initial configuration to a goal configuration.

HPP

SLIDE 6

Introduction Description of the software Manipulation planning

Path Planning

Given

◮ A robot (kinematic chain), ◮ obstacles, ◮ constraints, ◮ an initial configuration and ◮ goal configurations,

Compute a collision-free path satisfying the constraints from the initial configuration to a goal configuration.

HPP

SLIDE 7

Introduction Description of the software Manipulation planning

Path Planning

Given

◮ A robot (kinematic chain), ◮ obstacles, ◮ constraints, ◮ an initial configuration and ◮ goal configurations,

Compute a collision-free path satisfying the constraints from the initial configuration to a goal configuration.

HPP

SLIDE 8

Introduction Description of the software Manipulation planning

Path Planning

Given

◮ A robot (kinematic chain), ◮ obstacles, ◮ constraints, ◮ an initial configuration and ◮ goal configurations,

Compute a collision-free path satisfying the constraints from the initial configuration to a goal configuration.

HPP

SLIDE 9

Introduction Description of the software Manipulation planning

Historical perspective

◮ 1998: Move3D, ◮ 2001: Creation of Kineo-CAM, transfer of Move3D, ◮ 2006: Release of KineoWorks-2, development of HPP

based on KineoWorks-2,

◮ 2013: kineo-CAM is bought by Siemens, ◮ December 2013: development of HPP open-source.

HPP

SLIDE 10

Introduction Description of the software Manipulation planning

Historical perspective

◮ 1998: Move3D, ◮ 2001: Creation of Kineo-CAM, transfer of Move3D, ◮ 2006: Release of KineoWorks-2, development of HPP

based on KineoWorks-2,

◮ 2013: kineo-CAM is bought by Siemens, ◮ December 2013: development of HPP open-source.

HPP

SLIDE 11

Introduction Description of the software Manipulation planning

Historical perspective

◮ 1998: Move3D, ◮ 2001: Creation of Kineo-CAM, transfer of Move3D, ◮ 2006: Release of KineoWorks-2, development of HPP

based on KineoWorks-2,

◮ 2013: kineo-CAM is bought by Siemens, ◮ December 2013: development of HPP open-source.

HPP

SLIDE 12

Introduction Description of the software Manipulation planning

Historical perspective

◮ 1998: Move3D, ◮ 2001: Creation of Kineo-CAM, transfer of Move3D, ◮ 2006: Release of KineoWorks-2, development of HPP

based on KineoWorks-2,

◮ 2013: kineo-CAM is bought by Siemens, ◮ December 2013: development of HPP open-source.

HPP

SLIDE 13

Introduction Description of the software Manipulation planning

Historical perspective

◮ 1998: Move3D, ◮ 2001: Creation of Kineo-CAM, transfer of Move3D, ◮ 2006: Release of KineoWorks-2, development of HPP

based on KineoWorks-2,

◮ 2013: kineo-CAM is bought by Siemens, ◮ December 2013: development of HPP open-source.

HPP

SLIDE 14

Introduction Description of the software Manipulation planning

Outline

Introduction Description of the software Manipulation planning

HPP

SLIDE 15

Introduction Description of the software Manipulation planning

Overview of the architecture

Modular: collection of packages

◮ package dependencies tracked by pkg-config, ◮ installation managed by cmake and a git submodule:

git://github.com/jrl-umi3218/jrl-cmakemodules.git,

◮ programmed in C++, ◮ controlled via python

HPP

SLIDE 16

Introduction Description of the software Manipulation planning

Overview of the architecture

Modular: collection of packages

◮ package dependencies tracked by pkg-config, ◮ installation managed by cmake and a git submodule:

git://github.com/jrl-umi3218/jrl-cmakemodules.git,

◮ programmed in C++, ◮ controlled via python

HPP

SLIDE 17

Introduction Description of the software Manipulation planning

Overview of the architecture

Modular: collection of packages

◮ package dependencies tracked by pkg-config, ◮ installation managed by cmake and a git submodule:

git://github.com/jrl-umi3218/jrl-cmakemodules.git,

◮ programmed in C++, ◮ controlled via python

HPP

SLIDE 18

Introduction Description of the software Manipulation planning

Overview of the architecture

Modular: collection of packages

◮ package dependencies tracked by pkg-config, ◮ installation managed by cmake and a git submodule:

git://github.com/jrl-umi3218/jrl-cmakemodules.git,

◮ programmed in C++, ◮ controlled via python

HPP

SLIDE 19

Introduction Description of the software Manipulation planning

Overview of the architecture

Modular: collection of packages

◮ package dependencies tracked by pkg-config, ◮ installation managed by cmake and a git submodule:

git://github.com/jrl-umi3218/jrl-cmakemodules.git,

◮ programmed in C++, ◮ controlled via python

HPP

SLIDE 20

Introduction Description of the software Manipulation planning

Overview of the architecture

HPP

SLIDE 21

Introduction Description of the software Manipulation planning

Software Development Kit

Packages implementing the core infrastructure

◮ Kinematic chain with geometry

◮ hpp-model: implementation of kinematic chain with

geometry,

◮ tree of joints (Rotation, Translation, SO3: unit-quaternions), ◮ moving fcl::CollisionObjects, ◮ forward kinematics, ◮ joint Jacobians, ◮ center of mass and Jacobian.

◮ Path planning

◮ hpp-core: definition of basic classes, ◮ path planning problems, ◮ path planning solvers (RRT), ◮ constraints (locked dofs, numerical constraints) ◮ path optimizers (random shortcut), ◮ steering methods (straight interpolation) HPP

SLIDE 22

Introduction Description of the software Manipulation planning

Software Development Kit

Packages implementing the core infrastructure

◮ Kinematic chain with geometry

◮ hpp-model: implementation of kinematic chain with

geometry,

◮ tree of joints (Rotation, Translation, SO3: unit-quaternions), ◮ moving fcl::CollisionObjects, ◮ forward kinematics, ◮ joint Jacobians, ◮ center of mass and Jacobian.

◮ Path planning

◮ hpp-core: definition of basic classes, ◮ path planning problems, ◮ path planning solvers (RRT), ◮ constraints (locked dofs, numerical constraints) ◮ path optimizers (random shortcut), ◮ steering methods (straight interpolation) HPP

SLIDE 23

Introduction Description of the software Manipulation planning

Extensions

Packages implementing other algorithms

◮ hpp-model-urdf: construction of robots and objects by

parsing urdf/srdf files.

◮ hpp-wholebody-step: whole-body and walk planning

using sliding path approximation,

◮ hpp-manipulation: manipulation planning (see next

section)

HPP

SLIDE 24

Introduction Description of the software Manipulation planning

Extensions

Packages implementing other algorithms

◮ hpp-model-urdf: construction of robots and objects by

parsing urdf/srdf files.

◮ hpp-wholebody-step: whole-body and walk planning

using sliding path approximation,

◮ hpp-manipulation: manipulation planning (see next

section)

HPP

SLIDE 25

Introduction Description of the software Manipulation planning

Extensions

Packages implementing other algorithms

◮ hpp-model-urdf: construction of robots and objects by

parsing urdf/srdf files.

◮ hpp-wholebody-step: whole-body and walk planning

using sliding path approximation,

◮ hpp-manipulation: manipulation planning (see next

section)

HPP

SLIDE 26

Introduction Description of the software Manipulation planning

Python control

hpp-corbaserver: python scripting through CORBA

◮ embed hpp-core into a CORBA server and expose

services through 3 idl interfaces:

◮ Robot load and initializes robot, ◮ Obstacle load and build obstacles, ◮ Problem define and solve problem.

◮ Implement python classes to help user call CORBA

services

◮ Robot automatize robot loading, ◮ ProblemSolver definition problem helper. HPP

SLIDE 27

Introduction Description of the software Manipulation planning

Python control

hpp-corbaserver: python scripting through CORBA

◮ embed hpp-core into a CORBA server and expose

services through 3 idl interfaces:

◮ Robot load and initializes robot, ◮ Obstacle load and build obstacles, ◮ Problem define and solve problem.

◮ Implement python classes to help user call CORBA

services

◮ Robot automatize robot loading, ◮ ProblemSolver definition problem helper. HPP

SLIDE 28

Introduction Description of the software Manipulation planning

Python control

Extensions

◮ hpp-wholebody-step-corba: control of humanoid

specific constraints and algorithms,

◮ hpp-manipulation-corba: control of manipulation

planning specific classes and algorithms.

HPP

SLIDE 29

Introduction Description of the software Manipulation planning

Python control

Extensions

◮ hpp-wholebody-step-corba: control of humanoid

specific constraints and algorithms,

◮ hpp-manipulation-corba: control of manipulation

planning specific classes and algorithms.

HPP

SLIDE 30

Introduction Description of the software Manipulation planning

Visualization through ROS/rviz

Implemented by package hpp ros.

HPP

SLIDE 31

Introduction Description of the software Manipulation planning

Demonstration

HPP

SLIDE 32

Introduction Description of the software Manipulation planning

Outline

Introduction Description of the software Manipulation planning

HPP

SLIDE 33

Introduction Description of the software Manipulation planning

Manipulation

Class of problem containing:

◮ A robot: actuated DOFs ◮ Objects: unactuated DOFs

A solution will be a succession of motion of two types:

◮ The robot moves without constraints. Objects do not move. ◮ The robot moves while grasping the object.

HPP

SLIDE 34

Introduction Description of the software Manipulation planning

Manipulation

Class of problem containing:

◮ A robot: actuated DOFs ◮ Objects: unactuated DOFs

A solution will be a succession of motion of two types:

◮ The robot moves without constraints. Objects do not move. ◮ The robot moves while grasping the object.

HPP

SLIDE 35

Introduction Description of the software Manipulation planning

Manipulation

2 states:

Not holding Holding

HPP

SLIDE 36

Introduction Description of the software Manipulation planning

Manipulation

4 transitions:

Not holding

Object fixed

Holding

Grasp Ungrasp Keep the grasp

HPP

SLIDE 37

Introduction Description of the software Manipulation planning

Manipulation

4 transitions:

Not holding

Object fixed

Holding

Grasp Ungrasp Keep the grasp

HPP

SLIDE 38

Introduction Description of the software Manipulation planning

Manipulation

4 transitions:

Not holding

Object fixed

Holding

Grasp Ungrasp Keep the grasp

HPP

SLIDE 39

Introduction Description of the software Manipulation planning

Constraint

Definition

A function f ∈ D1(C, Rm).

Level set

A level set of a constraint f is: Lf0(f) = {q ∈ C|f(q) = f0}

Projection

Using a Newton Descent algorithm: qrand|f(qrand) = f0 ⇒ qproj|f(qproj) = f0

HPP

SLIDE 40

Introduction Description of the software Manipulation planning

Constraint

Definition

A function f ∈ D1(C, Rm).

Level set

A level set of a constraint f is: Lf0(f) = {q ∈ C|f(q) = f0}

Projection

Using a Newton Descent algorithm: qrand|f(qrand) = f0 ⇒ qproj|f(qproj) = f0

HPP

SLIDE 41

Introduction Description of the software Manipulation planning

Constraint

Definition

A function f ∈ D1(C, Rm).

Level set

A level set of a constraint f is: Lf0(f) = {q ∈ C|f(q) = f0}

Projection

Using a Newton Descent algorithm: qrand|f(qrand) = f0 ⇒ qproj|f(qproj) = f0

HPP

SLIDE 42

Introduction Description of the software Manipulation planning

Constraint

Two types of constraints:

Configuration

Only one level set is interesting: L0(f).

Motion

A level set also represents reachability space.

HPP

SLIDE 43

Introduction Description of the software Manipulation planning

Foliation

In the configuration space:

2 constraints on motion

◮ f: position of the object. ◮ g: grasp of the object.

HPP

SLIDE 44

Introduction Description of the software Manipulation planning

Constraint graph

Lf Lg

HPP

SLIDE 45

Introduction Description of the software Manipulation planning

Constraint graph

Lf

f

Lg

f f g

HPP

SLIDE 46

Introduction Description of the software Manipulation planning

Rapidly exploring Random Tree

qrand = shoot random config() qnear = nearest neighbor(qrand, tree) fe, fp = select next state(qnear) qproj = project(qrand, fe) qnew = extend(qnear, qproj, fp) tree.insert node( (qnear, qnew, fp) )

HPP

SLIDE 47

Introduction Description of the software Manipulation planning

Rapidly exploring Random Tree

qrand = shoot random config() qnear = nearest neighbor(qrand, tree) fe, fp = select next state(qnear) qproj = project(qrand, fe) qnew = extend(qnear, qproj, fp) tree.insert node( (qnear, qnew, fp) )

HPP

SLIDE 48

Introduction Description of the software Manipulation planning

Rapidly exploring Random Tree

qrand = shoot random config() qnear = nearest neighbor(qrand, tree) fe, fp = select next state(qnear) qproj = project(qrand, fe) qnew = extend(qnear, qproj, fp) tree.insert node( (qnear, qnew, fp) )

HPP

SLIDE 49

Introduction Description of the software Manipulation planning

Rapidly exploring Random Tree

qrand = shoot random config() qnear = nearest neighbor(qrand, tree) fe, fp = select next state(qnear) qproj = project(qrand, fe) qnew = extend(qnear, qproj, fp) tree.insert node( (qnear, qnew, fp) )

HPP

SLIDE 50

Introduction Description of the software Manipulation planning

Rapidly exploring Random Tree

qrand = shoot random config() qnear = nearest neighbor(qrand, tree) fe, fp = select next state(qnear) qproj = project(qrand, fe) qnew = extend(qnear, qproj, fp) tree.insert node( (qnear, qnew, fp) )

HPP

SLIDE 51

Introduction Description of the software Manipulation planning

Rapidly exploring Random Tree

qrand = shoot random config() qnear = nearest neighbor(qrand, tree) fe, fp = select next state(qnear) qproj = project(qrand, fe) qnew = extend(qnear, qproj, fp) tree.insert node( (qnear, qnew, fp) )

HPP

SLIDE 52

Introduction Description of the software Manipulation planning

hpp-manipulation-corba

There are tools to:

◮ read URDF files of robots and objects; ◮ create grasp contraints between a end-effector (robot) and

a handle (object);

◮ build the graph of constraints;

HPP

SLIDE 53

Introduction Description of the software Manipulation planning

hpp-manipulation-corba

There are tools to:

◮ read URDF files of robots and objects; ◮ create grasp contraints between a end-effector (robot) and

a handle (object);

◮ build the graph of constraints;

HPP

SLIDE 54

Introduction Description of the software Manipulation planning

hpp-manipulation-corba

There are tools to:

◮ read URDF files of robots and objects; ◮ create grasp contraints between a end-effector (robot) and

a handle (object);

◮ build the graph of constraints;

HPP

SLIDE 55

Introduction Description of the software Manipulation planning

Documentation

Entry point on Gepetto home page:

HPP

SLIDE 56

Introduction Description of the software Manipulation planning

Installation

Go to https://github.com/humanoid-path-planner/hpp-doc and follow the installation instructions.

HPP

SLIDE 57

Introduction Description of the software Manipulation planning

Keep informed

◮ Mailing list hpp@laas.fr to discuss issues related to the

software,

◮ github notifications for issues related to individual

packages

HPP
