MIN Faculty Department of Informatics

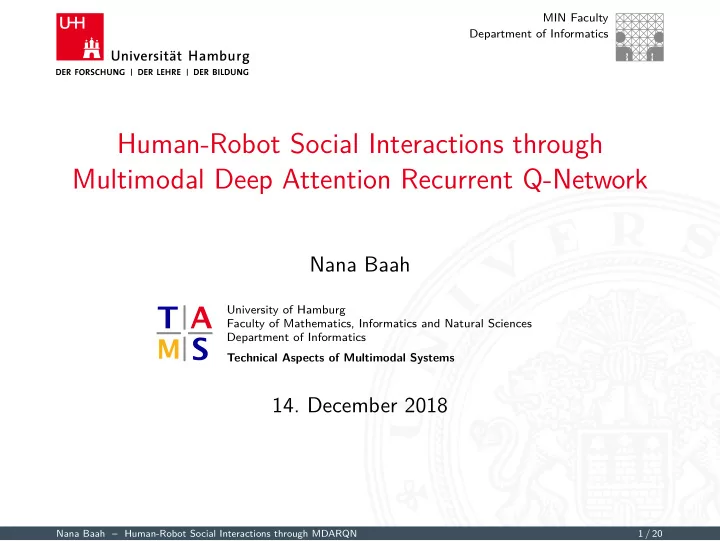

Human-Robot Social Interactions through Multimodal Deep Attention Recurrent Q-Network

Nana Baah

University of Hamburg Faculty of Mathematics, Informatics and Natural Sciences Department of Informatics Technical Aspects of Multimodal Systems

• 14. December 2018

Nana Baah – Human-Robot Social Interactions through MDARQN 1 / 20

Outline

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

• 1. Introduction and Motivation
• 2. The Proposed MDARQN
• 3. Robot Actions with Attention
• 4. Training Phase
• 5. Results and Discussion
• 6. Conclusion

Nana Baah – Human-Robot Social Interactions through MDARQN 2 / 20

Why the need for HRSI?

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

◮ Human-robot social interaction (HRSI) ◮ Humans and robots coexisting ◮ Impossible to program such interpreter to complex human

behavior

◮ Self-learning architecture to learn social interaction skills

Nana Baah – Human-Robot Social Interactions through MDARQN 3 / 20

Introduction and Motivation

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

◮ Reinforcement Learning (RL) + Deep Learning = Deep

Q-Network

◮ Multimodal Deep Q-Network (MDQN) ◮ Robots augemented with MDQN learned to choose appropriate

actions

◮ Required perceivability due to lack of attention

Nana Baah – Human-Robot Social Interactions through MDARQN 4 / 20

The Proposed MDARQN

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

Each stream consists of:

• 1. Convolution

Network (Convnets)

• 2. Long-Short Term

Memory (LSTM)

• 3. Attention

Mechanism Network (G)

Multimodal Deep Attention Recurrent Q-Network Architecture [2]

Nana Baah – Human-Robot Social Interactions through MDARQN 5 / 20

Convolutional Network (Convnets)

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

• 1. MDARQN inputs are 2 streams of pre-processed visual frame:

◮ Y-channel for grayscale ◮ Depth-channel for depth images

• 2. Consist of 4 layers, followed by non-linear rectified function
• 3. Output D-dimensional feature vectors are feed to attention

network

Convolutional Network for gray-scale images as input [2]

Nana Baah – Human-Robot Social Interactions through MDARQN 6 / 20

Long-Short Term Memory (LSTM)

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

• 1. Recurrent Neural Network (RNN) allow information to persist
• 2. Input gate: previous hidden state (ht−1), previous memory

state (ct−1) and annotation vector (zt)

• 3. Forget gate: old/irrelevant data is discarded
• 4. Output gate: output data (ht) is based on memory state (ct)

Long-short Term Memory Network (LSTM) [2]

Nana Baah – Human-Robot Social Interactions through MDARQN 7 / 20

Attention Mechanism Network

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

• 1. Generates the annotation vector
• 2. Input: D-dimensional L feature vectors and previous hidden

state of the LSTM

• 3. Soft attention network:

◮ Differentiable ◮ Deterministic Soft Attention Network [4]

Nana Baah – Human-Robot Social Interactions through MDARQN 8 / 20

Q-Network

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

• 1. Q-values are normalized for the fusion
• 2. Normalized values are averaged together to generate output

Q-values

• 3. Greedy action is taken (highest Q-value)

Deep Q-learning for Human-robot Interaction [2]

Nana Baah – Human-Robot Social Interactions through MDARQN 9 / 20

Modified Robotic System

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

◮ A Pepper robot was used for

the project

◮ Used visual sensors

◮ 2-D camera and 3-D sensor

(10 fps with 320x240)

◮ Modified with Force Sensing

Resistors (FSR) touch sensor

◮ forms basis for reward

function

Pepper Robot [1]

Nana Baah – Human-Robot Social Interactions through MDARQN 10 / 20

Attention Steering for non-Greedy actions

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

◮ Ensures perceivable HRSI ◮ Robot randomly picks an action from set of legal actions ◮ Attention steering function

◮ Awareness ◮ Sensitive to real world stimulus (sound and movement detection)

◮ Robot executes 4 sets of legal actions

• 1. Wait
• 2. Look towards human
• 3. Wave hand
• 4. Handshake

Nana Baah – Human-Robot Social Interactions through MDARQN 11 / 20

Reward Function

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

◮ Handshake detection through touch sensor forms the baseline. ◮ Rewards

◮ Successful handshake: 1 ◮ Unsuccessful handshake: -0.1 ◮ Other actions: 0

Nana Baah – Human-Robot Social Interactions through MDARQN 12 / 20

Training Phase

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

• 1. Agent was trained for 14 days
• 2. By interacting with people in

uncontrolled environment

• 3. At each time step:

◮ Environment provides an

• bservation state ot

◮ Agent takes an action using

ǫ-greedy policy

◮ Environment provides scalar

reward rt and next state st+1

Reinforcement model of interaction [3]

Nana Baah – Human-Robot Social Interactions through MDARQN 13 / 20

Data Generation Phase

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

• 1. Interaction experience et = {st, at, rt, st+1} is stored into a

replay buffer M

• 2. Data generation cycle ends when terminate state T is achieved
• 3. Replay buffer stores N most recent experiences

Nana Baah – Human-Robot Social Interactions through MDARQN 14 / 20

Evaluation Procedure

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

Evaluate MDARQN decisions and impact of attention model on HRI.

• 1. MDARQN decisions on a data set

◮ More than 1 feasible action ◮ 3 volunteers suggested the best action for the scenario

• 2. Evaluating the impact of attention mechanism

◮ Robot interacted with the public under the trained Q-networks’

policy

◮ MDARQN performance were compared to MDQN

Nana Baah – Human-Robot Social Interactions through MDARQN 15 / 20

Results

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

Robot waits [2] Robot looks towards human [2] Robot waves [2] Robot offers a handshake [2]

Nana Baah – Human-Robot Social Interactions through MDARQN 16 / 20

Discussion

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

◮ Interpret human walking trajectory ◮ Level of human engagement ◮ Human’s body orientation and distance ◮ People willingness to interact with a robot ◮ Precise selective interaction attention ◮ High penalty results in rude behavior ◮ Low penalty results in repeated handshakes

Nana Baah – Human-Robot Social Interactions through MDARQN 17 / 20

Conclusion

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

◮ Proposed MDARQN was trained for 14 days ◮ By interpreting and executing a responsive action ◮ Learned to infer intention ◮ Attention indication adds perceivability to robot actions ◮ Learned to choose appropriate decisions in diverse interaction

scenarios

Nana Baah – Human-Robot Social Interactions through MDARQN 18 / 20

Thank You Any Questions?

Nana Baah – Human-Robot Social Interactions through MDARQN 19 / 20

References

Introduction and Motivation The Proposed MDARQN Robot Actions with Attention Training Phase Results and Discussion Conclusion Reference

[1] MS Windows NT Kernel Description. https://www.softbankrobotics.com/emea/en/pepper. Accessed: 2018-12-14. [2] Ahmed Hussain Qureshi et al. “Show, attend and interact: Perceivable human-robot social interaction through neural attention Q-network”. In: Robotics and Automation (ICRA), 2017 IEEE International Conference on. IEEE. 2017,

• pp. 1639–1645.

[3] Hado Van Hasselt, Arthur Guez, and David Silver. “Deep Reinforcement Learning with Double Q-Learning.” In: AAAI.

• Vol. 2. Phoenix, AZ. 2016, p. 5.

[4] Shiyang Yan et al. “Hierarchical Multi-scale Attention Networks for action recognition”. In: Signal Processing: Image Communication 61 (2018), pp. 73–84.

Nana Baah – Human-Robot Social Interactions through MDARQN 20 / 20
