HTTP Session Identification Research project 2 Kevin de Kok Marcus - - PowerPoint PPT Presentation

▶
http session identification
SMART_READER_LITE
LIVE PREVIEW

HTTP Session Identification Research project 2 Kevin de Kok Marcus - - PowerPoint PPT Presentation

Oct 08, 2023 606 likes •849 views

HTTP Session Identification Research project 2 Kevin de Kok Marcus Bakker 30 June 2010 Agenda Introduction Research question Project scope Dataset Identification methods Conclusion Future work Questions?

slide-1

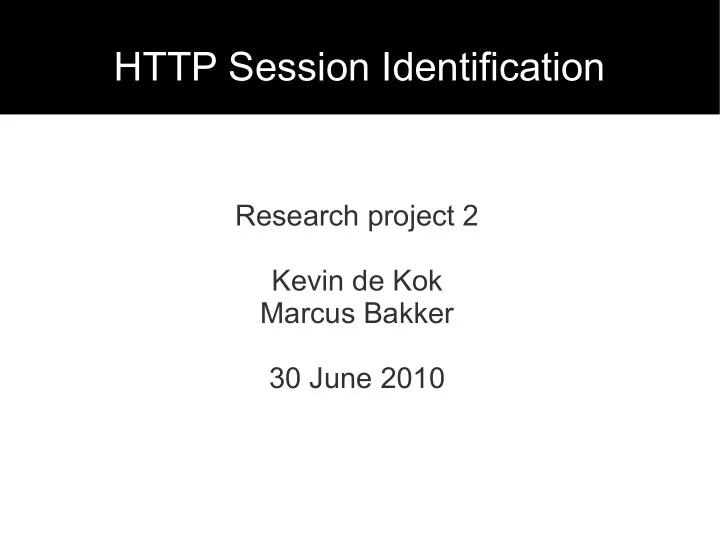

SLIDE 1

HTTP Session Identification

Research project 2 Kevin de Kok Marcus Bakker 30 June 2010

slide-2
SLIDE 2

30-06-10 HTTP Session Identification 2

Agenda

  • Introduction
  • Research question
  • Project scope
  • Dataset
  • Identification methods
  • Conclusion
  • Future work
  • Questions?
slide-3
SLIDE 3

30-06-10 HTTP Session Identification 3

Introduction (1)

  • What is a HTTP session?
slide-4
SLIDE 4

30-06-10 HTTP Session Identification 4

Introduction (2)

  • The need to identify HTTP sessions [1]
  • Not trivial to identify HTTP sessions
  • HTTP is a sessionless protocol
  • Request - Response

[1]

  • T. Kinkhorst and M. van Kleij. Busting the ghost on the web: real time

detection of drive-by-infections, June 2009. URL http://www.delaat. net/~cees/sne-2008-2009/p46/report.pdf.

slide-5
SLIDE 5

30-06-10 HTTP Session Identification 5

Research question

  • How can HTTP sessions be distinguished from

each other?

slide-6
SLIDE 6

30-06-10 HTTP Session Identification 6

Project scope

  • RFC 2616
  • The methods to identify a HTTP session will be

developed for web 1.0 (e.g. no Ajax)

  • The HTTP session identification will be

executed from a central point in the network (no host-based detection)

slide-7
SLIDE 7

30-06-10 HTTP Session Identification 7

Dataset

  • Labsite (bookmark)
  • Opened three hyperlinks
  • Security.nl (bookmark)
  • Opened three hyperlinks
  • 8 HTTP sessions (2 bookmarks + 6 hyperlinks)
slide-8
SLIDE 8

30-06-10 HTTP Session Identification 8

Identification methods

  • Two categories of methods:
  • Start of a HTTP session
  • HTTP message correlation
slide-9
SLIDE 9

30-06-10 HTTP Session Identification 9

Start of a HTTP session

  • Time between successive fetches
  • Hyperlink present at GET header
  • No referrer
slide-10
SLIDE 10

30-06-10 HTTP Session Identification 10

Time between successive fetches(1)

  • 10 – 600ms [2]

[2]

  • Y. Bhole and A.Popescu. Measurement and analysis of http traffic, December 2005.

t > AOT

Proof of Concept

slide-11
SLIDE 11

30-06-10 HTTP Session Identification 11

Time between successive fetches(2)

  • “Slow” browsing (mobile phone?)
slide-12
SLIDE 12

30-06-10 HTTP Session Identification 12

Hyperlink present at GET header(1)

  • Hyperlink

Hyperlink: 1/index.html GET header: /rp2/new_website/1/index.html

Hyperlink HTTP request message HTML Body

slide-13
SLIDE 13

30-06-10 HTTP Session Identification 13

Hyperlink present at GET header(2)

  • 301 response message contains a hyperlink
slide-14
SLIDE 14

30-06-10 HTTP Session Identification 14

No referrer(1)

  • Address bar
  • Bookmark

Proof of Concept

slide-15
SLIDE 15

30-06-10 HTTP Session Identification 15

No referrer(2)

  • Javascript removes the referrer
slide-16
SLIDE 16

30-06-10 HTTP Session Identification 16

HTTP message correlation

  • HTML body HTTP GET correlation
  • Link the referrers
slide-17
SLIDE 17

30-06-10 HTTP Session Identification 17

HTML body HTTP GET correlation(1)

URI embedded object: lokaal_plaatje.png GET header: /rp2/new_website/lokaal_plaatje.png

Picture HTTP request message HTML Body

slide-18
SLIDE 18

30-06-10 HTTP Session Identification 18

HTML body HTTP GET correlation(2)

  • Javascript:

document.write(unescape("%3Cscript src='" + gaJsHost + "google-analytics.com/ga.js' type='text/javascript'%3E %3C/script%3E"));

slide-19
SLIDE 19

30-06-10 HTTP Session Identification 19

Link the referrers(1)

Host+GET header: bulbasaur.studlab.os3.nl/rp2/new_website/ Referrer: http://bulbasaur.studlab.os3.nl/rp2/new_website/

HTTP request message HTML Body image

slide-20
SLIDE 20

30-06-10 HTTP Session Identification 20

Link the referrers(2)

  • Javascript can change the referrer:

http://pagead2.googlesyndication.com/pagead/ads? client=<VERY LONG STRING>

slide-21
SLIDE 21

30-06-10 HTTP Session Identification 21

Conclusion

  • Start of a HTTP session
  • Time between successive fetches
  • Hyperlink present at GET header
  • No referrer
  • HTTP message correlation
  • HTML body HTTP GET correlation
  • Link the referrers
slide-22
SLIDE 22

30-06-10 HTTP Session Identification 22

Future work

  • Large scale testing
  • Time between successive fetches for mobile

phones

  • Web 2.0
slide-23
SLIDE 23

30-06-10 HTTP Session Identification 23

Questions?

?
