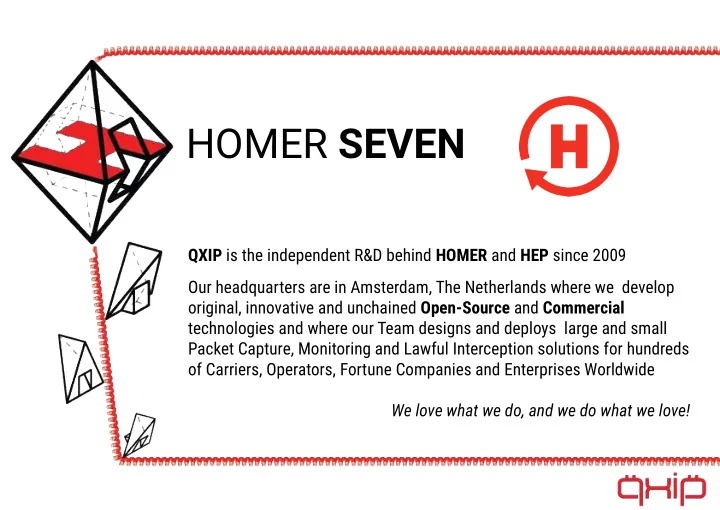

SLIDE 1 HOMER SEVEN
QXIP is the independent R&D behind HOMER and HEP since 2009 Our headquarters are in Amsterdam, The Netherlands where we develop
- riginal, innovative and unchained Open-Source and Commercial
technologies and where our Team designs and deploys large and small Packet Capture, Monitoring and Lawful Interception solutions for hundreds
- f Carriers, Operators, Fortune Companies and Enterprises Worldwide
We love what we do, and we do what we love!
SLIDE 2 HOMER SEVEN
○ Collector and Aggregator for Real-Time Communication protocols ○ Powerful and Extensible with additional types, endpoints ○ Head-less Baseline for other projects-products
○ VoIP & Telco Monitoring ■ Agents, Servers, Recorders ○ RTC & Event Monitoring ■ Clients, Servers, Data Formats
- Real World use-cases and benchmarks
- How does it work?
○ H7 Design Concepts ■ Data Layer ■ Metrics Layer
- How to Deploy in Real Life
SLIDE 3 Captage nt Capture Agents HEP Codebase Capture Servers < Your Code /> LOGS + RTC Events
SLIDE 4
SLIDE 5 COMPLETE REWRITE OF HOMER ( NODEJS API + UI )
SLIDE 6 DESIGNED TO SUPPORT ANY PROTOCOL WITH DYNAMIC MAPPING AND CUSTOM CORRELATION
SLIDE 7 INTEGRATION READY WITH INDUSTRY STANDARD DATABASES AND POPULAR ANALYTICS PLATFORMS
SLIDE 8 POWERFUL STANDALONE CAPTURE SERVERS + AGENTS
SLIDE 9 BUILDING BLOCK FOR OTHER PRODUCTS & PLATFORMS
SLIDE 10 COMPLETE REWRITE OF HOMER ( NODEJS API + UI ) DESIGNED TO SUPPORT ANY PROTOCOL WITH DYNAMIC MAPPING AND CUSTOM CORRELATION INTEGRATION READY WITH INDUSTRY STANDARD DATABASES AND POPULAR ANALYTICS PLATFORMS POWERFUL STANDALONE CAPTURE SERVERS + AGENTS BUILDING BLOCK FOR OTHER PRODUCTS & PLATFORMS
SLIDE 11 PACKET CAPTURE
Perpetual Collection, Tracking and Correlation of VoIP and RTC Packets
RTC ANALYTICS
Customizable Metrics and Timeseries Extraction with Custom Tagging
TROUBLESHOOTING
Boosting Engineering, Customer Care and Outage Investigation
ALERTS & ALARMS
Export data for Alerting and detection of Anomalies
BIG DATA PRODUCER
Exporting to external Platforms
MACHINE LEARNING
Feed Training and Predictions
SLIDE 12 CAPTURE CORE
HEP JSON TS DATA LOGS
JANUS MEDIASOUP JITSI MEET OPENSIPS KAMAILIO FREESWITCH ASTERISK PROMETHEUS ELASTIC PGSQL INFLUXDB CLICKHOUSE LOKI MONGODB RTPENGINE RTPPROXY CAPTAGENT HEPLIFY CUBRO EXA
API HOMER-APP
THIS IS HOMER
SLIDE 13
PROTOCOL MAPPING & CROSS CORRELATION
SLIDE 14 SIP STATS LOGS RTC PROTO X
CUSTOM HEADER SESSION IDENTIFIER SDP DETAILS USER CORRELATION HEP CORRELATION
SLIDE 15 SIP STATS LOGS RTC PROTO X OpenSIPS Kamailio Asterisk FreeSwitch Drachtio RTP:Engine RTP Proxy Janus Jitsi MediaSoup Custom Pastash HEP-JS Custom HEPagent HEPlify RTPAgent HEPjack Custom Custom Custom
SLIDE 16
SLIDE 17
HOMER SEVEN: CROSS CORRELATION
SLIDE 18
HOMER SEVEN: PUB-SUB LOOKUPS
SLIDE 19 SESSION FIELDS HEP PUBSUB HEPSUB.JS HEPSUB.JS HEPSUB.JS DATABASE COOL API YOUR CODE
ASYNC LOOKUPS MAPPING LOOKUP
SLIDE 20
SLIDE 21
SLIDE 22
SLIDE 23
HOMER USER-INTERFACE
SLIDE 24
DYNAMIC DASHBOARDS
SLIDE 25
DYNAMIC DASHBOARDS
SLIDE 26
DYNAMIC TIME RANGE
SLIDE 27
DYNAMIC STATISTICS
SLIDE 28
DYNAMIC SEARCH FORMS
SLIDE 29
DYNAMIC SEARCH FORMS
SLIDE 30
DYNAMIC SEARCH FORMS
SLIDE 31
DYNAMIC SEARCH GRID
SLIDE 32
DYNAMIC SEARCH DETAILS
SLIDE 33
DYNAMIC EVENT FLOWS
SLIDE 34 INSTALLING HOMER
GEN HEP SERVER DATABASE METRICS LOGS USER INTERFACE H7 HEPlify-Server HEPop PostgreSQL 10+ Prometheus Loki Homer-App, Grafana H7 HEPlify-Server HEPop PostgreSQL 10+ InfluxDB InfluxDB Homer-App, Chronograf H7 HEPlify-Server HEPop PostgreSQL 10+ Elasticsearch Elasticsearch Homer-App, Kibana
SLIDE 35
ANY QUESTIONS?
http://sipcapture.io http://github.com/sipcapture sales@qxip.net
