Home and Building Automation System an Overview Ambient intelligence: technology and design Fulvio Corno, Dario Bonino Politecnico di Torino, 2013/2014 Outline Wired systems MyOpen KNX ModBus Wireless systems ZigBee

slide-1
SLIDE 1

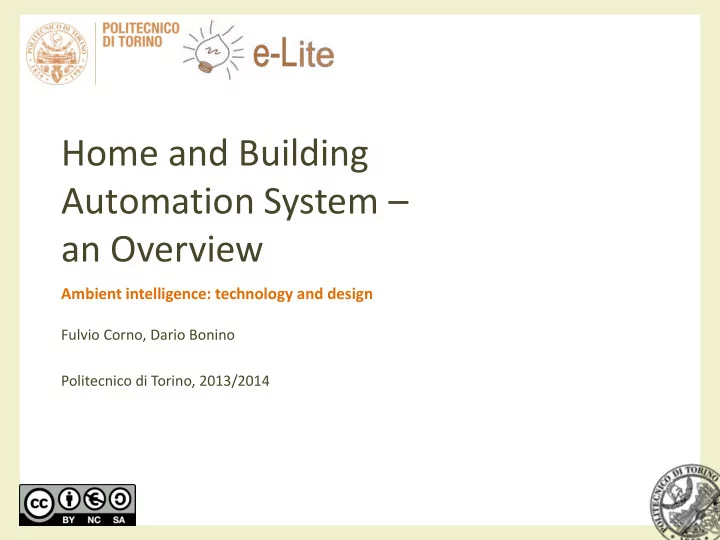

Home and Building Automation System – an Overview

Ambient intelligence: technology and design

Fulvio Corno, Dario Bonino Politecnico di Torino, 2013/2014

slide-2
SLIDE 2

Outline

  • Wired systems

– MyOpen – KNX – ModBus

  • Wireless systems

– ZigBee – EnOcean

2013/2014 Ambient intelligence: technology and design 2

slide-3
SLIDE 3

MyOpen

BTICINO PROTOCOL FOR MYHOME SYSTEM

slide-4
SLIDE 4

MyOpen / OpenWebNet

  • MyOpen system

– Initially proposed by Bticino (Legrand group) – Proprietary bus (SCS) – Proprietary low-level protocol – Simple configuration

  • Jumpers (can be carried by electricians)
  • Software

– Accessible via OpenWebNet gateways

2013/2014 Ambient intelligence: technology and design 4

slide-5
SLIDE 5

OpenWebNet

  • Allows external applications to communicate,

monitor and control MyHome devices

  • Open Specification
  • Open protocol designed to work on minimal network

requirements

– E.g., phone connections

2013/2014 Ambient intelligence: technology and design 5

slide-6
SLIDE 6

OpenWebNet

  • DTMF compatible

– E.g., *1*1*12##  Light 12, On

  • Defines 2 types of communication sessions

– Command session

  • To send commands
  • To ask for device states
  • To require measure values

– Event session

  • To monitor all the bus events, asynchronously

2013/2014 Ambient intelligence: technology and design 6

slide-7
SLIDE 7

OpenWebNet - Messages

  • Tag structure

– *tag1*tag2*tag3*...*tagN##

  • Tag

– Allowed characters

  • {0, 1, 2, 3, 4, 5, 6, 7, 8, 9, #}

– Delimitator

  • *

– Message end

  • ##
  • Content and structure changes for

– Commands / State requests – Requests of measure values

2013/2014 Ambient intelligence: technology and design 7

slide-8
SLIDE 8

OpenWebNet – Commands/States

  • 3-tag structure

– *WHO*WHAT*WHERE##

  • WHO

– The command/request functionality (among a set of pre-defined values)

  • WHAT

– The action to perform – Possible actions are specified for each WHO value

  • WHERE

– Identifies the message destination

  • Single device, device groups, scenarios,

zones, etc.

  • WHAT and WHERE can have

additional parameters

– WHAT#PAR1#PAR2...#PARn – WHERE#PAR1#PAR2...#PARn

2013/2014 Ambient intelligence: technology and design 8

WHO Functionality Description Scenarios 1 Lighting 2 Actuators 3 Load control 4 Temperature control 5 Anti-burglar systems 6 Intercom 7 Multimedia 13 Gateway management 15 CEN commands 16 / 22 Sound diffusion 17 Scenarios for MH200N gateways 18 Energy management 25 CEN plus/ plus scenarios/ clean contacts 1001 Automation diagnostics 1004 Thermal control diagnostics 1013 Device diagnostics

slide-9
SLIDE 9

OpenWebNet – Commands/States

  • Switch on the lamp with id=12

– *1*1*12##

  • Switch on the webcam with id=4000

– *7*0*4000##

  • Switch off the temperature control for the zone 1

– *4*303*1##

  • Switch off all lights

– *1*0*0##

2013/2014 Ambient intelligence: technology and design 9

slide-10
SLIDE 10

Idiosyncrasies / Peculiarities

  • Explicit State Notion
  • Same format for State changes and Commands
  • State change events only in monitoring sessions
  • State change events only for “active devices”, buttons and switches

do not generate events.

  • States and commands only “defined” for “active”

devices

– Buttons and switches do not have an explicit state (independent from the controlled object)

2013/2014 Ambient intelligence: technology and design 10

slide-11
SLIDE 11

More info

  • Open community at

– http://www.myopen-legrandgroup.com/ – Free registration

  • Documentation, software, discussion groups,

application showcase

  • Direct contact

with Bticino engineers

2013/2014 Ambient intelligence: technology and design 11

slide-12
SLIDE 12

KNX

THE EUROPEAN DE-FACTO STANDARD (ALMOST)

KNX is a standardized (EN 50090, ISO/IEC 14543), OSI-based network communications protocol for intelligent buildings. KNX is the successor to, and convergence of, three previous standards: the European Home Systems Protocol (EHS), BâtiBUS, and the European Installation Bus (EIB or Instabus). The KNX standard is administered by the KNX Association..

slide-13
SLIDE 13

KNX

2013/2014 Ambient intelligence: technology and design 13

  • Formal merger of 3 leading systems for Home and

Building Automation

– EIB – EHS – BatiBus

slide-14
SLIDE 14

KNX

2013/2014 Ambient intelligence: technology and design 14

  • All devices carry a “bit” of intelligence on-board
  • 2 Operating modes

– S-MODE (System Mode)

  • Requires centralized binding & parameterization (with ETS)

– E-MODE

  • Simple manipulation without PCs
  • Similar to MyOpen
slide-15
SLIDE 15

Basic Principles

  • Based on the idea of distributed applications
  • Every device carries a BIT of «intelligence» on board
  • 2 Main operating modes

2013/2014 Ambient intelligence: technology and design 15

S-MODE

(System Mode)

E-MODE

  • Requires centralized binding &

parameterization (with ETS software)

  • Simple manipulation without

PCs

  • Similar to MyOpen
slide-16
SLIDE 16

Logic Architecture

2013/2014 Ambient intelligence: technology and design 16

S-MODE E-MODE

CONFIGURATION APPLICATION LINK

slide-17
SLIDE 17

Application

  • Device implement “Distributed Applications”

– Based on Datapoints

  • Distributed Applications = Datapoint Binding
  • Datapoints:

– Represent process and control variables in the system – May be inputs, outputs, parameters, diagnostic data,… – Standardized Datapoint types – Grouped into Functional Blocks

2013/2014 Ambient intelligence: technology and design 17

slide-18
SLIDE 18

KNX – Application (2)

2013/2014 Ambient intelligence: technology and design 18

  • Communication System and Protocol offer a reduced

instruction set to

– Read and Write (set and get) Datapoint values

  • Application semantics is mapped to

– Data format – Bindings

  • 3 binding schemes

– Free – Structured – Tagged binding

slide-19
SLIDE 19

Datapoint Addressing example

2013/2014 Ambient intelligence: technology and design 19

slide-20
SLIDE 20

Functional blocks: Lighting

2013/2014 Ambient intelligence: technology and design 20

* Excerpt from 07_20_02 Lighting Actuators v1.4 AS – The KNX 2.0 specification

slide-21
SLIDE 21

Datapoints: Lighting

2013/2014 Ambient intelligence: technology and design 21 * Excerpt from 07_20_02 Lighting Actuators v1.4 AS – The KNX 2.0 specification

slide-22
SLIDE 22

Datapoint specification: Blinds

2013/2014 Ambient intelligence: technology and design 22

slide-23
SLIDE 23

Application = Datapoints Binding

2013/2014 Ambient intelligence: technology and design 23

GroupAddress (multicast access to a datapoint) GroupAddress (multicast access to a datapoint) Binding

slide-24
SLIDE 24

KNX - Binding

2013/2014 Ambient intelligence: technology and design 24

  • Free binding:

– No a priori prescription on which Datapoints may be linked – Free addressing – Customized multicast grouping at the level of individual Datapoints – Central to S-Mode

  • Structured binding

– Precise pattern for linking a whole set of Datapoints, usually corresponding to a Functional Block or Channel – Free-address

  • E.g., Controller and Push-button Modes
  • Tagged binding

– … too complex …

slide-25
SLIDE 25

Link - Connections

2013/2014 Ambient intelligence: technology and design 25

TP 1

Twisted pair cabling SELV network and supply system Asynchronous character

  • riented data transfer and half

duplex bi-directional communication Transmission rate: 9600 bit/s CSMA/CA collision avoidance All topologies may be used and mixed (line, star, tree, ….)

PL 110

Communication over the mains supply network Spread frequency shift keying signaling Asynchronous transmission of data packets and half duplex bi- directional communication Central frequency 110 kHZ Transmission rate: 1200 bit/s CSMA, compliant to EN 50065-1

RF

868,3 MHz band for Short Range Frequency Shift Keying, maximum duty cycle of 1% 32768 cps (chips per second) Manchester data encoding

KNXNet/IP

Standard protocol for KNX devices connected to an IP network IP network as a fast backbone in KNX installations Tunnels KNX Frames over IP

slide-26
SLIDE 26

KNX – Network technology

2013/2014 Ambient intelligence: technology and design 26

  • TP 1 (basic medium inherited from EIB)

– Twisted pair cabling – SELV network and supply system – Asynchronous character oriented data transfer and half duplex bi-directional communication – Transmission rate: 9600 bit/s – CSMA/CA collision avoidance – All topologies may be used and mixed (line, star, tree, ….)

slide-27
SLIDE 27

KNX – Network technology

2013/2014 Ambient intelligence: technology and design 27

  • PL 110

– Communication over the mains supply network – Spread frequency shift keying signaling – Asynchronous transmission of data packets and half duplex bi-directional communication – Central frequency 110 kHZ – Transmission rate:1200 bit/s – CSMA, compliant to EN 50065-1

slide-28
SLIDE 28

KNX – Network technology

  • RF

– 868,3 MHz band for Short Range – Frequency Shift Keying, maximum duty cycle of 1% – 32768 cps (chips per second) – Manchester data encoding

2013/2014 Ambient intelligence: technology and design 28

slide-29
SLIDE 29

KNX – Network technology

  • KNXnet/IP

– Standard protocol for KNX devices connected to an IP network – IP network as a fast backbone in KNX installations – Tunnels KNX Frames over IP

2013/2014 Ambient intelligence: technology and design 29

slide-30
SLIDE 30

Link - Topology

  • LINE
  • Up to 256 devices
  • Connected into Areas

via a Main Line

  • AREA
  • Up to 16 lines per area
  • Up to 16 Areas
  • Connected via a

Backbone Line

  • Max. Number of devices
  • 65536

2013/2014 Ambient intelligence: technology and design 30

slide-31
SLIDE 31

KNX on Stage

2013/2014 Ambient intelligence: technology and design 31

slide-32
SLIDE 32

Idiosyncrasies / Peculiarities

2013/2014 Ambient intelligence: technology and design 32

  • Implicit State Notion

– Only a subset of device states can be queried

  • State Events
  • State change events can be published by carefully configuring the KNX devices

– S-MODE – Specific group address for notifications – Pass-through gateway configuration

  • All devices can publish state changes
  • In-operation events available
  • KNXNet/IP

– Tunnel mode  event-based – Supports partial device discovery

  • EIBNet/IP

– Requires participation to a multicast delivery group:

  • 239.192.39.238
slide-33
SLIDE 33

Modbus

ONE OF THE MOST DIFFUSED INDUSTRIAL PROTOCOLS

Modbus is a serial communications protocol

  • riginally published by Modicon (now Schneider

Electric) in 1979 for use with its programmable logic controllers (PLCs). Simple and robust, it has since become a de facto standard communication protocol, and it is now a commonly available means of connecting industrial electronic devices

slide-34
SLIDE 34

Basic Principles

  • Application layer messaging protocol (level 7 of the

OSI model)

– client/server communication between devices – different types of buses or networks

  • Industry serial de facto

standard since 1979

  • Request/reply protocol

– Services specified by function codes

2013/2014 Ambient intelligence: technology and design 34

slide-35
SLIDE 35

Logic Architecture

2013/2014 Ambient intelligence: technology and design 35

slide-36
SLIDE 36

Modbus - Addressing

2013/2014 Ambient intelligence: technology and design 36

  • precise PDU

addressing rules

– Each data block is addressed from 0 to 65535 – Each element within a data block is numbered from 1 to n

  • pre-mapping between

the MODBUS data model and the device application is totally vendor device specific

slide-37
SLIDE 37

Data Model

  • 4 primary tables

– up to 65536 data items, each

  • Distinctions between

– inputs and outputs – bit-addressable and word-addressable data items

  • Read or write of items can span multiple consecutive

data blocks

2013/2014 Ambient intelligence: technology and design 37

slide-38
SLIDE 38

Function codes

  • Function Code

– Indicates to the server what kind of action to perform – Is coded in one byte – Valid codes are in the range of 1 ... 255 decimal

  • the range 128 – 255 is reserved and used for exception responses

– Function code "0" is not valid – Sub-function codes are added to some function codes to define multiple actions

2013/2014 Ambient intelligence: technology and design 38

slide-39
SLIDE 39

Function Codes

2013/2014 Ambient intelligence: technology and design 39

slide-40
SLIDE 40

Request/reply protocol

2013/2014 Ambient intelligence: technology and design 40

SUCCESSFUL TRANSACTION FAILING TRANSACTION

slide-41
SLIDE 41

Protocol structure

  • Simple protocol data unit (PDU)

– Independent of the underlying communication layers – Specific buses can introduce additional fields on the application data unit (ADU)

2013/2014 Ambient intelligence: technology and design 41

slide-42
SLIDE 42

Modbus – Data Model

2013/2014 Ambient intelligence: technology and design 42

Multiple data blocks Single data block

slide-43
SLIDE 43

Modbus - Transaction

2013/2014 Ambient intelligence: technology and design 43

slide-44
SLIDE 44

Link - Connection

2013/2014 Ambient intelligence: technology and design 44

RS485

Serial cable (1 or 2 pairs) Variable transmission speed from 9600 to 115200 baud

Modbus TCP/IP

Ethernet cable (Fiber for longer distances) Transmission speed depends on the underlying hardware / network

slide-45
SLIDE 45

Modbus – Network technology (2)

2013/2014 Ambient intelligence: technology and design 45

  • TCP/IP over Ethernet
  • Asynchronous serial transmission over a variety of

media

– wire : EIA/TIA-232-E, EIA-422, EIA/TIA-485-A – fiber, radio, etc.

  • MODBUS PLUS

– high speed token passing network

slide-46
SLIDE 46

Link - Topology

  • Depends on the link technology

– RS485

  • serial (daisy chain)
  • 1 master, many slaves (up to 255)

– Modbus TCP/IP

  • Multiple masters
  • Multiple slaves

2013/2014 Ambient intelligence: technology and design 46

slide-47
SLIDE 47

Network Architecture

2013/2014 Ambient intelligence: technology and design 47

slide-48
SLIDE 48

Modbus on Stage

2013/2014 Ambient intelligence: technology and design 48

slide-49
SLIDE 49

Idiosyncrasies / Peculiarities

  • Explicit State Notion

– Can only be queried (read)

  • No command notion

– Only write operations on registers

  • Client/Server approach

– Does not support event-based interaction

  • Polling
  • No explicit device notion

– Registers exposed through a Modbus Gateway – Devices identified by their slave id

  • No device discovery

– Available registers are defined by the vendor

2013/2014 Ambient intelligence: technology and design 49

slide-50
SLIDE 50

Wireless systems

slide-51
SLIDE 51

A comparison (source: Z-Wave)

2013/2014 Ambient intelligence: technology and design 51

slide-52
SLIDE 52

ZigBee

WIRELESS CONTROL THAT SIMPLY WORKS (?)

ZigBee is a specification for a suite of high level communication protocols used to create personal area networks built from small, low-power digital radios. ZigBee is based on an IEEE 802.15 standard. Though low-powered, ZigBee devices often transmit data over longer distances by passing data through intermediate devices to reach more distant ones, creating a mesh network; i.e., a network with no centralized control or high-power transmitter/receiver able to reach all of the networked devices.

slide-53
SLIDE 53

Basic Principles

  • Low cost, very low power consumption, two way,

wireless communications standard

– Built on top of IEEE 802.15.4

  • Secure

– Messages are encrypted

  • Defines several profiles

– Standard: Home Automation, Smart Energy, etc. – Custom

  • Each profile includes one or more ZCL (ZigBee Cluster

Library) specification

2013/2014 Ambient intelligence: technology and design 53

slide-54
SLIDE 54

Basic principles

2013/2014 Ambient intelligence: technology and design 54

ZigBee Profiles ZigBee Cluster Libraries

Group of devices / functionalities pertaining a given application domain, e.g., Home Automation (ZigBee HA), Smart Energy (ZigBee SE), etc. Device functionalities described in terms of client-server interactions

slide-55
SLIDE 55

Logic Architecture

2013/2014 Ambient intelligence: technology and design 55

slide-56
SLIDE 56

ZDO – ZigBee Device Objects

2013/2014 Ambient intelligence: technology and design 56

Assemble configuration information from the end applications to determine and implement discovery, security management, network management, and binding management. Initialize the application support sub-layer (APS), the network layer (NWK), and the Security Service Provider. interface

APPLICATION OBJECTS

interface

LOWER PORTIONS OF THE ZIGBEE PROTOCOL STACK

slide-57
SLIDE 57

Application Framework

2013/2014 Ambient intelligence: technology and design 57

Agreements for messages, message formats, and processing actions that enable developers to create an interoperable, distributed application employing application entities that reside on separate devices. These application profiles enable applications to send commands, request data, and process commands and requests.

ZigBee Profiles

Clusters are identified by a cluster identifier, which is associated with data flowing out of, or into, the device. Cluster identifiers are unique within the scope of a particular application profile.

ZigBee Clusters

THE ENVIRONMENT IN WHICH APPLICATION OBJECTS ARE HOSTED ON ZIGBEE DEVICES

slide-58
SLIDE 58

Profiles

2013/2014 Ambient intelligence: technology and design 58

HOME AUTOMATION

This profile defines device descriptions and standard practices for applications needed in a residential or light commercial environment. Installation scenarios range from a single room to an entire home up to

20,000 square feet (approximately 1850m2).

The key application domains included in this initial version are lighting, HVAC, window shades and security. This profile defines device descriptions and standard practices for Demand Response and Load

Management “Smart Energy” applications needed

in a Smart Energy based residential or light commercial environment. Installation scenarios range from a single home to an entire apartment complex. The key application domains included in this initial version are metering, pricing and demand

response and load control applications.

SMART ENERGY

The E@H features extend the HA and SE ZigBee profiles in order to build a new class of devices, i.e.

White Goods for Energy@Home.

ENERGY@HOME

slide-59
SLIDE 59

Profiles

2013/2014 Ambient intelligence: technology and design 59

HOME AUTOMATION

This profile defines device descriptions and standard practices for applications needed in a residential or light commercial environment. Installation scenarios range from a single room to an entire home up to

20,000 square feet (approximately 1850m2).

The key application domains included in this initial version are lighting, HVAC, window shades and security. This profile defines device descriptions and standard practices for Demand Response and Load

Management “Smart Energy” applications needed

in a Smart Energy based residential or light commercial environment. Installation scenarios range from a single home to an entire apartment complex. The key application domains included in this initial version are metering, pricing and demand

response and load control applications.

SMART ENERGY

The E@H features extend the HA and SE ZigBee profiles in order to build a new class of devices, i.e.

White Goods for Energy@Home.

ENERGY@HOME

Teaser: Next week (Thursday, June 5th) the director of the Energy@Home consortium will present their activities.

slide-60
SLIDE 60

Profiles

2013/2014 Ambient intelligence: technology and design 60

HOME AUTOMATION

This profile defines device descriptions and standard practices for applications needed in a residential or light commercial environment. Installation scenarios range from a single room to an entire home up to

20,000 square feet (approximately 1850m2).

The key application domains included in this initial version are lighting, HVAC, window shades and security. This profile defines device descriptions and standard practices for Demand Response and Load

Management “Smart Energy” applications needed

in a Smart Energy based residential or light commercial environment. Installation scenarios range from a single home to an entire apartment complex. The key application domains included in this initial version are metering, pricing and demand

response and load control applications.

SMART ENERGY

The E@H features extend the HA and SE ZigBee profiles in order to build a new class of devices, i.e.

White Goods for Energy@Home.

ENERGY@HOME

Teaser: Next week (Thursday, June 5th) the director of the Energy@Home consortium will present their activities.

slide-61
SLIDE 61

Clusters

  • Cluster

– Collection of attributes and commands – Defines a communications interface between two devices – Devices implement server and client sides of the interface

  • Client

– A cluster interface which is listed in the output cluster list of the simple descriptor on an endpoint. – Sends commands that manipulate the attributes on the corresponding server cluster.

  • Server

– A cluster interface which is listed in the input cluster list of the simple descriptor on an endpoint. – Typically this interface supports all or most of the attributes of the cluster.

2013/2014 Ambient intelligence: technology and design 61

slide-62
SLIDE 62

Cluster Definition: OnOffSwitch

2013/2014 Ambient intelligence: technology and design 62

I

O

slide-63
SLIDE 63

Cluster Definition: OnOffOutput

2013/2014 Ambient intelligence: technology and design 63

slide-64
SLIDE 64

Link - Topology

2013/2014 Ambient intelligence: technology and design 64

STAR TREE MESH

  • coordinator is

responsible for starting

the network and for

choosing certain key network parameters

  • the network may be

extended through the use

  • f ZigBee routers
  • hierarchical routing

strategy

  • beacon-oriented

communication

  • full peer-to-peer communication
  • routers in mesh networks do not

currently emit regular IEEE 802.15.4-2003 beacons

  • the network is controlled by
  • ne single device called the

ZigBee coordinator

  • the ZigBee coordinator is

responsible for initiating and

maintaining the devices on

the network

slide-65
SLIDE 65

EnOcean

The inventor of patented energy harvesting wireless technology

First ISO/IEC wireless standard optimized for solutions with ultra-low power consumption and energy harvesting .

slide-66
SLIDE 66

Approach

  • EnOcean modules combine micro-energy converters

with ultra low power electronics and reliable wireless communications

  • (nearly) Self-powered wireless sensor solutions

2013/2014 Ambient intelligence: technology and design 66

slide-67
SLIDE 67

Energy?

2013/2014 Ambient intelligence: technology and design 67

  • And more…
  • Pressure
  • Rotation

(wheels, gas meters)

  • Vibrations
slide-68
SLIDE 68

Software architecture

2013/2014 Ambient intelligence: technology and design 68

slide-69
SLIDE 69

Radio technology

2013/2014 Ambient intelligence: technology and design 69

slide-70
SLIDE 70

Transmission protocol

2013/2014 Ambient intelligence: technology and design 70

slide-71
SLIDE 71

Short messages: reliability

2013/2014 Ambient intelligence: technology and design 71

slide-72
SLIDE 72

More information

2013/2014 Ambient intelligence: technology and design 72

slide-73
SLIDE 73

Open standard, multiple vendors

2013/2014 Ambient intelligence: technology and design 73

http://www.enocean- alliance.org/en/products/

slide-74
SLIDE 74

Wanna play?

2013/2014 Ambient intelligence: technology and design 74

http://www.enocean.com/en/enocean-pi/

slide-75
SLIDE 75

License

2013/2014 Ambient intelligence: technology and design 75

  • These slides are distributed under a Creative Commons license

“Attribution – NonCommercial – ShareAlike (CC BY-NC-SA) 3.0”

  • You are free to:

– Share — copy and redistribute the material in any medium or format – Adapt — remix, transform, and build upon the material – The licensor cannot revoke these freedoms as long as you follow the license terms.

  • Under the following terms:

– Attribution — You must give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use. – NonCommercial — You may not use the material for commercial purposes. – ShareAlike — If you remix, transform, or build upon the material, you must distribute your contributions under the same license as the original. – No additional restrictions — You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.

  • http://creativecommons.org/licenses/by-nc-sa/3.0/
