Historical Evolution of Wastewater Treatment in Wisconsin Wisconsin Wastewater Operators Association Conference by Kenneth Sedmak October 12, 2016 What is this? Ancient Public Outhouse-Greece 30 AD Night Soil/Chamber Pot Collection

slide-1
SLIDE 1

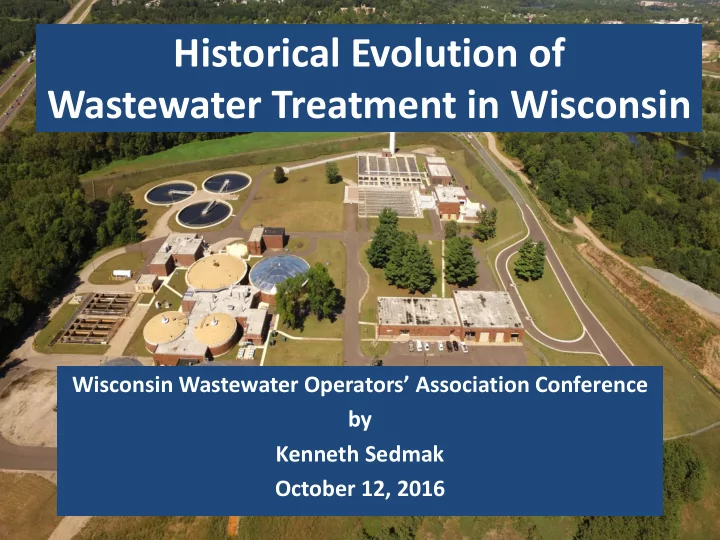

Historical Evolution of Wastewater Treatment in Wisconsin

Wisconsin Wastewater Operators’ Association Conference by Kenneth Sedmak October 12, 2016

slide-2
SLIDE 2

What is this?

slide-3
SLIDE 3

Ancient Public Outhouse-Greece 30 AD

slide-4
SLIDE 4

Night Soil/Chamber Pot Collection

slide-5
SLIDE 5

Advanced Night Soil Collection

slide-6
SLIDE 6

Water Closet Flushing Valve

slide-7
SLIDE 7

Sewer Construction

slide-8
SLIDE 8

River Treatment - Disease

slide-9
SLIDE 9

Wisconsin Early Population Centers

Green Bay Madison Milwaukee

slide-10
SLIDE 10

Madison Prior to Treatment

  • 1866 – Water closets start to replace
  • uthouses and chamber pots
  • 1874-1884 Private sewer lines discharge to

the lakes

  • 1885 – Sewer district system developed. Still

discharge to lakes

slide-11
SLIDE 11

“International Process”

  • John MacDougall proposes International

Process

– Used ferozone and polarite – Claimed to be more efficient than standard chemical plant – Guaranteed performance – Good at first but failed after several months – City abandoned in 1891

slide-12
SLIDE 12

Second Treatment Plant

  • Built in 1901 east of Yahara River
  • “Bacterial reduction process”
  • First trickling filter plant in the U.S. A.
  • Worked well
  • Effluent to Yahara River
slide-13
SLIDE 13

Burke Plant

  • Began design in 1912
  • Imhoff or Septic tanks on line in 1914
  • Trickling filter on line in 1916
  • Design capacity of 5 MGD
  • Designed for expected 1930 loadings
  • Capacity reached in 1920’s
slide-14
SLIDE 14

Imhoff or Septic Tank

slide-15
SLIDE 15

Imhoff Tanks – Burke Plant

slide-16
SLIDE 16

Trickling Filters at Burke Plant

slide-17
SLIDE 17

Trickling Filter with Rotary Distributor Antigo, WI

slide-18
SLIDE 18

Nine Springs Wastewater Treatment Plant

  • Put in service in 1928
  • Designed for 5 MGD
  • West pumping station pumped to Nine Springs
  • East pumping station pumped to Burke Plant
  • Odors due to septicity
  • Added 1.5 MGD of lake water to double

velocity in pipeline

slide-19
SLIDE 19
slide-20
SLIDE 20

WINTER

slide-21
SLIDE 21

Nine Springs Wastewater Treatment Plant

  • First Addition – 1936 - Added activated sludge
  • process. Increased capacity to 11.25 MGD

– Allowed the Burke Plant to be closed – No treated effluent to Lake Monona

  • Second Addition – 1939. Increased capacity to

15 MGD

slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24

1868 - Milwaukee City Council authorizes preliminary engineering plans for water and sewerage systems. 1871 – Intercepting sewers built to collect wastewater and convey it to Jones Island for discharge into lake. 1888 - Milwaukee River Flushing Tunnel built. 1905 – Kinnickinnic River Flushing Tunnel built.

ACTIONS TO ADDRESS MILWAUKEE’S WATER POLLUTION PROBLEM

slide-25
SLIDE 25

ACTIONS TO ADDRESS MILWAUKEE’S WATER POLLUTION PROBLEM

1913 - Sewerage Commission of the City of Milwaukee is established. 1915 - 1925 - Jones Island Wastewater Treatment Plant is built; interceptor system started. 1921- Metropolitan Sewerage Commission of the County of Milwaukee created. 1925-1933 Interceptor system expanded.

slide-26
SLIDE 26

Jones Island WWTP

First large scale activated sludge plant in U.S. Cost - $15 million Capacity - 85 MGD 1974 - Designated National Historic Civil Engineering Landmark by ASCE 1979 - Placed on National Register of Historic Places

slide-27
SLIDE 27

1926 1997

Jones Island Wastewater Treatment Plant

slide-28
SLIDE 28

1936

Auer Ave Siphon Jones Island Ferric Chloride Storage Milorganite loading

slide-29
SLIDE 29

Public Works Administration (PWA)

  • New Deal Act passed in 1933
  • Public Works Administration-Grant Money
  • $6 Billion
  • 65% of Wastewater Plants in USA
  • 1933-1944
  • Preliminary/Primary Treatment
slide-30
SLIDE 30

WPA Program

  • Part of New Deal of 1933
  • Works Progress Administration (WPA)
  • Small projects
  • Hired and paid people on relief
  • Projects for youth and women
  • Some WPA staff worked on PWA projects
slide-31
SLIDE 31

Some PWA Plants

  • Green Bay-1935
  • La Crosse – 1938
  • Manitowoc-1940
  • Racine -1938
  • Kenosha-1940
  • Sheboygan-1937
  • Eau Claire-1940
  • Others
slide-32
SLIDE 32

GBMSD 1935-1955

slide-33
SLIDE 33

GBMSD 1955

slide-34
SLIDE 34

Research Combined Municipal and Paper Mill Waste Treatment-1967

slide-35
SLIDE 35

GBMSD 1975

slide-36
SLIDE 36

La Crosse 1936

slide-37
SLIDE 37

La Crosse Engine-generators

slide-38
SLIDE 38

La Crosse Plant Open House Article July 3, 1938

“The gas produced in this digestion is used to operate all equipment, furnish lights, and even heat for the buildings”

“The Public Works Members are

insistent on the public understanding that in visits to the plant there will be nothing offensive to be faced” Plant managed by Carl Walstrom and four operators working 8-hour shifts.

slide-39
SLIDE 39

Anaerobic Digester – Pancake Shape

slide-40
SLIDE 40

Anaerobic Digestion of Sludge

Wastewater Mechanical Thickening Dewatering Liquid Disposal Cake Disposal Desulfuri- zation Siloxane Removal Storage Excess Power Heat Digester Gas Handling Recycle Gravity Thickening w/Mixing

slide-41
SLIDE 41

Sheboygan 90-100% Power Generation From Digester Gas

slide-42
SLIDE 42

Micro-turbine Power Generation

slide-43
SLIDE 43

Methane Powered Engine-Generators

slide-44
SLIDE 44

Gas Utilization as CNG

slide-45
SLIDE 45

Percentage of Municipalities Meeting Clean Water Act Goals-WDNR

18% 46% 95% 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Year 1974 1979 1983

slide-46
SLIDE 46

Treatment Plants by July 1984-WDNR

  • Activated Sludge

279

  • Aerated Lagoons

118

  • Stabilization Ponds

127

  • Rotating Biological Contactors

56

  • Trickling Filter

44

  • Oxidation Ditch

35

  • Packed Tower

2

  • Septic and Primary Treatment

22

  • Total

683

slide-47
SLIDE 47

Bio-tower (Packed Tower)

slide-48
SLIDE 48

Media

slide-49
SLIDE 49

Bio-towers

slide-50
SLIDE 50

Manitowoc Fixed Film-1976

slide-51
SLIDE 51

Rotating Biological Contactor-mid 70’s

slide-52
SLIDE 52

Page 52| October 8, 2015 WWOA 49th Annual Conference

Eau Claire’s RBC WWTP

RBCs Primary Clarifiers RWW Pumps/Screening/ Grit Removal Final Clarifiers Administration/ Laboratory Bldg Secondary Digesters Primary Digesters Sludge Storage Chlorine Contact Basins

slide-53
SLIDE 53

Ammonia Treatment-Nitrification

  • Two Stage Activated Sludge Nitrification-Mid 70’s
  • Combination of Activated Sludge and Fixed Film
  • Communities

– Waupun – Beaver Dam – West Bend – Howards Grove – Grafton – Others

slide-54
SLIDE 54

Lake Geneva-1985

  • First cold weather single stage nitrification-

denitrification facility in the nation.

  • Discharge to seepage cells
  • Total nitrogen standard less than 10 mg/l.
  • Lake Geneva discharges effluent at

– Total nitrogen-2 mg/l – BOD and TSS less than 10 mg/l

slide-55
SLIDE 55

Lake Geneva Orbal Oxidation Ditch

slide-56
SLIDE 56

Activated Sludge Modifications – ’90s to present

  • Sequencing Batch Reactor (SBR)
  • Selectors
  • Anoxic and anaerobic zones
  • Biological phosphorus removal

– Bardenpho – AO, A2O, UCT and modifications, etc.

  • Control of nitrification-denitrification
  • High rate with fixed media-MBBR or IFAS
slide-57
SLIDE 57

Sequencing Batch Reactor Somerset, WI

slide-58
SLIDE 58

Page 58| October 8, 2015 WWOA 49th Annual Conference

Eau Claire BNR Selector Zones

slide-59
SLIDE 59

Wisconsin Rapids-MBBR Moving Bed Biofilm Reactor or Integrated Fixed Film Activated Sludge

slide-60
SLIDE 60

Lagoon Systems

  • Stabilization Ponds
  • Two and three stage aerated lagoon with

settling

  • Covered lagoon – Control Algae
  • Chemical treatment for phosphorus removal
  • Filter effluent
slide-61
SLIDE 61

Brownsville, WI Covered Lagoon

slide-62
SLIDE 62

Industrial Waste Treatment

  • Paper Mills
  • Food Processing
  • Metal Finishing-physical/chemical
slide-63
SLIDE 63

La Crosse’s City Brewery – First Pretreatment using -Biothane

slide-64
SLIDE 64

Bush Brothers-Bean WWTP Augusta, WI

slide-65
SLIDE 65

Anaerobic Reactor with Nitrification- Denitrification Activated Sludge

slide-66
SLIDE 66

Stevens Point

  • City-Industry Cooperative Project
  • Stevens Point Brewery Waste
  • Concentrated Brewery Waste to City’s

Anaerobic Digester via Force main

  • Both Benefit
slide-67
SLIDE 67

Brewery Waste

Waste Segregation

Thin Thick

New Force Main to EQ Tank

WWTP Aerobic Treatment WWTP Anaerobic Treatment

To Digester and Engine Generator

Energy Produced

Hauled in Waste

Energy Required

slide-68
SLIDE 68

Instrumentation Graphic Displays for Monitoring

slide-69
SLIDE 69

PLCs with Computer Control

slide-70
SLIDE 70

Laboratory Analysis

From Milligrams to Micrograms/Liter QA/QC YES NO

slide-71
SLIDE 71

Goal Met-Protecting Wisconsin Waters

slide-72
SLIDE 72

Acknowledgements

  • Madison MSD
  • Milwaukee MSD
  • NEW Water Green Bay
  • La Crosse
  • Lake Geneva
  • Whitewater
  • Manitowoc
  • Operators, Engineers and WDNR Staff
